Old 02-05-2012, 02:08 PM #148
R-M-I
Angry Norwegian

R-M-I's Avatar

Join Date: Jun 2008
Location: Norway
Annual Supporting Member
R-M-I posts videos on PbNation
To the poster above...for smaller parts like you mention here, do it by hand. Way easier to get to the smaller grooves and holes That's what I do atleast..

On a separate note:
Did a UL-back here a few days ago.. Think the result was pretty nice..

I left the Dye ul-lettering and the ridges + logo on the barrel dust black (the original color)..

And polished up the rest using increasingly fine sandpaper
Took a while..but the result was reward enough for me..

Behold!!



The image quality isn't the best.. But I assure you, it is SHINY And, you might aswell admit it right away.. The "leaving the logo, lettering and ridges dust black = AWESOME.
I haven't seen it done before, but always figured it would look GREAT..
__________________

MiniHalfblockMQ-cocker | Warped Sportz Dark Ego 6 |Freeflow MQ project cocker

Feedback:
Splat.no(translated via google-translate) -> http://translate.google.com/translat...3796&act=u rl

I <3 MQ-valves!
R-M-I is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 02-06-2012, 12:05 AM #149
WakeJake
US Army

WakeJake's Avatar

Join Date: Mar 2006
Location: Auburn, Alabama
 has been a member for 10 years
WakeJake is for the Gunfight
WakeJake plays in the APPA D5 division
WakeJake has achieved Level 2 in PbNation Pursuit
how did you remove the anno? i want to mess around with my old dm3, but i want to do it right.
__________________
Auburn University
WakeJake is offline   Reply With Quote
Old 02-06-2012, 01:40 AM #150
R-M-I
Angry Norwegian

R-M-I's Avatar

Join Date: Jun 2008
Location: Norway
Annual Supporting Member
R-M-I posts videos on PbNation
I simply sanded it down by hand
__________________

MiniHalfblockMQ-cocker | Warped Sportz Dark Ego 6 |Freeflow MQ project cocker

Feedback:
Splat.no(translated via google-translate) -> http://translate.google.com/translat...3796&act=u rl

I <3 MQ-valves!
R-M-I is offline   Reply With Quote
Old 02-22-2012, 12:22 PM #151
dc5ftw06


Join Date: Dec 2011
Quote:
Originally Posted by Dp_Factory_Man View Post
Keep working on those hooked on phonics bro. ^. I use a grinding wheel with a buffing wheel. I usually start with 240 grit, then 520, then 800, then 2000 grit. Then I take it to the wheel with alot of compund on it and it produces a mirror finish.
Thats what I did and my my ETEK 2 looks amazing. Just put some time into it and go slow. Work only on areas that would get poslished.
dc5ftw06 is offline   Reply With Quote
Old 04-02-2012, 06:59 PM #152
Sneakerhead (Banned)

Join Date: Apr 2012
Location: NYC
Wow, i haven't been in the scene in a while but the anodizing work is looking GOOD! on this thread!
Sneakerhead is offline   Reply With Quote
Old 06-10-2012, 08:20 PM #153
Bigjoe11
"The Boss"

Bigjoe11's Avatar

Join Date: Jun 2011
Location: North Carolina
Bigjoe11 owns a Planet Eclipse Etek
Bigjoe11 has achieved Level 1 in PbNation Pursuit
Bigjoe11 has achieved Level 2 in PbNation Pursuit
Bigjoe11 supports DLX Technology
Quote:
Originally Posted by JoshGrrrr View Post
I don't think I have ever seen a paintball barrel that was even close to holding that tolerance. I don't think you will find any that hold a .001 tolerance. Much less a tenth.
Actually, Tippmann measures to tolerances of .001 for their stock barrels.... if you happen to be measuring in kilometers....
__________________
-UCP
Bigjoe11 is offline   Reply With Quote
Old 07-03-2012, 09:57 AM #154
h00ver


Join Date: Jul 2012
That UL Barrel looks sweet with the dark letters
h00ver is offline   Reply With Quote
Old 08-05-2012, 05:53 PM #155
returnofmike
Returning PB rookie

returnofmike's Avatar

Join Date: Nov 2011
Location: springfield
Looks Great!
__________________
OG impulse
04 AC prostock
SP ion
Classic Minimag(my project) - sold
Spyder pilot ACS (my tinker toy) - sold
returnofmike is offline   Reply With Quote
Old 09-24-2012, 01:14 AM #156
cockerfan87


cockerfan87's Avatar

Join Date: Sep 2012
Location: Fort Walton Beach Fl
cockerfan87 owns a Planet Eclipse Ego
cockerfan87 is for the Gunfight
cockerfan87 supports Pev's Paintball
cockerfan87 is attending Decay of Nations VI
Very insitefull, thank you
cockerfan87 is offline   Reply With Quote
Old 04-09-2013, 11:56 AM #157
Spyder124
muddy husky

Spyder124's Avatar

Join Date: Dec 2002
Location: Dublin, OH
 has been a member for 10 years
Spyder124 is an NCPA player
Spyder124 plays in the APPA D5 division
Reviving an old *** thread, but I need some input from you expert polishers...
Please take a look!

http://www.pbnation.com/showthread.php?t=3962835
__________________
Feedback Ebay Feedback
OU Paintball
Spyder124 is offline   Reply With Quote
Old 12-12-2013, 09:14 PM #158
AlamoViking
mini w/redline &gt; AXE

AlamoViking's Avatar

Join Date: Nov 2012
Location: San Antonio, Texas
AlamoViking owns a Planet Eclipse Geo
AlamoViking is for the Gunfight
AlamoViking has achieved Level 2 in PbNation Pursuit
thank you so much
__________________
...........H..................[]
...........K......<""""`"""//""""XXXXXXX:::::::::::::::l
...........A.......####//---==>
...........R..... ###'{\'`|''[]
...........M.....#//#"'''\,_/ []
...........Y....##,#" . ....[]
....|---------O|iiiiiiI}-----[]
....|________|
AlamoViking is offline   Reply With Quote
Old 09-28-2014, 11:43 PM #159
PalmBeacH_ninja
910

PalmBeacH_ninja's Avatar

Join Date: Jan 2013
Location: FL
PalmBeacH_ninja owns a Planet Eclipse Ego
PalmBeacH_ninja has perfected Level 1 in PbNation Pursuit
PalmBeacH_ninja has achieved Level 2 in PbNation Pursuit
There is a lot of great advice in this thread. Thanks for all the advice, and ideas!
PalmBeacH_ninja is offline   Reply With Quote
Old 11-03-2014, 08:59 AM #160
NBTippy
ping pong champ

NBTippy's Avatar

Join Date: Sep 2011
Location: NB, Canada
NBTippy owns a Planet Eclipse Geo
NBTippy plays in the APPA D5 division
NBTippy has achieved Level 4 in PbNation Pursuit
NBTippy supports Ninja Paintball
Just wanted to thank/share. Thanks to reading through this thread I was able to polish my 3.1. It's got flaws but over-all I'm happy with the result.

__________________
NBTippy is offline   Reply With Quote
Old 01-13-2016, 11:49 AM #161
Reactor
Kansas State Paintball#22

Reactor's Avatar

Join Date: Jul 2009
Location: Kansas
Reactor is playing at Living Legends VI
Reactor is for the Gunfight
Reactor is for the Gunfight
Reactor is an NCPA player

These are the internal pieces to my 2013 Vanguard Demon
__________________
Visit Kansas State Paintball
Kansas State Paintball on Facebook
President for Kansas State University Paintball Team (2012-2015)
#22
Reactor is offline   Reply With Quote
Old 02-09-2016, 12:24 PM #162
mkhkilla


Join Date: Feb 2016
Location: Missouri
Quote:
Originally Posted by orionz06 View Post
rule # 1....never use a wire wheel on soft metals....especially aluminum..it will create so many gouges that will have to be SANDED out, youll cry..
OH man, where was this post for me about two weeks ago? Yeaaaa I figured that out the hard way, haha.. luckily on a cheap piece of gear tho, I was practicing for my nicer equipment. Thanks for the tips on the chrome polish though! I knew there was more needed to be done after stripping the ano to shine it up, lol, just didn't know what exactly. Been working on stipping pieces of my E1 to polished aluminum to accent the dust black.. was way too boring just all black!
mkhkilla is offline   Reply With Quote
Old 02-09-2016, 12:34 PM #163
mkhkilla


Join Date: Feb 2016
Location: Missouri
wowwww some of those pics look great gus.. makes my work so far look like CRAP! altho I DID just strip the paint like days ago, havent buffed, polished or done anything else yet



Which step should I go to next? lol. Just learning so be nice please!
mkhkilla is offline   Reply With Quote
Old 12-06-2016, 11:58 AM #164
Subzero4-5


Subzero4-5's Avatar

Join Date: Oct 2016
Location: California
This is my technique.
The first step is to strip the anno. This can be done by:
A. Use a Fine metal file 1in wide. Or 150 grit sand paper. Use hand or machine with a light touch until bare metal shows. Be careful not to press too hard otherwise there will be deep gouges that are difficult to polish out. You can use a dremel for the interior sections but use an equiv grit on your sanding bit. Keep turning the part to insure the sanding is evenly spread out. I used painter's blue tape to seal off unsanded sections.

B. Once the anno is off the fun begins. I start with a 400 grit wet sand paper by hand and work the area until all deep grooves from the first step are gone. This is the most difficult part. Be sure to keep turning the part to keep the sanding even.

C. Now I use a 600 grit to smooth it out even further. Then finish with a 1500 grit. All done by hand while rotating the part.

Examine your work under a bright lamp to insure all deep grooves have been removed. Repeat B & C until smooth.

D. Polishing. This is the tricky part. I use Armson Pro-Plus barrel treatment which works fine for me. Unfortunately, Armson is no longer sold.. (Others recommend more available polishing compounds which I'm sure work fine....see previous posts). I first finger apply a light coating of the polish on the bare metal and smear the polish on a clean piece of paper (making my own fine sandpaper). While the polish is slightly damp, start working the area. You should see some black residue on the paper indicating the rough sections are being rubbed off. The part should show a good shine at this time. Repeat this process until you get the level of shine you want.

Note: if you cannot get your shine, repeat B, C & D until achieved.

Suggestion: Do this while watching a football game and time will pass quickly.

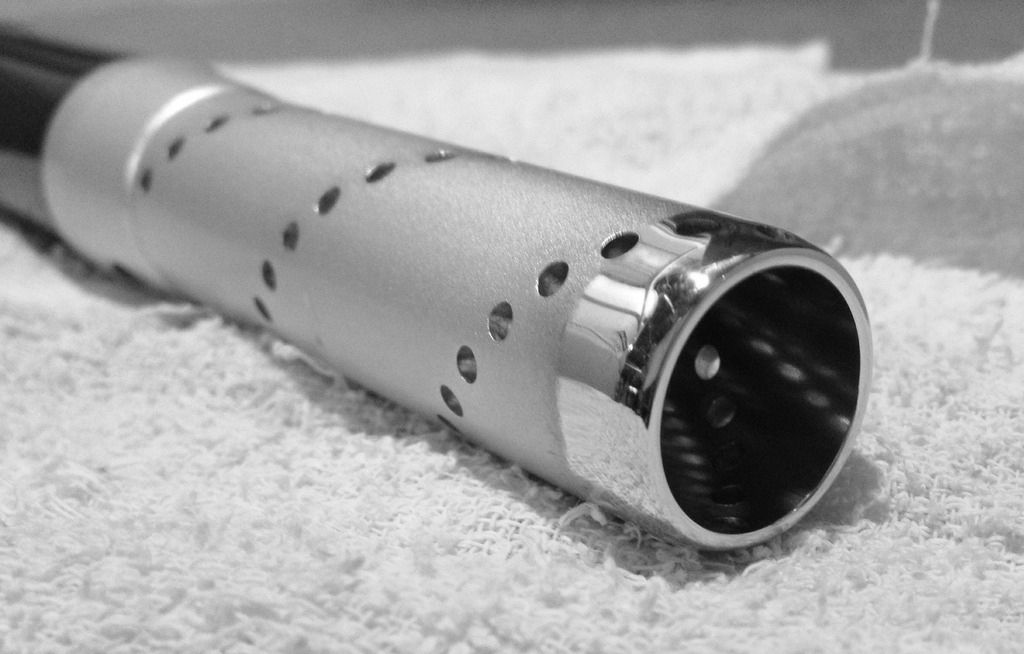

I cut and polished the end of this Freak front. Check it out. This was done over a couple of days....so don't rush it. I had to repeat the cycle several times.

__________________
Piranha G2 E-force Grip Ported for 250psi LP
Boss Delrin Bolt
Messiah Vertical Reg
ShockTech Drop Forward
Ninja Pro V2 Tank 68cu 4500psi

Last edited by Subzero4-5 : 12-06-2016 at 12:18 PM.
