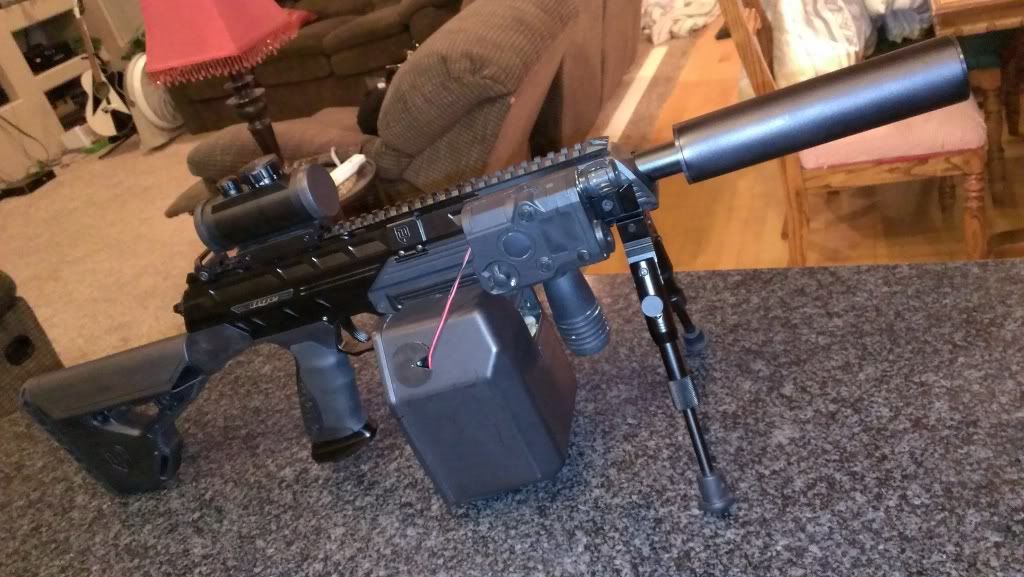

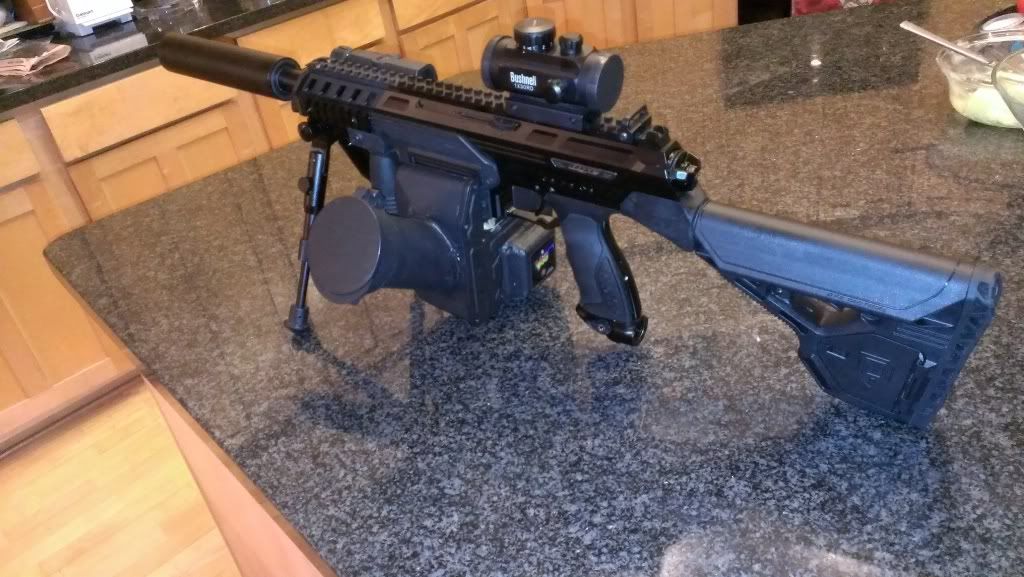

My Dye DAM with homemade box mag, feeds thru magazine port!

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

Test Firing:
https://www.youtube.com/watch?v=RpZ8sQyXM4k

Hey guys! Am I the first one to put a Box mag on a DAM? (prolly not)
This is a box mag I originally built to be put on a Tm15. I sold my Tm15, sold a suped up tipx, and used the funds to buy a DAM. While I was low on cash, I thought I might as well get this thing on the DAM instead of spending money I dont have on a Rotor.
I specifically bought this DAM to play around with toggling hopper/FSmags, and during the weekends I dont want to play with First Strike, Ill be sporting this beauty.

First off, I love it because It doesnt give my opponents a hopper to shoot at. Yes, I will be playing lots of Rec-ball, in which my field says gun shots dont count, but hey, who wants paint on their gun anyways? Its smooth firing, sexy, and built tough.

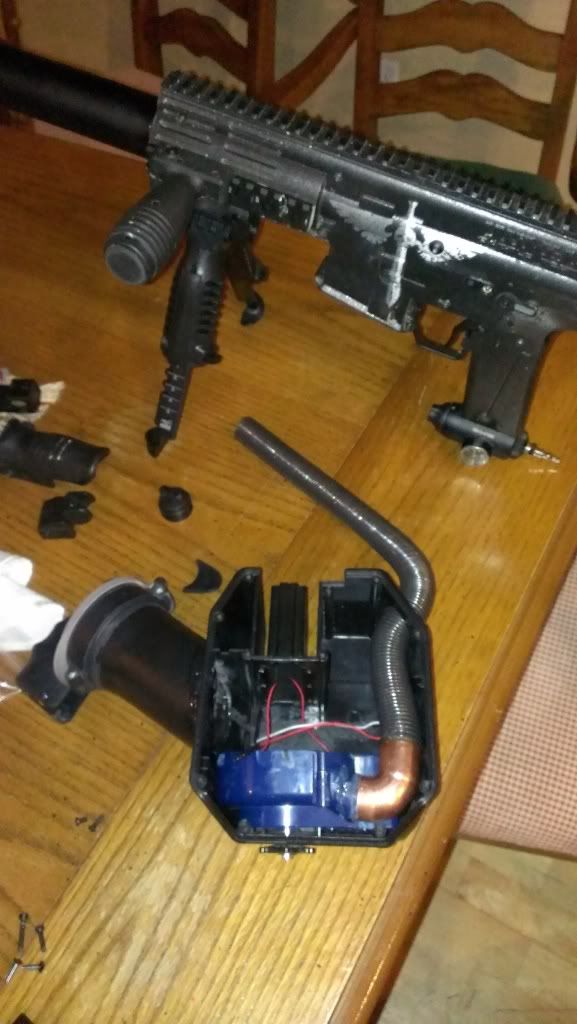

The insides are a B2 board on a v35 raceway. Warp feed tubing and 3/4 copper elbows direct the flow of paint up thru the magazine. The false laser sitting on the right hand side rails houses a Dueydog bone pack battery that was made to give the halo loaders more power. Without that battery, the vertical upward feed system would be too heavy for a normal 9v or 4 AA batteries.
I confirm in the video that I can hold (2) 100rd pods of paint in the hopper. I was missing 4 rounds, but hey, I hadnt turned on the loader to fill the warp feed/elbows/mag yet, so it would have fit if I had the thing going.
Ive seen a LOT of these box mags made for Tippmanns and I HATED them, because most of the videos showed them putting the cyclone inside like my b2 raceway. Because of that, they could only hold a single pod of paint in the "box mag" lol.

Aint nobody got time for that lol.

Any questions let me know. Just kinda wanted to show it off right now, but if enough people are interested, I can make a how to video.
__________________
LIVE AND LET DIE
11XIII is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 08-17-2013, 06:13 PM #2
11XIII


11XIII's Avatar

Join Date: Mar 2013

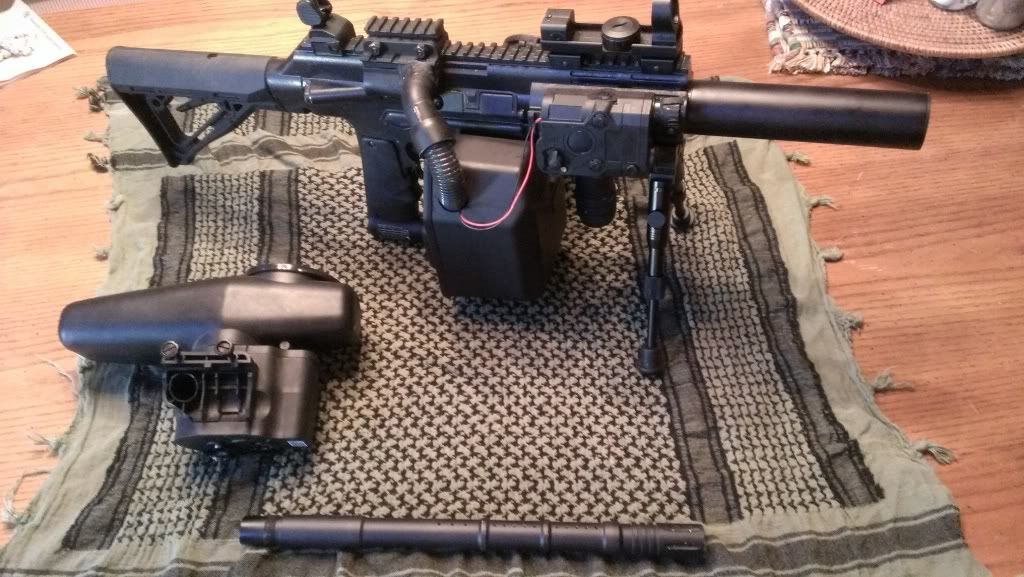

This is what it looked like and how it fed on my tm15
