just picked up a quest. it needs work…

hey FEP forum, iv thought the quest was cool for awhile and finally picked one up but there are a few issues with it. i think i have a solution on how to get it to work but i need a little more info.

problem: solenoid connector is gone. but i do have the 2 leads coming from the noid which is good.

solution 1: i go to a store, buy a couple quick connects, solder them on. hope it works. this is probably what i will attempt first but I'm wondering what lead goes to which side of the noid (if you post a pic of your board connected to the noid i will know what goes where).

solution 2: would involve replacing the noid with one that still has the connector attached.

solution 3: attempt to find/use a different board & noid combo altogether. this would be a last and worst case scenario

the manual for the gun i have says the board is a was equalizer, but iirc there were a couple different stock boards? so the connector for the noid is also directly attached to the battery harness (don't know if this tells you anything or not). ill post a pic later today showing the inside so i can get some more info.

thanks.
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 05-21-2014, 09:40 AM #2
tacxplosion


tacxplosion's Avatar

Join Date: Sep 2007
Location: Guatemala (for real)
If the harness doesn't have the connector attached, you can get them at digikey or any other electronic component store:

solenoid plug (on battery harness)
Molex - 51021-0200

solenoid plug (solenoid end)
Molex - 51074-0200

Either way, re-soldering is your best bet.




Check this thread for the board model (and a few other tidbits)
http://www.pbnation.com/showthread.php?t=2418234

Last edited by tacxplosion : 05-21-2014 at 09:44 AM.
tacxplosion is offline   Reply With Quote
Old 05-21-2014, 01:30 PM #3
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
ok I'm going to try and find one of those molex connectors locally, and it looks like i have the inovic board (not sure which chip though). not sure which flash i have though, anyone have the manuals for the 2.4 or 2.5 flash downloaded? or even just tell me what they are.
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old 05-25-2014, 07:24 PM #4
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
board looks like its an inoviq with a 2.5 flash. anyone know where i can find a manual? tried google but couldn't find anything.
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old 05-25-2014, 09:32 PM #5
excope
Legacy of 806

excope's Avatar

Join Date: Mar 2007
Location: TN
Annual Supporting Member
excope is BST Legit
excope owns a Planet Eclipse Etek
excope is for the Gunfight
excope has achieved Level 3 in PbNation Pursuit
excope supports DLX Technology
excope supports Empire
PM me your email, I have the 2.5 manual.

You prolly know but the 2.5 chip is only on the black Inoviq boards and the 1.9 is only on the green ones.
Just fyi.
__________________
Christ Krew
excope is offline   Reply With Quote
Old 06-05-2014, 09:15 PM #6
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
ok so i got the connector and got it on and thats fine. now the problem I'm having is over pressurizing on the gauge (almost maxing the gauge out). i went through the manual and tried all the suggestions there and nothing. any other ideas?
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old 06-05-2014, 09:41 PM #7
tacxplosion


tacxplosion's Avatar

Join Date: Sep 2007
Location: Guatemala (for real)
Sounds like the LPR valve core is busted, does it still read pressure with the adjustment all the way out? In case you need one, I got my spares from here:
http://www.jbtoolsales.com/fjc-2675-volvo-valve-core/

Last edited by tacxplosion : 06-05-2014 at 09:47 PM.
tacxplosion is offline   Reply With Quote
Old 06-05-2014, 10:07 PM #8
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
Quote:
Originally Posted by tacxplosion View Post
Sounds like the LPR valve core is busted, does it still read pressure with the adjustment all the way out? In case you need one, I got my spares from here:
http://www.jbtoolsales.com/fjc-2675-volvo-valve-core/
yes it reads pressure with the adjustment screw almost out flush with the lpr body.
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old 06-06-2014, 12:04 AM #9
tacxplosion


tacxplosion's Avatar

Join Date: Sep 2007
Location: Guatemala (for real)
If you get a leak from the valve core (verify with soapy water) after removing the LPR body, then yeah, it's a busted valve core. Turning the adjustment screw flush with the cap doesn't mean that it's not pressing on the spring any more, mine sits 4 threads out of the cap when not applying force to the spring.

Even then, mine will still press on the spring shim with the LPR body's internal shoulder, so much so that it's enough to reliably cycle my quest (the only reason I keep the adjustment screw on, is to prevent paint going into the spring section in case I take a shot to the LPR).

Last edited by tacxplosion : 06-06-2014 at 12:11 AM.
tacxplosion is offline   Reply With Quote
Old 06-06-2014, 08:02 AM #10
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
Quote:
Originally Posted by tacxplosion View Post
If you get a leak from the valve core (verify with soapy water) after removing the LPR body, then yeah, it's a busted valve core. Turning the adjustment screw flush with the cap doesn't mean that it's not pressing on the spring any more, mine sits 4 threads out of the cap when not applying force to the spring.

Even then, mine will still press on the spring shim with the LPR body's internal shoulder, so much so that it's enough to reliably cycle my quest (the only reason I keep the adjustment screw on, is to prevent paint going into the spring section in case I take a shot to the LPR).
ok il have to order one of those volvo replacement ones. the one you linked previously is the LPR size one correct? since I'm going to order one should i replace the HPR one as well? and is there a volvo one i could retrofit as well?
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old 06-06-2014, 09:49 AM #11
tacxplosion


tacxplosion's Avatar

Join Date: Sep 2007
Location: Guatemala (for real)
Quote:
Originally Posted by bcrguy View Post
ok il have to order one of those volvo replacement ones. the one you linked previously is the LPR size one correct?
Yes, my quest came with a bent LPR core pin originally, a local A/C repair guy wanted $15 for a single one! so I told him to go dance on a stick and fall onto it and had the 5 pack shipped down here (for $20 total including shipping and duties). The local Volvo dealership would've wanted much more for it (usually twice as much as the A/C guy).

Quote:
Originally Posted by bcrguy View Post
since I'm going to order one should i replace the HPR one as well?
might as well

Quote:
Originally Posted by bcrguy View Post
and is there a volvo one i could retrofit as well?

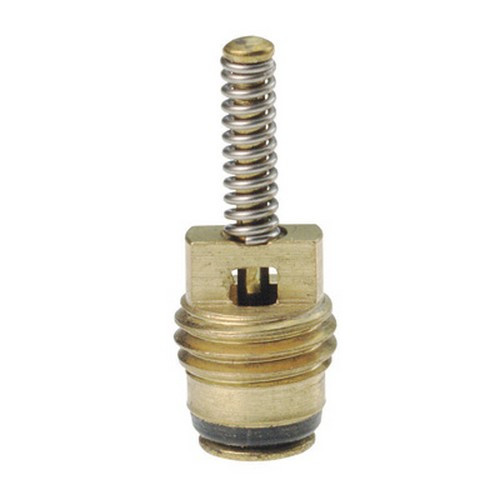

Not necessarily volvo, but this might fit; since 5/16" comes to about 8mm flat and threads for valve cores are usually 5/16"-24:

http://www.jbtoolsales.com/fjc-2676-...ls-valve-core/

No guarantees, though it looks fairly close to the one advertised on the critical website (from which you can also get each single one for a slightly higher price than a 5-pack of each at JB tools)

Criticalpaintball ($12 each single valve core)


JB tools ($8-$9 each 5-pack of either)

Last edited by tacxplosion : 06-07-2014 at 11:03 PM.
tacxplosion is offline   Reply With Quote
Old 06-06-2014, 10:48 AM #12
Demo2222
.

Demo2222's Avatar

Join Date: Jun 2011
Location: socal
Annual Supporting Member
Demo2222 is playing at Living Legends VII
Demo2222 supports Empire
Try removing the lpr set screw completely and see if the Lp pressure is too high still.
I've seen cases were the set screw is too long and even at flush it is depressing the valve stem too much

Last edited by Demo2222 : 06-06-2014 at 10:50 AM.
Demo2222 is offline   Reply With Quote
Old 06-07-2014, 08:48 PM #13
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
ok so i took the set lpr screw out completely and the pressure did not max out. i got it to cycle consistently with the lpr at 1 or 2 threads in and the hpr t 3-4 threads in (gauge reads between 125 and 150 psi IIRC). i wont be able to get it over a chrono until early next month but it seems to be working well.
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old 06-07-2014, 11:05 PM #14
tacxplosion


tacxplosion's Avatar

Join Date: Sep 2007
Location: Guatemala (for real)
If the pressure reading moves on the gauge when you adjust the HPR, without touching the LPR, then the LPR is being bypassed and you need a new valve core.
tacxplosion is offline   Reply With Quote
Old 06-08-2014, 07:45 PM #15
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
Quote:
Originally Posted by tacxplosion View Post
If the pressure reading moves on the gauge when you adjust the HPR, without touching the LPR, then the LPR is being bypassed and you need a new valve core.
i don't think it was but ill double check tomorrow.
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old 06-08-2014, 11:07 PM #16
Demo2222
.

Demo2222's Avatar

Join Date: Jun 2011
Location: socal
Annual Supporting Member
Demo2222 is playing at Living Legends VII
Demo2222 supports Empire
125- 150 is too high really. Maybe the Guage is off.
Can you not reduce the pressure lower than that and cycle reliably or is that as low as it goes period?
If you need to you can even try backing the whole cap out. (I've actually had to do this before)

Last edited by Demo2222 : 06-08-2014 at 11:10 PM.
Demo2222 is offline   Reply With Quote
Old 06-09-2014, 07:25 AM #17
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
Quote:
Originally Posted by Demo2222 View Post
125- 150 is too high really. Maybe the Guage is off.
Can you not reduce the pressure lower than that and cycle reliably or is that as low as it goes period?
If you need to you can even try backing the whole cap out. (I've actually had to do this before)
i could be wrong. I'm going to double check this afternoon and il post up what i found.
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old 06-09-2014, 11:23 AM #18
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
ok the gauge stays at about 100 psi even when the HPR is adjusted. related question that i think i already know, is the gauge measures the LPR output correct?
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
Old 06-09-2014, 03:14 PM #19
Demo2222
.

Demo2222's Avatar

Join Date: Jun 2011
Location: socal
Annual Supporting Member
Demo2222 is playing at Living Legends VII
Demo2222 supports Empire
yes that is correct it reads your low pressure output. that air is then routed to the solenoid and used to cycle the bolt.
Demo2222 is offline   Reply With Quote
Old 06-09-2014, 03:24 PM #20
tacxplosion


tacxplosion's Avatar

Join Date: Sep 2007
Location: Guatemala (for real)
Yes, so your valve core IS sealing. Do you have an HPR tester (ASA with a gauge on it)? If so, set your HPR to 200 and the LPR to 90-100, dwell to 10ms. Does the gauge creep up if you let the marker sit for 10 minutes?

If it does, the rear air chamber o'ring (rear 3. on the sticky diagram) might be bad and leaking HP air into the front LP side of the bolt, slowing the cycle down, preventing the bolt from cycling properly at stock dwell (also messing with efficiency).

If it doesn't cycle properly with those settings and it's not creeping, you have a leak or obstruction somewhere in your LP side, anywhere between the LPR and the rear LP output, it could be a front set screw turned too far in, choking the LP system, it could also be a leak from the manifold or a rear body setscrew turned too far in, partly blocking the LP output to the bolt.

If those are checked and found to be OK, take your bolt and pin out and move the bolt over the pin by hand, does it snag, or is there a bump somewhere in the range of movement of the bolt? It should move freely with minimal effort. If not, your sail and/or air chamber o'rings might be at fault.

My quest (not even broken in) will fully cycle reliably at a dwell of 8ms, with the LPR around 70 PSI when freshly lubed with oiled down Macdev militia V1 (4 parts militia, 1 part gold cup).

If all has been checked but it still has trouble cycling, it might be that your 'noid's coil is dying and you need a new coil.

That's really all I can think of right now that could cause cycling issues other than the HPR starving the marker.
tacxplosion is offline   Reply With Quote
Old 06-09-2014, 06:27 PM #21
bcrguy
F**k S**t Up...

bcrguy's Avatar

Join Date: Apr 2010
Location: Ontario, Canada
bcrguy is playing at Living Legends VI
bcrguy owns a Planet Eclipse Ego
Quote:
Originally Posted by tacxplosion View Post
Yes, so your valve core IS sealing. Do you have an HPR tester (ASA with a gauge on it)? If so, set your HPR to 200 and the LPR to 90-100, dwell to 10ms. Does the gauge creep up if you let the marker sit for 10 minutes?

If it does, the rear air chamber o'ring (rear 3. on the sticky diagram) might be bad and leaking HP air into the front LP side of the bolt, slowing the cycle down, preventing the bolt from cycling properly at stock dwell (also messing with efficiency).

If it doesn't cycle properly with those settings and it's not creeping, you have a leak or obstruction somewhere in your LP side, anywhere between the LPR and the rear LP output, it could be a front set screw turned too far in, choking the LP system, it could also be a leak from the manifold or a rear body setscrew turned too far in, partly blocking the LP output to the bolt.

If those are checked and found to be OK, take your bolt and pin out and move the bolt over the pin by hand, does it snag, or is there a bump somewhere in the range of movement of the bolt? It should move freely with minimal effort. If not, your sail and/or air chamber o'rings might be at fault.

My quest (not even broken in) will fully cycle reliably at a dwell of 8ms, with the LPR around 70 PSI when freshly lubed with oiled down Macdev militia V1 (4 parts militia, 1 part gold cup).

If all has been checked but it still has trouble cycling, it might be that your 'noid's coil is dying and you need a new coil.

That's really all I can think of right now that could cause cycling issues other than the HPR starving the marker.
I'm not having cycling issues anymore, it was just me screwing the lpr in too far at first. everything else seems fine now.
__________________
Ego11, SFT Shocker, Quest, Threshold
Spire, Rotor, Ninja 77/45 and 68/45, Dye i4's,
Citrus Connection #88
bcrguy is offline   Reply With Quote
