Building An Autococker (or Sniper Pump) 101

Here is an in-depth list of parts required to build your Autococker. Whether you're starting out with just a body kit and need to know what parts to buy, or you're looking to upgrade what you already have, this list will point out everything you'll need.

*Video to come soon*

In-depth Autococker Parts List

Parts Common to all Autococker / pump / mid / half-block markers
● Body – Milled body with upper and lower tube. Upper tube holds the breech and bolt, lower tube holds hammer, valve, and associated springs.
o Different body styles:
▪ Full-size
▪ Mini
● Approximately 1.25 inch cut off front of lower tube, vertical ASA directly integrated into front block.
▪ Mid-block
▪ Half-block
▪ Midget
● Mini-style front, some meat cut off back.
● Front block
o Mechanical / electronic
▪ Low pressure regulator
▪ Ram (with or without QEV’s)
▪ 3-way
● On electronics, solenoid + manifold
o Connects to grip frame via wiring harness
● On mechanicals, standard 3-way
o Connects to grip frame via timing rod and timing collar
▪ Full body length
▪ Mini body length
▪ Trilogy length (fixed length, no collar)
▪ If using a mini front block, there’s likely a ⅛” NPT plug required on the bottom (or a low pressure, 0-400PSI gauge)
▪ 3-way pneumatic hose
o Pumps
▪ pump handle,
▪ guide rods,
▪ springs
o All front blocks are attached with a banjo bolt to the body, through the front block.
▪ On non-pumps, a volumizing banjo bolt may be used to increase available valve chamber space (more important on older bodies)
● Vertical ASA
o On mini / midget bodies, the ASA is integrated into the front block, or attaches to the front block via a ⅛” NPT adapter
o On all other bodies, sits between the front block and grip frame.
▪ Comes in 15*, 0*, and -15* versions
● High Pressure regulator
o On modern autocockers (really with the appropriate springs) should be able to provide between 150 and 400 psi to gun. Older bodies with narrower valve chambers may need higher pressure
● Pump arm
o Connects either the ram or the pump handle to the (what I’ll call) bolt carrier group
● Bolt carrier group
o Consists of a bolt, block, and rod or pin to connect the block to the hammer
▪ Bolt – Pre-2k length, 2k length, evo length, mid-block length
▪ Block
● Pre-2k length (looks like a P)
● 2k length (looks like a rectangle)
● Evo length (looks like a reverse P)
● Midblock – sled that rides between upper tube and lower tube
● Halfblock – sled that rides on lower tube (no upper tube)
▪ Rod or pin – connects the block to the hammer
● Pre-2k, 2k, and evo blocks will connect to hammer via cocking rod through back of body and a pin connects the block to the bolt
● Mid and half blocks connect to a slotted hammer via pin from top of bolt through the top of the lower tube
● detent
o WGP bodies generally use a spring-retained ball detent
o Some body styles use Timmy / Spyder / Piranha style rubber detents
o A few body styles (Merlins IIRC) use wire detent
● Beaver tail
o Usually threads behind the grip frame into the body
o Some body styles don’t have that hole threaded and require a special, fixed location IVG
● Lower tube internals
o Valve + valve pin + valve spring
▪ Trilogy / merlin valve
▪ Standard autococker valve (brass, stainless steel, etc)
▪ MQ (electronic) valve – replaces all lower internals with electronic valve and solenoid
o Valve nut – threads behind valve into lower tube securing it in place
o Valve guide plug – threads through bottom of body to hold valve in place
o Hammer
▪ On non-MQ valves:
● Non-slotted hammers for full-size, mini bodies
● Slotted hammers for half block and mid block markers
o Sear lug
▪ Adjustable height to control timing
▪ Square and round varieties
o Main spring
▪ On all non-MQ bodies – sits between hammer and IVG. Forces hammer into valve to fire marker
o IVG
▪ Fixed: non adjustable versions available in some kits (belsales, Merlin)
▪ Adjustable – usually threads into lower tube of body to adjust velocity of marker
▪ Hybrid – Karnivor style. IVG stays fixed to the body, but inner adjustment screw allows additional pressure to be applied to mainspring
● Grip frame
o All frames will have grips of some form and sears of some form of solenoid / electronics
o Electronic
▪ eBlade
▪ Race frame
▪ Centerflag Uprising frame
▪ ???
o Mechanical
▪ Slide frame
● Metal or plastic
● Trigger plate
o Circular hole or oval hole for timing rod (all newer cockers use circular hole)
● Trigger shoe – attaches to trigger plate, what you pull on
● Sear – roller or standard, held in place by pin
● Trigger spring – sits between back of trigger plate and frame
● Sear spring – sits between sear and support in the grip frame
● Safety, safety spring, safety ball bearing (seriously, who uses them?)
▪ Hinge frame
● Trigger – held in place by pin
● Sear – held in place by pin
● Lever or spring to push against top of trigger
● Sear spring – sits below sear and support in the grip frame
● Safety, safety sprint, safety ball bearing
▪ For pump markers
● Auto-trigger kit may be attached to pump arm and frame
● ASA – screw your tank or remote into this.


Compiled by Mod, dymium

__________________

Last edited by gunhero5 : 04-02-2014 at 03:05 PM.
gunhero5 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 02-18-2014, 04:48 PM #2
gunhero5
Aim High - Don't Die

gunhero5's Avatar

Join Date: Apr 2003
Annual Supporting Member
gunhero5 is a Moderator
gunhero5 is a Supporting Member
 has been a member for 10 years
gunhero5 is BST Legit
gunhero5 supports Bob Gurnsey
gunhero5 supports our troops
gunhero5 is Immortal
Basic and essential parts check list
Use this list to cross/double check that your Autococker has all the necessary parts.

Mechanical
  1. Feedneck
  2. Bolt
  3. Barrel
  4. 3-way
  5. Regulator (LPR)
  6. RAM
  7. Pump Arm
  8. Lower Internals (Valve, Valve Guide Plug, Valve Nut, Hammer, Springs, IVG, Cocking Rod)
  9. Trigger Frame
  10. ASA
  11. Regulator (HPR)
  12. Detent
  13. Beaver Tail

Pump
  1. Feedneck
  2. Bolt
  3. Barrel
  4. Pump Kit (Pump handle, guide rod, springs)
  5. Pump Arm
  6. Lower Internals (Valve, Valve Guide Plug, Valve Nut, Hammer, Springs, IVG, Cocking Rod)
  7. Trigger Frame
  8. ASA
  9. Regulator (HPR)
  10. Detent
  11. Beaver Tail

Electronic
  1. Feedneck
  2. Bolt
  3. Barrel
  4. Solenoid Manifold
  5. Regulator (LPR)
  6. Ram
  7. Pump Arm
  8. Lower Internals (Valve, Valve Guide Plug, Valve Nut, Hammer, Springs, IVG, Cocking Rod)
  9. Trigger Frame
  10. ASA
  11. Regulator (HPR)
  12. Detent
  13. Beaver Tail


There are also a couple specialty tools you will need for full disassembly, beyond a good set of hex/allen wrenches.

-Valve Removal Tool
-12pt 1/4" Socket

Valve removal tools are pretty easy to pick up on the web both new and used.
I got my 12pt socket at Sears.

Compiled by Mod, shunut


Quote:
Originally Posted by noclue119 View Post
So this isn't quite an autococker. But here is the break down of parts you need to make a pump.

__________________

Last edited by gunhero5 : 07-18-2014 at 12:24 AM.
gunhero5 is offline   Reply With Quote
Old 02-18-2014, 04:48 PM #3
gunhero5
Aim High - Don't Die

gunhero5's Avatar

Join Date: Apr 2003
Annual Supporting Member
gunhero5 is a Moderator
gunhero5 is a Supporting Member
 has been a member for 10 years
gunhero5 is BST Legit
gunhero5 supports Bob Gurnsey
gunhero5 supports our troops
gunhero5 is Immortal
Mechanical Assembly




Mechanical Disassembly




Pump/Sniper Assembly




Pump Sniper Disassembly

__________________

Last edited by shunut : 05-11-2014 at 09:59 PM.
gunhero5 is offline   Reply With Quote
Old 02-18-2014, 11:19 PM #4
addicted2dunes


addicted2dunes's Avatar

Join Date: Dec 2011
Location: Orcutt, CA
addicted2dunes has achieved Level 1 in PbNation Pursuit
● Approximately 1 inch cut off front of lower tube, vertical ASA directly integrated into front block.

I always take 1.25" off to be exact.

● Mini-style front, some meat cut off back. Can only be used with MQ valves.

Not true, I have built about five mechanical mini, midget, halfblocks. All have worked fine, you just have to play with spring combos a lot.
__________________
"Originally posted by pumzele: If you don't know at least one of them (nuke, wedge, a2d, darkpolo, metalmover, demo222, ect.) I highly doubt you are a regular to this forum..."
addicted2dunes is offline   Reply With Quote
Old 02-19-2014, 11:33 AM #5
Dk-79
SCHWING!

Dk-79's Avatar

Join Date: May 2004
Location: North County, California
 has been a member for 10 years
Nice write up!

This will help a lot of people.
Dk-79 is offline   Reply With Quote
Old 02-28-2014, 05:16 PM #6
JTfxConcept_fan


JTfxConcept_fan's Avatar

Join Date: Feb 2011
thank you, very helpful
JTfxConcept_fan is offline   Reply With Quote
Old 02-28-2014, 11:28 PM #7
Cyrax


Join Date: Jun 2004
 has been a member for 10 years
Good stuff right here this is a great write up. Almost makes you want to start a build.
Cyrax is offline   Reply With Quote
Old 04-02-2014, 01:00 PM #8
noclue119
D3 to D4 in.... never

noclue119's Avatar

Join Date: Feb 2006
Location: Atlanta, GA
Annual Supporting Member
noclue119 owns a Planet Eclipse Ego
noclue119 supports Team VICIOUS
noclue119 plays in the APPA D3 division
noclue119 supports Empire
So this isn't quite an autococker. But here is the break down of parts you need to make a pump.



This is what it looks like after assembly and before anno

Last edited by noclue119 : 04-24-2014 at 03:07 PM.
noclue119 is online now   Reply With Quote
Old 04-02-2014, 01:01 PM #9
John
Straight shooter with upper management written all over him.

John's Avatar

Join Date: Apr 2002
Location: STL
Annual Supporting Member
John is playing at Living Legends VII
John has been published on the PbNation Youtube Channel
John is a PbNation video producer
Quote:
Originally Posted by noclue119 View Post
So this isn't quite an autococker. But here is the break down of parts you need to make a pump.
Awesome addition.

Does anyone have a similar picture to make a full cocker?
__________________
Your questions are answered in the PbNation FAQ. Ask a Mod.
We deserve better villains.
"I have not seen an automag shot in anger in 10 years." Tom Cole
John is online now   Reply With Quote
Old 04-02-2014, 02:06 PM #10
Rancid1845
Not Lazy........ Just Fat

Rancid1845's Avatar

Join Date: Oct 2001
Location: Monmouth County NJ
Annual Supporting Member
 has been a member for 10 years
Rancid1845 is playing at Living Legends VI
Rancid1845 plays in the APPA D5 division
Rancid1845 supports Empire

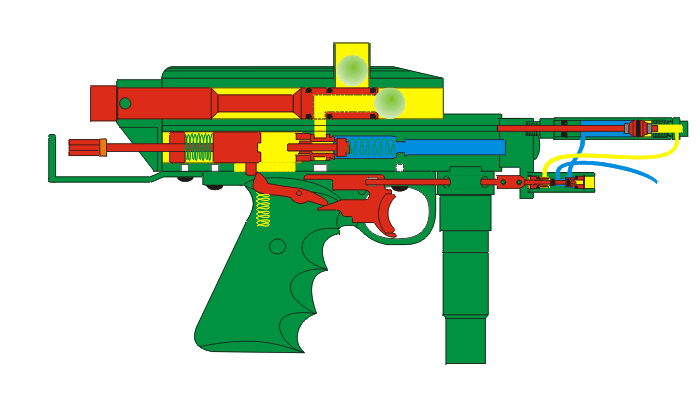

Might want to add this........ its on an old tripod site so you may want to host it somewhere else lest it be lost.

__________________

T2 TOPGUN UNION
TOPGUN HOSTILE TAKEOVER
If it Shoots its "the ****"
Rancid1845 is offline   Reply With Quote
Old 04-02-2014, 03:01 PM #11
gunhero5
Aim High - Don't Die

gunhero5's Avatar

Join Date: Apr 2003
Annual Supporting Member
gunhero5 is a Moderator
gunhero5 is a Supporting Member
 has been a member for 10 years
gunhero5 is BST Legit
gunhero5 supports Bob Gurnsey
gunhero5 supports our troops
gunhero5 is Immortal
Quote:
Originally Posted by Rancid1845 View Post
Might want to add this........ its on an old tripod site so you may want to host it somewhere else lest it be lost.

Adding it in a minute. Thanks!
__________________
gunhero5 is offline   Reply With Quote
Old 04-02-2014, 11:36 PM #12
noclue119
D3 to D4 in.... never

noclue119's Avatar

Join Date: Feb 2006
Location: Atlanta, GA
Annual Supporting Member
noclue119 owns a Planet Eclipse Ego
noclue119 supports Team VICIOUS
noclue119 plays in the APPA D3 division
noclue119 supports Empire
Labelled Image:

http://i.imgur.com/cvBbZQV.jpg

List of parts:

1 Inception Designs Barrel Front .689
2 Inception Designs Barrel Back .675
3 Inception Designs Barrel 14 in Tip
4 Inception Designs Barrel Back .680
5 CCM T Grip Pump Handle
6 CCM Pump Return Spring
7 CCM T Grip Pump Plate
8 CCM Pump Plate Screws X2
9 CCM Pump Kit Main Guide Rod
10 CCM Pump Kit Seconary Guide Rod
11 CCM Pump Kit O-rings X2
12 CCM Pump Arm
13 Empire Sniper Feedneck
14 Empire Sniper Feedneck Lever
15 Empire Sniper Feedneck Bushing
16 Empire Sniper Feedneck Thumb Nut
17 Empire Sniper Feedneck Screws X2
18 CCM Regulator
19 CCM Autotrigger Cam
20 CCM Autotrigger Lever
21 CCM Autotrigger Pin X2
22 CCM Autotrigger Lever Screw
23 CCM Autotrigger Shoulder Screw
24 Inception Designs Kryptonite Full Lengh Body
25 Inception Designs Kryptonite Back Block
26 Inception Designs Kryptonite Vertical ASA
27 WGP VASA O-Ring
28 WGP Autococker Detent
29 CCM Full Length Autococker Bolt
30 CCM Pull Pin
31 CCM Valve Spring
32 CCM Cup Seal
33 CCM Valve Body
34 CCM Valve Jam Nut
35 CCM Valve Set Screw
36 CCM Hammer(full lenght)
37 CCM Main Hammer Spring
38 CCM IVG
39 CCM Cocking Rod
40 CCM Beaver Tail
41 CCM 86 Slider Trigger Plate Shoulder Screws
42 CCM 86 Slider Trigger Plate
43 CCM Sear Pin Set Screw
44 CCM Sear Pin
45 Belsales Roller Sear
46 Belsales Roller Sear Spring
47 CCM 86 Slider Trigger Frame
48 Slider Trigger Plate Height Adjustment Screw
49 CCM 86* Frame mounting Screws X2
50 Hogue Wraparound Rubber Grips CZ 75
51 CCM Grip Panel Screws X2
52 CCM Micro Rail
53 CCM Rail Mounting Screws X2
54 CCM ON/OFF ASA Knob
55 CCM ON/OFF ASA Pin
56 CCM ON/OFF ASA Body

https://docs.google.com/spreadsheet/...&usp=drive_web
noclue119 is online now   Reply With Quote
Old 04-08-2014, 10:40 AM #13
lilmatt87


Join Date: Jul 2005
Location: Hudson Valley NY
Very nice guys. a good read.
__________________
Masterblasters - Bout as oldschool as it get,s !

Proudly Sponsored by Tuthilltown Spirits. See more @ www.Tuthilltown.com
lilmatt87 is offline   Reply With Quote
Old 04-08-2014, 10:54 AM #14
jurena809
Don't Give Up The Ship

jurena809's Avatar

Join Date: Feb 2014
Location: New York and SC
Annual Supporting Member
jurena809 is playing at Living Legends VII
jurena809 owns a Planet Eclipse Geo
jurena809 has perfected Level 1 in PbNation Pursuit
jurena809 has achieved Level 2 in PbNation Pursuit
jurena809 has perfected Level 2 in PbNation Pursuit
jurena809 supports Empire
This makes me want to build one now. Thanks guys.
jurena809 is offline   Reply With Quote
Old 04-08-2014, 11:35 AM #15
Stingy Mcdingy


Stingy Mcdingy's Avatar

Join Date: Apr 2009
Location: Tacoma WA
Great write up! I highly recommend building a cocker for anyone who has the interest.
__________________
* NO I don't wan't to trade for your Shocker regardless of "ups"..."
Stingy Mcdingy is offline   Reply With Quote
Old 04-08-2014, 12:04 PM #16
pballer8793


pballer8793's Avatar

Join Date: May 2009
pballer8793 is playing at Living Legends III
pballer8793 is playing at Living Legends V
pballer8793 owns a Planet Eclipse Geo
pballer8793 owns a Planet Eclipse Ego
Quote:
Originally Posted by John View Post
Awesome addition.

Does anyone have a similar picture to make a full cocker?
I'll post mine when I finish getting parts for my SFL builds
pballer8793 is offline   Reply With Quote
Old 04-08-2014, 01:39 PM #17
jonotwist
fistfull o'sunshine & joy

jonotwist's Avatar

Join Date: Sep 2006
Location: NE ohio
Annual Supporting Member
jonotwist is playing at Living Legends VII
jonotwist plays in the APPA D4 division
jonotwist is one of the top 500 posters on PbNation
jonotwist supports Empire
get yourself a mini cocker body and never need a 12 pt socket
__________________
Speak, if you're worth the listening
vintage old feedback High Tech Shiny Feedback

Breakout Actions Sports Wenies Buy Elsewhere
jonotwist is offline   Reply With Quote
Old 04-08-2014, 02:19 PM #18
spece108
Tiffany

spece108's Avatar

Join Date: Apr 2010
Location: Wasilla, AK
Quote:
Originally Posted by jonotwist View Post
get yourself a mini cocker body and never need a 12 pt socket
Craftsman from Sears. Nice and easy if there's one local. Perhaps a note on making your own valve tool from an appropriate hex wrench....
__________________
"I want to go where both my feet feel safe, but there ain't no jobs in the old free state!" - Flogging Molly
spece108 is offline   Reply With Quote
Old 04-08-2014, 02:33 PM #19
boomsquad324


boomsquad324's Avatar

Join Date: Oct 2004
Location: Quebradillas,Puerto Rico
boomsquad324 owns a Planet Eclipse Ego
boomsquad324 owns a Planet Eclipse Ego
boomsquad324 supports Team VICIOUS
boomsquad324 has achieved Level 1 in PbNation Pursuit
Great post
__________________
Old feedback: 15+ / 0-
Lots Of Stuff For Sale: EGO, COCKERS, Jerseys, FREAK KIT, E2,Etc
If you're a Christian baller, put this in your sig
boomsquad324 is offline   Reply With Quote
Old 04-08-2014, 03:16 PM #20
noclue119
D3 to D4 in.... never

noclue119's Avatar

Join Date: Feb 2006
Location: Atlanta, GA
Annual Supporting Member
noclue119 owns a Planet Eclipse Ego
noclue119 supports Team VICIOUS
noclue119 plays in the APPA D3 division
noclue119 supports Empire
Quote:
Originally Posted by jonotwist View Post
get yourself a mini cocker body and never need a 12 pt socket
or u can just replace that 1 screw with a hex head from your local ace hardware
noclue119 is online now   Reply With Quote
Reply


Thread Tools

Posting Rules
Forum Jump
