Shego Build Thread

Im going to start another Shego project, this one more of a throw together. i had a bunch of extra parts laying round and decided to give this a try. This is just a place for me to post a log of everything, and just put my thoughts on paper, bounce ideas off of people and maybe even help others in their builds. and now since, finals are over, i have some free time to devote to some projects.

By no means am i doing this the best way, or even the cleanest. I just enjoy projects, and I felt like this would be a fun one to get my hands dirty on. Please dont take this as an Instructional How-To or anything along those lines please. If the pictures help, awesome, but I am by no means an expert. i just wanted a project to work on, and a gun that i can abuse the piss out off on the field. just for shiggles.

I have been accumulating parts when I can and heres what I have so far.

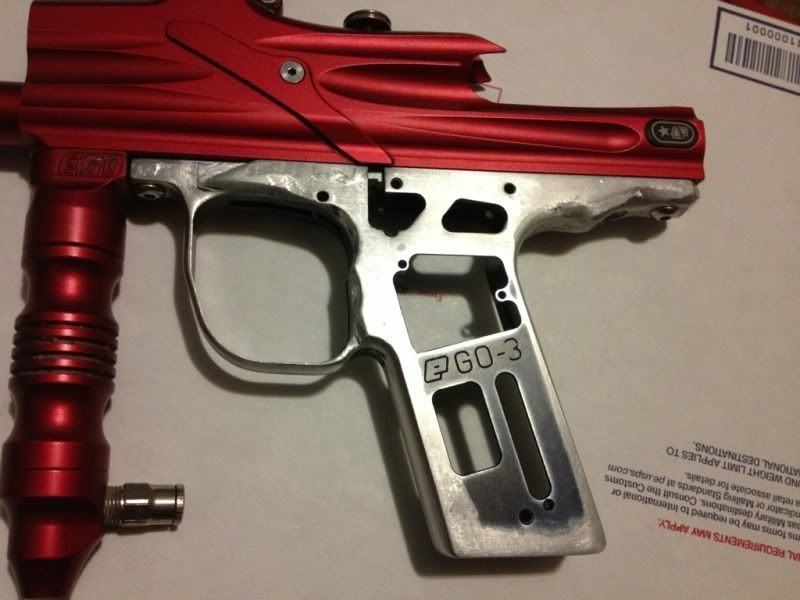

an ego 5 frame that has been sanded down. its ugly but i got it for cheap so idgaf

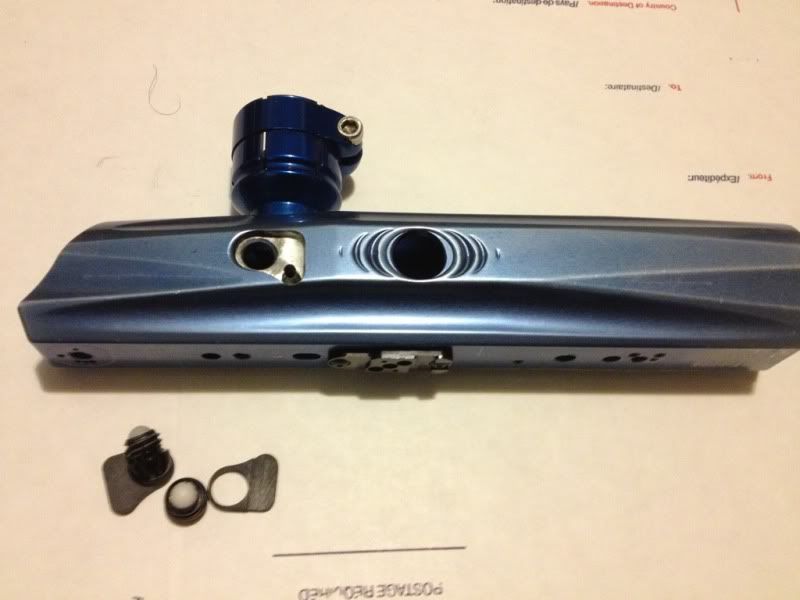

SFT body that haas been break beam milled for 3mm eyes. this body originally had a morlock board on it and i like the fade on it.

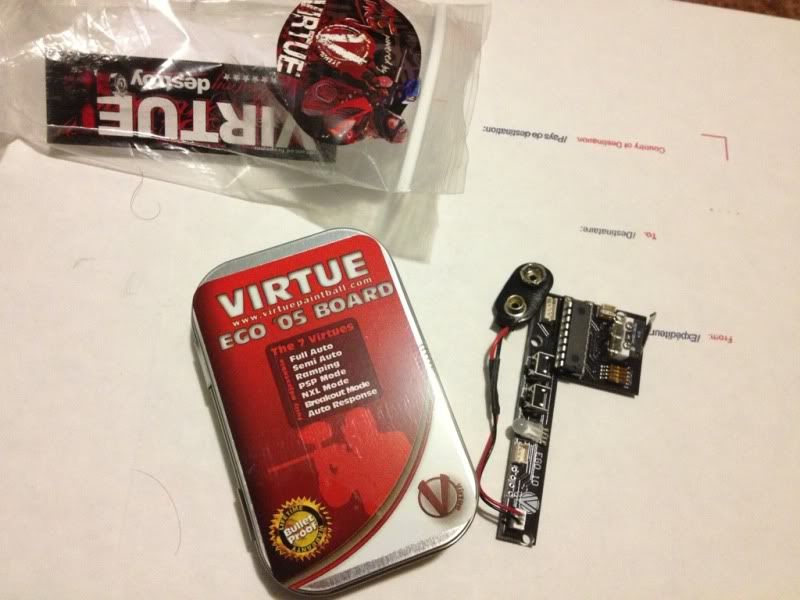

picked up a virtue board off of amazon for like 20 bucks.


i have an impulse solenoid, that had the impulse connector removed, and replaced with the proper connector to plug into the ego board.
Quote:
Originally Posted by jim4130 View Post
Digikey.com
solenoid male plug
JST, Zh Series connector...2 circuit
JST P# ZHR-2
digikey p# 455-1366-ND
and i had a set of proto eyes sitting in my toolbox. they are 3mm (pure coincidence). so i picked up a set of broken ego eyes off facebook so i could have the molex connector. this will just be moved onti the proto eyes so i have eyes that plug directly into my ego board and it happens to fit my body.

and i have a trigger, va, reg, eigen bolt... all that good stuff. but as far as i know, thats all the shego stuff.

ill be starting this weekend, early next week when i finally have days off from class.

any comments, discussion, questions... please fire away
__________________
SOG - PBAsylum - Lurker - Trade My Luxe
Asylum Assault


Last edited by Apollo918 : 05-21-2013 at 06:43 PM.
Apollo918 is online now   Reply With Quote
Old 05-09-2013, 09:53 PM #2
throwed_TA


throwed_TA's Avatar

Join Date: Nov 2012
Location: Houston, TX
subbed, in for the ride
throwed_TA is offline   Reply With Quote
Old 05-10-2013, 12:24 AM #3
kool_aid22
[[[O]]]

kool_aid22's Avatar

Join Date: Sep 2011
Location: Atlanta
kool_aid22 is BST Legit
kool_aid22 is Legendary
kool_aid22 supports Empire
Swag #YOLO. Lol u getting annod or trying to keep investment $$$ down?
kool_aid22 is offline   Reply With Quote
Old 05-10-2013, 04:07 PM #4
NDomipolo


NDomipolo's Avatar

Join Date: Aug 2009
Location: New York
NDomipolo owns a Planet Eclipse Ego
NDomipolo has achieved Level 2 in PbNation Pursuit
NDomipolo supports DLX Technology
Hey how are you milling the frame? Or are u doing it?ive been trying to find someone with a mill to finish a shego but can't get anyone to mill the frame
__________________
WTB
Ion Trigger Pins
Ion Trigger Frames(not Stock)
Dye C9 Attack Pack
Bring Broken Guns
NDomipolo is offline   Reply With Quote
Old 05-10-2013, 05:20 PM #5
Apollo918
Proud 'Fossil' Owner

Apollo918's Avatar

Join Date: Oct 2005
Location: 502
Apollo918 owns a Planet Eclipse Geo
Apollo918 supports Team VICIOUS
Apollo918 plays in the APPA D4 division
Koolaid- in the future. Right now I just want to get it shooting and cross it off my to do list lol. Then I have some ideas for milling the body

The frame will be done with a dremel for me. It's 10000x easier with a mill. But imma do it by hand. It isn't going to be hard. And it won't be seen from the outside so it still should look fine.


Also- I'm sure anyone with a mill wouldn't mind helping you out. Cs900 is the god of milling. But he has a waiting list lol I'm on it with my other shego project
__________________
SOG - PBAsylum - Lurker - Trade My Luxe
Asylum Assault

Apollo918 is online now   Reply With Quote
Old 05-10-2013, 05:39 PM #6
OoZoo
Work hard.

OoZoo's Avatar

Join Date: Mar 2012
Location: Orlando, FL
OoZoo owns a Planet Eclipse Ego
OoZoo is for the Gunfight
OoZoo supports DLX Technology
Make a video of you modding the frame, for educational purposes. (fail or no fail)
__________________
"I'm a fighter. I believe in the eye-for-an-eye business. I'm no cheek turner. I got no respect for a man who won't hit back. You kill my dog, you better hide your cat"
OoZoo is offline   Reply With Quote
Old 05-10-2013, 05:56 PM #7
darth p
Hooah

darth p's Avatar

Join Date: Feb 2013
Location: St Louis
Annual Supporting Member
darth p is BST Legit
darth p has achieved Level 2 in PbNation Pursuit
Quote:
Originally Posted by OoZoo View Post
Make a video of you modding the frame, for educational purposes. (fail or no fail)
I second that.
__________________
darth p is offline   Reply With Quote
Old 05-10-2013, 06:36 PM #8
Apollo918
Proud 'Fossil' Owner

Apollo918's Avatar

Join Date: Oct 2005
Location: 502
Apollo918 owns a Planet Eclipse Geo
Apollo918 supports Team VICIOUS
Apollo918 plays in the APPA D4 division
I'll take lots if pictures. No worries.
__________________
SOG - PBAsylum - Lurker - Trade My Luxe
Asylum Assault

Apollo918 is online now   Reply With Quote
Old 05-10-2013, 06:46 PM #9
NDomipolo


NDomipolo's Avatar

Join Date: Aug 2009
Location: New York
NDomipolo owns a Planet Eclipse Ego
NDomipolo has achieved Level 2 in PbNation Pursuit
NDomipolo supports DLX Technology
Okay cool Apollo what dremel tip are u going to use on the frame?
__________________
WTB
Ion Trigger Pins
Ion Trigger Frames(not Stock)
Dye C9 Attack Pack
Bring Broken Guns
NDomipolo is offline   Reply With Quote
Old 05-10-2013, 07:15 PM #10
Apollo918
Proud 'Fossil' Owner

Apollo918's Avatar

Join Date: Oct 2005
Location: 502
Apollo918 owns a Planet Eclipse Geo
Apollo918 supports Team VICIOUS
Apollo918 plays in the APPA D4 division
I'll include that in the pictures. Probably headed to lowes in the morning for bits.

Any suggestions?
__________________
SOG - PBAsylum - Lurker - Trade My Luxe
Asylum Assault

Apollo918 is online now   Reply With Quote
Old 05-10-2013, 07:20 PM #11
jim4130
proud gmax owner!!!

jim4130's Avatar

Join Date: Jul 2008
Location: woburn MA.
jim4130 plays in the APPA D4 division
jim4130 has perfected Level 1 in PbNation Pursuit
jim4130 is one of the top 500 posters on PbNation
jim4130 is Legendary
Subscribed.

1/8" & 1/4" end mills were recomended to me by brian & cliff once
__________________
OBE
SBPB

come check out my gun collection

shocker owners

win a free luxe!!!
jim4130 is offline   Reply With Quote
Old 05-11-2013, 07:00 PM #12
Box
Wroooaaarrrr!

Box's Avatar

Join Date: Sep 2005
Annual Supporting Member
Box is playing at Living Legends VII
thank god you found a use for that body, looking forward to your results.
Box is offline   Reply With Quote
Old 05-11-2013, 07:07 PM #13
Apollo918
Proud 'Fossil' Owner

Apollo918's Avatar

Join Date: Oct 2005
Location: 502
Apollo918 owns a Planet Eclipse Geo
Apollo918 supports Team VICIOUS
Apollo918 plays in the APPA D4 division
Quote:
Originally Posted by Box View Post
thank god you found a use for that body, looking forward to your results.
started with building this shego... Then slowly kept upgrading parts. So now with all the left over parts I basically have an entire extra gun lol
__________________
SOG - PBAsylum - Lurker - Trade My Luxe
Asylum Assault

Apollo918 is online now   Reply With Quote
Old 05-16-2013, 11:49 AM #14
airtrax


airtrax's Avatar

Join Date: Jun 2011
Location: Florida
airtrax owns a Planet Eclipse Ego
airtrax owns a Planet Eclipse Lv1
airtrax supports Team VICIOUS
airtrax has achieved Level 1 in PbNation Pursuit
Is there any modding For the impulse solenoid needed besides the molex. And what connector
__________________
I love Azn girlz
airtrax is offline   Reply With Quote
Old 05-16-2013, 11:59 AM #15
airtrax


airtrax's Avatar

Join Date: Jun 2011
Location: Florida
airtrax owns a Planet Eclipse Ego
airtrax owns a Planet Eclipse Lv1
airtrax supports Team VICIOUS
airtrax has achieved Level 1 in PbNation Pursuit
Let me rephrase that does the impulse solenoid mount directly without any modification
__________________
I love Azn girlz
airtrax is offline   Reply With Quote
Old 05-16-2013, 02:43 PM #16
storm_intimidator
DeathSquad

storm_intimidator's Avatar

Join Date: Mar 2004
Location: *208*
 has been a member for 10 years
storm_intimidator posts videos on PbNation
storm_intimidator plays in the APPA D5 division
storm_intimidator supports DLX Technology
Subbed, I'm pretty pumped to see the final project. GL and thanks for this thread!
__________________
OverKill!

Trademygun.com
ansgear.com
قتل الكفار مع المدافع الطلاء
storm_intimidator is offline   Reply With Quote
Old 05-16-2013, 03:33 PM #17
Apollo918
Proud 'Fossil' Owner

Apollo918's Avatar

Join Date: Oct 2005
Location: 502
Apollo918 owns a Planet Eclipse Geo
Apollo918 supports Team VICIOUS
Apollo918 plays in the APPA D4 division
The impulse solenoids mounts directly with no modification. The molex needs to be swapped And I'll update the first post with the part numbers for the molex connector.

There is also a possibility that the spring internal to the solenoid needs to swapped. If I am not mistaken, impulses run off low pressure >100psi and shockers are ~200psi. If your impulse solenoid has the low pressure spring in it, it needs to be swapped out for the high pressure spring. That's the only internal difference between the impulse Parker noid and the shocker Parker noid. This spring can be found inside a shocker Parker noid. Troll bst for a broken shocker noid... They are all over the place.

You can also start with a shocker Parker noid, just desolder the upper board. And solder new wire leads to the posts.
__________________
SOG - PBAsylum - Lurker - Trade My Luxe
Asylum Assault

Apollo918 is online now   Reply With Quote
Old 05-16-2013, 08:55 PM #18
NDomipolo


NDomipolo's Avatar

Join Date: Aug 2009
Location: New York
NDomipolo owns a Planet Eclipse Ego
NDomipolo has achieved Level 2 in PbNation Pursuit
NDomipolo supports DLX Technology
Apollo did u find a good dremel bit?
__________________
WTB
Ion Trigger Pins
Ion Trigger Frames(not Stock)
Dye C9 Attack Pack
Bring Broken Guns
NDomipolo is offline   Reply With Quote
Old 05-16-2013, 09:03 PM #19
Apollo918
Proud 'Fossil' Owner

Apollo918's Avatar

Join Date: Oct 2005
Location: 502
Apollo918 owns a Planet Eclipse Geo
Apollo918 supports Team VICIOUS
Apollo918 plays in the APPA D4 division
I picked up a 1/8" end mill bit. Pictures coming soon. Just been doing some measuring and mock ups for now. Look for an update with pictures either this weekend or early in the week. Should get either most/all of the work done by then.
__________________
SOG - PBAsylum - Lurker - Trade My Luxe
Asylum Assault


Last edited by Apollo918 : 05-16-2013 at 09:05 PM.
Apollo918 is online now   Reply With Quote
Old 05-16-2013, 09:18 PM #20
inmylife2415
SBPB

inmylife2415's Avatar

Join Date: Jan 2008
Location: Madison
inmylife2415 supports DLX Technology
Quote:
Originally Posted by Apollo918 View Post
The impulse solenoids mounts directly with no modification. The molex needs to be swapped And I'll update the first post with the part numbers for the molex connector.

There is also a possibility that the spring internal to the solenoid needs to swapped. If I am not mistaken, impulses run off low pressure >100psi and shockers are ~200psi. If your impulse solenoid has the low pressure spring in it, it needs to be swapped out for the high pressure spring. That's the only internal difference between the impulse Parker noid and the shocker Parker noid. This spring can be found inside a shocker Parker noid. Troll bst for a broken shocker noid... They are all over the place.

You can also start with a shocker Parker noid, just desolder the upper board. And solder new wire leads to the posts.
some imp noids are lp and some are not. the lp noids have a sticker that says "100psi max"
inmylife2415 is offline   Reply With Quote
Old 05-17-2013, 02:22 PM #21
jessekeels
I'm a 'dust black' guy

jessekeels's Avatar

Join Date: Jul 2012
Location: Charleston, SC
Subscribed, I'm going to be attempting the same thing in the near future with the identical frame... Except I have an etek board and it's aurora colored. Excited to see how you get it done
