3D Printing loader shells

First things first. Pumpers love small hoppers usually varying in size from 50rds-100rds. However, these loaders tend to be cheaply made, require modding and in alot of cases, not reliable enough to keep up. Redundant sounding I know, but I have achieved 8bps with a Rotor on a CCM S6. I can only imagine what others can do.

Alot of pumpers and tinkers have taken force feed loaders and blended them with others to create a smaller yet still fast package. You will see some that have taken Viewloader Revolutions and combined them with Sportshots, others are Halos and Evolution loaders and so on. They do work, however they often are hideous and not as sturdy due to the bonding materials that hold the two together.

Sitting messing around on Reddit and reading some very interesting articles on 3D printing, brought up the idea of someone with access or knows of someone that has access to the machine. The good thing about 3D printing is that is relative cheap to produce pieces. It is also easy to gain access to the plastics needed and with it almost all done on a computer, a person confident enough with the program can knock out some shells within a matter of days. It is also very strong. I've seen videos of people creating AR magazines and even an AR lower that fired over 600 rounds without a hiccup.

This comes in to play of copyrights and the proper law channels. However, it would be completely legal to make shells that accept Viewloader Revolution internals. Selling them as a whole would be illegal, however separately would be okay. If someone were to do this, the individual could sell just the shells. No lids, no internals, no buttons, nothing. Then someone could purchase the shells, rip out the motor, board, paddle, button etc. from a Revvy and throw it in the shell and viola.

The market might seem small. But besides pumpers, you also have the market of players that want smaller loaders but with the speed of a Revvy. So that opens up the market for Milsim, Oldschoolers, pumpers, light and tight guys, etc.


The shells would have to:
Hold no more than 110 paintballs
Accept all components of the Viewloader Revolution
Accept Viewloader lids/speedfeeds.
Be reasonably priced.
Strong
Normal looking (unlike a Q-loader or Pinokio)

Does anyone seem interesting in this undertaking?

Last edited by Sogamember666 : 03-24-2013 at 04:39 PM.
Sogamember666 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 03-24-2013, 05:11 PM #2
WP2015
ACL tears are no bueno

WP2015's Avatar

Join Date: Apr 2011
Location: West Point, NY
Annual Supporting Member
WP2015 plays in the PSP
WP2015 owns a Planet Eclipse Lv1
WP2015 posts videos on PbNation
WP2015 is an NCPA player
WP2015 supports Pev's Paintball
WP2015 supports Empire
WP2015 is All In
I would be interested in buying one
__________________
Army Black Knights
West Point Paintball - Home of the Combat Classic

LN Vanquish 1.5 For Sale! CHEAP!
LN D'Fender FS/T
PM me about new D'Fenders too!
WP2015 is offline   Reply With Quote
Old 03-24-2013, 10:16 PM #3
brokeass_baller


Join Date: Feb 2013
This should be am open source paintball community project. All dimensions, drawings, and files available for download. Us pumpers have wanted a motorized pump loader for years (i, since i started pump in '04) and the industry hasn't given us one yet. I say we do it ourselves. Then, all the individual has to do is seek out a person with a printer and pay them.

I don't care if it's force-feed or agitating, but i would prefer the ability to drop in Halo or Revolution parts, as they are widely available.
brokeass_baller is offline   Reply With Quote
Old 03-24-2013, 10:20 PM #4
brokeass_baller


Join Date: Feb 2013
And I'm completely willing to donate a few bucks to fund development, but only if ALL drawings, dimensions, intellectual property, and necessary files are guaranteed free and open to the paintball community.
brokeass_baller is offline   Reply With Quote
Old 03-25-2013, 01:57 PM #5
dapoofyhairdude
http://goo.gl/W9DoA

dapoofyhairdude's Avatar

Join Date: Jan 2005
Location: 949 SoCal
Annual Supporting Member
dapoofyhairdude is a Supporting Member
dapoofyhairdude has achieved Level 3 in PbNation Pursuit
Have you researched into the durability of the plastics being used?
dapoofyhairdude is offline   Reply With Quote
Old 03-25-2013, 02:32 PM #6
brokeass_baller


Join Date: Feb 2013
From what i understand, they use ABS plastic, which i would consider reasonably durable.
brokeass_baller is offline   Reply With Quote
Old 03-25-2013, 04:00 PM #7
pacasowithagun
SMASH! Now clean it up!!

pacasowithagun's Avatar

Join Date: Jan 2006
Location: 410/Kiladelphia
pacasowithagun owns a Planet Eclipse Ego
pacasowithagun is an NCPA National Champion
There are a lot of plastics you can use to 3D print. Most commonly used are ABS and PLA.

PLA is strong, but more fragile than ABS. I wouldn't be surprised if shells like a halo, rev, etc. are molded from ABS.

One thing you will have to make sure is that it is designed properly so that it uses the least amount of material. That includes not just final product material, but also support material for any overhanging parts.

While I do think it is plausible, it probably wont be as cheap as you think. $40-50 per shell.

This is all assuming ABS is strong to withstand the rigors of paintball.
__________________
2009-2010 NCPA Class A National Champions
I offer 3D printing services! PM me!
Greg Hoge
pacasowithagun is offline   Reply With Quote
Old 03-26-2013, 10:44 AM #8
englypb4


englypb4's Avatar

Join Date: Jan 2008
Location: Centerville, MN
englypb4 plays in the PSP
englypb4 owns a Planet Eclipse Geo
englypb4 supports Team VICIOUS
englypb4 plays in the APPA D4 division
I'd be interested in helping out with this as well. I have connections with Stratasys, and also have access to Solidworks 2012. I don't have any revy components, but if someone had dimensions I could model around them. I am curious about how well these would hold up since the thin wall models we've printed so far have been pretty brittle to impacts.
__________________
AAF FTW

GrabCad
englypb4 is offline   Reply With Quote
Old 03-26-2013, 09:17 PM #9
cs900
makin' chips

cs900's Avatar

Join Date: Nov 2007
Location: binghamton, NY
Annual Supporting Member
cs900 supports our troops
cs900 supports DLX Technology
fyi, a better idea would be vacuum form the shell halves and bod together. There are lots of DIY vacuum forming techniques.
__________________
Classy octane SFT for sale
cs900 is offline   Reply With Quote
Old 03-27-2013, 04:34 AM #10
ttboy


ttboy's Avatar

Join Date: Mar 2005
Location: Pula, Croatia, Europe
Quote:
Originally Posted by cs900 View Post
fyi, a better idea would be vacuum form the shell halves and bod together. There are lots of DIY vacuum forming techniques.
and I think cheaper , once you get a mould done.

but with a 3D model, the prototype, you can see the designer foults in hand,
because there are always mistakes...

I'm actually thinkin about buying a 3D printer because of this
__________________
Propelered by Plan B
ttboy is offline   Reply With Quote
Old 03-27-2013, 08:54 PM #11
Cakeslob


Cakeslob's Avatar

Join Date: Sep 2004
Location: hamilton ,canada
For 3d printing a hopper shell it would probably be a better path to print in ABS as opposed to PLA because of the options for post processing ABS.

http://blog.reprap.org/2013/02/vapor...-rp-parts.html
Ive done this post treatment to many of my 3d printed parts and they come out with a great finish and less prone to splitting on the z axis because it welds all the layers together. It makes a pretty big difference over all to an unprocessed part.

$50 a shell would only be the cost for outsourcing it to an expensive source or something, a kilo of ABS plastic (filament) is only around $40.

There are also several different kinds of 3d printing with a bunch of different types of plastics and metals that can be more suited for this kind of print. You can also print out the molds for vacuum forming.

As to weather or not it can take a shot from a paintball gun, only one way to find out. If it does break, just print a new (better)one.

This guy has what looks like a successfully 3d printed hopper
http://www.thingiverse.com/thing:29722
Cakeslob is offline   Reply With Quote
Old 03-28-2013, 12:00 AM #12
Twister60


Twister60's Avatar

Join Date: Oct 2006
Location: Toronto
Twister60 owns a Planet Eclipse Ego
Twister60 has achieved Level 1 in PbNation Pursuit
Twister60 has achieved Level 2 in PbNation Pursuit
Twister60 has achieved Level 3 in PbNation Pursuit
Twister60 is attending Decay of Nations VI
That's ridiculously amazing. I have lots of free filament at school & enough broken hopper part ideas now...
__________________
[[[Pro Sponsored]]]
Eat. Sleep. Bunker.

Full Body Creation, Machining, Anodizing and Repair + Parts and Service Available
Pods now only $1.00!
07 EGO|Hybrid NXT|PM6|RPM|PMR|3 Quest's
Twister60 is offline   Reply With Quote
Old 03-28-2013, 06:07 PM #13
Bob Bobbity
Bobbitay

Bob Bobbity's Avatar

Join Date: Oct 2003
Location: Oregon
 has been a member for 10 years
I have a 3D printer, it's a Mendelmax 1.5 that I built. I'd look into "Taulman" Nylon as a plastic to consider for a hopper, stuff is awesome. I've wanted to undertake a project like this for quite awhile. I can print with Polycarbonate, Nylon, ABS, PLA, etc. (any 3MM plastic filament you can find I can likely print).

My problem is A) lack of time to design, and B) I'm not great with CAD software and especially have a hard time designing complex assemblies and organic shapes

But, I'd love to collaborate with someone and I'd do all of the printing/material purchases to prototype a hopper.
__________________
Hmm...

Last edited by Bob Bobbity : 03-28-2013 at 06:15 PM.
Bob Bobbity is offline   Reply With Quote
Old 04-01-2013, 10:09 PM #14
Sogamember666
This is not an Exit

Sogamember666's Avatar

Join Date: Jul 2006
Location: Fort Benning
Sogamember666 owns a Planet Eclipse Ego
Sogamember666 supports Team VICIOUS
Sogamember666 supports Bob Gurnsey
Sogamember666 supports our troops
Sogamember666 is Legendary
I've just emailed several loader companies about this idea. I hope I get some positive responses.
Sogamember666 is offline   Reply With Quote
Old 04-02-2013, 04:50 AM #15
tooks


tooks's Avatar

Join Date: Jan 2008
tooks owns a Planet Eclipse Ego
tooks is for the Gunfight
I could model something up if i have time- im pretty proficient in Solid works, as a matter of fact I just modeled a lower reciever for my .22 and will print it as soon as i can.
can anyone give me revvy internals dimentions?

Last edited by tooks : 04-02-2013 at 06:16 AM.
tooks is offline   Reply With Quote
Old 04-02-2013, 06:15 AM #16
tooks


tooks's Avatar

Join Date: Jan 2008
tooks owns a Planet Eclipse Ego
tooks is for the Gunfight

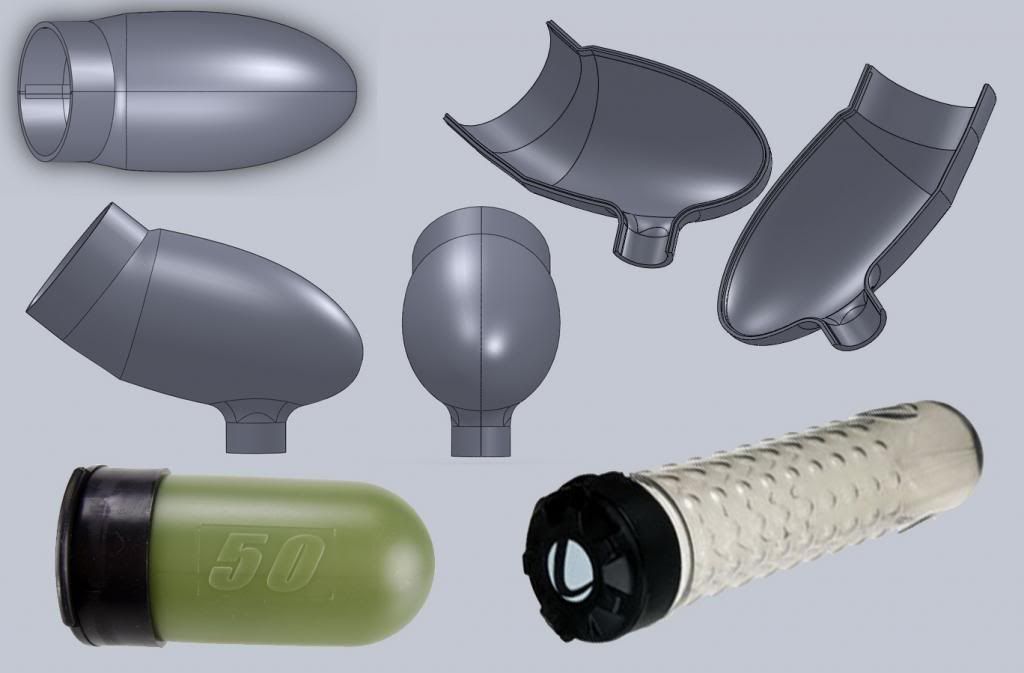

Ok heres a little number i just whipped up.
Two halves that can be printed then glued along the interlocking seam to make the shell.
Then you can just pull the lid off your favourite type of pod and glue that on- one 3D printable pump hopper

tooks is offline   Reply With Quote
Old 04-02-2013, 06:23 AM #17
tooks


tooks's Avatar

Join Date: Jan 2008
tooks owns a Planet Eclipse Ego
tooks is for the Gunfight
tooks is offline   Reply With Quote
Old 04-02-2013, 06:45 AM #18
Wheeldogg
Sam

Wheeldogg's Avatar

Join Date: Feb 2012
Location: Nashville,Tennesse
Wheeldogg owns a Planet Eclipse Ego
Wheeldogg owns a Planet Eclipse Lv1
Wheeldogg has perfected Level 1 in PbNation Pursuit
yes now who has a 3d printer...
__________________
Tipx Q-drum mag
http://www.pbnation.com/showthread.php?t=3937656

Recball Videos (add yours today!)
http://www.pbnation.com/showthread.php?t=3927913
Wheeldogg is offline   Reply With Quote
Old 04-02-2013, 07:16 AM #19
Sogamember666
This is not an Exit

Sogamember666's Avatar

Join Date: Jul 2006
Location: Fort Benning
Sogamember666 owns a Planet Eclipse Ego
Sogamember666 supports Team VICIOUS
Sogamember666 supports Bob Gurnsey
Sogamember666 supports our troops
Sogamember666 is Legendary
I have a Revvy at the house. When I get home I'all measure. It might be easiest to scale down a Revvy to hold about 75 rnds.

Another thing is with most 3D printers you can't mass produce a crap ton. So you'll either have to print as many as you can, stock up, then sale them or sale them as they come off. You'll also have to use a strong plastic. If you use cheap but reliable internals, ice Revvy internals, you could sell the shells for like $50. ABS plastic ain't cheap. For those who don't have Revived, Google ViewLoader parts and its the first one. Or purchase a new Revvy for $45. Revvy internals are the way to go. Simple, cheap, reliable, and light. Its a pump loader. Nothing past 11bps is really needed.

Last edited by Sogamember666 : 04-02-2013 at 07:20 AM.
Sogamember666 is offline   Reply With Quote
Old 04-02-2013, 05:46 PM #20
Cakeslob


Cakeslob's Avatar

Join Date: Sep 2004
Location: hamilton ,canada
Quote:
Originally Posted by tooks View Post
as a matter of fact I just modeled a lower reciever for my .22 and will print it as soon as i can.
which is the file you should have uploaded.
Excellent work! I really like the lid idea a lot but
that interlocking lip would be horrible to print though.


whats your X,Y dimensions on that hopper?


Quote:
Originally Posted by Sogamember666
Another thing is with most 3D printers you can't mass produce a crap ton
you only need to make 1 of each side. the rest you can make using a mold ,
Cakeslob is offline   Reply With Quote
Old 04-02-2013, 11:27 PM #21
Bob Bobbity
Bobbitay

Bob Bobbity's Avatar

Join Date: Oct 2003
Location: Oregon
 has been a member for 10 years
Tooks - PM'd you in hopes of getting some files to try to print.
__________________
Hmm...
Bob Bobbity is offline   Reply With Quote
