Vtwin Double Barreled Angel - Introducing Abaddon

I wanted to share my entry for the 2016 Angel Build-off we are holding over on Facebook.



Abaddon, one of the twin Angels of the Apocalypse (seemed appropriate), translates to "The Destroyer".

tl;dr
1. Machinist - Doc Nickel from Doc's Machine
2. Anodizer - Danillo Masuelli of Stained Works/NorCal Anodizing
3. Owner (lucky me) - Jeff Pace of Enoch Paintball

Pics in Post 2
Build specs in Post 3
Videos in Post 4
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback

Last edited by trancer23 : 08-14-2016 at 08:39 PM.
trancer23 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 08-14-2016, 08:06 PM #2
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends IX
trancer23 is playing at Living Legends Dreaded
 is playing at Dead Legends
Ok heres the meat.

This beauty began life as two badly mismatched junk yard 2k1 WDP Angel Lcds in need of rescuing. They were living in a pile on my workbench, always destined for more. Enter the 2016 Angel Build-off and a crazy idea.

Doc Nickel is basically the only machinist in the paintball world crazy enough to even attempt this, let alone make it successfully on the first try. So i wrote him my crazy idea. The triple tube design on the angel just seemed to lend itself to marrying together, especially since one tube is essentially empty holding nothing but a battery. The original idea was to do two vertical, but this was the conceptual diagram that came back



And I was sold. Worked in both warp and hopper configs, and fit better. So off the parts went to Alaska.

Final machine work:
1. Remove Battery Tube off one angel
2. Mill second angel to fit
3. Custom rail to do air transfer
4. Custom VAA
5. Custom trigger frame work
6. Add Eyes to each side with custom eye covers
7. Doc's custom detents
8. Flip on breech to make butterfly breeches
9. Custom backplate

Obviously that is a gross understatement of the massive amount of work that went into this, so pictures show it best.

At the machine Shop









Arrived









Back From Ano. Danillo recommended a busy blue/black acid wash with white spider to cover up the seams and he was right, the ano really works perfect with it and makes it pop.







And fully assembled in warp config

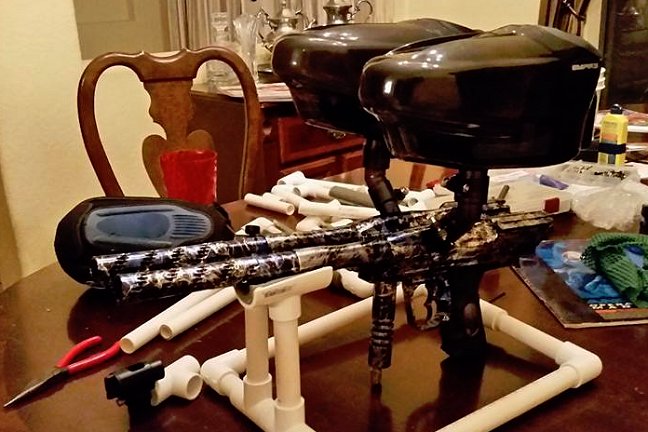

And in dual hopper config
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback

Last edited by trancer23 : 08-14-2016 at 08:40 PM.
trancer23 is offline   Reply With Quote
Old 08-14-2016, 08:06 PM #3
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends IX
trancer23 is playing at Living Legends Dreaded
 is playing at Dead Legends
For the nerds:

1. Dual Angel 2k1 LCDs
2. Stock rams, solenoids, valves, and lprs in each side
3. Independent dual eye system
4. Custom Arduino Enoch Paintball board, with OLED, Bluetooth, dual noid connectors, dual warp connectors, and dual eye connectors

5. 7.4V li-ion stick battery in one empty tube
6. 11.1V lipos in each warp feed with on/off switch added
7. Dual 3mm DM style eyes with custom eye covers
8. Matched Angel Air
9. Custom Machined hand fitted breech
10. Dual Butterfly breeches (one side flipped from stock)
11. Sequential firing with independent eye readings (each side fires in succession, if one side gets blocked the other will keep firing on every other pull).
12. Fully Loaded with dual warps she is over 18pounds
13. Dual Doc's custom freak backs

If you have any other questions, please feel to post and I try to add to the specs page
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback

Last edited by trancer23 : 08-14-2016 at 09:02 PM.
trancer23 is offline   Reply With Quote
Old 08-14-2016, 08:38 PM #4
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends IX
trancer23 is playing at Living Legends Dreaded
 is playing at Dead Legends
Videos:

Warp firing
https://www.youtube.com/watch?v=zOjl6ZEVdZc


Over the top
https://www.youtube.com/watch?v=3ux2X7_AIug


Speed test with two Prophecies (massive shootdown)
https://www.youtube.com/watch?v=o3m19eWImSI
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback

Last edited by trancer23 : 08-14-2016 at 09:10 PM.
trancer23 is offline   Reply With Quote
Old 08-14-2016, 09:02 PM #5
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends IX
trancer23 is playing at Living Legends Dreaded
 is playing at Dead Legends
Still to do:

At full speed it sees alot of shootdown. I need to up the input pressure and fiddle with to LPRs to get it up and firing at higher BPS
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback
trancer23 is offline   Reply With Quote
Old 08-14-2016, 09:06 PM #6
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends IX
trancer23 is playing at Living Legends Dreaded
 is playing at Dead Legends
videos dont seemed to be working at the moment
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback
trancer23 is offline   Reply With Quote
Old 08-15-2016, 08:43 AM #7
Intern1


Intern1's Avatar

Join Date: May 2012
Location: Gallifrey
Annual Supporting Member
Intern1 is Legendary
Intern1 supports Ninja Paintball
Intern1 supports Empire
This is so awesome man. Next time you go out and play let me know so I can see this beast in person!!!!

Last edited by Intern1 : 08-15-2016 at 03:21 PM.
Intern1 is offline   Reply With Quote
Old 08-15-2016, 09:01 AM #8
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends IX
trancer23 is playing at Living Legends Dreaded
 is playing at Dead Legends
thanks man I definitely will
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback
trancer23 is offline   Reply With Quote
Old 08-15-2016, 09:17 AM #9
Old-Soul


Old-Soul's Avatar

Join Date: Sep 2012
Location: Red Deer, AB Canada
"Ridiculous" but in all the right ways.
__________________
Do the evolution.


WTB: 2XL/3XL Renegade jersey
WTB: Dye Angel LCD
Old-Soul is offline   Reply With Quote
Old 08-15-2016, 10:32 AM #10
Nonesuch Mafia 1
Ballbreaker

Nonesuch Mafia 1's Avatar

Join Date: Jan 2013
Location: Kentucky
Nonesuch Mafia 1 has achieved Level 1 in PbNation Pursuit
Nonesuch Mafia 1 has perfected Level 1 in PbNation Pursuit
Nonesuch Mafia 1 supports Ninja Paintball
Sweet just would hate carrying it very far
__________________
Angel IR3
Angel G7 Fly Black/Blue Fade Angel A4 MT Fly Gunmetal
Angel Dark G7 Fly Black/Blue Fade
Angel G7 Fly Ice / Blue Fade
Angel G7 Fly Black/Graphite Fade
Angel A1 SB
Angel A1 Black/Blue Fade

Bob Long Ripper 2
Nonesuch Mafia 1 is offline   Reply With Quote
Old 08-16-2016, 07:28 AM #11
destey
Derek

destey's Avatar

Join Date: Mar 2007
Location: Vermont
One of the coolest fabrications I've seen. Have you thought of instead of having both bolts stay in the back position, having the one that just fired stay closed to act as a counterbalancer? Thus smoothing out the action. That way they would just switch, like a horizontally opposed 2 cylinder engine.
destey is offline   Reply With Quote
Old 08-16-2016, 07:43 AM #12
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends IX
trancer23 is playing at Living Legends Dreaded
 is playing at Dead Legends
Thats an interesting thought. Its already a little unbalanced due to the rams being in the center and left tubes instead of left and right.

Keeping a bolt forward would cause a valve the stay open, so I dont think thats going to work
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback
trancer23 is offline   Reply With Quote
Old 08-16-2016, 07:51 AM #13
pball68
Da Bomb!

pball68's Avatar

Join Date: Jul 2001
Location: USA
Annual Supporting Member
 has been a member for 10 years
pball68 posts videos on PbNation
pball68 has perfected Level 2 in PbNation Pursuit
pball68 supports Ninja Paintball
pball68 supports Empire
Two Angel's, that is awesome!
__________________
It does not matter the SETUP if the player just SUCKS!
pball68 is offline   Reply With Quote
Old 08-17-2016, 02:09 PM #14
Strydez
Orange Death

Strydez's Avatar

Join Date: Aug 2016
Location: Pontiac
Strydez has achieved Level 1 in PbNation Pursuit
Strydez has achieved Level 2 in PbNation Pursuit
Strydez supports Shocker RSX
Strydez supports Ninja Paintball
Beast!!
__________________
What do i put here??

I drive a 2016 Silverado black and orange if anyone is interested i guess!
Strydez is offline   Reply With Quote
Old 08-18-2016, 03:14 PM #15
Collie Runner


Collie Runner's Avatar

Join Date: Dec 2015
Location: Norco
Collie Runner has perfected Level 1 in PbNation Pursuit
Collie Runner supports Ninja Paintball
This is damn cool. Bummer about the shootdown. I bet you can get it dialed in though to get a decent BPS without though.
Collie Runner is offline   Reply With Quote
Old 08-18-2016, 04:29 PM #16
theflash


theflash's Avatar

Join Date: Aug 2001
Location: Canukistan
theflash is a founding member
 has been a member for 10 years
Haha, that's great! Love that it uses Angels.
__________________
Why I will never buy anything GoG, Shocker Paintball or DLX (Luxe): http://www.reddit.com/r/paintball/co...rse_a_gog_gun/
theflash is offline   Reply With Quote
Old 08-26-2016, 10:30 AM #17
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends IX
trancer23 is playing at Living Legends Dreaded
 is playing at Dead Legends
Thanks guys. Yeah ill be trying so different regulator options shortly
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback
trancer23 is offline   Reply With Quote
Old 09-03-2016, 09:40 AM #18
Eddie9195
AKA scphantom

Eddie9195's Avatar

Join Date: Dec 2004
Location: Saint Helens, OR
 has been a member for 10 years
 is playing at Dead Legends
Eddie9195 owns a Planet Eclipse Ego
Eddie9195 supports Ninja Paintball
I have always been a fan of double barrel paintball guns, and this is a great example of one!
__________________
"Only the strong survive. The weak are killed and eaten as fingerfood." SDI SSgt Patterson, USMC Platoon 1077

www.okcompanypaintball.com
Eddie9195 is online now   Reply With Quote
Old 09-03-2016, 09:15 PM #19
Methodcaptain


Methodcaptain's Avatar

Join Date: Feb 2009
 plays in the NXL
Methodcaptain plays in the APPA D4 division
Methodcaptain supports Shocker RSX
Methodcaptain supports Ninja Paintball
Could you try to open up one of the valves by putting an A4 or G7 lpr in the one good battery tube?

That may help, just a thinking out loud.
__________________
TEAM METHOD - D.O.G.'s Boy's
Custom A1 fly collector (Always looking for Angels)

WANTED: Blue and Green angel A1 FLY grips
Wanted - Angel A1/SB/AR:K parts and markers broken or working condition.

Still playing for you DAD (6/10/57 - 11/17/06). We all miss you.
Methodcaptain is offline   Reply With Quote
Old 09-07-2016, 09:42 PM #20
Generalisimo


Generalisimo's Avatar

Join Date: Sep 2016
no
__________________
Glory to the Moffets.
Generalisimo is offline   Reply With Quote
Reply


Thread Tools

Posting Rules
Forum Jump
