Rebuilding my Pure Energy regulator.

Do I have to use urethane, because I ordered a rebuild kit from o-ring monkey and they sent me buna o-rings. The tank has urethane in them though, is this crucial to use urethane?
__________________
Assume nothing, expect anything.
ThexAlchemist is offline   Reply With Quote
Old 02-26-2013, 07:38 PM #2
ThexAlchemist
US Army

ThexAlchemist's Avatar

Join Date: Oct 2012
Location: Omaha, Nebraska
ThexAlchemist supports Team VICIOUS
ThexAlchemist supports Team VICIOUS
ThexAlchemist plays in the APPA beginner division
Also the one on the pin valve is made of teflon, and side by side comparison, the oring on the pin valve and the one they sent me is a different size, but the packaging says it's the right size. Is this crucial to get this specific oring to be the same size and thickness?
__________________
Assume nothing, expect anything.
ThexAlchemist is offline   Reply With Quote
Old 02-26-2013, 07:49 PM #3
ThexAlchemist
US Army

ThexAlchemist's Avatar

Join Date: Oct 2012
Location: Omaha, Nebraska
ThexAlchemist supports Team VICIOUS
ThexAlchemist supports Team VICIOUS
ThexAlchemist plays in the APPA beginner division

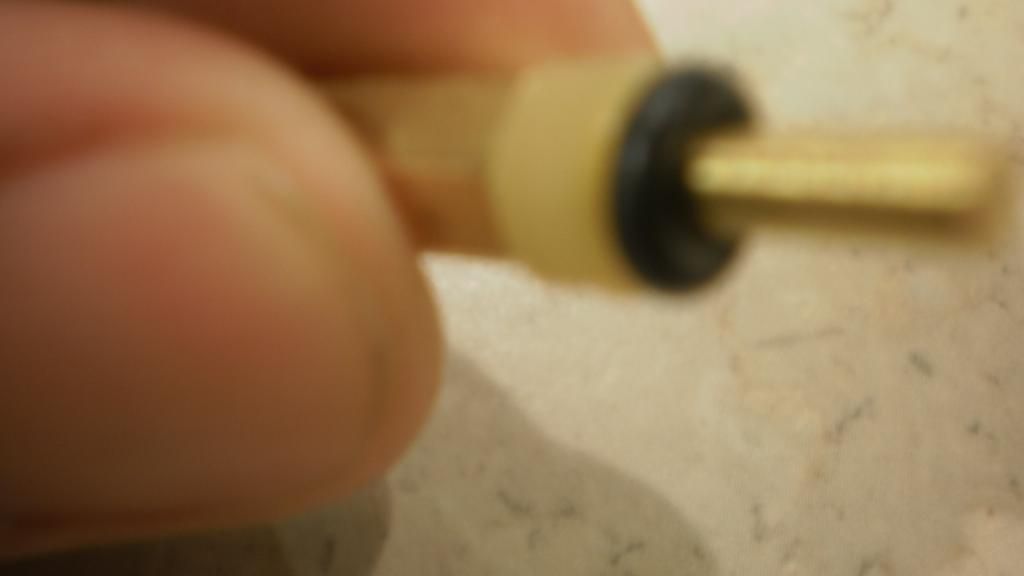

Sorry for the poor camera quality. But as you can see the thickness of the two orings is not up to par.

But they are the same size around

Will this affect anything?
__________________
Assume nothing, expect anything.
ThexAlchemist is offline   Reply With Quote
Old 02-26-2013, 09:06 PM #4
aresfiend
20% more *****in

aresfiend's Avatar

Join Date: Feb 2012
Location: Rice Lake, WI
aresfiend plays in the APPA D5 division
aresfiend has achieved Level 1 in PbNation Pursuit
aresfiend has achieved Level 2 in PbNation Pursuit
aresfiend has achieved Level 3 in PbNation Pursuit
Are you sure that o-ring is for the pin valve?...
__________________
You may call it fat, I call it bounce padding.

Star Framed Etek2 parting sale! Someone buy my stuff!
aresfiend is online now   Reply With Quote
Old 02-26-2013, 09:58 PM #5
ThexAlchemist
US Army

ThexAlchemist's Avatar

Join Date: Oct 2012
Location: Omaha, Nebraska
ThexAlchemist supports Team VICIOUS
ThexAlchemist supports Team VICIOUS
ThexAlchemist plays in the APPA beginner division
Quote:
Originally Posted by aresfiend View Post
Are you sure that o-ring is for the pin valve?...
http://www.paintballsolutions.com/pd..._regulator.pdf
On the diagram it reads "006 TEFLON “O” RING" and that's the size they gave me but in buna form.
__________________
Assume nothing, expect anything.
ThexAlchemist is offline   Reply With Quote
Old 02-26-2013, 10:58 PM #6
aresfiend
20% more *****in

aresfiend's Avatar

Join Date: Feb 2012
Location: Rice Lake, WI
aresfiend plays in the APPA D5 division
aresfiend has achieved Level 1 in PbNation Pursuit
aresfiend has achieved Level 2 in PbNation Pursuit
aresfiend has achieved Level 3 in PbNation Pursuit
Quote:
Originally Posted by ThexAlchemist View Post
http://www.paintballsolutions.com/pd..._regulator.pdf
On the diagram it reads "006 TEFLON “O” RING" and that's the size they gave me but in buna form.
I think it's supposed to go up into the bonnet. Let me pop apart my reg to check.

EDIT: Defintely no o-ring in the bonnet, but here's what I think, just leave the pin seal that's there on.
__________________
You may call it fat, I call it bounce padding.

Star Framed Etek2 parting sale! Someone buy my stuff!

Last edited by aresfiend : 02-26-2013 at 11:02 PM.
aresfiend is online now   Reply With Quote
Old 02-26-2013, 11:49 PM #7
CA_Tectonics


CA_Tectonics's Avatar

Join Date: Feb 2010
Location: Northern CA
That pin valve seal is actually a washer, not an o-ring. Also, I believe it is made of polyurethane, not teflon. As for using buna instead of poly, probably not a good idea. The poly o-rings are MUCH more durable when there is so much air flow at high pressures. The buna probably won't last long.
__________________
Graphite Dangerous Power REV-I
– TechT bolt engine, REV-I & Disruptive barrel kits, Prophecy V2 w/ Empire feedgate, Crossfire SS 68/4500
Maroon and Polished Aluminum Dangerous Power Threshold
– 7th Element board, TechT bolt engine, magnet trigger kit, REV-I PMD, Sly Dual Carbon barrel kit, Prophecy V2, Crossfire SS 68/4500
Black and Silver Dangerous Power F8
– APE Rampage board, VS bolt, magnet trigger kit, F8 gauge, REDZ barrel kit, Halo B w/ Exalt feedgate, PMI 68/4500
Polished Aluminum and Red Dangerous Power F8
– Virtue board, VS bolt, magnet trigger kit, Halo B w/ Exalt feedgate, PMI 68/4500
CA_Tectonics is offline   Reply With Quote
