Old 12-09-2012, 08:19 PM #1
firefoxx04
Up the Irons

firefoxx04's Avatar

Join Date: Jul 2008
Location: Michigan
firefoxx04 supports Bob Gurnsey
firefoxx04 supports DLX Technology
Solinoid Disassembly guide from ICDO

Was looking around on the ICD owners web sight and came across this. I actually just went tearing into my marqs noid (had some gunk on the piston causing a leak, very rare but it happens)

The noid ICD used is the same (or very very similar) as the marq noid (and alot of other BL guns). I know the Intimidator section has a thread on this but its not near as good and the pics are not showing up.

Keep in mind this is from a Promaster forum so the noid has barbs on it instead of being directly mounted like Bob long markers.

http://www.icd-owners.com/html/index...wtopic&t=15642

--------------------------------------------------------------------------

I'm posting these photos for those of you want a reference when breaking down / taking apart / servicing / disassembling the Humphrey solenoid HEA10F5-GL-101W.

USE THESE PICTURES AS A REFERENCE ONLY

These are some pictures I took during a recent disassembly of my Promaster solenoid. This particular ‘noid does not fire at a regular dwell setting. I’m not sure of the exact cause of this, but I believe that the damage from one of the grip frame screws warped the pilot section ever so slightly to make it harder for the electrical impules to translate into kinetic energy. This particular solenoid will cycle the marker like normal at dwell settings of 20-25 ms on a Promaster. This is not the normal operating condition though. Promasters are meant to have a dwell of 6-10ms. Again, I am not sure if this particular solenoid is faulty is due to damage from a grip frame screw or, perharps, just excess Dow 33.

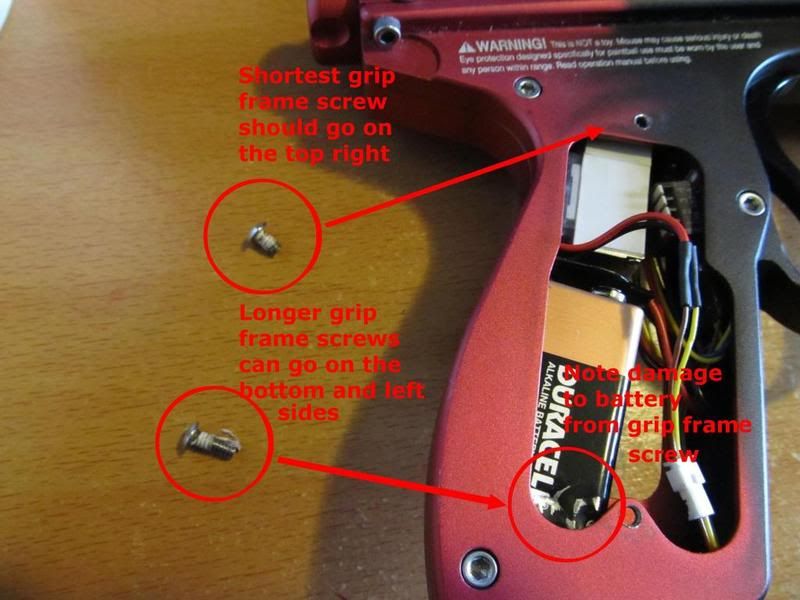

The picture below is just an example of how I would place grip frame screws as to not potentially damage a solenoid. The one on the top is just the right length so as not to contact the solenoid when screwed in. The screw on the bottom should only be used for the bottom of the grip frame. It is long enough to contact the solenoid if screwed into the top section and may in fact render your solenoid faulty like the one shown in this guide. Here is a thread where some major grip frame screw damage occurred. This is an extreme example.
http://www.icd-owners.com/html/index...ght=valve+leak

Also here is Fivestring's problem with a faulty noid detailed here. I think he ended up swapping the pilot section from a BKO noid and that fixed the problem.
http://www.icd-owners.com/html/index...wtopic&t=14082


NOTICE: PLEASE READ FIRST IF YOU THINK YOU HAVE A PROBLEM WITH YOUR SOLENOID NOT CYCLING
If you are having problems with your solenoid/marker not cycling normally via the trigger, I recommend you first depress the red manual over-ride button on the top on the noid WHILE YOUR MARKER IS GASSED UP AND UNDER PRESSURE. I have found that this will cure most non-cycle issues. To do this you will need to take off the right(smaller) hand side of the clamshell gripframe. All other pieces need to be in place and screwed down. Gas the marker up, make sure the breech is clear of any paintballs or other objects and depress the red button. This should cycle(fire) the marker. Before you put the marker back together, I would turn the marker on in dry fire mode and cycle the marker via trigger to verify the marker works normally. If your solenoid continues to give you problems(i.e. not cycle the spool properly via trigger even though you hear the noid 'click') you may have to clean off your spool, in which case you should proceed only through stage one. Any servicing past stage one is asking for trouble. Please proceed at your own risk.
Here is a photo showing how you would have a Promaster set up to depress the red button. Keep in mind I don't have an HPR in this photo, you will need yours if you are to perform this operation.



Before you go tearing into your solenoid, I recommend you familiarize yourself with some basic solenoid anatomy via these links.
Here’s a link to some diagrams showing the schematics of Humphrey solenoids.
http://www.zdspb.com/tech/misc/solenoids_humphrey.html
This is a page that helped me learn about general Humphrey solenoid service, although it differs slightly from the one shown here in that it features the breakdown of a Shocker noid.
http://www.zdspb.com/tech/mguide/sho..._humphrey.html

I am by no means an authority on servicing solenoids, but before you attempt this you should find a nice level workspace with good lighting. These solenoids have very tiny pieces that, if lost, will render you with a useless piece of plastic with a magnet in it. I recommend working on a paper towel or some other medium that prevent things from rolling off.


Recommended tools
-Small Phillips Screwdriver
-Paper Towel
-Toothpick
-Dow 33 or Superlube

Here’s the label side up
Pic #1




2Here’s the label side down with damage to the noid from the grip frame screw shown. We are going to start by removing the end part on the left hand side of the noid on the picture below.
Pic #2




STAGE 1: Unscrew the two small screws on the endplate. (section opposite the label side) Note, the spool is flush with the end.
Pic #3




To get the spool out, I gently shove a toothpick down the hole labeled #5 and wiggle it around. This should push the spool out enough to be able to grab with your fingertips.
Pic #4




You should wipe the spool down with a clean paper towel and lightly re-apply a small amount of Dow 33 or Superlube as needed. Inspect the inside of the chamber where the spool resides and remove anything that might prevent the spool from moving freely. You could use a twisted up piece of paper towel for this or a Q-tip. If you use a Q-tip, make sure no fibers are left behind that may inhibit the spool being able to move freely. Once you have cleaned, lubed and put the spool back into the noid you may go ahead and re-assemble the noid (use Pic #3, #13, and #14 as a reference) and install you solenoid back into your Promaster. I recommend verfying that the noid cycles the marker. If it does, congratulations, just lubed your solenoid all by yourself! If it doesn't, well.....there are plenty of noids out there.
Pic #5




PROCEEDING TO STAGE 2 IS COMPLETELY OPTIONAL AND IS NOT NECESSARY FOR REGULAR MAINTENANCE OF A SOLENOID!!!
STAGE 2: We’re going to remove these two screws at the other endplate shown here which will enable you to access the spool end and middle(pilot) section.
Pic #6




Here’s a picture of the core section(on the right) separated from the pilot/spool sections(on the left).
Pic #7




You can separate the pilot housing from the spool housing by removing the screw in the top right corner shown here.
Pic #8




What the noid looks like when all 3 portions are separated. Note, there are two tiny magnet rods in the center piece(pilot). Be cognizant of these pieces, you don’t want to lose them.
Pic #9




Here’s a better picture of one of the tiny rods after it fell out. Just put them back in if they fall out. They are magnetic so you will need a bit of patience for this.
Pic #10




Photo of the center piece(pilot) flipped over.
Pic #11




Removed the spool endplate/gasket (small white plastic piece with the o-ring) and removing some excess Dow 33.
Pic #12




Here's a couple of photos that you can use to make sure it's all put back together okay.
Pic #13

Pic #14
__________________
COLORS Paintball
Yeti PB Balls Out Photography Becker Industries
DPOT: Hotter than a 2 peckered billy goat
MacDev Clone GTi
firefoxx04 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 12-09-2012, 08:21 PM #2
firefoxx04
Up the Irons

firefoxx04's Avatar

Join Date: Jul 2008
Location: Michigan
firefoxx04 supports Bob Gurnsey
firefoxx04 supports DLX Technology
I did not use the toothpick idea to push the piston out. If the piston is stuck and will not slide out, you will have to disassemble the entire noid to push it out from the opposite side.

Also it should be noted that dow55 is not a good grease for use on the solenoid piston! Swelling those orings will not help anything. Use a good dow33 based grease like lurker lube or violent pb jelly.
__________________
COLORS Paintball
Yeti PB Balls Out Photography Becker Industries
DPOT: Hotter than a 2 peckered billy goat
MacDev Clone GTi
firefoxx04 is offline   Reply With Quote
Old 12-10-2012, 12:38 AM #3
RedAkuma
Respect, give it get it

RedAkuma's Avatar

Join Date: Jun 2001
Location: Fresno/Clovis Ca
Annual Supporting Member
RedAkuma is a founding member
 has been a member for 10 years
RedAkuma supports our troops
RedAkuma is Boss
hope the tester came in handy, and you didn't take the closer this far apart.
__________________
Give it all you got or go home early

Old Feedback 95 reasons to trust me
Feedback
"Originally posted by firefoxx04: Everything works awesome and just as described, thanks.
This guy is straight business no bull ****."

G6r, Marq, Luxe, Freak, tester, inserts, engines, bolts, board FS
RedAkuma is offline   Reply With Quote
Old 12-10-2012, 01:01 AM #4
firefoxx04
Up the Irons

firefoxx04's Avatar

Join Date: Jul 2008
Location: Michigan
firefoxx04 supports Bob Gurnsey
firefoxx04 supports DLX Technology
The closer you sent me was spotless, works great

My vampire closer decided to give me a hickup after i set the lpr. Turned out that the noid was hardcore gunked up and was causing the piston to sit slightly forward and vent air. Tore the noid apart, regreased and good to go. This is the guide i used to make sure i did everything right.


edit: haha noticed your sig
__________________
COLORS Paintball
Yeti PB Balls Out Photography Becker Industries
DPOT: Hotter than a 2 peckered billy goat
MacDev Clone GTi
firefoxx04 is offline   Reply With Quote
Old 12-18-2012, 10:54 PM #5
RichieJ
Richie

RichieJ's Avatar

Join Date: Mar 2007
Location: California
RichieJ supports Team VICIOUS
RichieJ plays in the APPA beginner division
RichieJ is attending Decay of Nations VI
RichieJ supports Empire
This is awesome, had a leak coming from my noid. followed this guide, and now my gun is no longer leaking and is as good as new. Thanks for posting this.
__________________
Feedback Rating
RichieJ is offline   Reply With Quote
Old 12-21-2012, 07:44 PM #6
firefoxx04
Up the Irons

firefoxx04's Avatar

Join Date: Jul 2008
Location: Michigan
firefoxx04 supports Bob Gurnsey
firefoxx04 supports DLX Technology
hey, im glad i could help. its always good to spread good information.
__________________
COLORS Paintball
Yeti PB Balls Out Photography Becker Industries
DPOT: Hotter than a 2 peckered billy goat
MacDev Clone GTi
firefoxx04 is offline   Reply With Quote
Old 07-02-2014, 06:46 AM #7
WildWayz
The Moose God

WildWayz's Avatar

Join Date: Nov 2004
Location: UK
Annual Supporting Member
Is there a right or wrong way to put the spool in? Someone told me it has to go in a certain way around... but it looks symmetrical to me.
__________________
For Freelance 3D Rendering Services, Manual Writing Service or Setting Up Support Ticket Systems visit here: My Services Thread
Progress Paintball - UK Sales and Support Thread - UK Dealer and Unofficial Service Center for Bob Long and Machine Paintball.

Clubs: Marq Clan | Insight Owners Group
WildWayz is online now   Reply With Quote
Old 07-04-2014, 11:54 AM #8
RedAkuma
Respect, give it get it

RedAkuma's Avatar

Join Date: Jun 2001
Location: Fresno/Clovis Ca
Annual Supporting Member
RedAkuma is a founding member
 has been a member for 10 years
RedAkuma supports our troops
RedAkuma is Boss
no it fits either way.
__________________
Give it all you got or go home early

Old Feedback 95 reasons to trust me
Feedback
"Originally posted by firefoxx04: Everything works awesome and just as described, thanks.
This guy is straight business no bull ****."

G6r, Marq, Luxe, Freak, tester, inserts, engines, bolts, board FS
RedAkuma is offline   Reply With Quote
Old 07-04-2014, 12:35 PM #9
WildWayz
The Moose God

WildWayz's Avatar

Join Date: Nov 2004
Location: UK
Annual Supporting Member
Quote:
Originally Posted by RedAkuma View Post
no it fits either way.
Thought so - thanks. Turns out it was the electronics in the solenoid that went as it shot via the red button, but not via the circuit board (tried another board and it still wouldn't fire).
__________________
For Freelance 3D Rendering Services, Manual Writing Service or Setting Up Support Ticket Systems visit here: My Services Thread
Progress Paintball - UK Sales and Support Thread - UK Dealer and Unofficial Service Center for Bob Long and Machine Paintball.

Clubs: Marq Clan | Insight Owners Group
WildWayz is online now   Reply With Quote
Old 07-04-2014, 12:39 PM #10
RedAkuma
Respect, give it get it

RedAkuma's Avatar

Join Date: Jun 2001
Location: Fresno/Clovis Ca
Annual Supporting Member
RedAkuma is a founding member
 has been a member for 10 years
RedAkuma supports our troops
RedAkuma is Boss
did you try a new battery?
__________________
Give it all you got or go home early

Old Feedback 95 reasons to trust me
Feedback
"Originally posted by firefoxx04: Everything works awesome and just as described, thanks.
This guy is straight business no bull ****."

G6r, Marq, Luxe, Freak, tester, inserts, engines, bolts, board FS
RedAkuma is offline   Reply With Quote
Old 07-04-2014, 12:43 PM #11
WildWayz
The Moose God

WildWayz's Avatar

Join Date: Nov 2004
Location: UK
Annual Supporting Member
Yes - always the first thing I try
__________________
For Freelance 3D Rendering Services, Manual Writing Service or Setting Up Support Ticket Systems visit here: My Services Thread
Progress Paintball - UK Sales and Support Thread - UK Dealer and Unofficial Service Center for Bob Long and Machine Paintball.

Clubs: Marq Clan | Insight Owners Group
WildWayz is online now   Reply With Quote
Old 07-04-2014, 12:45 PM #12
RedAkuma
Respect, give it get it

RedAkuma's Avatar

Join Date: Jun 2001
Location: Fresno/Clovis Ca
Annual Supporting Member
RedAkuma is a founding member
 has been a member for 10 years
RedAkuma supports our troops
RedAkuma is Boss
that's a bummer
__________________
Give it all you got or go home early

Old Feedback 95 reasons to trust me
Feedback
"Originally posted by firefoxx04: Everything works awesome and just as described, thanks.
This guy is straight business no bull ****."

G6r, Marq, Luxe, Freak, tester, inserts, engines, bolts, board FS
RedAkuma is offline   Reply With Quote
Old 07-05-2014, 07:42 PM #13
vector911


vector911's Avatar

Join Date: Jul 2004
vector911 owns a Planet Eclipse Geo
Quote:
Originally Posted by WildWayz View Post
Thought so - thanks. Turns out it was the electronics in the solenoid that went as it shot via the red button, but not via the circuit board (tried another board and it still wouldn't fire).
http://www.ebay.com/itm/Paintball-Bo...em3a8b8b 06bb

This should get you up and running. Never had to purchase one yet.
I've picked some solenoids cheap from sawyerpb on eBay quite a few times.
__________________
Geo3
Ripper VIS
V1 Victory vcomm
vector911 is offline   Reply With Quote
Old 07-06-2014, 02:11 AM #14
WildWayz
The Moose God

WildWayz's Avatar

Join Date: Nov 2004
Location: UK
Annual Supporting Member
Quote:
Originally Posted by vector911 View Post
http://www.ebay.com/itm/Paintball-Bo...em3a8b8b 06bb

This should get you up and running. Never had to purchase one yet.
I've picked some solenoids cheap from sawyerpb on eBay quite a few times.
Thanks - he doesn't ship to the UK :'(
__________________
For Freelance 3D Rendering Services, Manual Writing Service or Setting Up Support Ticket Systems visit here: My Services Thread
Progress Paintball - UK Sales and Support Thread - UK Dealer and Unofficial Service Center for Bob Long and Machine Paintball.

Clubs: Marq Clan | Insight Owners Group
WildWayz is online now   Reply With Quote
Old 07-06-2014, 08:28 AM #15
FrmrSpecialist
www.fxanodizing.com

FrmrSpecialist's Avatar

Join Date: Jan 2009
Quote:
Originally Posted by WildWayz View Post
Thanks - he doesn't ship to the UK :'(
Most likely the pilot housing wires got ripped off.. if you are extremely patient and good with small things, you can disassemble the pilot housing to re-attach those wires.

Either that or you lost the magnetic rods.. those are a ***** to keep track of..
__________________
*Caution* CUSTOM ANNO*Caution*
FrmrSpecialist is offline   Reply With Quote
Old 07-06-2014, 08:29 AM #16
FrmrSpecialist
www.fxanodizing.com

FrmrSpecialist's Avatar

Join Date: Jan 2009
PM me.. I might have an extra pilot housing from scrap solenoids that I can send your way.
