Manifold Leak

I fixed it momentarily and know what the problem is. It's just going to take a long time to get parts in. Thanks for all the help everyone The Luxe community is great (except for the guy that sold me this gun...)


Hey everyone, when I adjust my manifold screw to around 3-4 turns in the solenoid starts leaking from that area upon airing the marker up.



There a video of what's going on. It works on every setting before 3 turns in, and sometimes works at 3 1/2 turns in.

What's been done so far: Cleaned reg, tried a different reg, lightly greased manifold orings, lightly greased orings on top of the solenoid, made sure the transfer oring is in good condition.


Last edited by ybekool : 11-20-2012 at 04:46 PM.
ybekool is offline   Reply With Quote
Old 11-18-2012, 02:23 PM #2
Ragin Cajun
CLICK, CLICK, BOOM

Ragin Cajun's Avatar

Join Date: Dec 2001
Location: South Louisiana
Annual Supporting Member
Ragin Cajun is a founding member
Ragin Cajun is one of the top 1000 posters on PbNation
Ragin Cajun is a Forum Captain
The manifold screw only effects the marker on the forward stroke of the bolt. It makes no seals. I would check the screws that hold the noid to the manifold.
Ragin Cajun is offline   Reply With Quote
Old 11-18-2012, 02:46 PM #3
ybekool


ybekool's Avatar

Join Date: Jan 2010
Location: Joliet
Annual Supporting Member
ybekool plays in the PSP
ybekool owns a Planet Eclipse Geo
ybekool supports Team VICIOUS
ybekool plays in the APPA D4 division
Quote:
Originally Posted by Ragin Cajun View Post
The manifold screw only effects the marker on the forward stroke of the bolt. It makes no seals. I would check the screws that hold the noid to the manifold.
Right, which is why this is confusing me.
I just tried tightening the screws further, but I could only get one screw to go maybe 1/8th of a turn further in. Still leaks
ybekool is offline   Reply With Quote
Old 11-18-2012, 05:40 PM #4
ybekool


ybekool's Avatar

Join Date: Jan 2010
Location: Joliet
Annual Supporting Member
ybekool plays in the PSP
ybekool owns a Planet Eclipse Geo
ybekool supports Team VICIOUS
ybekool plays in the APPA D4 division
Alright new update:
Gun leaks at any manifold setting,
it looks like it's the seals in between the manifold or on the top of solenoid. Anyone know the size?
ybekool is offline   Reply With Quote
Old 11-18-2012, 08:51 PM #5
2sox


2sox's Avatar

Join Date: Oct 2010
Location: Oregon, IL
2sox plays in the PSP
2sox plays in the APPA D3 division
2sox supports DLX Technology
2sox owns a Planet Eclipse GSL
The ones you are asking about are 2.5x1mm. If these are your problem and you don't get them by the end of the week, you can get them from Jen or I at Ohare this weekend.
__________________
OHARE NIGHTMARE
special thanks to:
Ohare Paintball Bensonville , IL
2sox is online now   Reply With Quote
Old 11-19-2012, 09:35 AM #6
phillysteve


phillysteve's Avatar

Join Date: Aug 2008
Location: Philly
Annual Supporting Member
phillysteve supports DLX Technology
Try swapping the reg with the reg off another marker and seeing if it still leaks? Maybe be over-pressurizing due to reg creep.
__________________
LVP SOUTH, Hatfield, PA
DLX Luxe
GLOCK 19
phillysteve is offline   Reply With Quote
Old 11-20-2012, 03:53 PM #7
ybekool


ybekool's Avatar

Join Date: Jan 2010
Location: Joliet
Annual Supporting Member
ybekool plays in the PSP
ybekool owns a Planet Eclipse Geo
ybekool supports Team VICIOUS
ybekool plays in the APPA D4 division
Quote:
Originally Posted by 2sox View Post
The ones you are asking about are 2.5x1mm. If these are your problem and you don't get them by the end of the week, you can get them from Jen or I at Ohare this weekend.
Pming you

Quote:
Originally Posted by phillysteve View Post
Try swapping the reg with the reg off another marker and seeing if it still leaks? Maybe be over-pressurizing due to reg creep.
Just tried the reg off another gun, same deal.
ybekool is offline   Reply With Quote
Old 11-20-2012, 04:08 PM #8
StealthLogics


Join Date: Feb 2011
StealthLogics owns a Planet Eclipse Ego
i was tuning my gun today and when i went in to far on the manifiold screw it leaked also just back the screw out
StealthLogics is offline   Reply With Quote
Old 11-20-2012, 04:44 PM #9
ybekool


ybekool's Avatar

Join Date: Jan 2010
Location: Joliet
Annual Supporting Member
ybekool plays in the PSP
ybekool owns a Planet Eclipse Geo
ybekool supports Team VICIOUS
ybekool plays in the APPA D4 division
Quote:
Originally Posted by StealthLogics View Post
i was tuning my gun today and when i went in to far on the manifiold screw it leaked also just back the screw out
It's not this problem. It leaks no matter what.
ybekool is offline   Reply With Quote
Old 11-24-2012, 08:53 PM #10
DanR
just Luxback

DanR's Avatar

Join Date: Mar 2011
Location: Mni Soda
Annual Supporting Member
DanR plays in the PSP
DanR is an NCPA player
DanR plays in the APPA D4 division
DanR supports DLX Technology
DanR supports Empire
the manifold adjusts how fast the bolt moves backwards.
feather touch controls forward movement of the bolt.
just wanted to clear that up
also what ended up being the issue im curious
__________________
DLX Luxe 1.0 #746
JT Impulse #774


Upton 187 Crew Geo 2 F/S/T
Vintage Paintball Park
DanR is offline   Reply With Quote
Old 11-25-2012, 12:51 PM #11
cingram


Join Date: Oct 2011
Location: Provo, Utah
cingram owns a Planet Eclipse Ego
I am having the same problem with my luxe 1.0 that someone just traded me. Would it be a broken solenoid? How bad would that leak?
__________________
SLC FACTION

Saints Paintball/Planet Eclipse/Virtue/HKarmy

WCPPL playuwl.com NPPL
cingram is offline   Reply With Quote
Old 11-25-2012, 04:55 PM #12
ybekool


ybekool's Avatar

Join Date: Jan 2010
Location: Joliet
Annual Supporting Member
ybekool plays in the PSP
ybekool owns a Planet Eclipse Geo
ybekool supports Team VICIOUS
ybekool plays in the APPA D4 division
Quote:
Originally Posted by DanR View Post
the manifold adjusts how fast the bolt moves backwards.
feather touch controls forward movement of the bolt.
just wanted to clear that up
also what ended up being the issue im curious

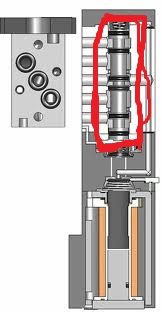

Mine ended up being bad orings on this portion of the inner workings of the solenoid (I'm not sure exactly what to call it. Maybe the piston? Valve? something like that.)

Quote:
Originally Posted by cingram View Post
I am having the same problem with my luxe 1.0 that someone just traded me. Would it be a broken solenoid? How bad would that leak?
It could be, but it's highly unlikely. Is it leaking from that exact same spot?
ybekool is offline   Reply With Quote
