Geo Solenoid Leak Need Help Fast!!!

When i pull the trigger on my geo it shoots air out of one of the ports in the top of it. It does not leak otherwise. Only when I try to fire. I am aware of the solenoid venting. In my case the gun does not fire at all and all air is shot out of the solenoid. What is wrong with my solenoid?

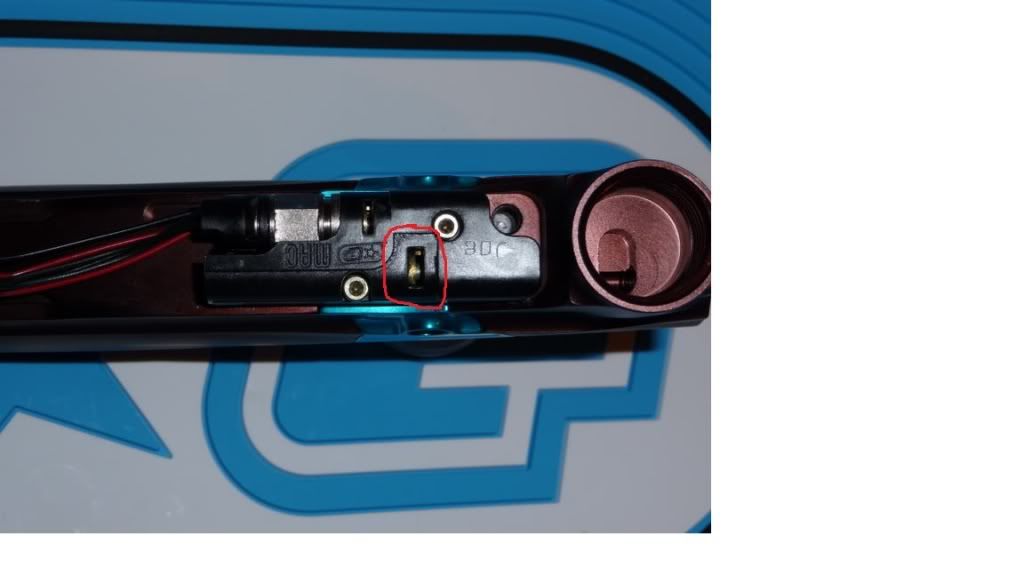

Port where air is shooting out is circled below.

Last edited by KLTurn3r : 01-26-2011 at 10:46 PM.
KLTurn3r is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 01-26-2011, 10:21 PM #2
connors14


connors14's Avatar

Join Date: Jul 2006
Location: Milford,Connecticut
connors14 plays in the PSP
connors14 owns a Planet Eclipse Geo
connors14 is reppin' sidebar 4 life
connors14 plays in the APPA D4 division
its most likely just the solenoid venting, which is normal
__________________
Hartford Hustle
sc2: paintshoota 137
connors14 is offline   Reply With Quote
Old 01-26-2011, 10:45 PM #3
KLTurn3r
Kyle

KLTurn3r's Avatar

Join Date: Apr 2010
Location: 46530
KLTurn3r owns a Planet Eclipse Geo
KLTurn3r owns a Planet Eclipse Ego
KLTurn3r supports Team VICIOUS
KLTurn3r has achieved Level 2 in PbNation Pursuit
Quote:
Originally Posted by connors14 View Post
its most likely just the solenoid venting, which is normal
I no that the solenoid vents but in my case the bolt does not move or fire...all air is coming from the solenoid
KLTurn3r is offline   Reply With Quote
Old 01-27-2011, 12:50 AM #4
Uziel Gal
It's not a Geo2, honest..

Uziel Gal's Avatar

Join Date: Mar 2004
Location: London, UK
Uziel Gal donated to help Peyton Trent
Uziel Gal owns a Planet Eclipse Geo
Uziel Gal owns a Planet Eclipse Ego
Uziel Gal supports our troops
May not be a solenoid issue - could also be down to the bolt kit.

Make sure that the back check ball is vlean and undamaged and that it isn't less than 4.00mm in diameter.

Clean and check the condition of the spool pack o-rings.

On the bolt make sure that the vent behind the can o-rings is just a pinhole, no larger.
Uziel Gal is offline   Reply With Quote
Old 01-27-2011, 08:40 PM #5
KLTurn3r
Kyle

KLTurn3r's Avatar

Join Date: Apr 2010
Location: 46530
KLTurn3r owns a Planet Eclipse Geo
KLTurn3r owns a Planet Eclipse Ego
KLTurn3r supports Team VICIOUS
KLTurn3r has achieved Level 2 in PbNation Pursuit
Quote:
Originally Posted by Uziel Gal View Post
May not be a solenoid issue - could also be down to the bolt kit.

Make sure that the back check ball is vlean and undamaged and that it isn't less than 4.00mm in diameter.

Clean and check the condition of the spool pack o-rings.

On the bolt make sure that the vent behind the can o-rings is just a pinhole, no larger.
tryed all methods...still does not work
KLTurn3r is offline   Reply With Quote
Old 01-28-2011, 08:27 AM #6
p8ntshoota
Eclipse Tech Support

p8ntshoota's Avatar

Join Date: Jan 2003
Location: In a Tech Tent Somewhere
p8ntshoota is a Supporting Member
 has been a member for 10 years
p8ntshoota works for a Paintball manufacturer
p8ntshoota owns a Planet Eclipse Etha
Sometimes when you take the solenoid apart...as you reassemble it...if you don't go slowly...the Large Pilot Valve O ring can roll out of its track. This will present the symptom that you describe.

One reason I always tell everyone...take your marker apart ONLY when you need to. So many people are OCD and feel a need to fully strip the marker after every time out to play. This is Overkill! The marker will tell you when it needs attention.

As Uziel has indicated...it may also be down to the bolt assembly...more precisely...the O rings on there. make sure you are using the correct O rings as outlined in the manual.

Finally...if the Spool Pack O rings are worn out...you may have to change them. You won't be able to SEE anything abnormal with them unless one is torn. If your marker has a large number of shots...the inner tolerance of the solenoid manifold may be worn around the spool...or the spool may be binding up.

These are all I can think of...other than the most common problem...a cheap or worn out battery!
__________________
You broke it didn't you!

I Love that it takes longer to open a package for a repair on an Ego than it takes to actually fix the gun!

For the Love of Paintball....Use OILon the rammer!

If you THINK you're a Super Hero...You're NOT! SLIDE RIGHT!!!
p8ntshoota is offline   Reply With Quote
Old 04-16-2013, 03:12 PM #7
fsuobie


fsuobie's Avatar

Join Date: Apr 2013
Location: Tallahassee, FL
fsuobie owns a Planet Eclipse Geo
geo solenoid

Hey KLTurn3r- I'm having the same issue and am about to send my geo off to a service center for repair.

Did you ever find the best way to correct this issue?

Thanks.
