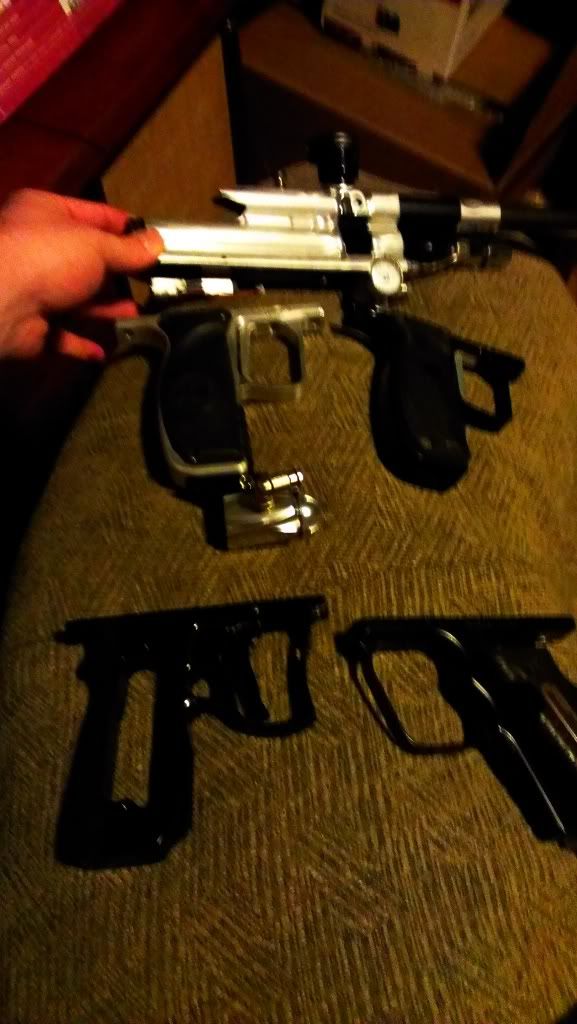

In progress LED, all AKA interals and Mitey Max

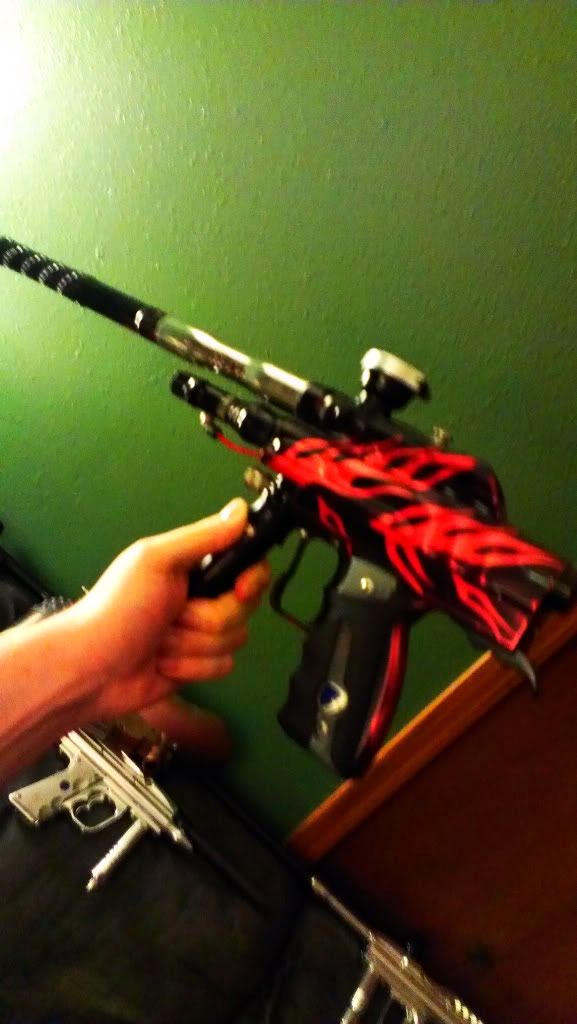

Angel LED Warped Sportz Dark
Dark LED Low Pressure Project - Running this with a Virtue board. It is shooting 280fps with only 200psi input pressure. Mod list: Main body-Tubes combined via two 1/4npt holes and plugs from underneath. Air port for intake enlarged significantly, air port for exhaust increased from .245 to .285, plug added to rear of battery tube. Grip frame-LED stove pipe recess added, air port added and enlarged from stock, o-ring groove added and enlarged from stock. VSA-Air port significantly enlarged. Rotobreech-Air port enlarged from .245 to .285. Bolt-Venturi holes enlarged. LPR-additional porting added to lip, valve spring replaced with lighter spring. Valve stem-shaft turned down to increase air flow. Valve body-valve seat enlarged and moved forward for more valve movement, exhaust hole opened from .245 to .285. Hammer-significant weight reduction. Ram-Air port holes enlarged, flow channels added. I think the smallest diameter hole from reg to barrels is .220".
Angel Stars and Stripes LED
2K2 LCD w/ MT eye conversion
06 Speed "tHE GAt"
AKA Sidewinder and SCM installed
A1 Cobra Fly
Shown with optional ST shroud kit
AR:KSOLD TO Jeffrey Kidwell 5/28/15
Digicam duracoat w/ pink barbed wire made by Jay at PB Sports exclusively for Waverly Muller.
