Dye board question

Alright so the past two times I've played I noticed my dm11 was getting some random shot drop off. I cleaned the bolt, hpr, and lpr and tossed a new battery in. Fine tuned it and the problem seemed to be fixed. Yesterday I'm out playing and it does it again... Okay I take my air tank of and check the gun out, do absolutely nothing and throw the air tank on and it works fine for the rest of the day. Well today as I'm getting ready to clean the gun off, I open the grips to remove the battery and notice that one of the prongs is just dangling by a thread. I was just wondering if anyone knows if this was a common thing that dye was aware of with their newer boards and if anyone has had this same problem.





(Sorry for the blurry pics my camera is a POS)

I'm not too worried because I'm sure I can find someone to solder it for me, but if anyone has any other suggestions (other then buy a new board ) on how to fix this please feel free to let me know.


Thanks ahead of time for any help/advice
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 10-01-2012, 06:35 PM #2
grss429
Gun Tech! & Field owner

grss429's Avatar

Join Date: Sep 2007
Location: N.C
grss429 plays in the PSP
grss429 posts videos on PbNation
grss429 plays in the APPA D4 division
grss429 has perfected Level 1 in PbNation Pursuit
grss429 has achieved Level 4 in PbNation Pursuit
No, its not commen it happens some times if the black rubber piece isn't there to act as a bumper, just like you said solder it on or buy a used board from nation for 20-30 bucks, or go safe and buy a new one from dye for 50, as far as your FSOD there is only few things to cause it..


A; Your dwell is to low

B; Your LPR is to low

C; your bolt needs to be relubed


What I would do

D; Relube bolt check the orings over, make sure the bolt can slides nicely with no resistance,

E; Check your dwell make sure it's at like either 18 (stock) or 21

C; read around a bit and check out how to tune your LPR every gun is different, but mostly are 3 1/2 4 turns
__________________
B'Fins Paintball Tech
My gun repair/cleaning/tech service

BE SURE TO CHECK OUT MY FACEBOOK PAGE! WEBSITE COMING SOON www.facebook.com/bfinpbt

Owner/home field.
Come play at Nature of the game paintball in hampstead North Carolina (910) 270 2163

Last edited by grss429 : 10-01-2012 at 06:39 PM.
grss429 is offline   Reply With Quote
Old 10-01-2012, 06:48 PM #3
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
Thanks man up'ed the dwell to 21 (it was at the stock setting of 18 prior), now just gotta find someone who's good at soldering lol
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old 10-01-2012, 06:52 PM #4
speedy2k4
BSH University

speedy2k4's Avatar

Join Date: Jul 2005
Location: MD
speedy2k4 is a Supporting Member
Solder it back on.

And you have to be careful when installing the battery. That prong can get hung up on the negative battery terminal when you are pushing the battery in to place, which will force the prong back away from the board.
speedy2k4 is offline   Reply With Quote
Old 10-01-2012, 07:00 PM #5
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
Quote:
Originally Posted by speedy2k4 View Post
Solder it back on.

And you have to be careful when installing the battery. That prong can get hung up on the negative battery terminal when you are pushing the battery in to place, which will force the prong back away from the board.
Sure thing
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old 10-01-2012, 07:43 PM #6
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
Okay I just showed this to my buddy who offered to help solder it and he said I should just glue it since it wouldn't be soldering metal on metal, as the board where the prong touches doesn't appear to be metal expect in the corner where the prong is still "hanging by a thread." Should I just put solder in between the prong and the board as originally planned, or should I glue it?
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old 10-01-2012, 09:26 PM #7
classmarcher
Suppress; Slice; Win

classmarcher's Avatar

Join Date: Jan 2011
Location: in sunny 818
Quote:
Originally Posted by iquadra View Post
Okay I just showed this to my buddy who offered to help solder it and he said I should just glue it since it wouldn't be soldering metal on metal, as the board where the prong touches doesn't appear to be metal expect in the corner where the prong is still "hanging by a thread." Should I just put solder in between the prong and the board as originally planned, or should I glue it?

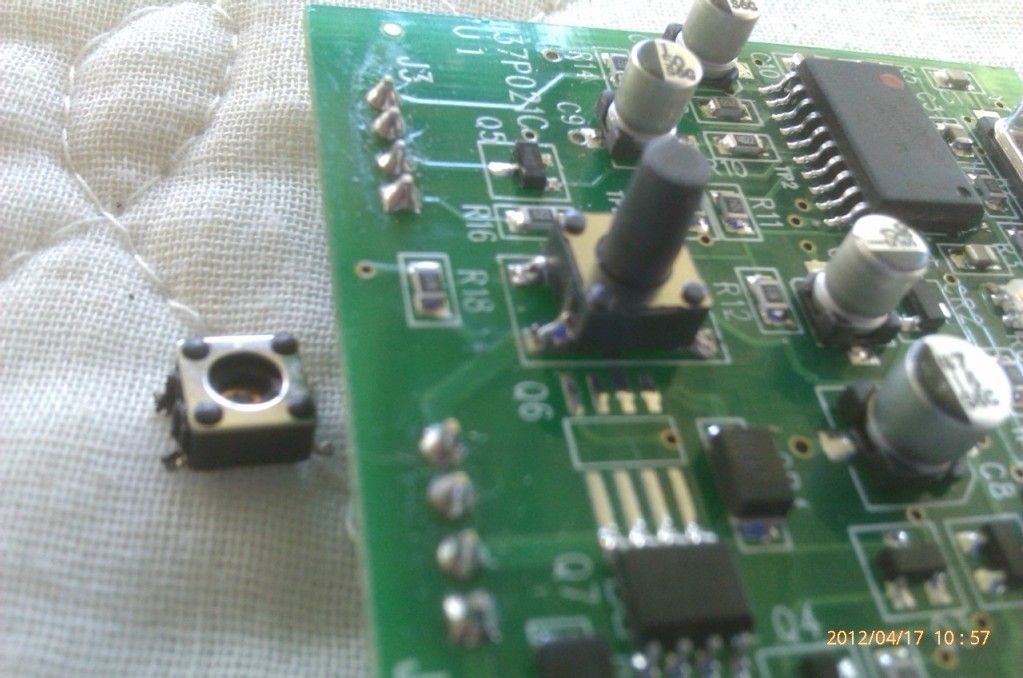

i used this on my board, soldered it to the contact points...


solder it bud, put that skill into good use...
[IMG][/IMG]
__________________
** If your parents can't pay for your paintball stuff because they are too old and their social security checks are used to fund their retirement, put this in your signature**

Its not the Age, Its the Mileage

jollibeeforever.................Use it up, wear it down, make it do ; or do without..................beer and balut
classmarcher is offline   Reply With Quote
Old 10-01-2012, 09:29 PM #8
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
Are you suggesting I get a harness and solder that? or solder the prong directly to the board? Thanks for the help and pics man
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old 10-01-2012, 09:49 PM #9
classmarcher
Suppress; Slice; Win

classmarcher's Avatar

Join Date: Jan 2011
Location: in sunny 818
Quote:
Originally Posted by iquadra View Post
Are you suggesting I get a harness and solder that? or solder the prong directly to the board? Thanks for the help and pics man
if the existing metal contact point is still good then you could just resolder, if not, then ill just take off the excess solder off the board and find the hole on the board to which the prong can go in and solder the ends of the harness... just keep in mind the polarity of the wires in relation to the board...
__________________
** If your parents can't pay for your paintball stuff because they are too old and their social security checks are used to fund their retirement, put this in your signature**

Its not the Age, Its the Mileage

jollibeeforever.................Use it up, wear it down, make it do ; or do without..................beer and balut
classmarcher is offline   Reply With Quote
Old 10-01-2012, 09:53 PM #10
speedy2k4
BSH University

speedy2k4's Avatar

Join Date: Jul 2005
Location: MD
speedy2k4 is a Supporting Member
I prefer the prongs over a traditional harness, but either will work and both have their pros and cons as far as convenience and durability.
speedy2k4 is offline   Reply With Quote
Old 10-01-2012, 10:01 PM #11
classmarcher
Suppress; Slice; Win

classmarcher's Avatar

Join Date: Jan 2011
Location: in sunny 818
Quote:
Originally Posted by speedy2k4 View Post
I prefer the prongs over a traditional harness, but either will work and both have their pros and cons as far as convenience and durability.
i prefer the prongs too, coz you can solder above and below the board, but im just thinking that the battery harness is commonly available than the stock contact points...
__________________
** If your parents can't pay for your paintball stuff because they are too old and their social security checks are used to fund their retirement, put this in your signature**

Its not the Age, Its the Mileage

jollibeeforever.................Use it up, wear it down, make it do ; or do without..................beer and balut
classmarcher is offline   Reply With Quote
Old 10-01-2012, 10:15 PM #12
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
Going to try soldering the prong first if that doesn't work I might give the harness a go but to be honest I prefer prongs as well.
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old 10-02-2012, 07:03 PM #13
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
Alright so I guess it turns out the pad that it is supposed to be soldered to has come off as you can kind of see in the picture (showed to an electrical engineer). The prong is still soldered to the pad so applying more solder would do nothing. When you guys refer to the contact point is it this "pad" that you solder the prong to that you are referring to or the point where the prong/pad touch or make contact with the board (because this is the sole point which is holding the prong/pad on by a string)? Would I just be able to use some JB weld to stick the pad down to the board? I was told these "pads" are built into the board so does this mean I am just going to be forced to buy a new board at this point?
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old 10-02-2012, 07:22 PM #14
grss429
Gun Tech! & Field owner

grss429's Avatar

Join Date: Sep 2007
Location: N.C
grss429 plays in the PSP
grss429 posts videos on PbNation
grss429 plays in the APPA D4 division
grss429 has perfected Level 1 in PbNation Pursuit
grss429 has achieved Level 4 in PbNation Pursuit
Quote:
Originally Posted by iquadra View Post
Alright so I guess it turns out the pad that it is supposed to be soldered to has come off as you can kind of see in the picture (showed to an electrical engineer). The prong is still soldered to the pad so applying more solder would do nothing. When you guys refer to the contact point is it this "pad" that you solder the prong to that you are referring to or the point where the prong/pad touch or make contact with the board (because this is the sole point which is holding the prong/pad on by a string)? Would I just be able to use some JB weld to stick the pad down to the board? I was told these "pads" are built into the board so does this mean I am just going to be forced to buy a new board at this point?
Honestly, it seems like alot of work, you can get a used dm11-12 board, for really cheap here on the nation, which is around 25-30 bucks, or you can get a brand new one from dye for 50

it just seems like the safer route to me, seeing you could always have problems down the road with it, and if you go to sell it I dont think many people want a rigged board
__________________
B'Fins Paintball Tech
My gun repair/cleaning/tech service

BE SURE TO CHECK OUT MY FACEBOOK PAGE! WEBSITE COMING SOON www.facebook.com/bfinpbt

Owner/home field.
Come play at Nature of the game paintball in hampstead North Carolina (910) 270 2163

Last edited by grss429 : 10-04-2012 at 01:07 AM.
grss429 is offline   Reply With Quote
Old 10-02-2012, 07:58 PM #15
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
I need a UL2 board then correct (one that the nt11, dm11, and dm12 use)? I don't think the dm9 board will fit the new frame, please correct me if I am wrong though.
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old 10-02-2012, 08:43 PM #16
nonameputs


nonameputs's Avatar

Join Date: Apr 2005
Location: United States
nonameputs has achieved Level 1 in PbNation Pursuit
nonameputs has perfected Level 1 in PbNation Pursuit
If you're not skilled at soldering then I wouldn't try it. But if you are, then you would follow the traces on the board back to a point where you can solder (where something else is already soldered usually), and solder the harness there. If you could get some less fuzzy pics of both sides of the board I may be able to tell you where to solder what.
nonameputs is offline   Reply With Quote
Old 10-02-2012, 09:34 PM #17
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
The metal plate or pad that the prong is solder to has come up with the prong so I don't think soldering is of any help to me.
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old 10-02-2012, 10:40 PM #18
nonameputs


nonameputs's Avatar

Join Date: Apr 2005
Location: United States
nonameputs has achieved Level 1 in PbNation Pursuit
nonameputs has perfected Level 1 in PbNation Pursuit
I meant soldering on a battery harness and doing away with the prongs.
nonameputs is offline   Reply With Quote
Old 10-02-2012, 10:59 PM #19
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
Quote:
Originally Posted by nonameputs View Post
I meant soldering on a battery harness and doing away with the prongs.
Oh, got it, I'm might give that a go, I think I know where to solder the ends of the wire so we'll see. Thanks though man
__________________
Hooligans Paintball

Proudly Sponsored By: Exalt
iquadra is offline   Reply With Quote
Old 10-02-2012, 11:07 PM #20
nonameputs


nonameputs's Avatar

Join Date: Apr 2005
Location: United States
nonameputs has achieved Level 1 in PbNation Pursuit
nonameputs has perfected Level 1 in PbNation Pursuit
No problem. By the looks of it those are some pretty small solder pads on there so be careful if you do try it. And be sure not to overheat anything as you might damage a component.
nonameputs is offline   Reply With Quote
Old 10-02-2012, 11:08 PM #21
iquadra
BucK NastY

iquadra's Avatar

Join Date: Apr 2011
Location: K-Town, WI
Yea that's kinda why I was hesitant to do any soldering at all myself. + does anyone know if the stock nt11 board is the exact same as the dm11 board?
