Old 06-11-2012, 10:29 PM #1
Bigjoe11
"The Boss"

Bigjoe11's Avatar

Join Date: Jun 2011
Location: North Carolina
Bigjoe11 owns a Planet Eclipse Etek
Bigjoe11 has achieved Level 1 in PbNation Pursuit
Bigjoe11 has achieved Level 2 in PbNation Pursuit
Bigjoe11 supports DLX Technology
modded spyders thread

I decided to start this thread due to the amount of people who like to modify their spyders. Spyders are cheap, easy to mill, and have the potential to look amazing. These diy mods usually cost nothing and can turn a spyder into a gun you can show off. This thread is to post pictures of your diy modified spyder and for discussion about modifying them. This includes halfbacking, frame move ups, mini's spyders, spumps, custom milling, etc.

To start things off, here's my recently modded spyder:





I did the halfbacking job with a hack saw and some sandpaper/sanding foam. then I replaced the connecting pin with a longer cut-down nail to make the new cocking pin, it kind of looks like a timmy bolt now.
__________________
-UCP

Last edited by Bigjoe11 : 06-11-2012 at 11:03 PM.
Bigjoe11 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 06-11-2012, 11:50 PM #2
Box
Wroooaaarrrr!

Box's Avatar

Join Date: Sep 2005
Annual Supporting Member
Box is playing at Living Legends VII
Ill have to dig out my spyder... I'm positive I have a T-boarded spyder set up with dual ball detents and eyes that did ~20 bps. That thing was filthy.

Also, you should low pressure mod your Spyder.

Last edited by Box : 06-11-2012 at 11:58 PM.
Box is offline   Reply With Quote
Old 06-12-2012, 12:34 AM #3
Bigjoe11
"The Boss"

Bigjoe11's Avatar

Join Date: Jun 2011
Location: North Carolina
Bigjoe11 owns a Planet Eclipse Etek
Bigjoe11 has achieved Level 1 in PbNation Pursuit
Bigjoe11 has achieved Level 2 in PbNation Pursuit
Bigjoe11 supports DLX Technology
Quote:
Originally Posted by Box View Post
Ill have to dig out my spyder... I'm positive I have a T-boarded spyder set up with dual ball detents and eyes that did ~20 bps. That thing was filthy.

Also, you should low pressure mod your Spyder.
Actually, that's already been done, this gun has all of the ottermods as a matter of fact. It had a reg on it, but it now has an expansion chamber since i put my reg on another gun. It was so quiet and consistent with that reg.
__________________
-UCP
Bigjoe11 is offline   Reply With Quote
Old 06-12-2012, 02:32 PM #4
cpt_crunch


cpt_crunch's Avatar

Join Date: Aug 2009
cpt_crunch has achieved Level 1 in PbNation Pursuit
Here's the spump I did for a friend. Still needs some love but it works
And yes I know it is technically not a spyder
I milled the hammer and body. Made a delrin pump handle, turned a block to extend the bolt back, and polished the bolt very lightly, not enough to take off all the anno, but enough to really smooth it. (not that you can tell since it's covered in lube).


__________________
Christian
Senior Mechanical Engineering Student
Apprentice Machinist
Lover of All Things Paintball

Buy my airsoft gear

Last edited by cpt_crunch : 06-12-2012 at 02:40 PM.
cpt_crunch is offline   Reply With Quote
Old 06-12-2012, 04:34 PM #5
Bigjoe11
"The Boss"

Bigjoe11's Avatar

Join Date: Jun 2011
Location: North Carolina
Bigjoe11 owns a Planet Eclipse Etek
Bigjoe11 has achieved Level 1 in PbNation Pursuit
Bigjoe11 has achieved Level 2 in PbNation Pursuit
Bigjoe11 supports DLX Technology
How do you cock the striker now that the bolt's not connected to it?
__________________
-UCP
Bigjoe11 is offline   Reply With Quote
Old 06-12-2012, 07:05 PM #6
joshmeldin9
thebeast

joshmeldin9's Avatar

Join Date: Jun 2011
Location: Missouri
joshmeldin9 is playing at Living Legends V
joshmeldin9 has achieved Level 1 in PbNation Pursuit
joshmeldin9 has achieved Level 2 in PbNation Pursuit
did you slot the striker? how did you do it so that you can move the pump handle back to its original place without pulling the trigger?
__________________
If your under 18 and pay for your own gear put this in your sig. Yeah I use an Invert Mini. Just because I own a mini doesn't mean I'm a spoiled 10 year old.

Originally Posted by ericpaintball154
Why do people like pump guns is cuz more accurate
Originally posted by sup'mango
No it's because your grammar sucks
joshmeldin9 is offline   Reply With Quote
Old 06-12-2012, 08:47 PM #7
yuik
Mr Diet Coke on the Rocks

yuik's Avatar

Join Date: Dec 2004
Annual Supporting Member
yuik is playing at Living Legends V
yuik is playing at Living Legends VI
yuik is an NCPA player
yuik plays in the APPA D4 division
yuik is one of the top 250 posters on PbNation
yuik is Legendary
do they still make spimmy kits
__________________
if you have an ebay account and want to make 3$ in paypal for 5 min of your time pm me!
Closed Bolt Ballers!

Huge gearbag sale. Everything you can imagine including bob saget!

RED JMJ Smooth Mill viking RobTown Valve Ultralight Frame!
yuik is offline   Reply With Quote
Old 06-12-2012, 10:10 PM #8
Bigjoe11
"The Boss"

Bigjoe11's Avatar

Join Date: Jun 2011
Location: North Carolina
Bigjoe11 owns a Planet Eclipse Etek
Bigjoe11 has achieved Level 1 in PbNation Pursuit
Bigjoe11 has achieved Level 2 in PbNation Pursuit
Bigjoe11 supports DLX Technology
Quote:
Originally Posted by yuik View Post
do they still make spimmy kits
They made spimmy kits? I have a feeling that would have saved some people a LOT of time....
__________________
-UCP
Bigjoe11 is offline   Reply With Quote
Old 06-12-2012, 10:30 PM #9
JT Pimp
Giant Filipino

JT Pimp's Avatar

Join Date: Dec 2004
Location: South Carolina
Quote:
Originally Posted by Bigjoe11 View Post
They made spimmy kits? I have a feeling that would have saved some people a LOT of time....
Yes, they did long ago. Ram sleeve was a bit longer than the body so you didn't have to drill for the barbs.
__________________
21+/0- PBR Feedback
4+/0- PBN Feedback
'04 Silver to Black ICD B2k4 w/ PDS
'04 Black BKO
'98 Brass Eagle TigerShark
JT Pimp is offline   Reply With Quote
Old 06-12-2012, 11:42 PM #10
cpt_crunch


cpt_crunch's Avatar

Join Date: Aug 2009
cpt_crunch has achieved Level 1 in PbNation Pursuit
Quote:
Originally Posted by Bigjoe11 View Post
How do you cock the striker now that the bolt's not connected to it?
All you have to do is mill a slot in the hammer (striker). Start with the hole already in it and extend it all the way through the face of the hammer. same thing you do if you want to halfblock an autococker. Then the linkage pin is now a cocking pin. I didn't feel like taking it out for the picture
__________________
Christian
Senior Mechanical Engineering Student
Apprentice Machinist
Lover of All Things Paintball

Buy my airsoft gear
cpt_crunch is offline   Reply With Quote
Old 06-13-2012, 10:00 AM #11
Bigjoe11
"The Boss"

Bigjoe11's Avatar

Join Date: Jun 2011
Location: North Carolina
Bigjoe11 owns a Planet Eclipse Etek
Bigjoe11 has achieved Level 1 in PbNation Pursuit
Bigjoe11 has achieved Level 2 in PbNation Pursuit
Bigjoe11 supports DLX Technology
What tool did you use? I used a drill to try to make mine sode cocking.... i broke 3 bits and barely took the anodization of the striker, those things are hard.
__________________
-UCP

Last edited by Bigjoe11 : 06-13-2012 at 10:10 AM.
Bigjoe11 is offline   Reply With Quote
Old 06-13-2012, 12:37 PM #12
theblindchicken
49'er

theblindchicken's Avatar

Join Date: Jun 2011
Location: Long Beach, CA
theblindchicken is an NCPA player
theblindchicken is an NCPA National Champion
theblindchicken plays in the APPA D5 division
The best way seems to be using a cutting wheel (such as a one with a dremel) the striker is made of hardened steel (or very close to it) and will only break bits of lesser or equal strength. For a dremel, the brown cutting discs will work, but you'll need alot of them. The best ones to use are the reinforced black carbide discs.
theblindchicken is offline   Reply With Quote
Old 06-13-2012, 01:18 PM #13
ItalianCustom
:dodgy:

ItalianCustom's Avatar

Join Date: Mar 2004
Location: East Liverpool
ItalianCustom donated to help Peyton Trent
ItalianCustom supports Team VICIOUS
ItalianCustom is for the Gunfight
ItalianCustom has achieved Level 1 in PbNation Pursuit
Quote:
Originally Posted by Bigjoe11 View Post
They made spimmy kits? I have a feeling that would have saved some people a LOT of time....
look up a kit called "the one" or T1... Grip frame, ram, sleeve, springs etc... Think I still have one floating around...
ItalianCustom is offline   Reply With Quote
Old 06-13-2012, 02:40 PM #14
cpt_crunch


cpt_crunch's Avatar

Join Date: Aug 2009
cpt_crunch has achieved Level 1 in PbNation Pursuit
Quote:
Originally Posted by Bigjoe11 View Post
What tool did you use? I used a drill to try to make mine sode cocking.... i broke 3 bits and barely took the anodization of the striker, those things are hard.
A bridgeport mill. HSS two flute end mill, it took like 3 passes.

I still have a bit of a to-do list: general body milling, a return spring, washer for the bolt extender, better way to connect the pump arm, under cocking kit, then probably a nice powder coat. If I get around to it ever
__________________
Christian
Senior Mechanical Engineering Student
Apprentice Machinist
Lover of All Things Paintball

Buy my airsoft gear

Last edited by cpt_crunch : 06-13-2012 at 02:54 PM.
cpt_crunch is offline   Reply With Quote
Old 06-14-2012, 09:25 PM #15
2nwyka
A Lover and a Poet

2nwyka's Avatar

Join Date: Aug 2011
Location: Fort Collins, Colorado
2nwyka posts videos on PbNation
2nwyka has achieved Level 3 in PbNation Pursuit

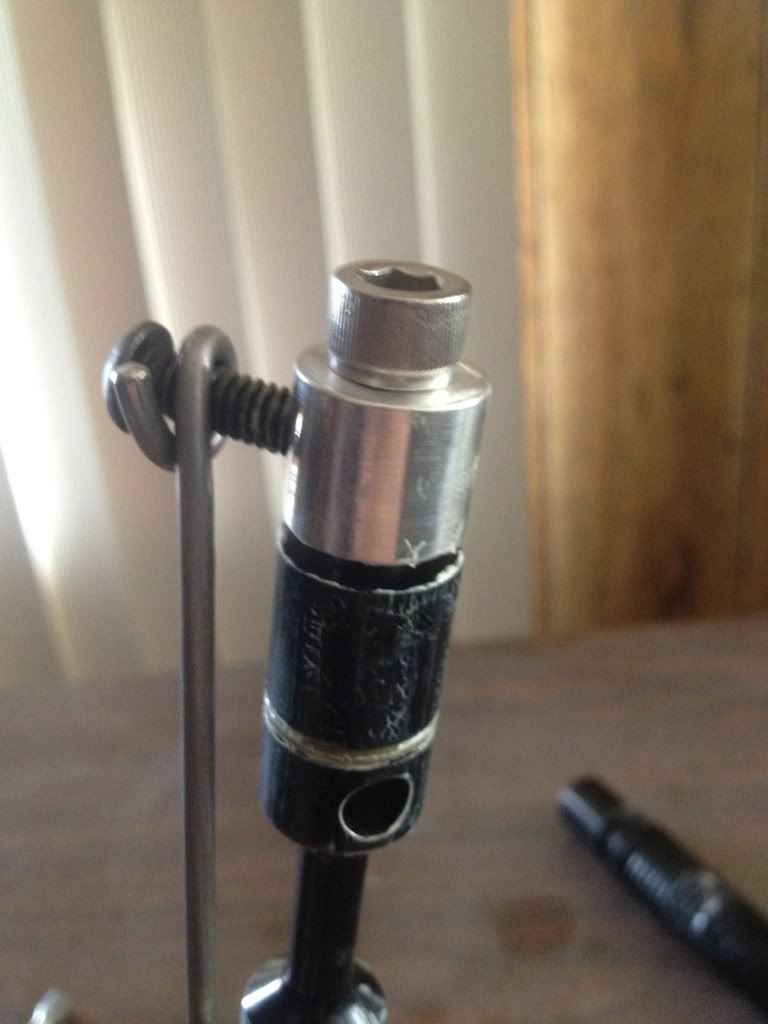

I'll secure a posting here quick that I can edit as I mod. Only hardcore mod I've done to a Spyder/Spyder clone is milling down a cocking rod to use a rear-cocking anti-chop bolt in a top-cocking gun. Just some simple lathe work, couple passes with the tool and it's done.
I suppose another mod was modding one girl's valve to use a lower pressure to re-cock, making it more air-efficient. Again, some lathe work and the careful application of a drillpress and bench grinder.

Every other mod I've done has been drop-in. New bolts, new triggerframes, etc.
The current plan is to half-back and spump my Viewloader Triton II. Just waiting for a good pump kit that's threaded correctly.
Noah
__________________
Learn more about paintball! Articles Videos!!

CSU Rams Paintball

Rocking drop-forwards like they're going out of style...oh, wait...
Proud Pumper since 2011
2nwyka is offline   Reply With Quote
Old 06-14-2012, 10:05 PM #16
cpt_crunch


cpt_crunch's Avatar

Join Date: Aug 2009
cpt_crunch has achieved Level 1 in PbNation Pursuit
Quote:
Originally Posted by 2nwyka View Post
The current plan is to half-back and spump my Viewloader Triton II. Just waiting for a good pump kit that's threaded correctly.
Noah
If you have a lathe just make one
__________________
Christian
Senior Mechanical Engineering Student
Apprentice Machinist
Lover of All Things Paintball

Buy my airsoft gear
cpt_crunch is offline   Reply With Quote
Old 06-14-2012, 11:01 PM #17
vikingshadow
SCHWING!

vikingshadow's Avatar

Join Date: Jun 2004
Location: Downtown
vikingshadow is a Moderator
 has been a member for 10 years
vikingshadow supports Team VICIOUS
vikingshadow supports Team VICIOUS
vikingshadow supports our troops
Quote:
Originally Posted by ItalianCustom View Post
look up a kit called "the one" or T1... Grip frame, ram, sleeve, springs etc... Think I still have one floating around...
Those weren't Spimmy kits. They turned a Spyder or clone into a FASOR (Forward Air Spring Operated Return). I had two T1s and loved those guns!

I've modded a Spyder or two in my lifetime...





I even created what I believe to be the first Ego/Spyder feedneck. It was back in 07 or so and suggested by Shunut. A year later, a company started making the Spyder adapter for the Ego feedneck. I really missed the boat on this one!

Anyway, it's written up in my Spimmy tutorial (look at my sig).





Also is written up in a tutorial (see also in sig).
__________________

I'm selling all my paintball stuff! Look here! My Baby! Phantom Pump
vikingshadow is offline   Reply With Quote
Old 06-15-2012, 08:18 AM #18
tweeter4
Quinn Nadu

tweeter4's Avatar

Join Date: Mar 2007
Location: Lancaster PA
Annual Supporting Member
tweeter4 posts videos on PbNation
tweeter4 is one of the top 1000 posters on PbNation
tweeter4 is Boss
__________________
Want to play again...maybe some day.

GEARBAG SALE
tweeter4 is offline   Reply With Quote
Old 06-15-2012, 01:55 PM #19
tacxplosion


tacxplosion's Avatar

Join Date: Sep 2007
Location: Guatemala (for real)
Sleeper mode with donor body



Looker/comfy mode
tacxplosion is offline   Reply With Quote
Old 06-15-2012, 06:51 PM #20
ItalianCustom
:dodgy:

ItalianCustom's Avatar

Join Date: Mar 2004
Location: East Liverpool
ItalianCustom donated to help Peyton Trent
ItalianCustom supports Team VICIOUS
ItalianCustom is for the Gunfight
ItalianCustom has achieved Level 1 in PbNation Pursuit
Quote:
Originally Posted by vikingshadow View Post
Those weren't Spimmy kits. They turned a Spyder or clone into a FASOR (Forward Air Spring Operated Return). I had two T1s and loved those guns!

.
Ahh yes, forgot that. my mistake... its been about 3 years since i touched a paintball gun
ItalianCustom is offline   Reply With Quote
Old 06-18-2012, 08:24 AM #21
Bigjoe11
"The Boss"

Bigjoe11's Avatar

Join Date: Jun 2011
Location: North Carolina
Bigjoe11 owns a Planet Eclipse Etek
Bigjoe11 has achieved Level 1 in PbNation Pursuit
Bigjoe11 has achieved Level 2 in PbNation Pursuit
Bigjoe11 supports DLX Technology
That would be one heck of an upgrade, i would rather convert to fasor than get a lightweight striker or high flow valve any day.
__________________
-UCP
Bigjoe11 is offline   Reply With Quote
Reply


Thread Tools

Posting Rules
Forum Jump
