Old 02-08-2017, 07:57 PM #1
mnkywitagun


Join Date: Dec 2011
Question Mech frame on VS2?

Can it be done? Thinking some of mech markers during same period

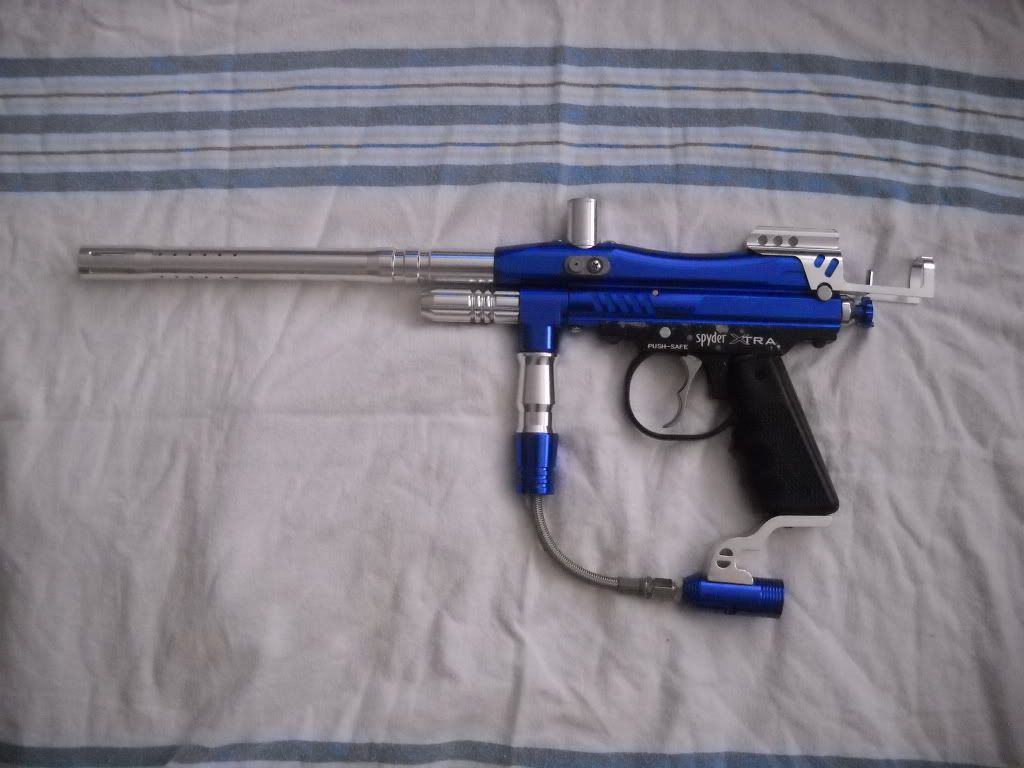

07 Sonic. Xtra.
__________________
formerly Dave 917
mnkywitagun is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 02-08-2017, 09:50 PM #2
ferret15
STTB connoisseur

ferret15's Avatar

Join Date: Aug 2007
Location: RFD
Annual Supporting Member
ferret15 donated to help Peyton Trent
ferret15 supports Ninja Paintball
well i've got those frames, you'd probably need to mill the mech frame down flat like the VS are. I'll take some measurements and pictures and see what we got.

edit:
frame side by side

VS2 height 3/32'

mech depth, from the low point its the same, I think you could have it milled flat and it would fit perfect.


and heres the VS2 body 1/8"
__________________
BT-4 egrip beginners package

Last edited by ferret15 : 02-08-2017 at 10:08 PM.
ferret15 is offline   Reply With Quote
Old 02-09-2017, 08:26 AM #3
mnkywitagun


Join Date: Dec 2011
Thanks for the help ! Always thought it would make a great semi operating at 220 psi. For all those years we tried to tune down a (Low Pressure) Spyder..
__________________
formerly Dave 917
mnkywitagun is offline   Reply With Quote
Old 02-09-2017, 06:46 PM #4
mnkywitagun


Join Date: Dec 2011
Are screw holes the same the same distance?
__________________
formerly Dave 917
mnkywitagun is offline   Reply With Quote
Old 02-09-2017, 08:48 PM #5
Fubarius
Wow, it is blue.

Fubarius's Avatar

Join Date: Aug 2003
Location: New Richmond, WI
Annual Supporting Member
Fubarius is a Moderator
 has been a member for 10 years
Fubarius supports our troops
Might be easier to adapt the VS internals to an existing mech spyder. Add your choice of regulator and asa (really, that bottom line reg on the VS series wasn't all that great to begin with) and you'll be all set.
__________________
David Johnson, AKA Fubarius.

Nunquam emere quid potes facere
Fubarius is offline   Reply With Quote
Old 02-09-2017, 10:15 PM #6
ferret15
STTB connoisseur

ferret15's Avatar

Join Date: Aug 2007
Location: RFD
Annual Supporting Member
ferret15 donated to help Peyton Trent
ferret15 supports Ninja Paintball
Quote:
Originally Posted by mnkywitagun View Post
Are screw holes the same the same distance?
yep, bolts right up

Quote:
Originally Posted by Fubarius View Post
Might be easier to adapt the VS internals to an existing mech spyder. Add your choice of regulator and asa (really, that bottom line reg on the VS series wasn't all that great to begin with) and you'll be all set.
this always been my choice, you need to plug the classic bodies relief hole, and drill 3 smaller ones further down for proper cycling.
__________________
BT-4 egrip beginners package
ferret15 is offline   Reply With Quote
Old 02-09-2017, 11:56 PM #7
mnkywitagun


Join Date: Dec 2011
Has that been done before? How about putting a mechanical sear on the vs2 frame.?
__________________
formerly Dave 917
mnkywitagun is offline   Reply With Quote
Old 02-10-2017, 12:09 AM #8
mnkywitagun


Join Date: Dec 2011
Is a older mechanical SPYDER marker like. Elite . Compact. Doable? I'm more a fan of the single trigger frame Spyders.
__________________
formerly Dave 917
mnkywitagun is offline   Reply With Quote
Old 02-10-2017, 12:27 AM #9
mnkywitagun


Join Date: Dec 2011
I do have a older imagine body after comparing frames to vs2. They do pretty much look the same . Minus the three smaller holes on the vs2. I might just go that route. Just need to get a single trigger frame...
__________________
formerly Dave 917
mnkywitagun is offline   Reply With Quote
Old 02-10-2017, 01:37 AM #10
ferret15
STTB connoisseur

ferret15's Avatar

Join Date: Aug 2007
Location: RFD
Annual Supporting Member
ferret15 donated to help Peyton Trent
ferret15 supports Ninja Paintball
Quote:
Originally Posted by mnkywitagun View Post
Is a older mechanical SPYDER marker like. Elite . Compact. Doable? I'm more a fan of the single trigger frame Spyders.
I'd start there, as long as your body is a slim striker the balance valve will fit,

Quote:
Originally Posted by mnkywitagun View Post
Has that been done before? How about putting a mechanical sear on the vs2 frame.?
this is what your working with, looks like the sear pin lines up and the VS grip screw hole is the old mech trigger hole. so you could possibly get another stop pin in the area above the noid. Theres a bit more meat on the VS you might have to trim down with a dremmel and file and i could see this working.


The VS trigger pin is smaller and a hair higher, so I don't see using that spot easy, plus you would need to move the sear pin forward and hope the balance valve cycles. since from my understanding frame foward mods don't agree with this valve.
__________________
BT-4 egrip beginners package
ferret15 is offline   Reply With Quote
Old 02-10-2017, 09:54 PM #11
mnkywitagun


Join Date: Dec 2011
One more question...Is the trigger frame that's on the opus .50 the same as regular .68 spyders? If so will these frames work with the older body styles like 03 imagine. 05 sonic etc?
__________________
formerly Dave 917
mnkywitagun is offline   Reply With Quote
Old 02-11-2017, 01:03 AM #12
ferret15
STTB connoisseur

ferret15's Avatar

Join Date: Aug 2007
Location: RFD
Annual Supporting Member
ferret15 donated to help Peyton Trent
ferret15 supports Ninja Paintball
Quote:
Originally Posted by mnkywitagun View Post
One more question...Is the trigger frame that's on the opus .50 the same as regular .68 spyders? If so will these frames work with the older body styles like 03 imagine. 05 sonic etc?
I dont' mess with the .50cal crap, I can't speak for the newer stuff than '12 stuff, but even when the 08 electra came out the mechs stayed with a round tube frame and stayed the same
__________________
BT-4 egrip beginners package
ferret15 is offline   Reply With Quote
