Leaks from front/back set screws

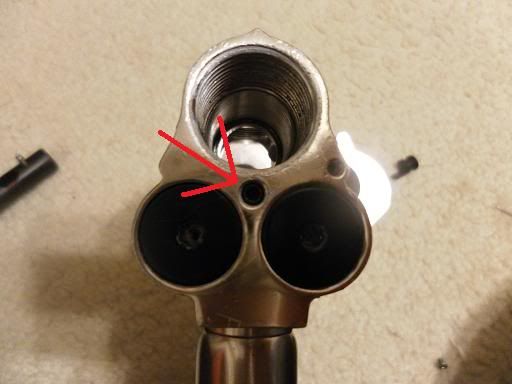

Hey guys, I have a leak coming from either one of the screws in front and back of my IR3... I used to know what these screws were called but have forgotten their name since then.

Anyways, it would leak from the back one, then if I screwed it in/out to stop that the one in the front would start leaking and vice versa. It's just a small leak but a leak all the same. Any suggestions in how to stop it? I put loctite on it but it didn't seem to help any.





3ncrypted is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 02-19-2012, 11:36 PM #2
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
Those are just blanking plug screws for the LP air transfer tube. They're M5 metric threaded. The one has nothing to do with the other, so the leaks are independent of one another. Loctite should be sufficient to stop them from leaking. Make sure that you give any thread locker at least 12 hours to cure.
dr.strangelove is offline   Reply With Quote
Old 02-21-2012, 11:53 PM #3
3ncrypted
Angels Give You Wings

3ncrypted's Avatar

Join Date: Nov 2011
Location: New Castle
3ncrypted is BST Trusted
3ncrypted owns a Planet Eclipse Ego
3ncrypted has perfected Level 2 in PbNation Pursuit
3ncrypted has achieved Level 3 in PbNation Pursuit
Oh that's probably why, it's the first time I've used loctite and I waited less than an hour for it to set. Tried resealing it and the leak is almost gone, you can only hear it if you listen closely.

Does it make any difference how screwed in or out the blanking plug screws are?
3ncrypted is offline   Reply With Quote
Old 02-21-2012, 11:57 PM #4
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
They should be flush, or just a little bit past, but it doesn't matter too terribly much.
dr.strangelove is offline   Reply With Quote
Old 03-03-2012, 09:57 PM #5
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends VII
trancer23 has achieved Level 5 in PbNation Pursuit
trancer23 is Legendary
Had this exact issue on a new (to me) angel. Red locktite drying now. Love these forums.
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback
trancer23 is offline   Reply With Quote
Old 03-05-2012, 09:48 AM #6
kill-n-spree
MythicalAngelPumpWeilder

kill-n-spree's Avatar

Join Date: Feb 2006
Location: Turlock,Ca
Quote:
Originally Posted by trancer23
Had this exact issue on a new (to me) angel. Red locktite drying now. Love these forums.
Should of used Blue. The only time you use red is for feednecks.
__________________
COBRA G7,Angel 1,Master tech Angel Force Fly,Angel Gat,Custom Angel Led ,2000 LCD Angel Pump,2k1 Dark Angel,04 Angel Speed,C&C Angel IR3,Ice Fade G7 Fly,DM4,Eblade,Grey Ghost,PGP,2006 Grey Ghost,BLong Cocker,Angel G7,Cobra Mamba FLY,2K1 Angel Fly,Rasta G7 Fly,Dark 2K3 Angel,Euro Angel,2k2 Apollo Angel,2k1 Cobra signature series,Rev-i,Angel IR3 Fly,Disco Dust Dark IR3,05 Speed,2K Blazer,Rasta A4 Fly




Angel Army
kill-n-spree is offline   Reply With Quote
Old 03-05-2012, 10:03 AM #7
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends VII
trancer23 has achieved Level 5 in PbNation Pursuit
trancer23 is Legendary
The manual states those get high strength, which for me is red.
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback
trancer23 is offline   Reply With Quote
Old 03-05-2012, 06:09 PM #8
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
They use red from the factory, but it's a bit overkill, especially if you ever need access to them again (which for blanking screws is actually pretty unlikely, unless you anodize the gun). Either one will do the job.
