Find fields & stores near you!
Find fields and stores
Zipcode
PbNation News
PbNation News
Community Focus
Community Focus

Reply

Thread Tools
Old 02-15-2012, 11:23 AM #1
godcomplex
SIC Factor

godcomplex's Avatar

Join Date: Feb 2001
Location: Lehigh Valley, Pa
 has been a member for 10 years
Trying to fix Angel LCD

I am trying to attempt to fix my ace'd dark angel lcd after 5 years. I put in a fresh 9v battery and it won't turn...so I took off the back plate and noticed to on/off switch has 3 prongs, but only 2 of the prongs had wires attached. Should there be a wire running to the 3rd prong? Here's a pic. Thanks in advance for any help.

godcomplex is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 02-15-2012, 11:28 AM #2
greatwolf329
still sick of idiots

greatwolf329's Avatar

Join Date: Feb 2007
Location: Chicago, IL
Only 2 should be running from it. Your ok. Just make sure the battery still holds a charge.
__________________
greatwolf329 is offline   Reply With Quote
Old 02-15-2012, 11:35 AM #3
Ryan10
Father of 3

Ryan10's Avatar

Join Date: Nov 2010
Location: Philadelphia, PA
Quote:
Originally Posted by greatwolf329
Only 2 should be running from it. Your ok. Just make sure the battery still holds a charge.
He mentioned he put in a 9 volt battery...
Ryan10 is offline   Reply With Quote
Old 02-15-2012, 11:43 AM #4
greatwolf329
still sick of idiots

greatwolf329's Avatar

Join Date: Feb 2007
Location: Chicago, IL
Ah sorry. Just saw that. SHould be all set then.
__________________
greatwolf329 is offline   Reply With Quote
Old 02-15-2012, 11:48 AM #5
Ryan10
Father of 3

Ryan10's Avatar

Join Date: Nov 2010
Location: Philadelphia, PA
Quote:
Originally Posted by greatwolf329
Ah sorry. Just saw that. SHould be all set then.
No worries at all.
Ryan10 is offline   Reply With Quote
Old 02-15-2012, 12:13 PM #6
godcomplex
SIC Factor

godcomplex's Avatar

Join Date: Feb 2001
Location: Lehigh Valley, Pa
 has been a member for 10 years
Thanks guys! Any other thoughts for trouble shooting? It seems like there is no power, I'm not hearing the noid click, I pushed the little orange reset button and nothing happened. Again, thanks for the help.
godcomplex is offline   Reply With Quote
Old 02-15-2012, 12:34 PM #7
HobbesMRH
merr

HobbesMRH's Avatar

Join Date: Feb 2003
Location: NH
HobbesMRH is a Supporting Member
 has been a member for 10 years
That button is meant to test fire the gun when it's gassed up.
__________________
HobbesMRH is offline   Reply With Quote
Old 02-15-2012, 03:08 PM #8
trancer23
Angel Collector

trancer23's Avatar

Join Date: Apr 2001
Location: SWFL
Annual Supporting Member
 has been a member for 10 years
trancer23 is playing at Living Legends VII
trancer23 has achieved Level 5 in PbNation Pursuit
trancer23 is Legendary
Any indication that the board is getting power at all? how about some more closeups of the board.
__________________
"Even now in Heaven there are Angels carrying savage weapons."
"Did you ever notice how in the Bible, when ever God needed to punish someone, or make an example, or whenever God needed a killing, he sent an angel?"
BALLERS INC DESTROYED MY ANGEL

35 angels and counting......
Blue Black Impact Angel LCD, Doodoo Brown Dark Angel LCD, Dark IR3 & Ripper angel
94 Tippmann Pro-lite (old reliable)
Old Feedback - New Feedback
trancer23 is offline   Reply With Quote
Old 02-15-2012, 04:01 PM #9
godcomplex
SIC Factor

godcomplex's Avatar

Join Date: Feb 2001
Location: Lehigh Valley, Pa
 has been a member for 10 years
Quote:
Originally Posted by trancer23 View Post
Any indication that the board is getting power at all? how about some more closeups of the board.

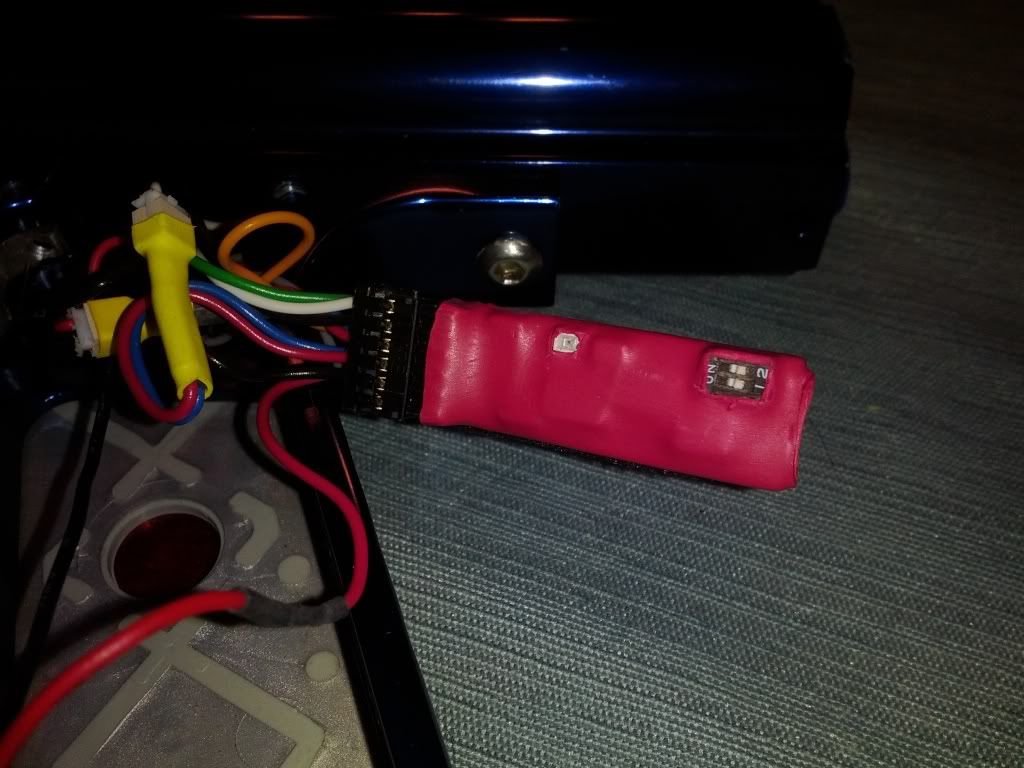

No indication that the board even works. Here are some close ups. I flipped the dip switches to on...nothing.



godcomplex is offline   Reply With Quote
Old 02-15-2012, 04:32 PM #10
Ryan10
Father of 3

Ryan10's Avatar

Join Date: Nov 2010
Location: Philadelphia, PA
I never seen that board before. Definitely not Angel's
Ryan10 is offline   Reply With Quote
Old 02-15-2012, 04:33 PM #11
godcomplex
SIC Factor

godcomplex's Avatar

Join Date: Feb 2001
Location: Lehigh Valley, Pa
 has been a member for 10 years
OK now we're getting somewhere. I got the board working flashing blue led (it was plugged in backwards), the eyes are reading ball in the breach. Still no noid click.
godcomplex is offline   Reply With Quote
Old 02-15-2012, 04:39 PM #12
godcomplex
SIC Factor

godcomplex's Avatar

Join Date: Feb 2001
Location: Lehigh Valley, Pa
 has been a member for 10 years
Quote:
Originally Posted by godcomplex View Post
OK now we're getting somewhere. I got the board working flashing blue led (it was plugged in backwards), the eyes are reading ball in the breach. Still no noid click.
I GOT IT!! Backwards wiring...DUH I could kick myself! Noid is clicking, eyes and board are working. All seems to be good. Thanks everyone for the input.
godcomplex is offline   Reply With Quote
Old 02-15-2012, 04:49 PM #13
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
That looks to be a Pred Morlock, FYI - I think there's a manual on ZDSPB for it.
dr.strangelove is offline   Reply With Quote
Old 02-16-2012, 07:34 AM #14
demented pumper
AKA Superman

demented pumper's Avatar

Join Date: Jun 2005
Location: DI,SC
i also think its a morlock
__________________
For sale/trade:MAGS and MAG PARTS
AUTOMAG PAWNSHOP

feebackhttp://www.pbnation.com/showthread.p...4#post18738514
AO-Captian pinky
pbc- superman
mcb- superman
demented pumper is online now   Reply With Quote
Reply


Thread Tools

Posting Rules
Forum Jump
