Old 04-04-2013, 02:39 AM #1555
Jose1998


Jose1998's Avatar

Join Date: Apr 2011
Location: Downey, CA.
Jose1998 owns a Planet Eclipse Geo
Jose1998 posts videos on PbNation
Jose1998 plays in the APPA D4 division
Jose1998 has achieved Level 3 in PbNation Pursuit
Quote:
Originally Posted by Lt. Tank View Post

Just checked and there is no noticeable damage in the valve guide or the exhaust

any suggestions ?
Hey LT, the same thing happened to me after I got the dart kit, my ego was leaking from the valve area, and I took it to a shop and hey told me they had to sand it a bit, even though there was no visible damage
__________________
EXTREME PROS FACTORY TEAM
Jose1998 is offline
Old Sponsored Links Remove Advertisement
Advertisement
Old 04-04-2013, 04:14 AM #1556
Bill
Paintball Showcase

Bill's Avatar

Join Date: Nov 2001
Location: Paintball Showcase
Annual Supporting Member
Bill is a Supporting Member
Bill is a founding member
 has been a member for 10 years
Bill owns a Planet Eclipse Ego
If you choose to sand it, use 800 grit and lay the sealing face flat on the table. Be sure to use oil on the paper. Move the guide in small figure 8s. If the guide doesn't stay flat you could cause more damage then when you started.
__________________
WWW.PAINTBALLSHOWCASE.COM

Certified NorthEast Eclipse Technician/Warranty Center!

Used Gun thread: EGO8s, DMs, Shockers, and more...
Bill is offline
Old 04-04-2013, 10:26 AM #1557
....VoLtAgE....
Brandon

....VoLtAgE....'s Avatar

Join Date: Sep 2008
Location: Summerville SC
....VoLtAgE.... plays in the PSP
....VoLtAgE.... plays in the APPA Semi Pro division
....VoLtAgE.... is one of the top 1000 posters on PbNation
....VoLtAgE.... owns a Planet Eclipse GSL
Bill,

Why would a Ego11 leak from the top of the reg? (where it screws in) I have changed the Lpr assembly o-rings, rebuilt the whole reg, torpedo o-ring And also the o-ring where the reg screws on. I haven't had any luck and haven't seen anything like this.
....VoLtAgE.... is offline
Old 04-04-2013, 04:20 PM #1558
LoveofthePaint70
Strait outta Dogtown

LoveofthePaint70's Avatar

Join Date: Feb 2012
Location: Springfield, IL
LoveofthePaint70 plays in the PSP
LoveofthePaint70 owns a Planet Eclipse Geo
LoveofthePaint70 owns a Planet Eclipse Ego
LoveofthePaint70 plays in the APPA D4 division
hello Bill-- i have an ego 08 that has a leak you can barely hear coming from the feed neck area. it fires fine for 5-10 shots then it becomes a massive leak until i fire another 3-5 shots and then goes back to a quiet leak.... i have replaced all of the rammer o-rings torpedo o-rings, an LPR body o-rings.... when i gas up the marker with the grip frame removed the leak isnt coming from the QEV, selenoid or minifold ..... just started happening in the middle of a point this past weekend, please help.
__________________
PEKIN PRESTIGE PAINTBALL
http://www.pekinpaintballpark.com/
LoveofthePaint70 is offline
Old 04-04-2013, 05:26 PM #1559
Lt. Tank
What would you ask God ?

Lt. Tank's Avatar

Join Date: Mar 2009
Location: Mexico, Mexico city
Lt. Tank owns a Planet Eclipse Ego
Quote:
Originally Posted by Jose1998 View Post
Hey LT, the same thing happened to me after I got the dart kit, my ego was leaking from the valve area, and I took it to a shop and hey told me they had to sand it a bit, even though there was no visible damage
Jose , how did it turned out ?
Did they end up sanding it ?
__________________
.
Lt. Tank is offline
Old 04-05-2013, 02:14 AM #1560
Jose1998


Jose1998's Avatar

Join Date: Apr 2011
Location: Downey, CA.
Jose1998 owns a Planet Eclipse Geo
Jose1998 posts videos on PbNation
Jose1998 plays in the APPA D4 division
Jose1998 has achieved Level 3 in PbNation Pursuit
Quote:
Originally Posted by Lt. Tank View Post

Jose , how did it turned out ?
Did they end up sanding it ?
Yeah they sanded it and it never had a problem since I got it back
__________________
EXTREME PROS FACTORY TEAM
Jose1998 is offline
Old 04-05-2013, 05:11 AM #1561
Bill
Paintball Showcase

Bill's Avatar

Join Date: Nov 2001
Location: Paintball Showcase
Annual Supporting Member
Bill is a Supporting Member
Bill is a founding member
 has been a member for 10 years
Bill owns a Planet Eclipse Ego
Quote:
Originally Posted by ....VoLtAgE.... View Post
Bill,

Why would a Ego11 leak from the top of the reg? (where it screws in) I have changed the Lpr assembly o-rings, rebuilt the whole reg, torpedo o-ring And also the o-ring where the reg screws on. I haven't had any luck and haven't seen anything like this.
Is it definitely from where the reg screws into the body or possibly from one of the other areas you changed the oring. Try airing it up and spray soapy water on it. This will help locate the area. Only use a small amount of liquid. You dont want to spray it near the electronics.
__________________
WWW.PAINTBALLSHOWCASE.COM

Certified NorthEast Eclipse Technician/Warranty Center!

Used Gun thread: EGO8s, DMs, Shockers, and more...
Bill is offline
Old 04-05-2013, 05:13 AM #1562
Bill
Paintball Showcase

Bill's Avatar

Join Date: Nov 2001
Location: Paintball Showcase
Annual Supporting Member
Bill is a Supporting Member
Bill is a founding member
 has been a member for 10 years
Bill owns a Planet Eclipse Ego
Quote:
Originally Posted by LoveofthePaint70 View Post
hello Bill-- i have an ego 08 that has a leak you can barely hear coming from the feed neck area. it fires fine for 5-10 shots then it becomes a massive leak until i fire another 3-5 shots and then goes back to a quiet leak.... i have replaced all of the rammer o-rings torpedo o-rings, an LPR body o-rings.... when i gas up the marker with the grip frame removed the leak isnt coming from the QEV, selenoid or minifold ..... just started happening in the middle of a point this past weekend, please help.
Make sure there is no paint. Gas up the marker with the barrel off. Pull the bolt pin up and slide the bolt forward. Does it get louder? If so, it is one of the following 4 issues:

1) Replace the Exhaust valve (poppit).
2) Replace the Exhaust valve guide orings.
3) Replace the Exhaust guide (valve body).
4) The valve spring is bent or not sitting in the valve chamber properly.

If it gets louder with the bolt in the rear position, you need to replace the front #9 rammer oring.
__________________
WWW.PAINTBALLSHOWCASE.COM

Certified NorthEast Eclipse Technician/Warranty Center!

Used Gun thread: EGO8s, DMs, Shockers, and more...
Bill is offline
Old 04-05-2013, 07:39 AM #1563
....VoLtAgE....
Brandon

....VoLtAgE....'s Avatar

Join Date: Sep 2008
Location: Summerville SC
....VoLtAgE.... plays in the PSP
....VoLtAgE.... plays in the APPA Semi Pro division
....VoLtAgE.... is one of the top 1000 posters on PbNation
....VoLtAgE.... owns a Planet Eclipse GSL
Quote:
Originally Posted by Bill View Post
Is it definitely from where the reg screws into the body or possibly from one of the other areas you changed the oring. Try airing it up and spray soapy water on it. This will help locate the area. Only use a small amount of liquid. You dont want to spray it near the electronics.
I have actually used water/dawn soap mixed to create bubbles when sprayed on and its definitely coming from where the reg threads on.
....VoLtAgE.... is offline
Old 04-05-2013, 07:50 AM #1564
grubb


grubb's Avatar

Join Date: Nov 2008
Location: Malaysia
grubb owns a Planet Eclipse Ego
grubb plays in the APPA D3 division
Hello Bill,

I have a csl that couldn't chrono more than 260. I changed all the orings and now with the velocity screw all the way out it shoots 280. Solenoid settings are 5and7 and the lpr screw is flush. Brand new battery also. It has a new dart kit installed. The issue is the same with the dart kit or the stock poppit kit.

Orings I changed were from the inline piston, lpr pistion, lpr body, rammer, velocity screw, and the small one inside the top of the velocity screw.

Any idea what the problem may be?

Thanks
grubb is offline
Old 04-05-2013, 12:45 PM #1565
Lt. Tank
What would you ask God ?

Lt. Tank's Avatar

Join Date: Mar 2009
Location: Mexico, Mexico city
Lt. Tank owns a Planet Eclipse Ego
Quote:
Originally Posted by Jose1998 View Post
Yeah they sanded it and it never had a problem since I got it back

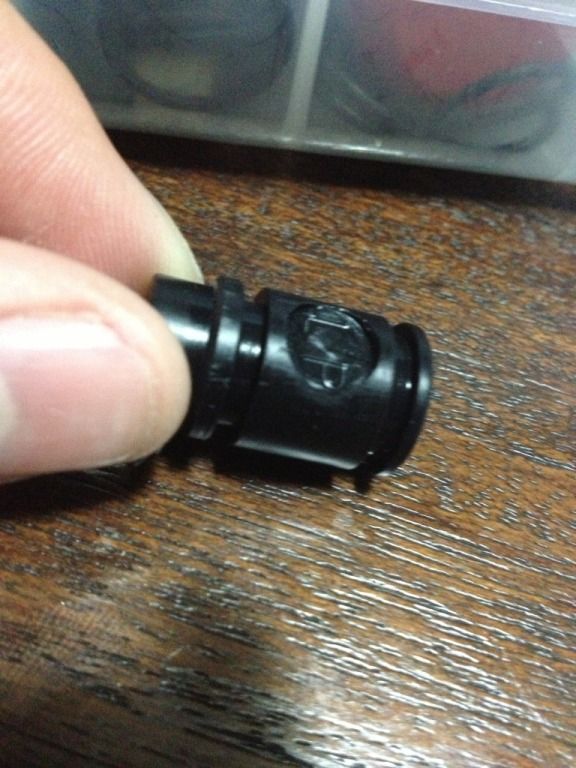

I guess I didnīt put the proper attention looking at the valve guide.
It has several nicks in the seal and close to one of the orings



__________________
.
Lt. Tank is offline
Old 04-05-2013, 01:16 PM #1566
Jose1998


Jose1998's Avatar

Join Date: Apr 2011
Location: Downey, CA.
Jose1998 owns a Planet Eclipse Geo
Jose1998 posts videos on PbNation
Jose1998 plays in the APPA D4 division
Jose1998 has achieved Level 3 in PbNation Pursuit
Quote:
Originally Posted by Lt. Tank View Post
I guess I didnīt put the proper attention looking at the valve guide.
It has several nicks in the seal and close to one of the orings
Yeah my valve guide had a tiny scratch on it, so my local shop fixed it up for free since I bought the dart kit from them. Just take it to your local shop and see if they can do it for free because its actually something very simple.
__________________
EXTREME PROS FACTORY TEAM
Jose1998 is offline
Old 04-05-2013, 02:37 PM #1567
Lt. Tank
What would you ask God ?

Lt. Tank's Avatar

Join Date: Mar 2009
Location: Mexico, Mexico city
Lt. Tank owns a Planet Eclipse Ego
Quote:
Originally Posted by Jose1998 View Post
Yeah my valve guide had a tiny scratch on it, so my local shop fixed it up for free since I bought the dart kit from them. Just take it to your local shop and see if they can do it for free because its actually something very simple.
Thanks Jose.
This is a used LP valve for a 09-11 so I think iīll try to do it my self. I got the regular MP valve installed with no leaks, but, really want to put the LP back in , the 09 shoot so smooth with that along with some really good fine tunning.

Anyway, gracias amigo !
__________________
.
Lt. Tank is offline
Old 04-05-2013, 02:57 PM #1568
Jose1998


Jose1998's Avatar

Join Date: Apr 2011
Location: Downey, CA.
Jose1998 owns a Planet Eclipse Geo
Jose1998 posts videos on PbNation
Jose1998 plays in the APPA D4 division
Jose1998 has achieved Level 3 in PbNation Pursuit
Quote:
Originally Posted by Lt. Tank View Post

Thanks Jose.
This is a used LP valve for a 09-11 so I think iīll try to do it my self. I got the regular MP valve installed with no leaks, but, really want to put the LP back in , the 09 shoot so smooth with that along with some really good fine tunning.

Anyway, gracias amigo !
No problem bro!
__________________
EXTREME PROS FACTORY TEAM
Jose1998 is offline
Old 04-05-2013, 03:40 PM #1569
LoveofthePaint70
Strait outta Dogtown

LoveofthePaint70's Avatar

Join Date: Feb 2012
Location: Springfield, IL
LoveofthePaint70 plays in the PSP
LoveofthePaint70 owns a Planet Eclipse Geo
LoveofthePaint70 owns a Planet Eclipse Ego
LoveofthePaint70 plays in the APPA D4 division
Quote:
Originally Posted by Bill View Post
Make sure there is no paint. Gas up the marker with the barrel off. Pull the bolt pin up and slide the bolt forward. Does it get louder? If so, it is one of the following 4 issues:

1) Replace the Exhaust valve (poppit).
2) Replace the Exhaust valve guide orings.
3) Replace the Exhaust guide (valve body).
4) The valve spring is bent or not sitting in the valve chamber properly.

If it gets louder with the bolt in the rear position, you need to replace the front #9 rammer oring.


thank you for your quick response Bill ..... i noticed after checking out the exhaust valve that the metal rod is not connected to the cup seal (the little black plastic piece) every picture/ video i have watched it shows these pieces stuck together..... where as mine is not ..... i assume that this is my problem but want to be sure that these pieces aren't meant to basically just stack on each other and are held together by the valve guide's tension....
__________________
PEKIN PRESTIGE PAINTBALL
http://www.pekinpaintballpark.com/
LoveofthePaint70 is offline
Old 04-05-2013, 09:08 PM #1570
Bill
Paintball Showcase

Bill's Avatar

Join Date: Nov 2001
Location: Paintball Showcase
Annual Supporting Member
Bill is a Supporting Member
Bill is a founding member
 has been a member for 10 years
Bill owns a Planet Eclipse Ego
Quote:
Originally Posted by ....VoLtAgE.... View Post
I have actually used water/dawn soap mixed to create bubbles when sprayed on and its definitely coming from where the reg threads on.
I would replace the sealing oring on the frm
__________________
WWW.PAINTBALLSHOWCASE.COM

Certified NorthEast Eclipse Technician/Warranty Center!

Used Gun thread: EGO8s, DMs, Shockers, and more...
Bill is offline
Old 04-05-2013, 09:09 PM #1571
Bill
Paintball Showcase

Bill's Avatar

Join Date: Nov 2001
Location: Paintball Showcase
Annual Supporting Member
Bill is a Supporting Member
Bill is a founding member
 has been a member for 10 years
Bill owns a Planet Eclipse Ego
Quote:
Originally Posted by grubb View Post
Hello Bill,

I have a csl that couldn't chrono more than 260. I changed all the orings and now with the velocity screw all the way out it shoots 280. Solenoid settings are 5and7 and the lpr screw is flush. Brand new battery also. It has a new dart kit installed. The issue is the same with the dart kit or the stock poppit kit.

Orings I changed were from the inline piston, lpr pistion, lpr body, rammer, velocity screw, and the small one inside the top of the velocity screw.

Any idea what the problem may be?

Thanks
Replace the seal in the HPR.
__________________
WWW.PAINTBALLSHOWCASE.COM

Certified NorthEast Eclipse Technician/Warranty Center!

Used Gun thread: EGO8s, DMs, Shockers, and more...
Bill is offline
Old 04-05-2013, 09:10 PM #1572
Bill
Paintball Showcase

Bill's Avatar

Join Date: Nov 2001
Location: Paintball Showcase
Annual Supporting Member
Bill is a Supporting Member
Bill is a founding member
 has been a member for 10 years
Bill owns a Planet Eclipse Ego
Quote:
Originally Posted by Lt. Tank View Post
I guess I didnīt put the proper attention looking at the valve guide.
It has several nicks in the seal and close to one of the orings



The side your pinching should go into the body first. The other is the sealing side. See if it has any nicks.
__________________
WWW.PAINTBALLSHOWCASE.COM

Certified NorthEast Eclipse Technician/Warranty Center!

Used Gun thread: EGO8s, DMs, Shockers, and more...
Bill is offline
Old 04-06-2013, 12:08 AM #1573
Lt. Tank
What would you ask God ?

Lt. Tank's Avatar

Join Date: Mar 2009
Location: Mexico, Mexico city
Lt. Tank owns a Planet Eclipse Ego
Quote:
Originally Posted by Bill View Post
The side your pinching should go into the body first. The other is the sealing side. See if it has any nicks.
done sanding it with 800 grid and NO LEAKS !!!!!
AS USSUAL THANKS
thanks Bill , thanks Jose
__________________
.
Lt. Tank is offline
Old 04-06-2013, 02:17 AM #1574
Jose1998


Jose1998's Avatar

Join Date: Apr 2011
Location: Downey, CA.
Jose1998 owns a Planet Eclipse Geo
Jose1998 posts videos on PbNation
Jose1998 plays in the APPA D4 division
Jose1998 has achieved Level 3 in PbNation Pursuit
Quote:
Originally Posted by Lt. Tank View Post
done sanding it with 800 grid and NO LEAKS !!!!!
AS USSUAL THANKS
thanks Bill , thanks Jose
Glad I could help!
__________________
EXTREME PROS FACTORY TEAM
Jose1998 is offline
Old 04-06-2013, 03:47 PM #1575
Brad- Division
Shootin Faces since 89'

Brad- Division's Avatar

Join Date: Oct 2002
Location: Minnesota
 has been a member for 10 years
Brad- Division owns a Planet Eclipse Ego
Ive looked and think I know the answer, but dont know 100%

I have a 07 vicious ego and i just put in a new battery, the board flickers and then shuts off and will not fire after about 10-15 shots.

My guess , is the board is going bad... Am I right? please advise

Edit : tried a new , new battery and its a little better but still flickers..
__________________
Formulator of Blu Goo and Liquid I.C.E.Paintball Lubricants
Farside Family
HenchMen

Last edited by Brad- Division : 04-06-2013 at 05:08 PM.
Brad- Division is offline
Closed Thread


Thread Tools

Posting Rules
Forum Jump
