Old 08-25-2011, 05:02 PM #1
Twenty4/7_Ep3
GangSTA

Twenty4/7_Ep3's Avatar

Join Date: Dec 2005
Location: IL,nw AR
k24 civic build Pics,vids

I know most of you dont go in the honda forum so here ya go.


I copy and pasted this out of my build thread on another forum so some it might be pointless to you.




the car was a bolt on stage 2 cam k20a that ran strong for 4+ years running sub 12.5 passes consistantly. made easily over 100 passes at the track and there was not a day the motor didnt see 8800 rpms or the rev limiter when it was driven.


one day it just decided to say it was done. broke a valve cruising some through some twisties.



biggest piece of piston left. made its way to the oil pan lol.


so heres what i was left with. a downed ek and a k20a with nothing lol. cracked block, cracked oil pan, f'ed up head.



so the goal was to have the baddest all motor street car around. have it responsive and powerful so I could drive it around comfortably and throw slicks on it and run some good times.


Engine was built by suja 1 in chicago

SPECS
Carrilo rods
Cp XL 12.5 pistons 87.5
4 Piston 156 cnc
supertech valves, springs, retainers, keepers
Drag cartel stage 4 cams
HR 74mm TB
ASP 4-1 megaphone header
Comp super single
Full race pro am traction bars
Replaced the full size koyo i had to run a pass side ktuned rad to run a vstak intake in the grill at some point.








Heres how i got the motor


dressing it up


full race bars



motor install

out with the old

in!



__________________
ST:F Come at me bro
ST:A because racecar
1996 Civic Race
1992 Civic Street
Twenty4/7_Ep3 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 08-25-2011, 05:03 PM #2
Twenty4/7_Ep3
GangSTA

Twenty4/7_Ep3's Avatar

Join Date: Dec 2005
Location: IL,nw AR
Rbc port matched for the 4 piston head done by alex pagan of humble performance


on the dyno



videos

First start up. fired right up

runs




before and after...

final numbers from last night after only 10 pulls


Alex(tuner) wants me to drive the motor to loosen it up and then try some new things like a 4 inch intake. maybe the motor has a few more hp left in it while still utilizing the oem intake manifold.


heres how it sits now finally at home in one piece again.



cleaned the car now i need to clean the garage.
__________________
ST:F Come at me bro
ST:A because racecar
1996 Civic Race
1992 Civic Street
Twenty4/7_Ep3 is offline   Reply With Quote
Old 08-25-2011, 05:07 PM #3
F1VENOM


F1VENOM's Avatar

Join Date: Sep 2002
 has been a member for 10 years
Is it a track car now? How far off the ground is that intake?

I still hate you, but at least you've kept it clean.
__________________
"Originally posted by visualx: hey everyone, look at me. i call people poor though i make absolutely nothing; brag about my job as an intern or some ****; hate on people for not being fat like me; and absolutely never have any idea what i'm talking about, though i always have a ****ing righteous indignation with everything i say! aren't i ****ing amazing?! do you all like me yet?! oh, you know that hate is just a guise! good thing i have a ****ing amazing life! now let me go **** my fat girlfriend and cry myself to sleep"
F1VENOM is offline   Reply With Quote
Old 08-25-2011, 05:07 PM #4
evilpaintball311
zoom zoom

evilpaintball311's Avatar

Join Date: Sep 2007
Location: 850/407, FL
evilpaintball311 supports our troops
evilpaintball311 has achieved Level 1 in PbNation Pursuit
evilpaintball311 has perfected Level 1 in PbNation Pursuit
Should have ls1 swapped.
__________________
evilpaintball311 is offline   Reply With Quote
Old 08-25-2011, 05:13 PM #5
Twenty4/7_Ep3
GangSTA

Twenty4/7_Ep3's Avatar

Join Date: Dec 2005
Location: IL,nw AR
Quote:
Originally Posted by F1VENOM View Post
Is it a track car now? How far off the ground is that intake?

I still hate you, but at least you've kept it clean.
its more of a track car then ever but its still a "street car". itll be driven to the track ect and for spirited street driving.

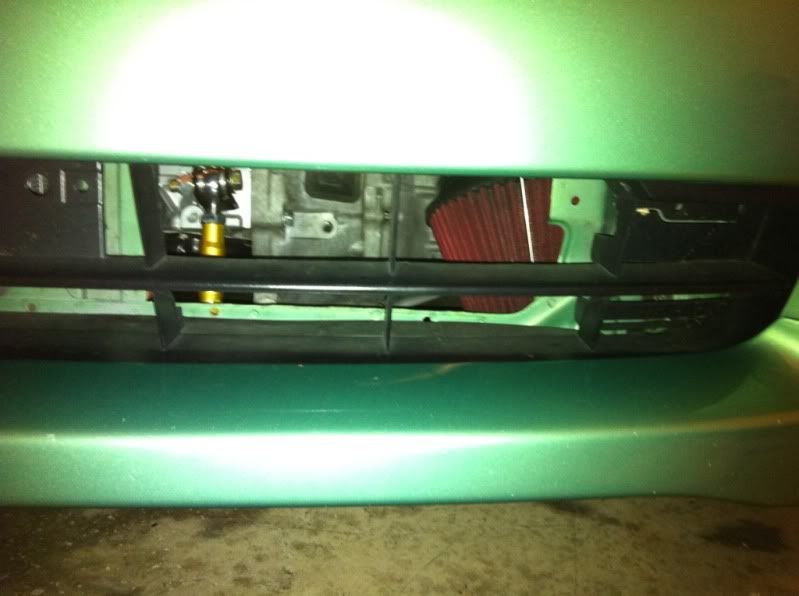

the intake has plenty of room. its right in the air flow path.


__________________
ST:F Come at me bro
ST:A because racecar
1996 Civic Race
1992 Civic Street
Twenty4/7_Ep3 is offline   Reply With Quote
Old 08-25-2011, 05:38 PM #6
yuik
Mr Diet Coke on the Rocks

yuik's Avatar

Join Date: Dec 2004
Annual Supporting Member
yuik is playing at Living Legends V
yuik is playing at Living Legends VI
yuik is an NCPA player
yuik plays in the APPA D4 division
yuik is one of the top 250 posters on PbNation
yuik is Legendary
Question , why did you want this to be all motor again ?

I know why some rx7 guys go with the 3 rotor and keep it NA but I can't really understand why your going NA for a drag car with this tiny motor ?
__________________
if you have an ebay account and want to make 3$ in paypal for 5 min of your time pm me!
Closed Bolt Ballers!

Huge gearbag sale. Everything you can imagine including bob saget!

RED JMJ Smooth Mill viking RobTown Valve Ultralight Frame!
yuik is offline   Reply With Quote
Old 08-25-2011, 05:41 PM #7
Twenty4/7_Ep3
GangSTA

Twenty4/7_Ep3's Avatar

Join Date: Dec 2005
Location: IL,nw AR
Quote:
Originally Posted by yuik View Post
Question , why did you want this to be all motor again ?

I know why some rx7 guys go with the 3 rotor and keep it NA but I can't really understand why your going NA for a drag car with this tiny motor ?
because NA power is way better power IMO. especially for fwd. traction, throttle response, power delivery ect,

turbos in hondas a good for drag racing on the track and thats it.
__________________
ST:F Come at me bro
ST:A because racecar
1996 Civic Race
1992 Civic Street
Twenty4/7_Ep3 is offline   Reply With Quote
Old 08-25-2011, 05:47 PM #8
yuik
Mr Diet Coke on the Rocks

yuik's Avatar

Join Date: Dec 2004
Annual Supporting Member
yuik is playing at Living Legends V
yuik is playing at Living Legends VI
yuik is an NCPA player
yuik plays in the APPA D4 division
yuik is one of the top 250 posters on PbNation
yuik is Legendary
Quote:
Originally Posted by Twenty4/7_Ep3 View Post
because NA power is way better power IMO. especially for fwd. traction, throttle response, power delivery ect,

turbos in hondas a good for drag racing on the track and thats it.
Oh so you have plans other then dragging with it ?


The only reason I asked is because I was thinking you could get similar times with a boosted engine or even a wet 100 shot for less money . Rarely have I heard of people wanting NA power in small displacement engines ( hondas , Mazda, vws ect )
__________________
if you have an ebay account and want to make 3$ in paypal for 5 min of your time pm me!
Closed Bolt Ballers!

Huge gearbag sale. Everything you can imagine including bob saget!

RED JMJ Smooth Mill viking RobTown Valve Ultralight Frame!
yuik is offline   Reply With Quote
Old 08-25-2011, 05:50 PM #9
ClawHammer
Kraft durch Freude

ClawHammer's Avatar

Join Date: Feb 2004
Location: UAE
ClawHammer is a Supporting Member
 has been a member for 10 years
All motor cars of just about every make are nicer to drive, turbos are fun but present a whole slew of other issues.
ClawHammer is offline   Reply With Quote
Old 08-25-2011, 05:51 PM #10
Twenty4/7_Ep3
GangSTA

Twenty4/7_Ep3's Avatar

Join Date: Dec 2005
Location: IL,nw AR
My plans are to drive the car lol.


I think you underestimate what 300whp of na power is like in a 2100 lb car.
__________________
ST:F Come at me bro
ST:A because racecar
1996 Civic Race
1992 Civic Street
Twenty4/7_Ep3 is offline   Reply With Quote
Old 08-25-2011, 05:52 PM #11
DrobertsPB
You rebel scum

DrobertsPB's Avatar

Join Date: Dec 2009
Location: Cin-Dayton
I've seen some crazy built all motor hondas.


I'm jelly looks fun
DrobertsPB is offline   Reply With Quote
Old 08-25-2011, 05:52 PM #12
Alan777
Tree Fitty

Alan777's Avatar

Join Date: Nov 2006
Location: Pittsburgh, PA
sweet tits
__________________
Premier Detailing LLC
Instagram: @premierdetailingllc
1991 Corvette
1994 BMW 325is
2013 Subaru Impreza Sport
Alan777 is offline   Reply With Quote
Old 08-25-2011, 05:55 PM #13
Twenty4/7_Ep3
GangSTA

Twenty4/7_Ep3's Avatar

Join Date: Dec 2005
Location: IL,nw AR
I will probably never own a turbo Honda. Have no interest in it really. You lose all response and control that I love to have. The motors are too small to make big power and have the throttle response to go with it.


And crushing turbo cars na is pretty cool to.
__________________
ST:F Come at me bro
ST:A because racecar
1996 Civic Race
1992 Civic Street
Twenty4/7_Ep3 is offline   Reply With Quote
Old 08-25-2011, 06:11 PM #14
F1VENOM


F1VENOM's Avatar

Join Date: Sep 2002
 has been a member for 10 years
I have to give you props for not turning it into a roll car.
__________________
"Originally posted by visualx: hey everyone, look at me. i call people poor though i make absolutely nothing; brag about my job as an intern or some ****; hate on people for not being fat like me; and absolutely never have any idea what i'm talking about, though i always have a ****ing righteous indignation with everything i say! aren't i ****ing amazing?! do you all like me yet?! oh, you know that hate is just a guise! good thing i have a ****ing amazing life! now let me go **** my fat girlfriend and cry myself to sleep"
F1VENOM is offline   Reply With Quote
Old 08-25-2011, 06:14 PM #15
Featherlite 07
straight cash homie

Featherlite 07's Avatar

Join Date: Jul 2002
Location: Honey Badger University
 has been a member for 10 years
Featherlite 07 is playing at Living Legends III
Featherlite 07 is one of the top 25 posters on PbNation
[menace]
bought not built
[/menace]
__________________
Team Aircraft Carrier - Admiral

2010 Audi S4
2006 BMW M5 (Sold)
ST:A - We pass school busses at 140

"That is the unmistakable low rumble of a turbocharged flat 4, which signals the imminent arrival of a moron." -J. Clarkson
Featherlite 07 is offline   Reply With Quote
Old 08-25-2011, 06:15 PM #16
freestyle141
Because Racecar

freestyle141's Avatar

Join Date: Dec 2004
Location: Illinois
freestyle141 is playing at Living Legends VI
Always liked your car Rob, ever coming back up towards Chicago? Id like to go for a spin!
__________________
Join me-Proper Image
1991 Toyota mr2 turbo, bolt-ons..

CCM gloss red s6.5 #40
Dangerous Power Fusion FX
freestyle141 is offline   Reply With Quote
Old 08-25-2011, 06:24 PM #17
Twenty4/7_Ep3
GangSTA

Twenty4/7_Ep3's Avatar

Join Date: Dec 2005
Location: IL,nw AR
Quote:
Originally Posted by freestyle141 View Post
Always liked your car Rob, ever coming back up towards Chicago? Id like to go for a spin!
Any import events at gateway anytime soon?
__________________
ST:F Come at me bro
ST:A because racecar
1996 Civic Race
1992 Civic Street
Twenty4/7_Ep3 is offline   Reply With Quote
Old 08-25-2011, 06:24 PM #18
yuik
Mr Diet Coke on the Rocks

yuik's Avatar

Join Date: Dec 2004
Annual Supporting Member
yuik is playing at Living Legends V
yuik is playing at Living Legends VI
yuik is an NCPA player
yuik plays in the APPA D4 division
yuik is one of the top 250 posters on PbNation
yuik is Legendary
Dam 2100 lbs that's light ! How much does that car weigh from the factory like 2600?

Quote:
Originally Posted by F1VENOM View Post
I have to give you props for not turning it into a roll car.
ALS could fix that
__________________
if you have an ebay account and want to make 3$ in paypal for 5 min of your time pm me!
Closed Bolt Ballers!

Huge gearbag sale. Everything you can imagine including bob saget!

RED JMJ Smooth Mill viking RobTown Valve Ultralight Frame!
yuik is offline   Reply With Quote
Old 08-25-2011, 06:26 PM #19
F1VENOM


F1VENOM's Avatar

Join Date: Sep 2002
 has been a member for 10 years
Not really, ALS isn't DD compatible and gives host to traction problems again.
__________________
"Originally posted by visualx: hey everyone, look at me. i call people poor though i make absolutely nothing; brag about my job as an intern or some ****; hate on people for not being fat like me; and absolutely never have any idea what i'm talking about, though i always have a ****ing righteous indignation with everything i say! aren't i ****ing amazing?! do you all like me yet?! oh, you know that hate is just a guise! good thing i have a ****ing amazing life! now let me go **** my fat girlfriend and cry myself to sleep"
F1VENOM is offline   Reply With Quote
Old 08-25-2011, 06:32 PM #20
Twenty4/7_Ep3
GangSTA

Twenty4/7_Ep3's Avatar

Join Date: Dec 2005
Location: IL,nw AR
Quote:
Originally Posted by F1VENOM View Post
I have to give you props for not turning it into a roll car.
Not familar with the term roll car.
Quote:
Originally Posted by yuik View Post
Dam 2100 lbs that's light ! How much does that car weigh from the factory like 2600?



ALS could fix that
Its cx. No ps or ac from the factory so it's not that heavy.
__________________
ST:F Come at me bro
ST:A because racecar
1996 Civic Race
1992 Civic Street
Twenty4/7_Ep3 is offline   Reply With Quote
Old 08-25-2011, 06:35 PM #21
yuik
Mr Diet Coke on the Rocks

yuik's Avatar

Join Date: Dec 2004
Annual Supporting Member
yuik is playing at Living Legends V
yuik is playing at Living Legends VI
yuik is an NCPA player
yuik plays in the APPA D4 division
yuik is one of the top 250 posters on PbNation
yuik is Legendary
Quote:
Originally Posted by F1VENOM View Post
Not really, ALS isn't DD compatible and gives host to traction problems again.
Eh it is until the cops give you **** and it helps if you are using cheap turbos because it can tear through them .


Roll car - cars that are only quick from a rolling start . Ie hey bro wanna race my supra from a 40 mph roll ?
__________________
if you have an ebay account and want to make 3$ in paypal for 5 min of your time pm me!
Closed Bolt Ballers!

Huge gearbag sale. Everything you can imagine including bob saget!

RED JMJ Smooth Mill viking RobTown Valve Ultralight Frame!
yuik is offline   Reply With Quote
Reply


Thread Tools

Posting Rules
Forum Jump
