UPDATED: Invert Mini Generation Parts Thread! Know what parts are V1, V2, & V3

Looking over some of the stickies I noticed that the parts version/generation threads seemed to be a little outdated so I figured I would take some nice pictures and show the difference from first generation parts, all the way to third generation parts!

* PLEASE READ *
There is no "V3 Mini" or an old "V1 Mini" Only the parts are different versions! It VERY common for a marker to have mixed parts. For example, one may have a V3 Poppet but still have V1 detents and a V2 regulator. If you want to classify how "new" your marker is, you NEED to open it up and examine the parts that are installed.

NOTE: I HAVE MANY MORE PARTS TO COME AND AM OPEN TO SUGGESTIONS! I JUST HAVEN'T HAD THE TIME TO TAKE PICTURES OF EVERYTHING JUST YET!



BOLT GUIDE ASSEMBLY CHANGES
POPPET

(V1-V3 from left to right)
V1 Poppet - Smaller air release hole, attached flat nylon tip, and no spring
V2 Poppet - Larger air release hole, attached flat nylon tip, and rear spring
V3 Poppet - Larger air release hole, threaded nylon tip, and rear spring

BOLT

(V1-V2 from left to right)
V1 Bolt - silver color anno
V2 Bolt - silver/blue color anno
NOTE: There is no performance difference in these parts. This would just simply tell you that your mini was produced more recently.

REGULATOR CHANGES
GAUGE
V1
V2
(V1-V2 from top to bottom)

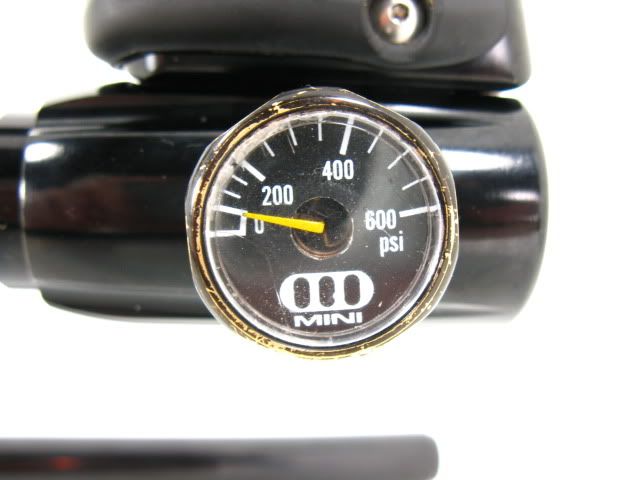

V1 Gauge - Reads from 0-600 PSI

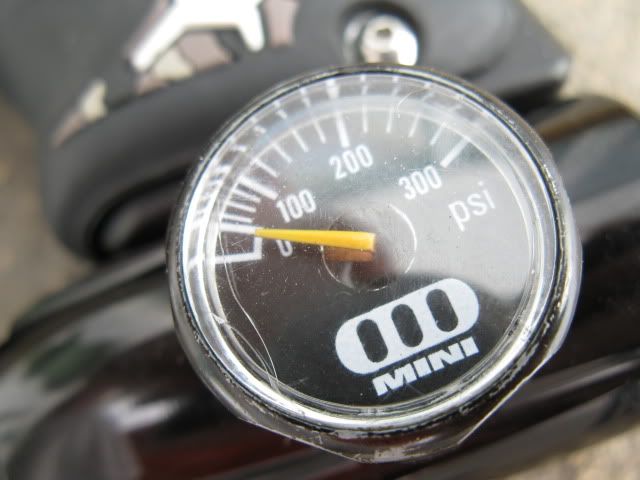

V2 Gauge - Reads from 0-300 PSI

Regulator OPP System & Set Screw
V1
V2V2
(V1-V2 from top to bottom)
V1 Regulator - Single keyhole style regulator opp, and set screw placed on the bottom
V2 Regulator - Four hole style regulator opp, and set screw moved to the top of the regulator

BODY/FRAME CHANGES
Warning Label
V1
V2
(V1-V2 from top to bottom)

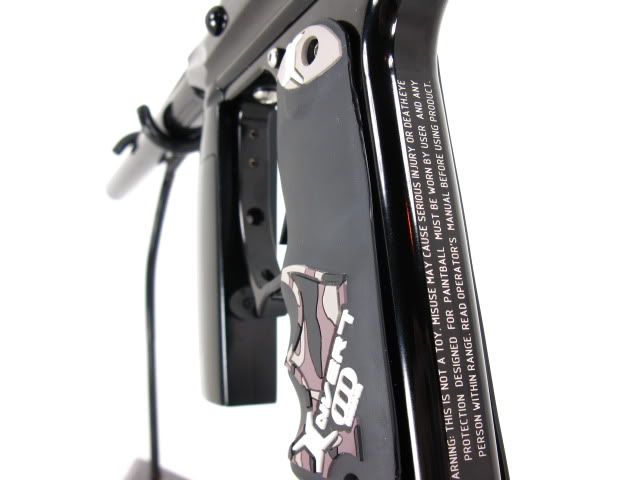

V1 Frame - No warning labels
V2 Frame - Warning label added



TRIGGER CHANGES
Trigger Set Screw w/ Magnetic Top (HES)
V1
V2
(V1-V2 from top to bottom)
V1 HES Magnet Screw - Magnet was placed on top of set screw with adhesive.
V2 HES Magnet Screw - Magnet was threaded in bronze metal with adhesive in addition.
Note: The V1 magnet screws are easily broken off so be careful with them if you still have them!

MISC. CHANGES
DETENT

(V1-V2 from right to left)
V1 Detent - Smaller white detent, smaller detent cap.
V2 Detent - Larger white detent, larger detent cap.
Note: V1 Detents often got stuck inside the cap and caps are easily stripped, be careful if you have these!

SOLENOID
V1
V2
(V1-V2 from top to bottom)
V1 Solenoid - Large purge hole on the bottom
V2 Solenoid - Smaller purge hole on the bottom

MAIN CONTROL BOARD


(V1.6 shown above only)

V1.1-1.6 Optimus Main Control Board - The control board has had several issues over the years such as battery draining issues etc. You can find out which version you have by removing the battery and looking above the black padding.
NOTE: If anyone knows what specifically went wrong with each version please post and I will update the thread!

PACKAGING
V1
V2
(V1-V2 from top to bottom)
V1 Packaging - Older Mini's came with heavy duty metal cases with locks and thick foam inserts
V2 Packaging - Newer Mini's come with white or black cardboard box's with padded inserts
NOTE: Original cases with keys are hard to come by so if you find one I recommend keeping it! They are valued anywhere from 30-60 dollars alone.
