Exclamation Fix for the ASA Plunger Falling out (G6R)

This is for the G6R.

People have been posting about their ASA plungers falling out and ASA's not bleeding properly.

People have suggested soaking the o-rings in DOW 55, but myself and another timmy head both agree that it will only soften the o-rings and cause them to tear.

The stock o-ring on the plunger is a 004 70 Durometer O-Ring. We both think if the if an o-ring with a higher Durometer rating would probably fix the issue.

The issue is getting the o-ring on and off plunger.. as it is extremely small and can be a very daunting task.

Food for thought from both me and the mad scientist. (when I say WE BOTH think... I mean him and I agree, because majority of the time, the mad scientist is alot smarter than me)

SOLUTION SHOWN BELOW



Suggestion One


Quote:
Originally Posted by daveczrn View Post
To clear up some confusion.



Now here is what i did to fix the NON bleeding of the air.
WARNING: THIS WILL VOID THE WARRANTY OF THE KNOB

I chucked the knob up in my lathe and cut about .020" off of the inside of the one end. this allows the knob to unscrew just a little bit further and allows the air to bleed as it should. It will not matter what take you use or what. Bob Long just kept a tight tolerance where they didn't need to. having a little extra room does not hurt this part at all.

I am a very experienced machinist and would not recommend this to the average joe with a lathe. This can go wrong and you will be without a gun because you won't be able to turn your air on.

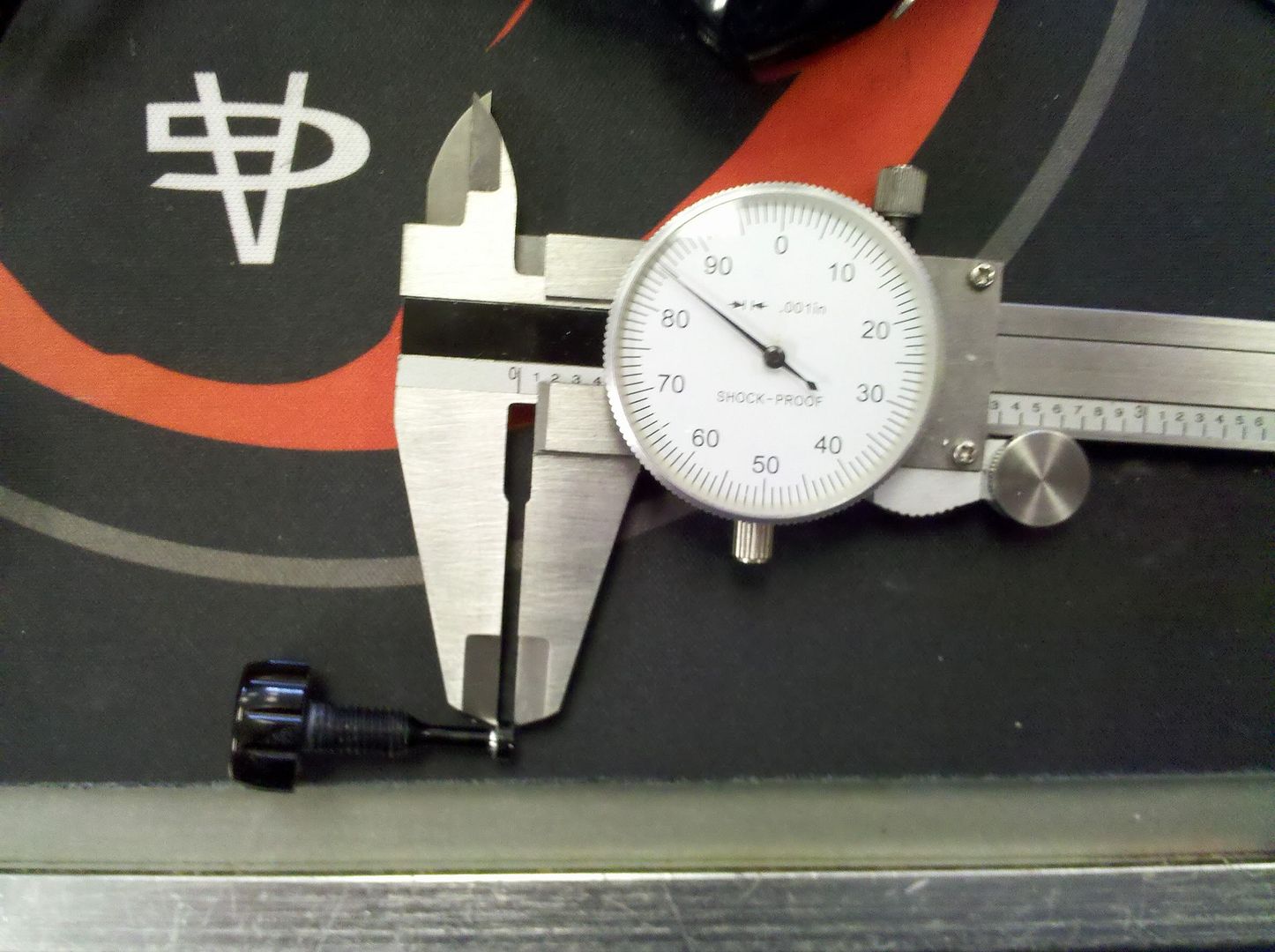

I also took a measurement for anyone looking to do this so they know how much i took off. .085" is what i cut it down to. you can clearly see where i cut so that there is no question of what to do. DO NOT CUT DOWN THE PLUNGER by cutting down on the plunger you will keep the tank from opening in the first place.



Suggestion Two

Quote:
Originally Posted by Lurker27 View Post
Use the stock o-ring durometer and size. Simply put a thin coating of nail polish in the groove the oring sits, let dry, and reinstall.
__________________
Gabe - Director of Marketing & Promotions @ Lurker Paintball
www.LurkerPaintball.com
www.PBMechanix.com

Last edited by GetBunkerD : 02-16-2011 at 12:21 PM.
GetBunkerD is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 10-27-2010, 07:24 PM #2
IgnoranceInABag


IgnoranceInABag's Avatar

Join Date: Sep 2007
Annual Supporting Member
IgnoranceInABag plays in the PSP
IgnoranceInABag plays in the APPA D2 division
what asa are you talking about?
__________________
IgnoranceInABag is offline   Reply With Quote
Old 10-27-2010, 07:25 PM #3
GetBunkerD
LurkerPB.com

GetBunkerD's Avatar

Join Date: Nov 2003
Location: In your pocket :)
Annual Supporting Member
GetBunkerD is a Supporting Member
 has been a member for 10 years
GetBunkerD posts videos on PbNation
WHOOPS! G6R! lol.
__________________
Gabe - Director of Marketing & Promotions @ Lurker Paintball
www.LurkerPaintball.com
www.PBMechanix.com
GetBunkerD is offline   Reply With Quote
Old 10-27-2010, 07:48 PM #4
gamer565
Read the manual!!

gamer565's Avatar

Join Date: Dec 2005
Location: OK
Annual Supporting Member
gamer565 is playing at Living Legends VI
gamer565 is playing at Living Legends VII
gamer565 posts videos on PbNation
gamer565 is reppin' sidebar 4 life
gamer565 has achieved Level 6 in PbNation Pursuit
gamer565 is one of the top 100 posters on PbNation
gamer565 is Boss
Oring pick makes for easier work of getting at them small orings.
__________________
Jolly Green (╯□)╯︵ ┻━┻

gamer565 is offline   Reply With Quote
Old 10-27-2010, 08:36 PM #5
GetBunkerD
LurkerPB.com

GetBunkerD's Avatar

Join Date: Nov 2003
Location: In your pocket :)
Annual Supporting Member
GetBunkerD is a Supporting Member
 has been a member for 10 years
GetBunkerD posts videos on PbNation
Quote:
Originally Posted by gamer565 View Post
Oring pick makes for easier work of getting at them small orings.
The issue is that its MEGA SMALL and most people will tear it, even with an o-ring pick.
__________________
Gabe - Director of Marketing & Promotions @ Lurker Paintball
www.LurkerPaintball.com
www.PBMechanix.com
GetBunkerD is offline   Reply With Quote
Old 10-28-2010, 08:27 AM #6
daveczrn
Dr. Evil

Join Date: Aug 2002
Location: philadelphia
 has been a member for 10 years
Quote:
Originally Posted by gamer565 View Post
Oring pick makes for easier work of getting at them small orings.
the problem isnt getting the oring off, you can destroy the oring getting it off and it won't matter. But getting a stiffer oring on is what the problem is, getting the standard 70 durometer oring on is pretty hard.

I'm going to get some orings to try out and see what i come up with .
__________________


100% reason to remember the name
daveczrn is offline   Reply With Quote
Old 10-28-2010, 12:45 PM #7
gamer565
Read the manual!!

gamer565's Avatar

Join Date: Dec 2005
Location: OK
Annual Supporting Member
gamer565 is playing at Living Legends VI
gamer565 is playing at Living Legends VII
gamer565 posts videos on PbNation
gamer565 is reppin' sidebar 4 life
gamer565 has achieved Level 6 in PbNation Pursuit
gamer565 is one of the top 100 posters on PbNation
gamer565 is Boss
Thats what i was refering using the pick for was gettting them off. Getting 004's on to poppets are hard enough, so it doesn't surprise me its hard getting my on the plunger.
__________________
Jolly Green (╯□)╯︵ ┻━┻

gamer565 is offline   Reply With Quote
Old 10-28-2010, 09:45 PM #8
daveczrn
Dr. Evil

Join Date: Aug 2002
Location: philadelphia
 has been a member for 10 years
all right, I tried the 90 durometer 004 oring on my plunger. definatly sticks in the asa tighter so it should help people keep their plungers from falling out. Unfortunatly it does not fix the non air bleed problem. it seems the undercut in the asa body is just too small for the oring.

and getting the oring on was not nearly as hard as i expected it to be. i would recomend it to anyone having trouble with their plunger falling out.
__________________


100% reason to remember the name
daveczrn is offline   Reply With Quote
Old 10-28-2010, 10:12 PM #9
GetBunkerD
LurkerPB.com

GetBunkerD's Avatar

Join Date: Nov 2003
Location: In your pocket :)
Annual Supporting Member
GetBunkerD is a Supporting Member
 has been a member for 10 years
GetBunkerD posts videos on PbNation
Quote:
Originally Posted by daveczrn View Post
all right, I tried the 90 durometer 004 oring on my plunger. definatly sticks in the asa tighter so it should help people keep their plungers from falling out. Unfortunatly it does not fix the non air bleed problem. it seems the undercut in the asa body is just too small for the oring.

and getting the oring on was not nearly as hard as i expected it to be. i would recomend it to anyone having trouble with their plunger falling out.
The Mad Scientist! Goto bed Dave.
__________________
Gabe - Director of Marketing & Promotions @ Lurker Paintball
www.LurkerPaintball.com
www.PBMechanix.com
GetBunkerD is offline   Reply With Quote
Old 10-28-2010, 10:48 PM #10
EDM Moose


EDM Moose's Avatar

Join Date: Aug 2008
Location: Edmonton AB Canada
EDM Moose plays in the PSP
EDM Moose plays in the APPA D4 division
im slighly confused are you refering to the peice you screw in that presses on the tank valve... i only ask because i just bought a G6R at cup and im not very familiar with it yet
__________________
OLDS OUTCAST 2011
EDM Moose is offline   Reply With Quote
Old 10-29-2010, 12:57 AM #11
noctem89


noctem89's Avatar

Join Date: Apr 2009
noctem89 owns a Planet Eclipse Geo
no. Look into the asa, and one of the holes around the pin should look like its not as deep as the others. It has a little silver plunger in it that acts as a backcheck valve for bleeding air
noctem89 is offline   Reply With Quote
Old 10-29-2010, 07:30 AM #12
wyn1370
...---...

wyn1370's Avatar

Join Date: Dec 2001
Location: Waterford, MI
Annual Supporting Member
wyn1370 is a Supporting Member
wyn1370 is a founding member
 has been a member for 10 years
wyn1370 donated to help Peyton Trent
wyn1370 owns a Planet Eclipse SLS
wyn1370 owns a Planet Eclipse CSL
Has there been any word on what the plungers actually do in the ASA?
Seems that people have different amounts of them in their ASAs.
__________________
Originally posted by manike
"Pants are only worn on the outside by Americans, Canadians and Superhero's..."
wyn1370 is offline   Reply With Quote
Old 10-29-2010, 10:23 AM #13
daveczrn
Dr. Evil

Join Date: Aug 2002
Location: philadelphia
 has been a member for 10 years
To clear up some confusion.






Now here is what i did to fix the NON bleeding of the air.
WARNING: THIS WILL VOID THE WARRANTY OF THE KNOB

I chucked the knob up in my lathe and cut about .020" off of the inside of the one end. this allows the knob to unscrew just a little bit further and allows the air to bleed as it should. It will not matter what take you use or what. Bob Long just kept a tight tolerance where they didn't need to. having a little extra room does not hurt this part at all.

I am a very experienced machinist and would not recommend this to the average joe with a lathe. This can go wrong and you will be without a gun because you won't be able to turn your air on.

I also took a measurement for anyone looking to do this so they know how much i took off. .085" is what i cut it down to. you can clearly see where i cut so that there is no question of what to do. DO NOT CUT DOWN THE PLUNGER by cutting down on the plunger you will keep the tank from opening in the first place.



__________________


100% reason to remember the name
daveczrn is offline   Reply With Quote
Old 10-29-2010, 10:26 AM #14
daveczrn
Dr. Evil

Join Date: Aug 2002
Location: philadelphia
 has been a member for 10 years
Quote:
Originally Posted by wyn1370 View Post
Has there been any word on what the plungers actually do in the ASA?
Seems that people have different amounts of them in their ASAs.
my guess what you were calling a plunger is the wholes drilled into the screw in side of the asa. These are not plungers. these are just weight reduction wholes for the most part. Atleast one of them is an air transfer hole to the trigger frame.
__________________


100% reason to remember the name
daveczrn is offline   Reply With Quote
Old 10-29-2010, 02:42 PM #15
EDM Moose


EDM Moose's Avatar

Join Date: Aug 2008
Location: Edmonton AB Canada
EDM Moose plays in the PSP
EDM Moose plays in the APPA D4 division
Hmm now that I think about it I did have two of those in my Asa when I first got my G6 but they are now missing... But my air still bleeds just fine
__________________
OLDS OUTCAST 2011
EDM Moose is offline   Reply With Quote
Old 10-29-2010, 05:35 PM #16
sandman07


sandman07's Avatar

Join Date: Jul 2007
Location: 719
Can we get a response from BL on how many asa plungers there are?

Why some people have 1 or more than one?

Why didn't BL use the asa from the victory or at least mod it for the G6R?
sandman07 is offline   Reply With Quote
Old 02-16-2011, 12:50 AM #17
nin7474


nin7474's Avatar

Join Date: Nov 2009
Location: BOSTON 617
nin7474 owns a Planet Eclipse Geo
nin7474 owns a Planet Eclipse Ego
nin7474 supports Team VICIOUS
nin7474 supports our troops
Just got my new G6R and it doesn't Bleed. Is there a easier way to fix this?
nin7474 is offline   Reply With Quote
Old 02-16-2011, 11:49 AM #18
Lurker27
Engineering the Future

Lurker27's Avatar

Join Date: Jun 2003
Annual Supporting Member
Lurker27 is a Supporting Member
 has been a member for 10 years
Lurker27 posts videos on PbNation
Lurker27 has been published on the PbNation Youtube Channel
Use the stock o-ring durometer and size. Simply put a thin coating of nail polish in the groove the oring sits, let dry, and reinstall.

Problem solved. You can edit the first post now.
__________________
World's Best Hard-Parts Upgrades!
EigenBarrels, Mini, AXE, Intimidators, DM, Shocker
Lurker27 is offline   Reply With Quote
Old 02-16-2011, 12:21 PM #19
GetBunkerD
LurkerPB.com

GetBunkerD's Avatar

Join Date: Nov 2003
Location: In your pocket :)
Annual Supporting Member
GetBunkerD is a Supporting Member
 has been a member for 10 years
GetBunkerD posts videos on PbNation
Done good sir. PM me when you wanna make stuff on your site happen.
__________________
Gabe - Director of Marketing & Promotions @ Lurker Paintball
www.LurkerPaintball.com
www.PBMechanix.com
GetBunkerD is offline   Reply With Quote
Old 02-16-2011, 12:33 PM #20
nin7474


nin7474's Avatar

Join Date: Nov 2009
Location: BOSTON 617
nin7474 owns a Planet Eclipse Geo
nin7474 owns a Planet Eclipse Ego
nin7474 supports Team VICIOUS
nin7474 supports our troops
Quote:
Originally Posted by Lurker27
Use the stock o-ring durometer and size. Simply put a thin coating of nail polish in the groove the oring sits, let dry, and reinstall.

Problem solved. You can edit the first post now.
Does that fix the problem of it not degassing? Curious
nin7474 is offline   Reply With Quote
Old 02-16-2011, 04:26 PM #21
Lurker27
Engineering the Future

Lurker27's Avatar

Join Date: Jun 2003
Annual Supporting Member
Lurker27 is a Supporting Member
 has been a member for 10 years
Lurker27 posts videos on PbNation
Lurker27 has been published on the PbNation Youtube Channel
Quote:
Originally Posted by GetBunkerD View Post
Done good sir. PM me when you wanna make stuff on your site happen.
Will do sir, good thread idea!

Nin,

My tendency is to believe that the pin getting stuck in place despite the knob being turned is the cause of that problem. As such, it is the OPPOSITE problem - too much friction and it gets stuck, too little and it may fall out. So I don't think that this would help. That seal not being adequately lubricated (OR overlubricated maybe? would be my first guess. It's also possible that the seal is designed wrong and the o-ring tends to extrude out:


(Pressure from the left)


This occurs when a seal subject to high pressures has too big of a gap to fit into between the OD of the piston and the ID of the hole. Are you using an HP tank? That would be more likely to stick than LP, in this case. LP or SLP may just not have enough pressure on the piston to overcome friction.

That's just my thoughts!
__________________
World's Best Hard-Parts Upgrades!
EigenBarrels, Mini, AXE, Intimidators, DM, Shocker
Lurker27 is offline   Reply With Quote
Reply


Thread Tools

Posting Rules
Forum Jump
