Old 12-08-2010, 05:55 PM #127
y0da900
Nerdivore

y0da900's Avatar

Join Date: Mar 2005
Location: Plattsburgh, NY
It's being designed similarly to the Evil-M project where it is a blank slate for people to work with as they please. Also to have as much machinable without CNC as possible.
y0da900 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 12-23-2010, 08:10 PM #128
y0da900
Nerdivore

y0da900's Avatar

Join Date: Mar 2005
Location: Plattsburgh, NY
Blank slate so things like this can be cut from it.



y0da900 is offline   Reply With Quote
Old 12-28-2010, 02:37 AM #129
L_x
Alex Hodge

L_x's Avatar

Join Date: Nov 2007
Location: New Zealand
L_x works for a Paintball manufacturer
Looks nice. The milling option on the right gets my pick for sure.

Sounds like a cool project.
__________________
[ Prototype Rotor2 FS/T $500 ]

Alex Hodge | Freelance Industrial Designer
Facebook
Portfolio
Youtube


Any posts I make are from myself as an individual and do not represent the views of the companies I design for.
L_x is offline   Reply With Quote
Old 12-28-2010, 09:35 AM #130
63VDub


63VDub's Avatar

Join Date: Dec 2003
 has been a member for 10 years
Quote:
Originally Posted by y0da900 View Post




Glass material renders of an open source gun project we are doing on MCB. Models done in AutoCAD, rendering in 3DS Max 2011.
purdy.
__________________
I like old VW's and ICD products.

I am at the pinnacle of mediocrity.

Wiring problems? I know the man who can hook you up with a brand new FURIOUS harness!!CLICK HERE!

http://www.icd-owners.com/ It's where you need to be.
63VDub is offline   Reply With Quote
Old 12-30-2010, 03:06 PM #131
pbjosh
In February -

pbjosh's Avatar

Join Date: Nov 2001
Location: Bellingham, WA
pbjosh is a founding member
 has been a member for 10 years
pbjosh works for a Paintball manufacturer


Just a teaser, a little something I have been working on. Don't judge the body, it is still a work in progress, but the gripframe is down to a last few bits.

Figured I would drop it in here for fun. The foregrip and grip are separate, though I am tempted to make it a single piece.

Enjoy!

Josh
__________________
"If you build it, they will run"

Colin @ Deadly wind: “We need to stay away from each other. You scare me.”

Owner of Patent #7610907: Paintball marker action assembly
pbjosh is offline   Reply With Quote
Old 12-30-2010, 03:14 PM #132
pbjosh
In February -

pbjosh's Avatar

Join Date: Nov 2001
Location: Bellingham, WA
pbjosh is a founding member
 has been a member for 10 years
pbjosh works for a Paintball manufacturer
And a couple more to talk about:





Josh
__________________
"If you build it, they will run"

Colin @ Deadly wind: “We need to stay away from each other. You scare me.”

Owner of Patent #7610907: Paintball marker action assembly
pbjosh is offline   Reply With Quote
Old 12-30-2010, 03:30 PM #133
desertT1
The Burninator

desertT1's Avatar

Join Date: Jan 2005
Location: Vail, Az
Josh, I read through your patent and it's pretty interesting. Congrats first off, it's pretty cool to own one. Working on one of my own, non-pb though.

The way I see it, it is a stacked tube marker with a spool valve style dump chamber in the loser tube. Because it is popit-less, you have a gear driving the bolt and valve in opposite directions. Sounds pretty complex, but probably pretty quiet. Because the moving parts are going in opposite directions, you probably have a fair amount of reduction in recip. mass. Very clever.
desertT1 is offline   Reply With Quote
Old 12-30-2010, 03:37 PM #134
pbjosh
In February -

pbjosh's Avatar

Join Date: Nov 2001
Location: Bellingham, WA
pbjosh is a founding member
 has been a member for 10 years
pbjosh works for a Paintball manufacturer
Close!

The gear was just a throw in on the Patent to cover the various ways of running a stack tube design. My patent covers all Stacked Tube designs where the spool carries a bolt. Whither by bolt pin, gear, lever, or anything similar. If the spool moves the bolt, the patent covers it.

What is in this one is far simpler. Think, well, NT meets Evil M?

That would be closer.

Josh
__________________
"If you build it, they will run"

Colin @ Deadly wind: “We need to stay away from each other. You scare me.”

Owner of Patent #7610907: Paintball marker action assembly
pbjosh is offline   Reply With Quote
Old 12-31-2010, 12:32 AM #135
Spitlebug
I'm rule 34...

Spitlebug's Avatar

Join Date: Sep 2003
Location: The place men fear.
Spitlebug is a Supporting Member
 has been a member for 10 years
Spitlebug donated to help Peyton Trent
Spitlebug has perfected Level 1 in PbNation Pursuit
Spitlebug has perfected Level 2 in PbNation Pursuit
Spitlebug is attending Decay of Nations VI
I am le tired...
__________________
Administrator - www.icd-owners.com - For all your ICD needs.
Hyaaaaaaah! Take that Small Talk, may you rot in the fires of paintball hell.
Spitlebug is offline   Reply With Quote
Old 01-03-2011, 04:47 PM #136
betasniper
paintball marker designer

betasniper's Avatar

Join Date: Dec 2008
Location: middle of nowhere, CA
Josh, Would that be similar to this?

(this isn't mine)
__________________
╔══╗╔╗────────╔═╗───╔╦╗PM me for information on my BetaSniper's T8/9 Right Hand Mag Releases. And Here is an Installation Guide By Rogue Shooter
║╬╬╠╝╚╦═╦══╦╦═╣╚╬╦╦╦╣║║I now have 22 LEFT and it is First Payed/ First Shipped.
║╔╗╠╗╔╣╬║║║║║╠╬╗║─╣║║║║
╚╝╚╝╚╝╚═╩╩╩╩╩═╩═╩╩╩═╩╩╝
betasniper is offline   Reply With Quote
Old 01-03-2011, 04:58 PM #137
Leafy
Uses the man pedal

Leafy's Avatar

Join Date: May 2008
Location: Sandown, NH/Worcester,MA
Leafy helped look for balloons
God beta, that gun has to have one of the most retarded bolts ever.
__________________
WPI class of '12 ME
Team Captain: WPI Engineers Paintball
Take my drop box referral and we both get an extra 250 Mb free!
Gear Bag Sale!

Feedback More Feedback
Leafy is offline   Reply With Quote
Old 01-03-2011, 05:19 PM #138
betasniper
paintball marker designer

betasniper's Avatar

Join Date: Dec 2008
Location: middle of nowhere, CA
It's an impulse bolt, of corse it's retarded. That is why so many companies made upgrade bolts for it.
__________________
╔══╗╔╗────────╔═╗───╔╦╗PM me for information on my BetaSniper's T8/9 Right Hand Mag Releases. And Here is an Installation Guide By Rogue Shooter
║╬╬╠╝╚╦═╦══╦╦═╣╚╬╦╦╦╣║║I now have 22 LEFT and it is First Payed/ First Shipped.
║╔╗╠╗╔╣╬║║║║║╠╬╗║─╣║║║║
╚╝╚╝╚╝╚═╩╩╩╩╩═╩═╩╩╩═╩╩╝

Last edited by betasniper : 01-03-2011 at 05:23 PM.
betasniper is offline   Reply With Quote
Old 01-03-2011, 08:29 PM #139
Ydna
timetraveler

Ydna's Avatar

Join Date: Oct 2003
Location: Tecumseh MI
Ydna is a Moderator
Ydna is a Supporting Member
 has been a member for 10 years
Ydna is BST Trusted
that's the dumb ole stock bolt design. yeah, dumb.

Josh can you send me another e-mail? I keep burying messages under piles of mud or something...
__________________
ydna@zdspb.com - [ZDSPB.com]
Nummech Products
Thin Air Sports

As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".
Ydna is offline   Reply With Quote
Old 01-03-2011, 10:51 PM #140
pbjosh
In February -

pbjosh's Avatar

Join Date: Nov 2001
Location: Bellingham, WA
pbjosh is a founding member
 has been a member for 10 years
pbjosh works for a Paintball manufacturer
Ydna - email is out from my hotmail addy.

betasniper: Yep. The lost bastard cousin. The 'Husher' and the 'Torque' are basically the same idea. I have a few layouts that are like that. The current one though has some seriously different action to the way it fires. Unlike much anything else so far.
__________________
"If you build it, they will run"

Colin @ Deadly wind: “We need to stay away from each other. You scare me.”

Owner of Patent #7610907: Paintball marker action assembly
pbjosh is offline   Reply With Quote
Old 02-04-2011, 05:22 PM #141
y0da900
Nerdivore

y0da900's Avatar

Join Date: Mar 2005
Location: Plattsburgh, NY

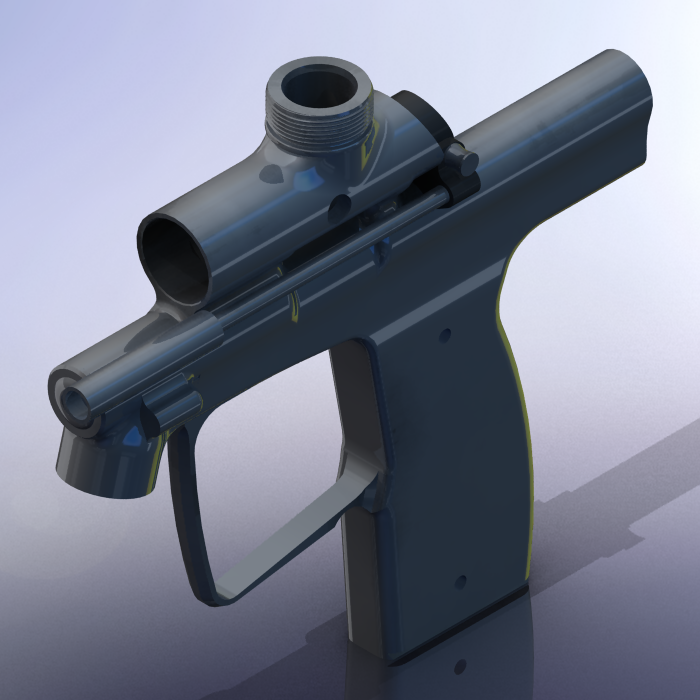

A getting close to being done the design phase of one of my projects. It is a stacked tube, brass, closed bolt, pneumatic trigger gun. The feedneck is dovetailed to accept different types of feeds. It shares a frame with the open source gun we are doing on MCB, no reason not to recycle parts

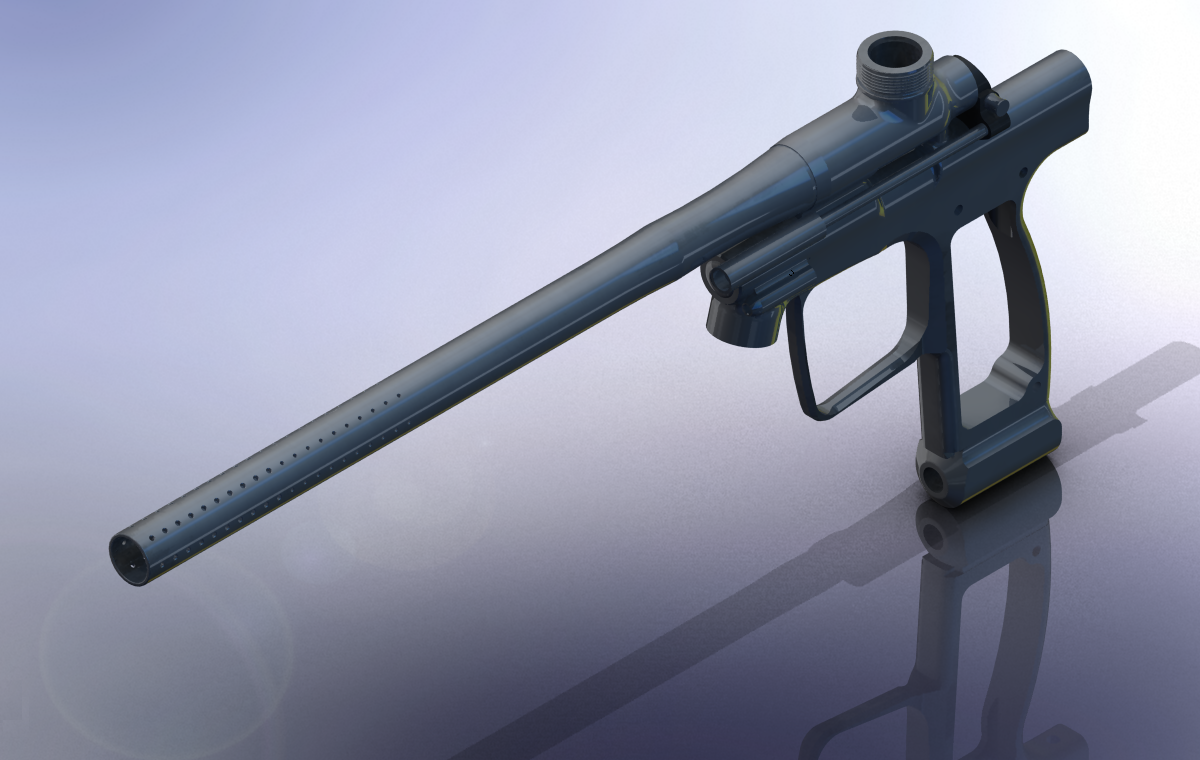

Version with brass barrel:



Cocker barrel threaded version:


Both of them:
y0da900 is offline   Reply With Quote
Old 02-04-2011, 06:30 PM #142
betasniper
paintball marker designer

betasniper's Avatar

Join Date: Dec 2008
Location: middle of nowhere, CA

My version of an MiniCocker.

Even with a solid aluminum grip, this model weighs in around 1.3lbs. I think I can make the whole marker under that.
__________________
╔══╗╔╗────────╔═╗───╔╦╗PM me for information on my BetaSniper's T8/9 Right Hand Mag Releases. And Here is an Installation Guide By Rogue Shooter
║╬╬╠╝╚╦═╦══╦╦═╣╚╬╦╦╦╣║║I now have 22 LEFT and it is First Payed/ First Shipped.
║╔╗╠╗╔╣╬║║║║║╠╬╗║─╣║║║║
╚╝╚╝╚╝╚═╩╩╩╩╩═╩═╩╩╩═╩╩╝
betasniper is offline   Reply With Quote
Old 02-04-2011, 07:23 PM #143
Spitlebug
I'm rule 34...

Spitlebug's Avatar

Join Date: Sep 2003
Location: The place men fear.
Spitlebug is a Supporting Member
 has been a member for 10 years
Spitlebug donated to help Peyton Trent
Spitlebug has perfected Level 1 in PbNation Pursuit
Spitlebug has perfected Level 2 in PbNation Pursuit
Spitlebug is attending Decay of Nations VI
Nice 'Cocker. I never understood why guys use sleds instead of just machining a bolt that accepts a linkage.
__________________
Administrator - www.icd-owners.com - For all your ICD needs.
Hyaaaaaaah! Take that Small Talk, may you rot in the fires of paintball hell.
Spitlebug is offline   Reply With Quote
Old 02-04-2011, 07:58 PM #144
betasniper
paintball marker designer

betasniper's Avatar

Join Date: Dec 2008
Location: middle of nowhere, CA
Thanks.

Less stock removal, easier to turn then drill, less waste, use old bolt to become new bolt, just because. Pick one
__________________
╔══╗╔╗────────╔═╗───╔╦╗PM me for information on my BetaSniper's T8/9 Right Hand Mag Releases. And Here is an Installation Guide By Rogue Shooter
║╬╬╠╝╚╦═╦══╦╦═╣╚╬╦╦╦╣║║I now have 22 LEFT and it is First Payed/ First Shipped.
║╔╗╠╗╔╣╬║║║║║╠╬╗║─╣║║║║
╚╝╚╝╚╝╚═╩╩╩╩╩═╩═╩╩╩═╩╩╝

Last edited by betasniper : 02-04-2011 at 08:00 PM.
betasniper is offline   Reply With Quote
Old 02-05-2011, 09:15 AM #145
Pote
?CustomizationSpecialist?

Pote's Avatar

Join Date: Dec 2003
Location: Altoona
Pote is playing at Living Legends V
Pote is for the Gunfight
Pote supports Pev's Paintball
Pote has achieved Level 1 in PbNation Pursuit
Pote has perfected Level 1 in PbNation Pursuit
Pote has achieved Level 2 in PbNation Pursuit
Pote has achieved Level 3 in PbNation Pursuit
in my experience it makes it easier for field stripping and bolt removal but I could be totally missing something..
__________________
R.I.P. Sean Speicher #22 R.I.P.
Pote is offline   Reply With Quote
Old 02-05-2011, 10:54 PM #146
betasniper
paintball marker designer

betasniper's Avatar

Join Date: Dec 2008
Location: middle of nowhere, CA
Yeah, That too. I didn't think of that. I hardly think practically though.

PROGRESS!

Please Ignore the horrible Dovetail ASA. I don't know how to draw that as well as the other parts.

(Currently 477 grams)
__________________
╔══╗╔╗────────╔═╗───╔╦╗PM me for information on my BetaSniper's T8/9 Right Hand Mag Releases. And Here is an Installation Guide By Rogue Shooter
║╬╬╠╝╚╦═╦══╦╦═╣╚╬╦╦╦╣║║I now have 22 LEFT and it is First Payed/ First Shipped.
║╔╗╠╗╔╣╬║║║║║╠╬╗║─╣║║║║
╚╝╚╝╚╝╚═╩╩╩╩╩═╩═╩╩╩═╩╩╝
betasniper is offline   Reply With Quote
Old 02-06-2011, 03:35 AM #147
Spitlebug
I'm rule 34...

Spitlebug's Avatar

Join Date: Sep 2003
Location: The place men fear.
Spitlebug is a Supporting Member
 has been a member for 10 years
Spitlebug donated to help Peyton Trent
Spitlebug has perfected Level 1 in PbNation Pursuit
Spitlebug has perfected Level 2 in PbNation Pursuit
Spitlebug is attending Decay of Nations VI
Quote:
Originally Posted by Pote View Post
in my experience it makes it easier for field stripping and bolt removal but I could be totally missing something..
No, I thought of that but I still don't see why you couldn't put a 90* bend in the cocking rod and retain/release a bolt by rotating the cocking rod.
__________________
Administrator - www.icd-owners.com - For all your ICD needs.
Hyaaaaaaah! Take that Small Talk, may you rot in the fires of paintball hell.
Spitlebug is offline   Reply With Quote
