Single tube dm using dm4 body

I've been thinking about this project for a while and just recently bought an old dm4 body off eBay to finally start it.

Before I go any further I wanted to make sure my approach seemed possible. This isn't all the problems I need to consider, but it's the main one I'm trying to figure out now.

I was going to cut off the bottom half of the gun. At this point I'm not sure I will cut off the air transfer tubes as well. (Any advice on this would be great)

From there I was going to find a grip frame (any ideas what would work best?) connect an empire relay reg to it. The relay reg would run air to a crcb solenoid and directly to the back of the bolt using tubing.

My main concern at this point is having enough metal to work with to tap the back of the body for the air to pass into the bolt. I know I need to weld up some of the holes, but does anyone think this is possible? Would this be easier if I remove the air passages on the body as well?

Thanks for the help!
__________________
F&M 11'
Temple 14'
d0cwh0 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 03-06-2014, 02:34 PM #2
FrmrSpecialist
www.fxanodizing.com

FrmrSpecialist's Avatar

Join Date: Jan 2009
I'm guessing that you are planning on making this macroless as well?

If you are planning on going your route I would definitely keep the air transfer tubes. However the marker will kick like a son of a ***** since you will be removing the LPR, the only real remedy to this is if you were to redesign the bolt as well.

I've thought about doing this before as well
__________________
*Caution* CUSTOM ANNO*Caution*
FrmrSpecialist is offline   Reply With Quote
Old 03-06-2014, 06:09 PM #3
d0cwh0
Mmm...Dorritos

d0cwh0's Avatar

Join Date: Feb 2006
Location: Philly
d0cwh0 owns a Planet Eclipse Geo
yeah, I'm keeping the right air tube that connects to the bolt. I'm going to use an axe reg and run a macro line from that through the grip directly to the bolt. Actually going to the machine shop next friday to finally start the project.

To combat the kick I am going to use a luxe manifold adjuster to slow down the bolt by restricting the air flow to the solenoid. Also got my hands on a CF bolt to keep the bolt weight down a bit.
__________________
F&M 11'
Temple 14'
d0cwh0 is offline   Reply With Quote
Old 03-13-2014, 05:14 PM #4
jojo750
retired again 03-30-2014

jojo750's Avatar

Join Date: Jul 2003
Location: south carolina
Annual Supporting Member
 has been a member for 10 years
jojo750 donated to help Peyton Trent
jojo750 owns a Planet Eclipse Geo
jojo750 supports Team VICIOUS
jojo750 supports Team VICIOUS
jojo750 supports Team VICIOUS
jojo750 owns a Planet Eclipse GSL
if for some reason you mess up that body... shoot me a pm.. i have a dm5 body sitting here collecting dust.. id be willing to donate for the project..
doesnt have anything but the body itself.

good luck and keep us posted.
__________________
"old" feedback (138+)
jojo750 is offline   Reply With Quote
Old 03-13-2014, 07:10 PM #5
d0cwh0
Mmm...Dorritos

d0cwh0's Avatar

Join Date: Feb 2006
Location: Philly
d0cwh0 owns a Planet Eclipse Geo
Thanks a lot man...really appreciate it. I'll update the thread after I get the body back from the machine shop
__________________
F&M 11'
Temple 14'
d0cwh0 is offline   Reply With Quote
Old 04-04-2014, 09:53 AM #6
d0cwh0
Mmm...Dorritos

d0cwh0's Avatar

Join Date: Feb 2006
Location: Philly
d0cwh0 owns a Planet Eclipse Geo
Update

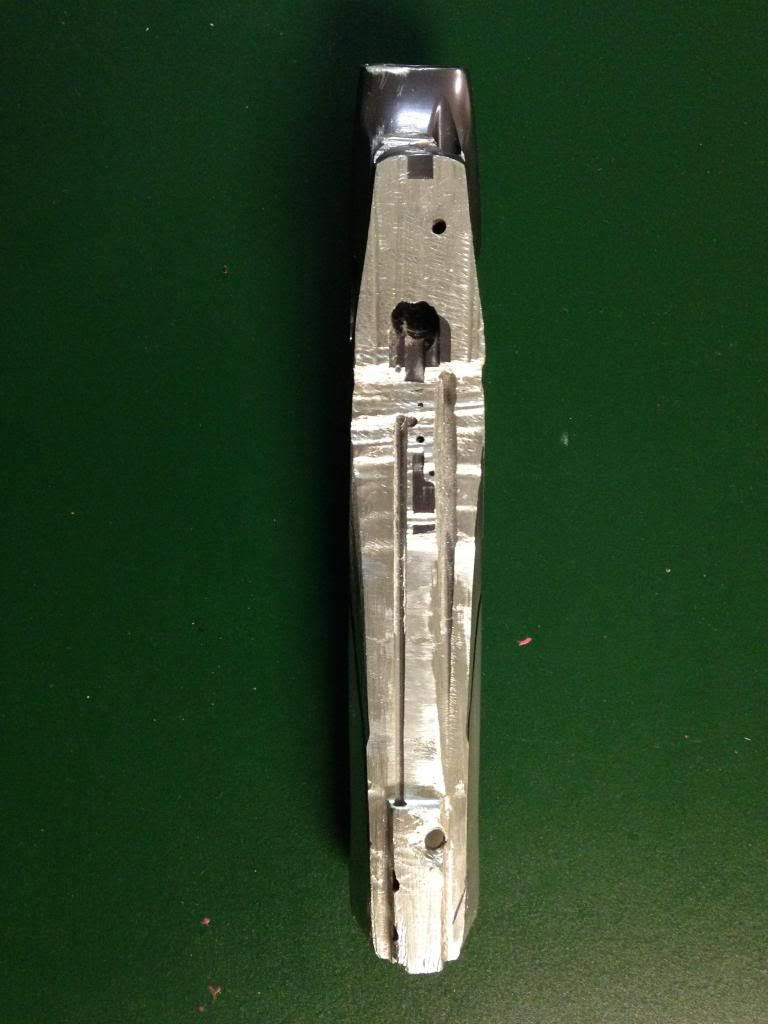

Decided to go ahead and hack at it myself As you can see it's still pretty rough and I have a lot of filing to do to properly fit a frame onto it and make it look good. I am going to run out and buy a tap kit and loctite tomorrow tomorrow to tap for m3 threads and a 10-32 fitting. At least then I'll be able to test it out.
