Old 11-30-2009, 10:19 PM #1
eyeownyu
ryan

eyeownyu's Avatar

Join Date: Mar 2007
Location: 949 socal/805 slocal
eyeownyu plays in the APPA D3 division
is the gen 4 suppost to be this finicky

i replaced all poppet orings, and ram orings, and used dow 55 on the whole gun. i set up the gun just like how it says, by putting both regs to flush. then slowly increasing the lpr to desired pressure, then adjust hpr for velocity.

but the thing is this works sometimes, and sometimes it doesnt. this past sunday, the gun wasnt working in the morning. i would set the pressures, but when i increased the lpr, it would just start to leak down the barrel, and the gauge would read zero.

then i set it down and use my dm for a bit, i come back, and reset the regs, and try and adjust the pressures again, and it works this time. the lpr leaks everywhere but 45 psi (which is the recommended pressure by lurker for the eigen ram which i have) if it would be a little high it would leak, and same with a little lower. The gun ran smoothly for pretty much the rest of the day, except one incident where the gun just gushed air down the barrel randomly, until i turned the air off, then back on, and it was fine running again.

so is there a problem that is causing my timmy to be so finicky?

PS my dwell was at 6 and lpr at 45 when it was running fine.
__________________
GT / EGO11's / AXE FOR SALE ONLY
"All right then," said the Savage defiantly, "I'm claiming the right to be unhappy"
~John the Savage

"It's the decisions you make when you have no time to make them that defines who you are." ~ teh_masterer
Only after disaster can we be resurrected. ~Tyler Durden
San Diego Pirates
VSB.
eyeownyu is offline   Reply With Quote
Old 11-30-2009, 10:23 PM #2
pbjunkiee
Go big or go home

pbjunkiee's Avatar

Join Date: Mar 2006
Location: Destin, Fl
hpr may be too high, if it is it kicks the poppet oring off, and it resets, and then kicks it off again. lower the hpr and you should be fine.
__________________
Timmy Clan V.1??


st:p hk trollfest 8-29-11
pbjunkiee is offline   Reply With Quote
Old 11-30-2009, 10:33 PM #3
eyeownyu
ryan

eyeownyu's Avatar

Join Date: Mar 2007
Location: 949 socal/805 slocal
eyeownyu plays in the APPA D3 division
well ill try that, but when the gun leaks the hpr is flush. and when i had the gun working 280 fps was about 3 turns in from flush. so i dont think it would be too much.
__________________
GT / EGO11's / AXE FOR SALE ONLY
"All right then," said the Savage defiantly, "I'm claiming the right to be unhappy"
~John the Savage

"It's the decisions you make when you have no time to make them that defines who you are." ~ teh_masterer
Only after disaster can we be resurrected. ~Tyler Durden
San Diego Pirates
VSB.
eyeownyu is offline   Reply With Quote
Old 11-30-2009, 10:37 PM #4
God4Hire


God4Hire's Avatar

Join Date: Mar 2006
Location: albuquerque
You putting lube on poppet? had to keep mine pretty dry to not have the probs your describing,would also switch out the reg to kinda narrow **** down.
God4Hire is offline   Reply With Quote
Old 11-30-2009, 10:43 PM #5
eyeownyu
ryan

eyeownyu's Avatar

Join Date: Mar 2007
Location: 949 socal/805 slocal
eyeownyu plays in the APPA D3 division
i lube only the front and back orings on the poppet, not the middle one, as told by some people in these forums.

i shall try a different reg right now.

EDIT: same problem with hyper 2 reg off my dm
__________________
GT / EGO11's / AXE FOR SALE ONLY
"All right then," said the Savage defiantly, "I'm claiming the right to be unhappy"
~John the Savage

"It's the decisions you make when you have no time to make them that defines who you are." ~ teh_masterer
Only after disaster can we be resurrected. ~Tyler Durden
San Diego Pirates
VSB.

Last edited by eyeownyu : 11-30-2009 at 10:47 PM.
eyeownyu is offline   Reply With Quote
Old 12-01-2009, 12:23 AM #6
jasonbillnelson
Carolina Nemesis - Jason

jasonbillnelson's Avatar

Join Date: Jan 2008
Location: AAFB, Maryland
jasonbillnelson donated to help Peyton Trent
jasonbillnelson owns a Planet Eclipse Geo
jasonbillnelson supports Team VICIOUS
jasonbillnelson has achieved Level 1 in PbNation Pursuit
up your dwell and lower your hpr.
jasonbillnelson is offline   Reply With Quote
Old 12-01-2009, 02:11 AM #7
eyeownyu
ryan

eyeownyu's Avatar

Join Date: Mar 2007
Location: 949 socal/805 slocal
eyeownyu plays in the APPA D3 division
how is dwell going to help if my gun cant even seal correctly though?
__________________
GT / EGO11's / AXE FOR SALE ONLY
"All right then," said the Savage defiantly, "I'm claiming the right to be unhappy"
~John the Savage

"It's the decisions you make when you have no time to make them that defines who you are." ~ teh_masterer
Only after disaster can we be resurrected. ~Tyler Durden
San Diego Pirates
VSB.
eyeownyu is offline   Reply With Quote
Old 12-01-2009, 02:37 AM #8
pbjunkiee
Go big or go home

pbjunkiee's Avatar

Join Date: Mar 2006
Location: Destin, Fl
so you can lower you hp more
__________________
Timmy Clan V.1??


st:p hk trollfest 8-29-11
pbjunkiee is offline   Reply With Quote
Old 12-01-2009, 07:04 AM #9
gamer565
Read the manual!!

gamer565's Avatar

Join Date: Dec 2005
Location: OK
Annual Supporting Member
gamer565 is playing at Living Legends VI
gamer565 is playing at Living Legends VII
gamer565 posts videos on PbNation
gamer565 is reppin' sidebar 4 life
gamer565 has achieved Level 6 in PbNation Pursuit
gamer565 is one of the top 100 posters on PbNation
gamer565 is Boss
Quote:
Originally Posted by eyeownyu View Post
how is dwell going to help if my gun cant even seal correctly though?
Gen4's are balance valve poppet guns, if you have your lpr set to low the hpr will over come the force of the spring and lpr psi and cause a leak.

Set your settings back to stock and go from there.

Also make sure you didnt get any lube on the middle poppet oring.
__________________
Jolly Green (╯□)╯︵ ┻━┻

gamer565 is offline   Reply With Quote
Old 12-01-2009, 09:07 AM #10
Lurker27
Engineering the Future

Lurker27's Avatar

Join Date: Jun 2003
Annual Supporting Member
Lurker27 is a Mega Moderator
Lurker27 is a Supporting Member
 has been a member for 10 years
Lurker27 posts videos on PbNation
Lurker27 has been published on the PbNation Youtube Channel
With the LPR higher/lower, is the leak from the same location, or is the lower pressure leak from the ram, while a higher pressure leak is down the barrel?


Such symptoms would be consistent with the spring I provide having weakened somewhat over time. I will provide a new one, or you can simply shim with washers to increase the spring tension, if this is the case.

If the ram/noid system is what leaks at low pressures, you may try replacing the front ram oring again after having soaked an 006 in dow55 overnight (or just let them swell a bit more). The noid can be weird at very low pressures, we had gen4s getting velocity down at the 30s LPR psi in testing but it just isn't healthy for the gun that low.

The poppet sticking issue suggests that maybe 1 point higher on dwell and a little lower on HPR would be optimal for your gun, IMO.

Let me know what you think.

Lurker
__________________
World's Best Hard-Parts Upgrades!
EigenBarrels, Mini, AXE, Intimidators, DM, Shocker
Lurker27 is offline   Reply With Quote
Old 12-01-2009, 05:23 PM #11
awsome-o 2000


awsome-o 2000's Avatar

Join Date: Aug 2005
dwell @ 6 and LPR at 45psi

I bet if you raise your dwell so that the gun's firing cycle takes a bit longer, it will run more smoothly.

6ms of dwell time is not that much with a LPR pressure that low.
the lower the pressure, the longer/higher dwell needs to be.

try setting the dwell so that when you dry fire, it just barley hits the valve. then raise dwell by 2 and chrono.

now just keep the LPR where it is and chrono your gun with the dwell at 6,7,8,maybe 9 or 10 and see which setting allowed your gun to shoot the best.

take note that a general thing with PBguns is higher LPR = consistent chrono. lower LPR = smoother shot.

with high LPR the dwell does not need to be very high

with low LPR the dwell needs to be higher to compensate for the lack of LPR pressure
__________________
crossfire 45/45 tank with a ninja reg'd and myth burstdisk F/T - http://www.pbnation.com/showthread.p...1#post72198591


My eBay feedback -http://feedback.ebay.com/ws/eBayISAPI.dll?ViewFeedback&userid=jimstett&ssPageN ame=STRK:ME:UFS
awsome-o 2000 is offline   Reply With Quote
Old 12-01-2009, 05:45 PM #12
Tabris17
Will B/S/T Souls

Tabris17's Avatar

Join Date: Jan 2006
Location: Connecticut
Annual Supporting Member
Tabris17 is a Moderator
Tabris17 is BST Legit
Tabris17 supports our troops
Tabris17 is one of the top 250 posters on PbNation
Tabris17 is Boss
Tabris17 is attending Decay of Nations VII
Do you have the delrin or the brass poppet in the marker?
If it's the delrin that could be part of your problem.
Tabris17 is offline   Reply With Quote
Old 12-01-2009, 07:02 PM #13
eyeownyu
ryan

eyeownyu's Avatar

Join Date: Mar 2007
Location: 949 socal/805 slocal
eyeownyu plays in the APPA D3 division
its the brass, lurker i will see where it leaks from, but i have a bunch of family over right now, so i will get to it later. dont wanna scare the babies
__________________
GT / EGO11's / AXE FOR SALE ONLY
"All right then," said the Savage defiantly, "I'm claiming the right to be unhappy"
~John the Savage

"It's the decisions you make when you have no time to make them that defines who you are." ~ teh_masterer
Only after disaster can we be resurrected. ~Tyler Durden
San Diego Pirates
VSB.
eyeownyu is offline   Reply With Quote
Old 12-01-2009, 07:02 PM #14
jonotwist
fistfull o'sunshine & joy

jonotwist's Avatar

Join Date: Sep 2006
Location: NE ohio
Annual Supporting Member
jonotwist is playing at Living Legends VII
jonotwist plays in the APPA D4 division
jonotwist supports Empire
he should still have the brass poppet, (previous owner)

Sometimes That gun caused me all sorts of problems when I put on the wrong sized oring, (always made that mistake) double check that you have right sizing in the gun.
__________________
Speak, if you have ought to say worth the listening
vintage old feedback High Tech Shiny Feedback

-You want money, I need stuff.- PM ME!

ego 5/6 ETEK feednecks, .45 grips, Boblong directmount ASA, spyder Unitec back.
jonotwist is offline   Reply With Quote
Old 12-01-2009, 08:49 PM #15
MstrKey


Join Date: Aug 2001
Location: SSM, Ontario, Canada
MstrKey is a founding member
 has been a member for 10 years
MstrKey is for the Gunfight
MstrKey supports our troops
Ya it sounds like the spring is too soft to overcome the balancing effect. Try to shim it like lurker said, just to see if that solves your problem. If it does. then leave it like that until you can get a newer one from Lurker.

Like he said, running a low LPR pressure will require you to have a tighter, better fitting ram oring as well. That lower pressure won't swell the ram oring to the same degree as a stock 80psi would.
__________________

Etek 3LT grey/black f/s
Valken Proton greyish/black f/s
68 4500 PE stubby, LP output f/s
68 4500 AIR tank(no reg) f/s
Creed/demon eyes f/s
MstrKey is offline   Reply With Quote
Old 12-01-2009, 09:27 PM #16
eyeownyu
ryan

eyeownyu's Avatar

Join Date: Mar 2007
Location: 949 socal/805 slocal
eyeownyu plays in the APPA D3 division
ok lurker so i tried what you said. so this is what happens

i turn the hpr to flush, and then increase the lpr from zero. the lpr gauge starts to move and gets to about maybe 20 psi while it is leaking from the ram, then if i increase anymore the lpr gauge goes to zero and starts to leak rapidly down the barrel.

PS same thing happens if i turn the hpr pressure down even more, like 2 turns out (less pressure) from flush.

Quote:
Originally Posted by MstrKey View Post
Like he said, running a low LPR pressure will require you to have a tighter, better fitting ram oring as well. That lower pressure won't swell the ram oring to the same degree as a stock 80psi would.
im using dow 55 on both ram orings so it should be pretty tight fitting. i was originally using lurker lube, but then thought i should try dow 55 to see what a tighter fit would do.

and how would i go about shimming the spring. would i put something inside the rocket cap?
__________________
GT / EGO11's / AXE FOR SALE ONLY
"All right then," said the Savage defiantly, "I'm claiming the right to be unhappy"
~John the Savage

"It's the decisions you make when you have no time to make them that defines who you are." ~ teh_masterer
Only after disaster can we be resurrected. ~Tyler Durden
San Diego Pirates
VSB.

Last edited by eyeownyu : 12-01-2009 at 09:35 PM.
eyeownyu is offline   Reply With Quote
Old 12-01-2009, 10:11 PM #17
gamer565
Read the manual!!

gamer565's Avatar

Join Date: Dec 2005
Location: OK
Annual Supporting Member
gamer565 is playing at Living Legends VI
gamer565 is playing at Living Legends VII
gamer565 posts videos on PbNation
gamer565 is reppin' sidebar 4 life
gamer565 has achieved Level 6 in PbNation Pursuit
gamer565 is one of the top 100 posters on PbNation
gamer565 is Boss
Your causing the regs to become unbalanced.

From flush turn the hpr in about 3 turns(before having air on) then set your lpr to 65psi.
__________________
Jolly Green (╯□)╯︵ ┻━┻

gamer565 is offline   Reply With Quote
Old 12-01-2009, 10:17 PM #18
Lurker27
Engineering the Future

Lurker27's Avatar

Join Date: Jun 2003
Annual Supporting Member
Lurker27 is a Mega Moderator
Lurker27 is a Supporting Member
 has been a member for 10 years
Lurker27 posts videos on PbNation
Lurker27 has been published on the PbNation Youtube Channel
What's happening at high LPR pressures is that the poppet is actually being forced open by the LPR pressure at rest. This is pretty normal on an eigenrammed gen4, but usually it happens up around 70psi. This is a big reason why the stock gen4 spring is so heavy.

The spring is 7/32" outside diameter. A couple washers of that or similar size in the rocket cap will adjust your tension up and let the LPR go slightly higher without issue. This will also fight against any poppet stick. My guess is that the spring has a bunch of cycles on it and is "loosening up" with time.

The sealing issue at low LPR pressures is due to the front ram o-ring - shaving the bottom of the bolt pin (so the bolt doesn't press down on the ram AT ALL) will help this issue. Shouldn't be needed, though.
__________________
World's Best Hard-Parts Upgrades!
EigenBarrels, Mini, AXE, Intimidators, DM, Shocker
Lurker27 is offline   Reply With Quote
Old 12-01-2009, 10:48 PM #19
eyeownyu
ryan

eyeownyu's Avatar

Join Date: Mar 2007
Location: 949 socal/805 slocal
eyeownyu plays in the APPA D3 division
this poppet stick that your talking about, is that what i described when i said my gun randomly started bursting air in the middle of a game?
__________________
GT / EGO11's / AXE FOR SALE ONLY
"All right then," said the Savage defiantly, "I'm claiming the right to be unhappy"
~John the Savage

"It's the decisions you make when you have no time to make them that defines who you are." ~ teh_masterer
Only after disaster can we be resurrected. ~Tyler Durden
San Diego Pirates
VSB.

Last edited by eyeownyu : 12-01-2009 at 11:04 PM.
eyeownyu is offline   Reply With Quote
Old 12-01-2009, 11:05 PM #20
eyeownyu
ryan

eyeownyu's Avatar

Join Date: Mar 2007
Location: 949 socal/805 slocal
eyeownyu plays in the APPA D3 division

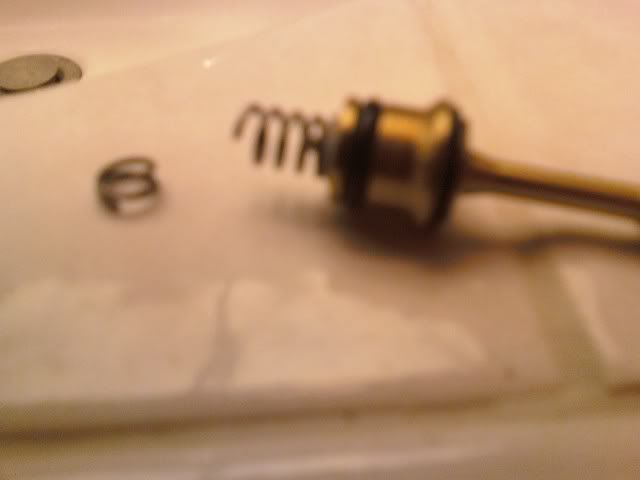

i think i have found the culprit.....

how easily problems can be solved when i just take apart the damn poppet

that little piece was just sitting around in the rocket cap
__________________
GT / EGO11's / AXE FOR SALE ONLY
"All right then," said the Savage defiantly, "I'm claiming the right to be unhappy"
~John the Savage

"It's the decisions you make when you have no time to make them that defines who you are." ~ teh_masterer
Only after disaster can we be resurrected. ~Tyler Durden
San Diego Pirates
VSB.

Last edited by eyeownyu : 12-01-2009 at 11:09 PM.
eyeownyu is offline   Reply With Quote
Old 12-01-2009, 11:45 PM #21
Lurker27
Engineering the Future

Lurker27's Avatar

Join Date: Jun 2003
Annual Supporting Member
Lurker27 is a Mega Moderator
Lurker27 is a Supporting Member
 has been a member for 10 years
Lurker27 posts videos on PbNation
Lurker27 has been published on the PbNation Youtube Channel
yea, and 5 coils is not enough to do the job properly - I wonder if it got nicked in the grinder we use to flatten the ends out...
__________________
World's Best Hard-Parts Upgrades!
EigenBarrels, Mini, AXE, Intimidators, DM, Shocker
Lurker27 is offline   Reply With Quote
Reply


Thread Tools

Posting Rules
Forum Jump
