Old 11-23-2009, 05:07 PM #1
ElPanda
CAD/CAM

ElPanda's Avatar

Join Date: May 2006
Location: Parts Unknown
NT pictoral maintenence guide

REMOVE INTERNALS WITH 1/4 ALLEN KEY

LUBE WHERE MENTIONED, LIGHTLY LUBE EXTERIOR ORINGS TO AID YOU WHEN YOU PUT THE GUTS BACK IN THE MARKER (DO NOT LUBE THE BACK CAP ORING)

LUBE THE INTERIOR CAN ORING LIGHTLY

SEPARATE BACK STEM FROM FRONT SECTION TO EXPOSE THE PISTON CHAMBER

REMOVE PISTON FROM CHAMBER, LUBE ALL ORINGS ON IT

THE FRONT BUMPER ON THE PISTON IS THE ONE THAT SHOULD BE CUT

REMOVE ALL 3 BACK CAP SCREWS TO REMOVE THE BACK CAP SHELL

THIS GIVES YOU ACCESS TO YOUR PUSH BUTTON

THE SCREW ON THE BOTTOM RIGHT OF THE FRAME HOLDS RAIL MOUNTED ASA'S

UNSCREW THE REG AND REMOVE THE FRAME SCREWS TO SEPARATE THE FRAME FROM BODY

BE SURE TO CAREFULLY UNPLUG THE TWO MOLEX CONNECTORS BEFORE YOU FULLY SEPARATE THE FRAME AND BODY, THE SMALLER CONNECTOR IS THE SOLENOID POWER, THE LARGER ONE IS FOR THE EYES.

SOLENOID, WIRES, WIRE TABS AND SERIAL NUMBER



FRONT CONTACT PAD IS HELD TO THE FRAME BY TWO SCREWS ON TOP

SNATCH GRIP IS HELD ON BY ONE SMALL SCREW

CONSULT THE MANUAL IF YOU HAVE ANY MORE QUESTIONS, THIS IS FOR GENERAL PURPOSE MAINTENENCE
__________________

ABET Accredited Level II Machinist - CNC programmer - Mech. Engineering Technologist
Polarst*r Engineering and Machine


Last edited by ElPanda : 11-23-2009 at 05:09 PM.
ElPanda is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 11-23-2009, 05:34 PM #2
AndrewFalk
Zeus Dick

AndrewFalk's Avatar

Join Date: Mar 2007
Location: The North East
AndrewFalk plays in the PSP
AndrewFalk plays in the APPA D4 division
Good job.
__________________
Mechanical Engineer - Machinist - Current Civil Engineering student
AndrewFalk is offline   Reply With Quote
Old 11-23-2009, 06:03 PM #3
zyzek
taquito puncher

zyzek's Avatar

Join Date: Jan 2005
Location: Citizen of the World
zyzek is a Professional paintball player
zyzek works for a Paintball manufacturer
zyzek donated to help Peyton Trent
Perfect.

Thanks for taking the time to do this.
zyzek is offline   Reply With Quote
Old 11-23-2009, 08:51 PM #4
ElPanda
CAD/CAM

ElPanda's Avatar

Join Date: May 2006
Location: Parts Unknown
Tuning instructions....

THE NT IS ONE OF VERY FEW MARKERS CURRENTLY TO COME WITH ITS OWN VARIABLE USER TUNING OPTIONS OUT OF THE BOX

IT COMES WITH TWO BOLT FLOW INSERTS THAT CAN BE SWAPPED TO CATER TO USER PREFERENCES. THE RED FLOW INSERT IS IN THE BOLT STOCK, I KEEP THE BLUE IN MINE.

TO REMOVE FLOW INSERTS REMOVE THE BOLT FROM THE FIRING ASSEMBLY AND USE A SLENDER TOOL (PENCIL OR PEN WORKS GREAT) TO PUSH THE FLOW INSERT OUT THE BACK OF THE BOLT.



BLUE = HIGHER FLOW
RED= LOWER FLOW
ENSURE THAT THE LARGER END OF THE INSERT IS FACING THE REAR OF THE BOLT UPON INSTALLATION

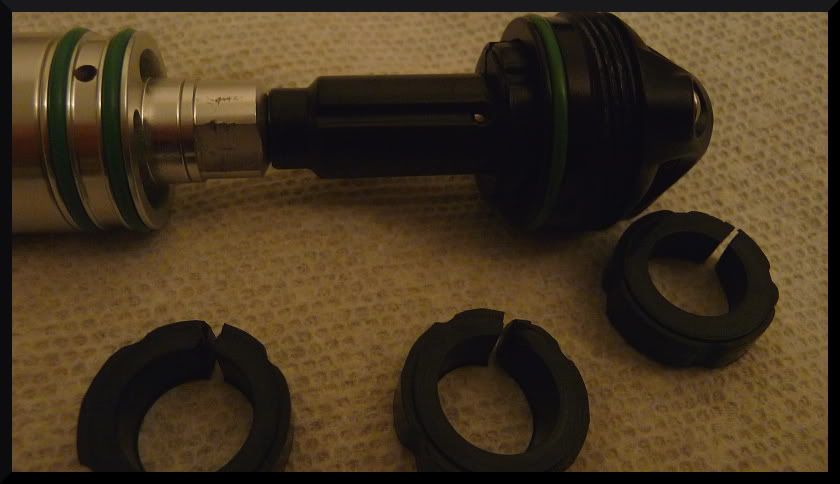

IT ALSO COMES WITH RUBBER DUMP CHAMBER INSERTS THAT DISPLACE AIR VOLUME IN THE MARKERS DUMP CHAMBER, THIS RESULTS IN A HIGHER PRESSURE NECESSARY TO FIRE THE BALL. THIS MEANS THERE IS MORE ENERGY PER UNIT VOLUME IN THE DUMP CHAMBER, THE RESULT IS A GENERAL INCREASE IN EFFICIENCY WITH THE MORE SPACERS YOU USE.

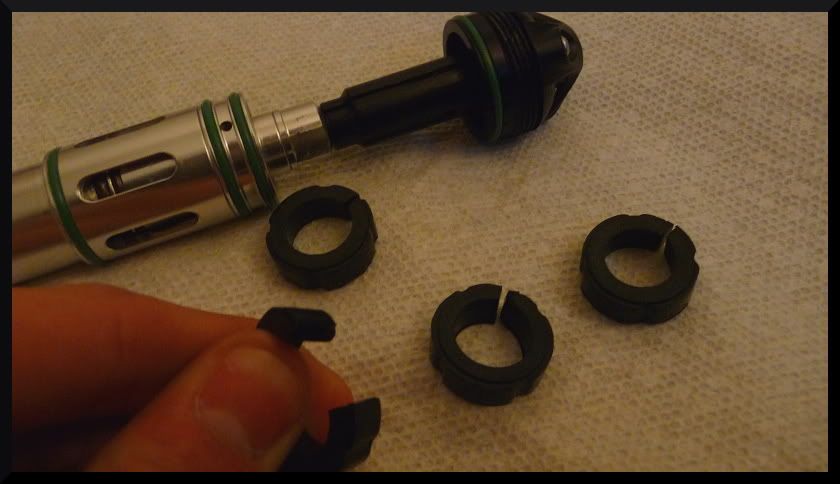

THE SPACERS ARE EXTREMELY FLEXIBLE AND EASY TO INSTAL, THEY ARE ALL SPLIT DOWN THE SIDE AND SIMPLY WRAP AROUND THE STEM.

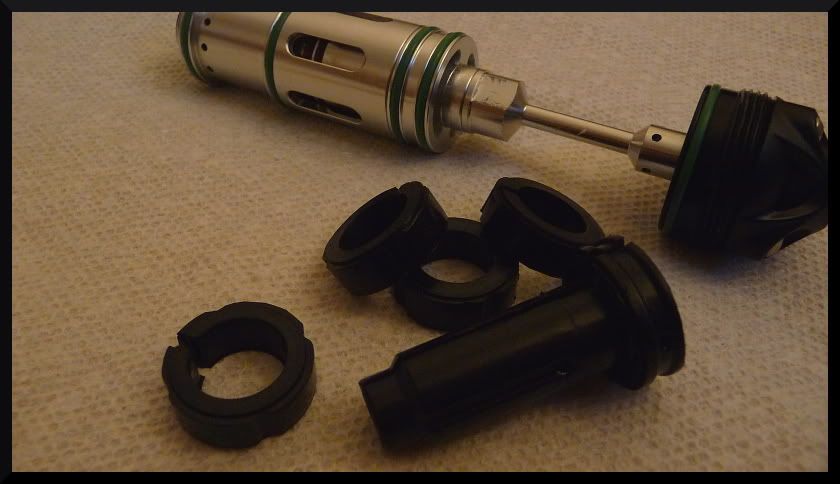

INSTALL THE LARGER BASE INSERT FIRST AND THE SMALLER INSERTS AROUND IT.

AGAIN CONSULT THE MANUAL FOR FURTHER INSTRUCTIONS OR IF YOU STILL HAVE QUESTIONS
__________________

ABET Accredited Level II Machinist - CNC programmer - Mech. Engineering Technologist
Polarst*r Engineering and Machine

ElPanda is offline   Reply With Quote
Old 11-23-2009, 10:13 PM #5
PMR4LIFE
idk

PMR4LIFE's Avatar

Join Date: Feb 2008
Location: Orlando, Fl
PMR4LIFE helped look for balloons
PMR4LIFE is reppin' sidebar 4 life
PMR4LIFE has perfected Level 1 in PbNation Pursuit
PMR4LIFE has achieved Level 3 in PbNation Pursuit
PMR4LIFE is one of the top 1000 posters on PbNation
very nice
__________________
weso98: "What do we do now?"
Hobbes The Tiger: "Touch ourselves? Experiment with our sexuality? Duct tape DMC to the ceiling? Make PMR burn his Stamkos spank bank? Make demonic look at Kovy pr0nz? Make Burrows live in a house that's under 200k?"
New York Yankees Pittsburgh Steelers Tampa Bay Lightning UCF Knights
:daveface:
PMR4LIFE is offline   Reply With Quote
Old 11-24-2009, 04:12 AM #6
Witzbold


Witzbold's Avatar

Join Date: May 2008
Nice work
Witzbold is offline   Reply With Quote
Old 11-26-2009, 11:02 AM #7
john ho


john ho's Avatar

Join Date: Feb 2009
Location: New York
which flow insert shoots smoother?
john ho is offline   Reply With Quote
Old 11-26-2009, 12:33 PM #8
guliverpaintbala


guliverpaintbala's Avatar

Join Date: Nov 2008
Location: SOFLA
guliverpaintbala plays in the PSP
guliverpaintbala is playing at Living Legends III
guliverpaintbala supports Team VICIOUS
guliverpaintbala plays in the APPA D5 division
Blue Imo
guliverpaintbala is offline   Reply With Quote
Old 11-27-2009, 12:14 AM #9
DM-Guy


Join Date: May 2009
I agree that the blue insert is much smoother then the orange one. But one I have not notice is the efficiency.
DM-Guy is offline   Reply With Quote
Old 12-07-2009, 12:25 PM #10
jeremyr
SandBox Killer 88

jeremyr's Avatar

Join Date: Oct 2006
jeremyr plays in the PSP
jeremyr donated to help Peyton Trent
jeremyr supports our troops
jeremyr supports DLX Technology
Good Job!

Sticky anyone?!
__________________
SBK #88
AXIS #88
BLACKLIST #88
AFFLICTION #88
INFERNO #88
jeremyr is offline   Reply With Quote
Old 12-07-2009, 03:51 PM #11
ElPanda
CAD/CAM

ElPanda's Avatar

Join Date: May 2006
Location: Parts Unknown
its already been stickied, haha, but thanks for the compliments everyone, hopefully this will alleviate some future unnecessary threads
__________________

ABET Accredited Level II Machinist - CNC programmer - Mech. Engineering Technologist
Polarst*r Engineering and Machine

ElPanda is offline   Reply With Quote
Old 12-14-2009, 06:00 PM #12
DM-Guy


Join Date: May 2009
Good job on the pictoral section!
DM-Guy is offline   Reply With Quote
Old 12-23-2009, 10:53 AM #13
Danny138Von
Danny N. Bergman

Danny138Von's Avatar

Join Date: Apr 2009
Location: VSBville, CA
Danny138Von plays in the PSP
Danny138Von plays in the APPA D2 division
why dont you lube the backcap o-ring?
__________________
#VSB
Gear Sale!
FB.
IG: Danny138Von
LA Collision
Danny138Von is offline   Reply With Quote
Old 01-10-2010, 07:48 PM #14
ElPanda
CAD/CAM

ElPanda's Avatar

Join Date: May 2006
Location: Parts Unknown
Quote:
Originally Posted by Danny138Von View Post
why dont you lube the backcap o-ring?
there have be reported instances of lube from the back cap oring migrating to the back cap threads and causing them to lose there "grip" with the marker body, after some shooting the internals begin to unscrew from the marker. It is a static oring so it should be just fine without excess lube.
__________________

ABET Accredited Level II Machinist - CNC programmer - Mech. Engineering Technologist
Polarst*r Engineering and Machine

ElPanda is offline   Reply With Quote
Old 01-24-2010, 06:19 PM #15
mrg33


mrg33's Avatar

Join Date: Jul 2009
Lol Great job. This this is Literally idiot proof. Personally the second i got my NT i spent 3 hours in the owners manual fine tuning things ($1550 marker, yea might be a good idea). But none the less great job.
__________________
Georgia Adrenaline

Dye Nt Smokin.....
mrg33 is offline   Reply With Quote
Old 01-24-2010, 08:27 PM #16
D-Town83
Clubbin baby seals

D-Town83's Avatar

Join Date: Oct 2009
Location: San Antonio
Very Nice!
D-Town83 is offline   Reply With Quote
Old 02-25-2010, 11:46 PM #17
PbN_AutoTrader
Your PERSONAL Proshop

PbN_AutoTrader's Avatar

Join Date: Jul 2006
Location: New Orleans, LA
Annual Supporting Member
PbN_AutoTrader is BST Legit
PbN_AutoTrader donated to help Peyton Trent
PbN_AutoTrader supports Bob Gurnsey
PbN_AutoTrader supports our troops
PbN_AutoTrader is one of the top 500 posters on PbNation
PbN_AutoTrader is Legendary
PbN_AutoTrader supports DLX Technology
what about complete regulator break down
__________________
_★_The Other Athlete_★_ home of_★_Paintball Trader Worldwide_★_
_Bob Long VIS__Luxe 2.0__VANQUISH__DEFENDER__DAM__DM14_&_MORE
*click here*For Sale or Trade!!*click here*
Contact ME (Michael) Direct ANYtime (24/7)
Call/Text 504-669-2298
michael@theotherathlete.com
www.paintballtraderworldwide.com www.theotherathlete.com
PbN_AutoTrader is offline   Reply With Quote
Old 02-28-2010, 06:33 PM #18
ElPanda
CAD/CAM

ElPanda's Avatar

Join Date: May 2006
Location: Parts Unknown
I would make some pics of me disassembling my hyper 3 on my Olang IM9 but its stuck together, wont come apart even with a strap wrench.

its pretty simple you can look it up in the manual
__________________

ABET Accredited Level II Machinist - CNC programmer - Mech. Engineering Technologist
Polarst*r Engineering and Machine

ElPanda is offline   Reply With Quote
Old 03-02-2010, 10:30 PM #19
24gt


Join Date: Feb 2009
I am going to visiting this thread as i m a idiot and you pretty much made it idiot proof thanks
24gt is offline   Reply With Quote
Old 05-07-2010, 01:40 PM #20
SplatPlanet


Join Date: Mar 2001
Location: Dallas TX
SplatPlanet is a founding member
 has been a member for 10 years
SplatPlanet owns a Planet Eclipse SLS
SplatPlanet owns a Planet Eclipse CSL
thanks for the help.. I just got my white gold in the mail used and it was nasty.. had to take it apart and reclean it. Guy had lube EVERYWHERE, thanks for the help.
SplatPlanet is offline   Reply With Quote
Old 05-20-2010, 05:17 AM #21
coe


Join Date: Jun 2008
Location: Finland / EU
How to open a stuck spool:


Last edited by coe : 06-03-2010 at 07:59 PM.
