Mech'd Ion How to

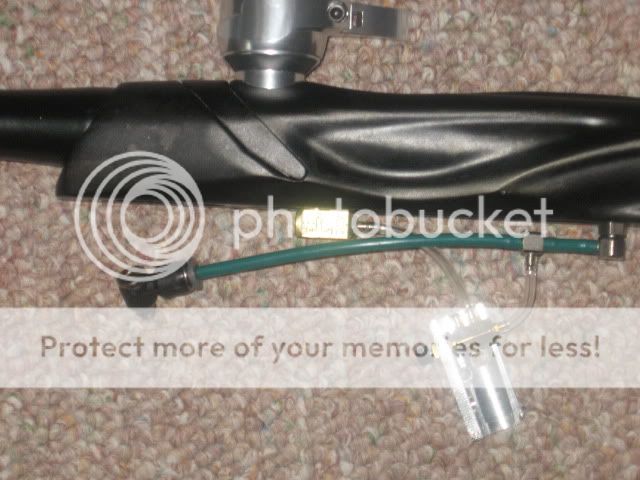

Since I was asked to post a "how to", here it is.


Parts needed
Clippard SMAV3 three way valve, clippard QEV, 2 banjo fittings and a T33-2 T fitting.

Mount the smav 3 on an angle piece of aluminum.
Place the T fitting close to the rear banjo fitting but far enough away that the frame will not get in the way of the hose going to the SMAV3. The hose from the T fitting goes to the In on the back of the SMAV3, hook up the hose from the QEV to the N.O. barb on the SMAV3.



Locate the SMAV3 Acuater pin to the back of the trigger, drill and tap the frame for a set screw to hold the angle into place and hook up your connections. Adjust the trigger to have contact with the acuator pin (but not depressing it).



www.airsoldier.com
www.clippard.com
you will be able to find the parts you need at clippard.com, Airsoldier will be cheaper but they are sometimes out of stock and do not carry the T33-2.
