How To: Identify What Empire Mini Generation Parts You Have

To start, I know this won't eliminate the questions, that's not what I'm trying to do. I'm creating a source to which people can link or reference when a question arises.

I've owned minis since they day they were released, over 15 of them total (I am now down to 5, two of them still shrink wrapped and one has been in anno for over 4 months. I have seen and owned all versions of all the parts every manufactured for the mini, including some that have never been released. I am not 100% sure on the dates/batches in which these revisions were made/released.
Special thanks to the folks at KEE for all the help over the last couple years.


Some crap you might have laying around if you're a mini owner. sometimes I like to lay it all out and roll in it.

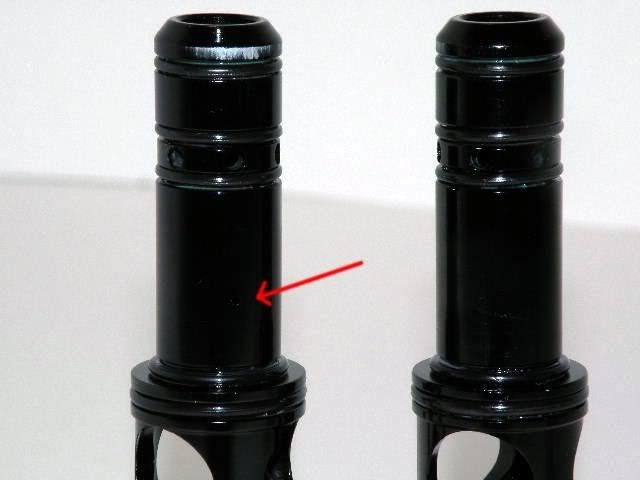

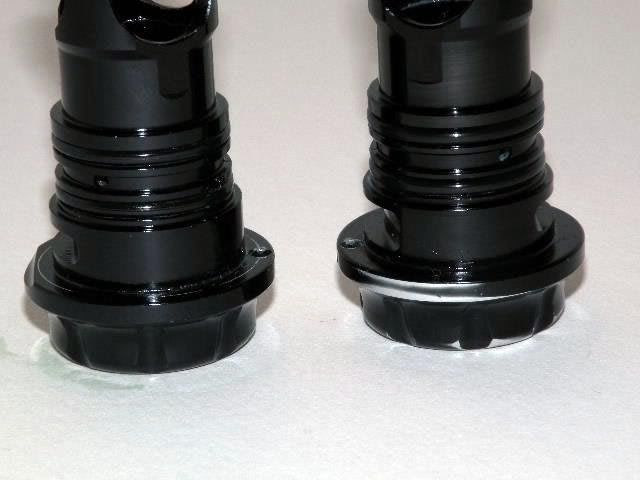

Bolt Guide - Part#27 - Kee added a bleed off hole to vent air down the barrel in the case that a ball or finger stopped the bolt during it's cycle. (red arrow)


Bolt Guide - they also took off one of the retainer screw grooves.

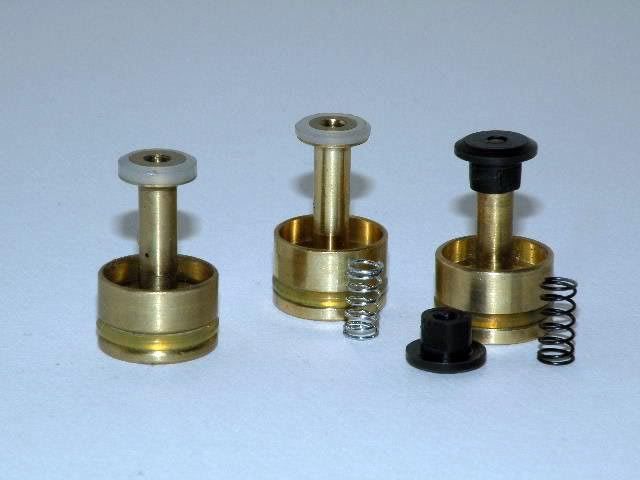

Poppet - Part#33 - Left to right; V1, V3, V4. This does not include the defective poppets, they were machined wrong and don't count as a version. The fix for the defects were essentially a Version 1.5. Version 3 added a spring, to self-reset the poppet (part# 79). Version 4 added a two-piece design to allow for the replacement of the face seal (part# 80) This part is pictured above in black delrin, however the production version is white nylon.

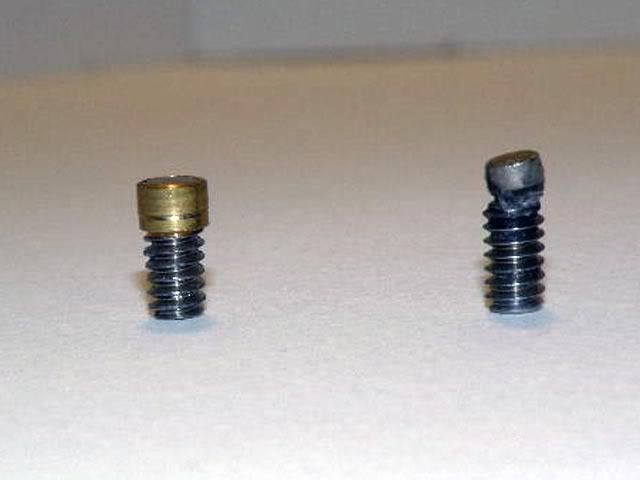

Trigger activation magnet screw - Part#70 - KEE added a threaded magnet to stop the darned thing from falling off every time you opened the grip frame.

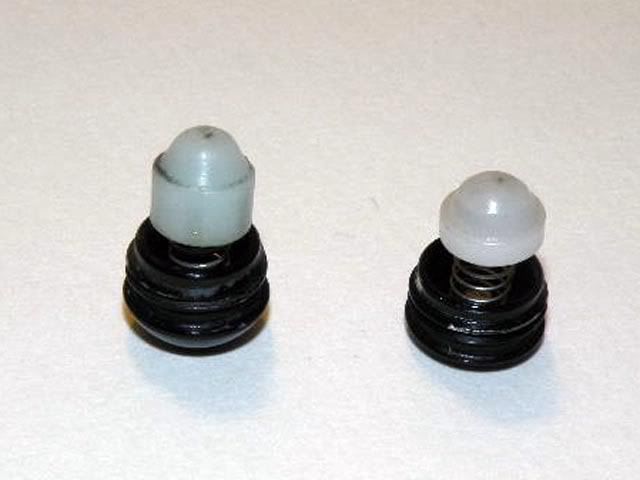

Detents Part#36- Made a longer detent and cover to prevent them from turning sideways and jamming. These V2 detents (on left) are the last ones you'll ever need.

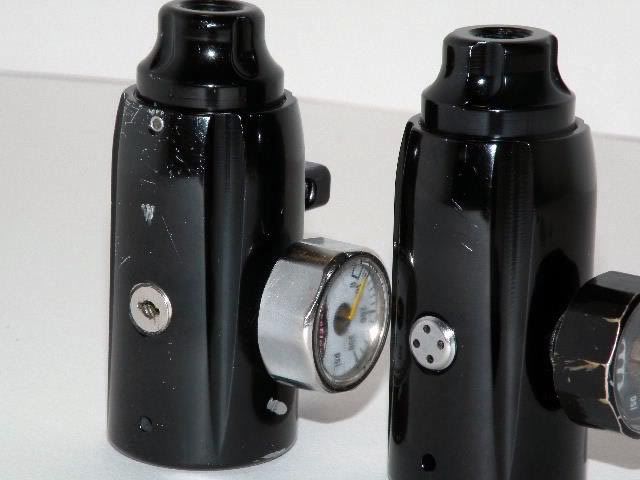

The Regulator Part#53 - Version 2 added a flush mount bleed valve, as well as changed the position of the front cap retainer set screw to the top to keep newbs from causing serious damage to their minis. It's also worth while to note that early Invert Minis came with a 600psi micro gauge, while later minis came with a 300psi micro gauge (part# 62).

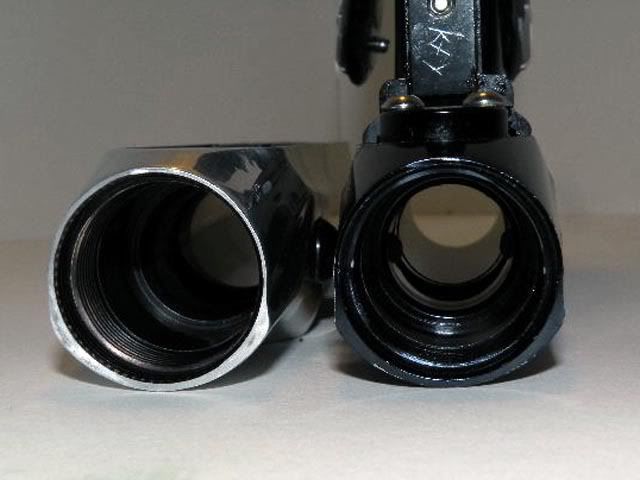

Main Body Part#1 - You probably can't see from this photo, but the inside diameter of the landing BEHIND the threads was enlarged on later bodies to allow for the use of all autococker threaded barrels. (the old bodies don't fit some large diameter barrels like the old freaks and some J&J barrels)

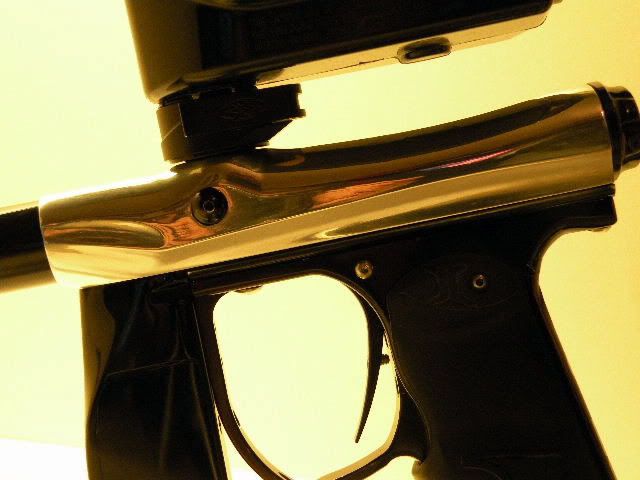

Polished - a close up of my fully polished mini body

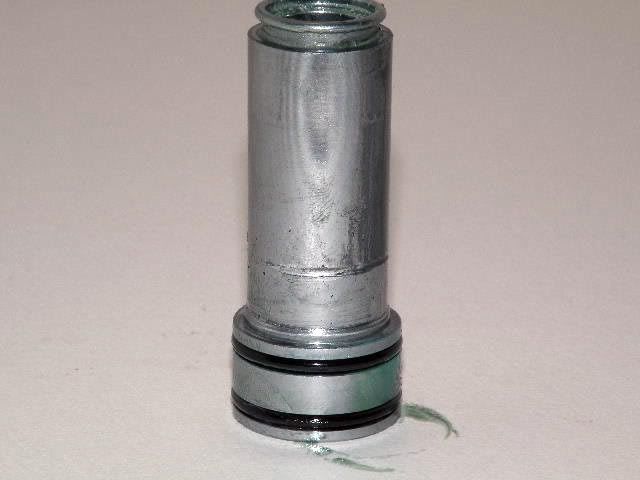

BOLT - Oh and here is my stock bolt, used on mini number 001700 since I got her two years ago, every weekend, case after case, tournament after tournament. Yea she's ugly but.... hey... stock performs the best!
__________________

Last edited by FatalKitty : 03-14-2009 at 01:02 AM.
FatalKitty is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 01-10-2009, 11:42 PM #2
JokersWild53
S-Marts Top of the Line

JokersWild53's Avatar

Join Date: Feb 2002
Location: Grg
 has been a member for 10 years
JokersWild53 plays in the APPA D4 division
you never fail to amaze me fatal.....

and yes, your last statement is solid.....

uhm i think this thread is golden

i give you

I think you have just been nominated for a sticky.......oh wait

STICKY THIS

now you have

Last edited by JokersWild53 : 01-10-2009 at 11:48 PM.
JokersWild53 is offline   Reply With Quote
Old 01-11-2009, 12:09 AM #3
mulishousM
The Fixer

mulishousM's Avatar

Join Date: Oct 2008
Location: South of Houston
mulishousM plays in the PSP
mulishousM supports Team VICIOUS
mulishousM plays in the APPA D5 division
Well done Sticky for sure
__________________
I Kill for RiverRageRiverSplatPaintball
mulishousM is offline   Reply With Quote
Old 01-11-2009, 12:29 AM #4
Mustang78
Double Rookie

Mustang78's Avatar

Join Date: Oct 2008
Location: Olympia, WA-360
Sticky! Also don't forget the early 600PSI guages Vs. the new 300PSI ones.. And thanks for the reminder, i need to buy a threaded trigger magnet like pictured, i had to shoe goo mine on the screw, lol
EDIT: that polished body is teh secks! I gotta do mine now
__________________
Angel IR3 W/Upgrades F/S/T!
http://www.pbnation.com/showthread.p...0#post54787870

Looking 4 cheap 3000PSI tank regulator for PE tank
Mustang78 is offline   Reply With Quote
Old 01-11-2009, 01:08 AM #5
Bolvangar
Just Say Nobama

Bolvangar's Avatar

Join Date: Dec 2008
Location: NORCAL
There's a similar thread
http://www.pbnation.com/showthread.php?t=2772400
Maybe we could combine them somehow?

I learned some reading yours though...



Where can we order the new versions and know that we're for sure getting the newest version?
.
.
__________________
"The strongest reason for the people to retain their right to keep and bear arms is, as a last resort, to protect themselves against tyranny in government."
Thomas Jefferson

Last edited by Bolvangar : 01-11-2009 at 01:12 AM.
Bolvangar is offline   Reply With Quote
Old 01-11-2009, 09:13 AM #6
FatalKitty
I has the awesome

FatalKitty's Avatar

Join Date: Jan 2007
Location: Sharpie
FatalKitty is a Paintball photographer
FatalKitty supports Cereal Killerz 2
FatalKitty donated to help Peyton Trent
FatalKitty helped look for balloons
Quote:
Originally Posted by Mustang78 View Post
Sticky! Also don't forget the early 600PSI guages Vs. the new 300PSI ones.. And thanks for the reminder, i need to buy a threaded trigger magnet like pictured, i had to shoe goo mine on the screw, lol
EDIT: that polished body is teh secks! I gotta do mine now
ah yes I did forget that, and I have both new picture coming soon!
also the solenoid - at first I didn't bother taking pictures, because KEE/Invert doesn't make these noids they are contracted from a separate company, but there IS a difference so I'll edit with that info also


Quote:
Originally Posted by Bolvangar View Post
Where can we order the new versions and know that we're for sure getting the newest version?
you can order parts at Boss Paintball
but the only sure fire way - BUY LOCAL
__________________

Last edited by FatalKitty : 01-11-2009 at 09:19 AM.
FatalKitty is offline   Reply With Quote
Old 01-11-2009, 01:30 PM #7
4nson
Do what now?

4nson's Avatar

Join Date: May 2006
Location: Water-Winter Wonderland
4nson supports our troops
Great thread, good pics, nice work. I know the other one was already in the Mega-Sticky but this one is a little more informative so I wanted to make it more visible.
__________________
4nson is offline   Reply With Quote
Old 01-11-2009, 01:57 PM #8
Dirty_Deuce
Grunt

Join Date: Jun 2008
Location: Upstate NY
Awesome stuff, good thread man.
Dirty_Deuce is offline   Reply With Quote
Old 01-11-2009, 03:55 PM #9
RobertSims
Self-Taught

RobertSims's Avatar

Join Date: Sep 2007
Location: 954 / 239
I noticed today that there are two different versions of the grip panels. The older ones are softer and are made up of only rubber. The newer ones are a bit thicker and they have a sheet of metal embedded inside. (I know it sounds weird, but that was the best way that I could think of to describe it.)

Also, since this thread got stickied, you might want to link to the other one. (or at least add the information about the warning labels)
RobertSims is offline   Reply With Quote
Old 01-11-2009, 05:51 PM #10
Gruznuz
Just Cause

Gruznuz's Avatar

Join Date: Feb 2008
Location: Ramstein,AFB
Gruznuz owns a Planet Eclipse Ego
Great job kitty
__________________

[Planet Eclipse 07 Ego]
Gruznuz is offline   Reply With Quote
Old 01-11-2009, 08:13 PM #11
FatalKitty
I has the awesome

FatalKitty's Avatar

Join Date: Jan 2007
Location: Sharpie
FatalKitty is a Paintball photographer
FatalKitty supports Cereal Killerz 2
FatalKitty donated to help Peyton Trent
FatalKitty helped look for balloons
Quote:
Originally Posted by RobertSims View Post
I noticed today that there are two different versions of the grip panels. The older ones are softer and are made up of only rubber. The newer ones are a bit thicker and they have a sheet of metal embedded inside. (I know it sounds weird, but that was the best way that I could think of to describe it.)

Also, since this thread got stickied, you might want to link to the other one. (or at least add the information about the warning labels)
can't tell that from pictures, all my minis have had the metal bar
__________________
FatalKitty is offline   Reply With Quote
Old 01-11-2009, 08:27 PM #12
watspaintball?
werd?

watspaintball?'s Avatar

Join Date: Feb 2007
Location: NY
watspaintball? plays in the PSP
watspaintball? supports Team VICIOUS
watspaintball? is an NCPA player
watspaintball? plays in the APPA beginner division
what are the advantages of the gen 3 poppet over the gen 2 poppet?
__________________
MARQ 6 F/S/T BRING ME AXES!
http://www.pbnation.com/showthread.p...4#post78053524

WTB Gen 1 Marq Pressure Tester
http://www.pbnation.com/showthread.php?t=3934712
watspaintball? is offline   Reply With Quote
Old 01-11-2009, 08:47 PM #13
FatalKitty
I has the awesome

FatalKitty's Avatar

Join Date: Jan 2007
Location: Sharpie
FatalKitty is a Paintball photographer
FatalKitty supports Cereal Killerz 2
FatalKitty donated to help Peyton Trent
FatalKitty helped look for balloons
you can replace the face seal, which is available in packs for less than the price of replacing the entire poppet (because the face seal is a seal just like an o-ring and wears out over time)
__________________
FatalKitty is offline   Reply With Quote
Old 01-11-2009, 09:04 PM #14
FBHS RAINMAN
Σπ Sigma Pi

FBHS RAINMAN's Avatar

Join Date: Mar 2008
Location: Marietta, GA
Too bad that it will never be read since it was made a sticky.
FBHS RAINMAN is offline   Reply With Quote
Old 01-11-2009, 09:09 PM #15
HeroForADay
#1 Canuck

HeroForADay's Avatar

Join Date: Oct 2008
Location: 403
HeroForADay owns a Planet Eclipse Geo
HeroForADay owns a Planet Eclipse Lv1
HeroForADay supports Team VICIOUS
HeroForADay supports DLX Technology
HeroForADay supports Empire
Version 2 introduced the spring into the poppit? Because i have a face that resembles the second version but no spring!
__________________
Custom Octane SFT // Found my Luxe!

HeroForADay is offline   Reply With Quote
Old 01-11-2009, 11:00 PM #16
RobertSims
Self-Taught

RobertSims's Avatar

Join Date: Sep 2007
Location: 954 / 239
Quote:
Originally Posted by FatalKitty View Post
can't tell that from pictures, all my minis have had the metal bar
Very true. I was shocked when I felt the grips without it. They were squishy and when you squeezed them you could feel the grip frame underneath.
RobertSims is offline   Reply With Quote
Old 01-12-2009, 12:18 PM #17
HarryTBags


Join Date: Sep 2004
HarryTBags works for a Paintball manufacturer
FYI:

the poppet in the picture with the black head is not a production v4 poppet. the production head is off-white nylon, not black.
__________________
BallersIncPB.com -- #1 Best Anodizing and Laser Engraving

"Originally posted by sdosiris29: awwww, how sweet. you can be my sig buddy in a non-homo kind of way."
HarryTBags is offline   Reply With Quote
Old 01-12-2009, 12:22 PM #18
FatalKitty
I has the awesome

FatalKitty's Avatar

Join Date: Jan 2007
Location: Sharpie
FatalKitty is a Paintball photographer
FatalKitty supports Cereal Killerz 2
FatalKitty donated to help Peyton Trent
FatalKitty helped look for balloons
thanks for the info Harry
__________________
FatalKitty is offline   Reply With Quote
Old 01-13-2009, 10:43 AM #19
L3MUR


L3MUR's Avatar

Join Date: Sep 2008
Location: northern michigan
L3MUR is playing at Living Legends VII
Nice thread. I definitly learned some new stuff. 15 minis might be a bit obsessive. lol
__________________
"Ooooh, piece of candy"
L3MUR is offline   Reply With Quote
Old 01-19-2009, 12:46 PM #20
mini_ftw95
i come from the water

mini_ftw95's Avatar

Join Date: Dec 2007
Location: Ballwin,MO
yea hi have the original mini body and is there anyway i can get a newer one without buyin a whole new mini cuz the new barrel i bought for it doesnt fit
__________________
DunkinDonuts Creating backplayers on a daily basis

PM6 For sale or trade for PUMP
mini_ftw95 is offline   Reply With Quote
Old 01-19-2009, 06:18 PM #21
SteveJCarnegie
InVeRt

SteveJCarnegie's Avatar

Join Date: Jul 2008
SteveJCarnegie donated to help Peyton Trent
Quote:
Originally Posted by mini_ftw95 View Post
yea hi have the original mini body and is there anyway i can get a newer one without buyin a whole new mini cuz the new barrel i bought for it doesnt fit
that sounds like the barrel is the problem does you stock barrel fit.
a mini has cocker threads
