How To Mod A Crown On Your Rotor With No Permanent Effects(no Glue)

figured out a slightly ugly way to attach a crown to your rotor without permanently modding either piece.

*note* margin rape is imminent. will fix later.

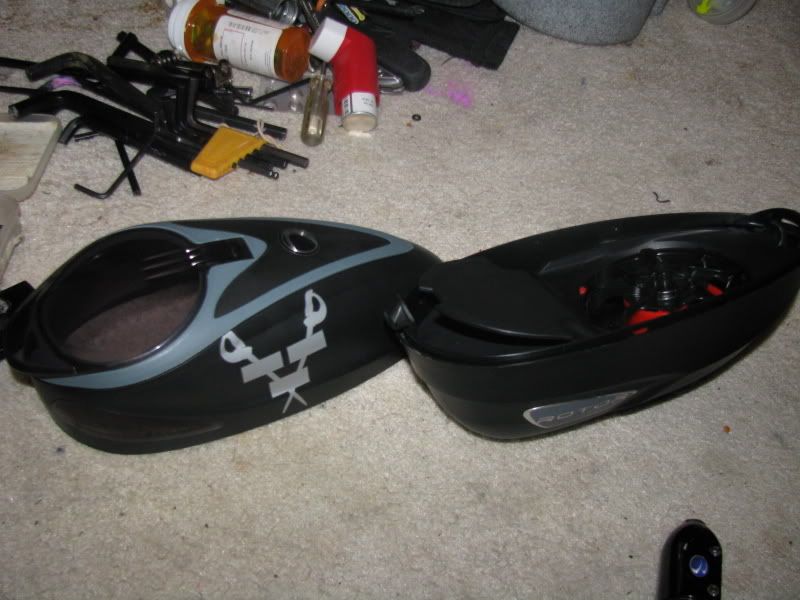

step 1
remove top half of rotor by pulling up rear tab, then pushing in rear button whilst pulling on top half.

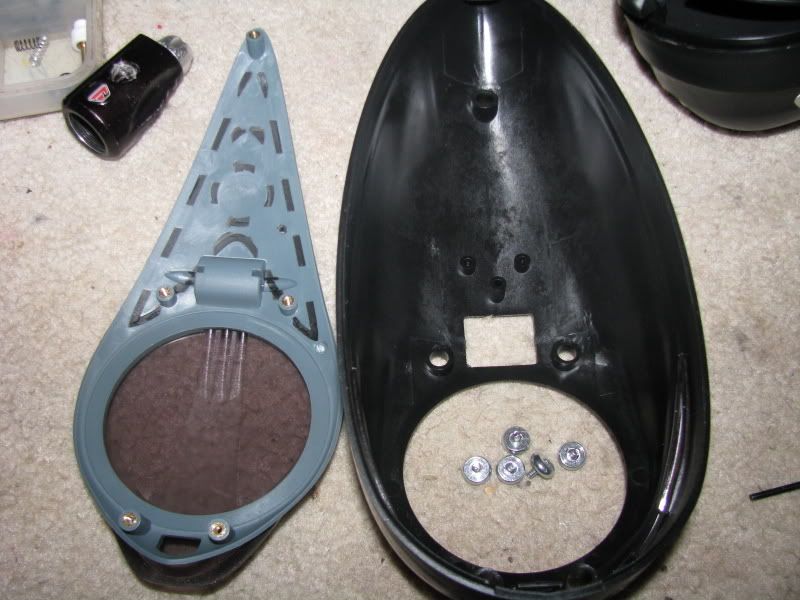

step 2
remove colored part by removing 5 screws

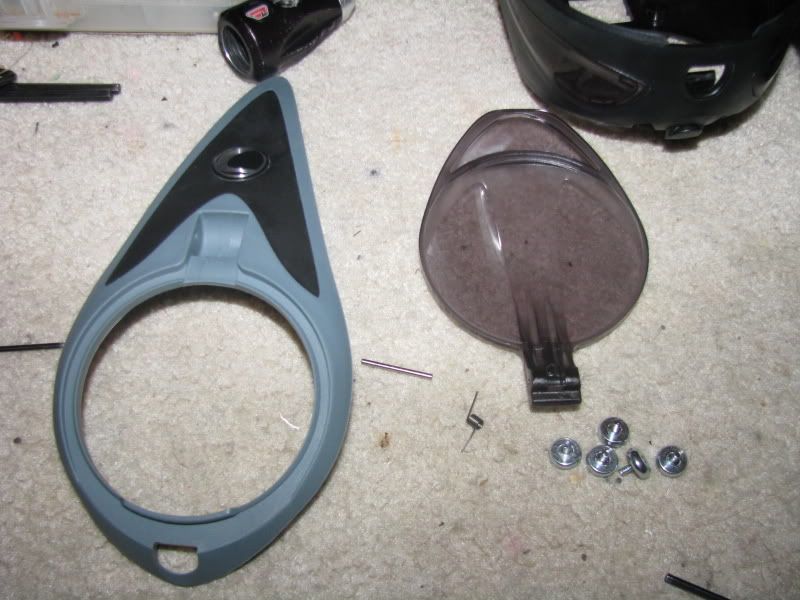

step 3
remove lid by pushing pin through partially with allen key, then opening lid, pulling one corner out, and pulling it off of the pin.

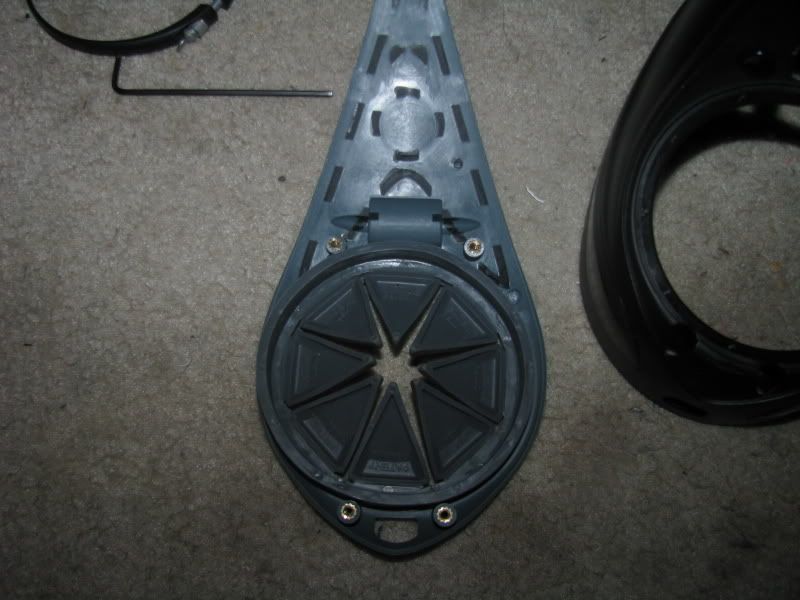

step 4
position crown in colored section as such, aligned as such

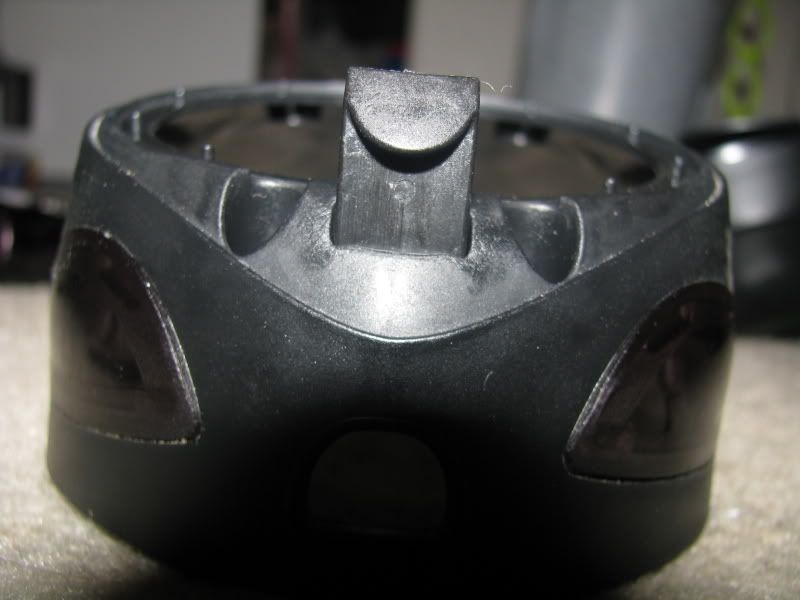

step 5
pull tab all the way up in back of bottom half

step 6

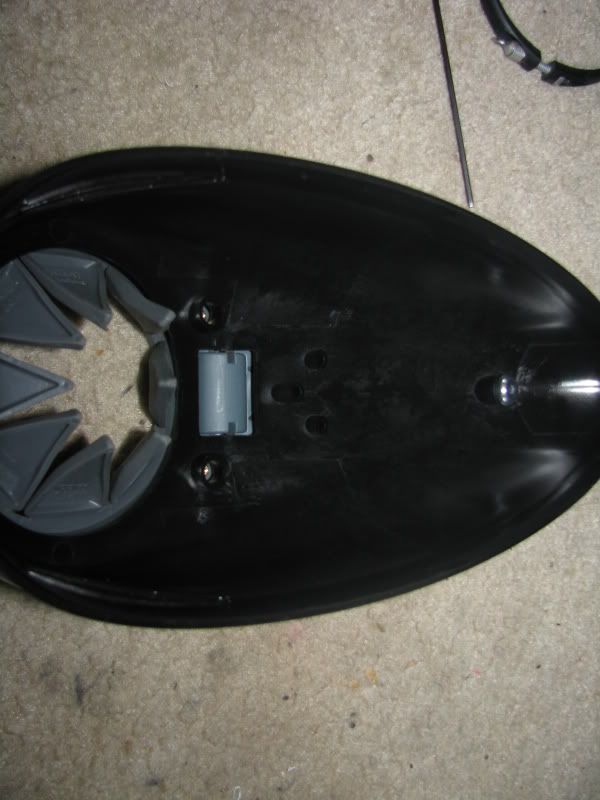

latch the tab holder onto the tab of the bottom half, and position crown such that it looks like the finished pic at teh end

step 7
force front of colored part down, and screw in front most screw.

step 8
almost done. this is what your crown should look like. centered as possible, with minimal of the non tab section showing all around


step 9

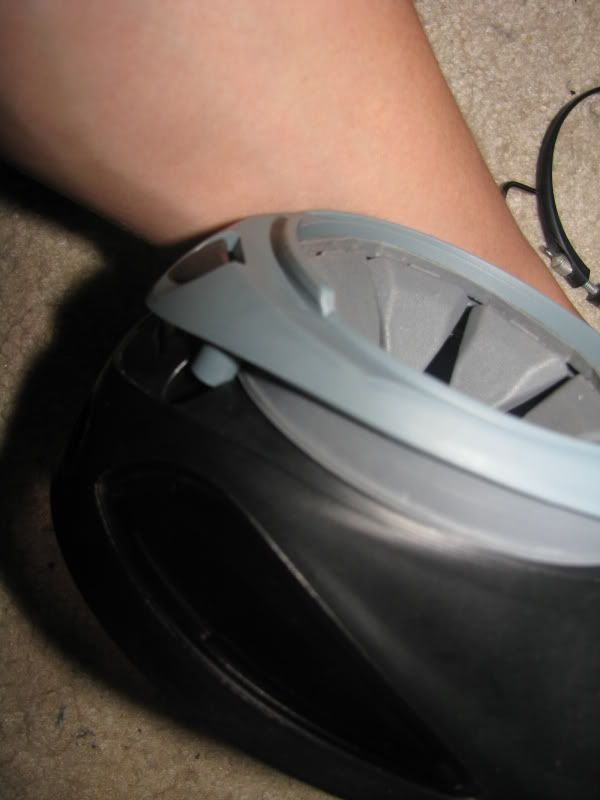

put a pod in backwards to reform the crown to the new shape for 20-30 mins at least. be careful when pushing in and try wetting the pod or wiggling it in.


step 10
DONE.
this is what your crown should look like after the pod bit


and this is it after a case dropped through it.


NOTE* this mod does not allow you to use the locking tab to attach the top half of your rotor securely to the bottom half. it will still stay on perfectly fine as long as you arent pushing the release button between games or anything.
i am not responsible for any damage you may do to any parts involved in this mod.


have fun.
__________________
Hellcats Paintball
2nd PSP Phx D3X

My Mini Tuning Guide
Buy My JRNY
Need a computer built? Whether it be for home, work, play, or gaming, contact me to get it cheaper, faster, pre-configured and built to last.

Last edited by MaxOC : 11-17-2008 at 05:51 PM.
MaxOC is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 11-17-2008, 06:08 PM #2
Max S (Banned)

Join Date: Feb 2008
Location: Arizona
you're going to be an engineer.
Max S is offline   Reply With Quote
Old 11-17-2008, 06:27 PM #3
MaxOC
how do I 555 deal?

MaxOC's Avatar

Join Date: May 2007
Location: tucson, hot as hell, AZ
MaxOC plays in the USPL
MaxOC plays in the PSP
MaxOC helped look for balloons
MaxOC plays in the APPA D3 division
thats what ive been told. plan on it too.

would work better if i could cut the crown, but i want to save it to sell when the real speedfeed comes out lol.
__________________
Hellcats Paintball
2nd PSP Phx D3X

My Mini Tuning Guide
Buy My JRNY
Need a computer built? Whether it be for home, work, play, or gaming, contact me to get it cheaper, faster, pre-configured and built to last.
MaxOC is offline   Reply With Quote
Old 11-17-2008, 06:34 PM #4
ArchAngelIon
VSBGODB

ArchAngelIon's Avatar

Join Date: Jun 2005
Location: CASTLE SHIKIGAMI
ArchAngelIon plays in the PSP
ArchAngelIon owns a Planet Eclipse Ego
ArchAngelIon posts videos on PbNation
ArchAngelIon is one of the top 1000 posters on PbNation
Quote:
Originally Posted by Max S View Post
you're going to be an engineer.
.

Great job.
__________________
I do not need assistance to rule this world,
Everything will grovel at my feet.

The only thing I find valuable, about your species, is the noises you make when you die.

Looking for Classic video games, will trade dollars: http://www.pbnation.com/showthread.p...7#post82009777
ArchAngelIon is offline   Reply With Quote
Old 11-17-2008, 06:57 PM #5
abr5
llama llama duck...

abr5's Avatar

Join Date: Aug 2005
Location: Ithaca, NY
Sweet. I just got my Rotor and was trying to do this but didn't want to because of the sliding lock. I guess it'll be fine though.
__________________
abr5 is offline   Reply With Quote
Old 11-17-2008, 07:02 PM #6
MaxOC
how do I 555 deal?

MaxOC's Avatar

Join Date: May 2007
Location: tucson, hot as hell, AZ
MaxOC plays in the USPL
MaxOC plays in the PSP
MaxOC helped look for balloons
MaxOC plays in the APPA D3 division
should be fine. its really hard to press in the rear button anyway. even when youre actually trying to do it, much less on something stupid like a slide.
__________________
Hellcats Paintball
2nd PSP Phx D3X

My Mini Tuning Guide
Buy My JRNY
Need a computer built? Whether it be for home, work, play, or gaming, contact me to get it cheaper, faster, pre-configured and built to last.
MaxOC is offline   Reply With Quote
Old 11-18-2008, 12:21 AM #7
bronc.v2 (Banned)

Join Date: Jan 2006
Location: Santa Barbara, CA
That's awesome

Dye designed this thing, but the Ironmen last weekend still had theirs glued on top, lol!
bronc.v2 is offline   Reply With Quote
Old 11-18-2008, 01:02 AM #8
MaxOC
how do I 555 deal?

MaxOC's Avatar

Join Date: May 2007
Location: tucson, hot as hell, AZ
MaxOC plays in the USPL
MaxOC plays in the PSP
MaxOC helped look for balloons
MaxOC plays in the APPA D3 division
Quote:
Originally Posted by bronc.v2 View Post
That's awesome

Dye designed this thing, but the Ironmen last weekend still had theirs glued on top, lol!
im still not sure why they did that. its a quick mod, but seriously, if you do this mod, but use glue, and cut off the lip, it works a lot better. i just dont want to perma mod lol
__________________
Hellcats Paintball
2nd PSP Phx D3X

My Mini Tuning Guide
Buy My JRNY
Need a computer built? Whether it be for home, work, play, or gaming, contact me to get it cheaper, faster, pre-configured and built to last.
MaxOC is offline   Reply With Quote
Old 11-18-2008, 09:20 PM #9
BigJenkies


BigJenkies's Avatar

Join Date: Jun 2008
Location: chicago
BigJenkies helped look for balloons
BigJenkies owns a Planet Eclipse Etek
great job lol i hear people say i'll be an engineer one day too.
keep up the good work!
BigJenkies is offline   Reply With Quote
Old 11-19-2008, 02:47 AM #10
Person


Join Date: Jan 2002
Location: Monterey California
Person is a Supporting Member
 has been a member for 10 years
there are so many parts in that hopper its cr1z and look it has screws which means it isnt tool less.

Just kidding.

Nice mod!
__________________
E-Flex Lowers + Lens for Sale
Person is offline   Reply With Quote
Old 11-19-2008, 10:15 AM #11
Angel_Owner_188200
Mod Wanna Be...Gun Tech

Angel_Owner_188200's Avatar

Join Date: Dec 2003
Location: Corpus Christi Texas
Annual Supporting Member
Angel_Owner_188200 is a Supporting Member
 has been a member for 10 years
Angel_Owner_188200 posts videos on PbNation
Angel_Owner_188200 is one of the top 1000 posters on PbNation
Angel_Owner_188200 is Legendary
Angel_Owner_188200 is Boss
Angel_Owner_188200 supports Empire
Quote:
Originally Posted by Person View Post
there are so many parts in that hopper its cr1z and look it has screws which means it isnt tool less.

Just kidding.

Nice mod!
if you had paid attention to the reviews and what not it says tool less disassembly for cleaning... which it is.
and
they mention that it does have 5 screws holding that piece in place and that they are working on a speed feed that can attach to the Rotor. which if im not mistaken would probably be something like the Crown on the Vlcity.
Angel_Owner_188200 is offline   Reply With Quote
Old 11-19-2008, 11:46 AM #12
Person


Join Date: Jan 2002
Location: Monterey California
Person is a Supporting Member
 has been a member for 10 years
I knew that. Thats why I said I was just kidding.
__________________
E-Flex Lowers + Lens for Sale
Person is offline   Reply With Quote
Old 01-19-2009, 03:05 PM #13
PAINTBALLA52


PAINTBALLA52's Avatar

Join Date: Aug 2002
Location: Boston
 has been a member for 10 years
this work with all crowns (halo, vlocity)?
__________________
Old Feedback: +12/-0
New Feedback: +6/-0
Heatware Feedback: +24/-0
Ebay Feedback: +23/-0

BOSTON UNIVERSITY PAINTBALL
PAINTBALLA52 is offline   Reply With Quote
Old 01-19-2009, 03:27 PM #14
PsychoBaller
p8ntd daWrld & thensum

PsychoBaller's Avatar

Join Date: Dec 2002
Location: NJ
 has been a member for 10 years
PsychoBaller owns a Planet Eclipse Etek
Exclamation

Quote:
Originally Posted by PAINTBALLA52 View Post
this work with all crowns (halo, vlocity)?
Thread Starter or someone with such knowledge, please suggest which CROWN version to buy for this mod...
PsychoBaller is offline   Reply With Quote
Old 01-19-2009, 04:14 PM #15
IGotAEpiphany
UNACTIVE

Join Date: Apr 2008
Location: Earth
can you post up a vid of you shaking it up and down with a pod of paint?
