Old 10-03-2008, 10:10 PM #1
ghettogunner
Simple.

ghettogunner's Avatar

Join Date: Dec 2006
Location: Alaska
Mac noid ? Ghetto Stage 4

Okay I wanna get this figured out

Steps to install Mac noid on any ion board {Me making educated guesses}

1. Remove stock solenoid and air fittings very carefully
2. Solder the power connections to the Mac noid
3. Attach fittings and hoses to Mac noid
4. Re-assemble and shoot

My main concerns would be software compatibility .......

input?
__________________
Ripper Pump
ghettogunner is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 10-03-2008, 10:12 PM #2
Idiosyncrisia
Shhh... Just embrace it.

Idiosyncrisia's Avatar

Join Date: Nov 2006
Quote:
Originally Posted by ghettogunner View Post
Okay I wanna get this figured out

Steps to install Mac noid on any ion board {Me making educated guesses}

1. Remove stock solenoid and air fittings very carefully
2. Solder the power connections to the Mac noid
3. Attach fittings and hoses to Mac noid
4. Re-assemble and shoot

My main concerns would be software compatibility .......

input?
Get mac noid specific back banjo.
Idiosyncrisia is offline   Reply With Quote
Old 10-03-2008, 10:15 PM #3
ghettogunner
Simple.

ghettogunner's Avatar

Join Date: Dec 2006
Location: Alaska
wouldnt you just have to make sure to put the right sized barb on the mac noid?
__________________
Ripper Pump
ghettogunner is offline   Reply With Quote
Old 10-03-2008, 10:24 PM #4
Idiosyncrisia
Shhh... Just embrace it.

Idiosyncrisia's Avatar

Join Date: Nov 2006
well the mac 33 noid was made specifically for lucky. That's why you cannot just call them up and buy one. So it should have the correct barb for your normal internal ion hose.
Idiosyncrisia is offline   Reply With Quote
Old 10-03-2008, 11:12 PM #5
Kolder
The Commish

Kolder's Avatar

Join Date: Apr 2006
Location: New Orleans, LA
Annual Supporting Member
Kolder is a Mega Moderator
Kolder is a Supporting Member
Kolder is one of the top 100 posters on PbNation
Kolder is Immortal
You're talking about just hooking up the mac noid to a non stage 4 board?

If so, not going to work.
__________________
Let food be thy medicine and medicine be thy food

██████████████████████████████████████████
██████████████████████████████████
████████████████████████
Kolder is offline   Reply With Quote
Old 10-04-2008, 10:46 AM #6
bballryand316
Custom Projects are fun.

bballryand316's Avatar

Join Date: Oct 2005
Location: Worcester, MA
Quote:
Originally Posted by Kolder View Post
You're talking about just hooking up the mac noid to a non stage 4 board?

If so, not going to work.
Gunna have to disagree.





- Ryan
__________________
Feedback
bballryand316 is offline   Reply With Quote
Old 10-04-2008, 03:42 PM #7
Kolder
The Commish

Kolder's Avatar

Join Date: Apr 2006
Location: New Orleans, LA
Annual Supporting Member
Kolder is a Mega Moderator
Kolder is a Supporting Member
Kolder is one of the top 100 posters on PbNation
Kolder is Immortal
I was under the impression the voltages were off in comparison with other boards to just hook it up and use it.
__________________
Let food be thy medicine and medicine be thy food

██████████████████████████████████████████
██████████████████████████████████
████████████████████████
Kolder is offline   Reply With Quote
Old 10-04-2008, 03:55 PM #8
evilpaintball311
zoom zoom

evilpaintball311's Avatar

Join Date: Sep 2007
Location: 850/407, FL
evilpaintball311 supports our troops
evilpaintball311 has achieved Level 1 in PbNation Pursuit
evilpaintball311 has perfected Level 1 in PbNation Pursuit
i know it will work on a senario dream board
__________________
evilpaintball311 is offline   Reply With Quote
Old 10-04-2008, 06:49 PM #9
ghettogunner
Simple.

ghettogunner's Avatar

Join Date: Dec 2006
Location: Alaska
Are you taking about the Scenario dreams universal t board , or their ion t board?

I wonder what it would take to buy the rights to the stage 4 , cuz i mean luckys out of business right ,and its not doing them much good at the moment
__________________
Ripper Pump
ghettogunner is offline   Reply With Quote
Old 10-04-2008, 06:56 PM #10
bballryand316
Custom Projects are fun.

bballryand316's Avatar

Join Date: Oct 2005
Location: Worcester, MA
What do you mean 'buy the rights' to the stage 4?

If you want a lucky board so much, PM evilballer whatever his name is, or find Sorin from Europe. He did some work on Lucky boards, including selling them after Lucky left the US, with his 'Casablanca' software, mainly for Quests, though.

Lucky S4 board simply had a plug on it, a molex white connector, for a direct plug and play of the Mac 33 series noid. SD had a few Ion Tboards with this connect, allegedly, or some people, like myself, simply had the noid soldered directly to the board.

Mac is a company that makes solenoids.

I'm using a Mac Series 43a noid for an Evil-Pimp-Based project. And Mac 33 series noids for Ion projects.

The only thing Ion specific - The rear banjo. You need one with a barb to connect to the noid and one connecting a hose to another banjo. I emailed Colin from DW, got no response. He had a ghetto looking one on his UL'ed Ion.

I'll try to find a machinist about making some identical rear banjos.
__________________
Feedback
bballryand316 is offline   Reply With Quote
Old 10-04-2008, 07:06 PM #11
ghettogunner
Simple.

ghettogunner's Avatar

Join Date: Dec 2006
Location: Alaska
I think i actually sold you my stage 4 lol ....

So the software for the mac noid is the same as the stock one?
Then itd be basically plug and play......nice.........
__________________
Ripper Pump
ghettogunner is offline   Reply With Quote
Old 10-04-2008, 07:11 PM #12
bballryand316
Custom Projects are fun.

bballryand316's Avatar

Join Date: Oct 2005
Location: Worcester, MA
Stage 4 board = Virtue = Stock = Blackheart boards. Only difference is programming, and the few exceptions of having an extra plug for Membrane pads. The stage 4 board also happens to have a plug for DIRECT plug and play with a Mac 33 series noid (Which I believe was out before Lucky made the S4 board).

I've seen it on Tboards, including my own. I do not know for certain if it will work on all boards, but I see no reason it wouldn't. Talk to Dyetex. He soldered mine onto my Tboard about two weeks ago.
__________________
Feedback
bballryand316 is offline   Reply With Quote
Old 10-04-2008, 07:15 PM #13
ghettogunner
Simple.

ghettogunner's Avatar

Join Date: Dec 2006
Location: Alaska
Okay my questions have been answered
Bballryand316 is now my hero
__________________
Ripper Pump
ghettogunner is offline   Reply With Quote
Old 10-04-2008, 07:18 PM #14
bballryand316
Custom Projects are fun.

bballryand316's Avatar

Join Date: Oct 2005
Location: Worcester, MA
Any other questions or clarification needed?

I recall Joe (Dyetex, did soldering for me) needed to check on the polarity of the two black wires from the noid....and he talked with YDNA and Damon from Scenario Dreams.

Any other questions, drop me a PM.
__________________
Feedback
bballryand316 is offline   Reply With Quote
Old 10-04-2008, 07:22 PM #15
evilpaintball311
zoom zoom

evilpaintball311's Avatar

Join Date: Sep 2007
Location: 850/407, FL
evilpaintball311 supports our troops
evilpaintball311 has achieved Level 1 in PbNation Pursuit
evilpaintball311 has perfected Level 1 in PbNation Pursuit
Quote:
Originally Posted by ghettogunner View Post
Okay my questions have been answered
Bballryand316 is now my hero
if you check your inbox i might be your hero too, but you would still have to make sure you have a back banjo too.
__________________
evilpaintball311 is offline   Reply With Quote
Old 10-04-2008, 07:28 PM #16
bballryand316
Custom Projects are fun.

bballryand316's Avatar

Join Date: Oct 2005
Location: Worcester, MA
Quote:
Originally Posted by evilpaintball311 View Post
if you check your inbox i might be your hero too, but you would still have to make sure you have a back banjo too.
50 messages a day sometimes.

I have a Hero frame of my own. And a new GCPB Milsim body that I will not use. I don't have much cash or need for your S4, as the Hero has an identical one in it.

Unless that was directed at the thread starter, and not me?? (You PM'ed me a few days ago.)
__________________
Feedback
bballryand316 is offline   Reply With Quote
Old 10-04-2008, 07:32 PM #17
evilpaintball311
zoom zoom

evilpaintball311's Avatar

Join Date: Sep 2007
Location: 850/407, FL
evilpaintball311 supports our troops
evilpaintball311 has achieved Level 1 in PbNation Pursuit
evilpaintball311 has perfected Level 1 in PbNation Pursuit
Quote:
Originally Posted by bballryand316 View Post
50 messages a day sometimes.

I have a Hero frame of my own. And a new GCPB Milsim body that I will not use. I don't have much cash or need for your S4, as the Hero has an identical one in it.

Unless that was directed at the thread starter, and not me?? (You PM'ed me a few days ago.)
it was to the thread starter, u already turned down me being you hero
edit: none of this is bst post in here the real details are in pm's
__________________

Last edited by evilpaintball311 : 10-04-2008 at 07:34 PM.
evilpaintball311 is offline   Reply With Quote
Old 10-04-2008, 07:32 PM #18
ghettogunner
Simple.

ghettogunner's Avatar

Join Date: Dec 2006
Location: Alaska
bballryian you need to pm me where you get all this stuff!
__________________
Ripper Pump
ghettogunner is offline   Reply With Quote
Old 10-04-2008, 07:39 PM #19
bballryand316
Custom Projects are fun.

bballryand316's Avatar

Join Date: Oct 2005
Location: Worcester, MA
I am merely amazing.
__________________
Feedback
bballryand316 is offline   Reply With Quote
Old 10-04-2008, 07:42 PM #20
ghettogunner
Simple.

ghettogunner's Avatar

Join Date: Dec 2006
Location: Alaska
i mean im searchign all the stuff you referred me to and it either doesnt show up or is a dead end !

But i just thought of an idea !

just a sec.......
__________________
Ripper Pump
ghettogunner is offline   Reply With Quote
Old 10-04-2008, 07:55 PM #21
evilpaintball311
zoom zoom

evilpaintball311's Avatar

Join Date: Sep 2007
Location: 850/407, FL
evilpaintball311 supports our troops
evilpaintball311 has achieved Level 1 in PbNation Pursuit
evilpaintball311 has perfected Level 1 in PbNation Pursuit

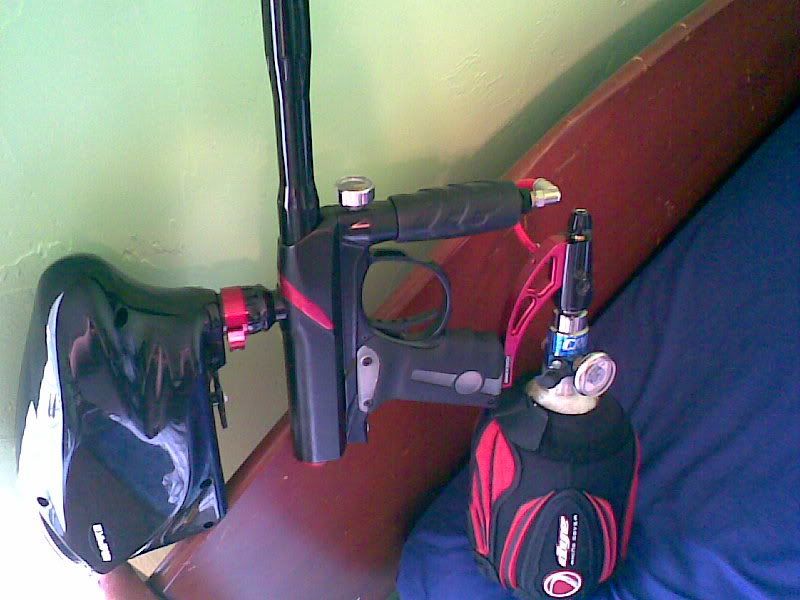

pic of my hero frame incase you wanted to see:

that was a prototype lucky frame with a s4 board build into it.
__________________
