Old 07-02-2008, 10:39 PM #1
PaintedSaint
lsdpsilocybinmarijuanadmt

PaintedSaint's Avatar

Join Date: Mar 2007
Teh Uber Build Tutorial Thread

THIS IS NOT A PERFECTED GUIDE, IF YOU WISH TO MAKE A SUGGESTION, OR ADD A PICTURE TO LIBRARY PLEASE, PM ME ABOUT IT.

Thanks to Jocasta, myself, and many others of this forum i am proud to unveil the first build tutorial thread.

Sure we have a build and upgrade thread, but sometimes you need help on how to put stuff together, so hopefully all that will go here.

This is a guide of sorts on how to build a computer, since i think it was needed because we suggest everyone to build themselves and then let them guide themselves. If we are going to tell them what to do we should at least back them up a bit, so here goes.

First some jargon that should help out along the way and if you need to ask any questions.

Case: Computer case:

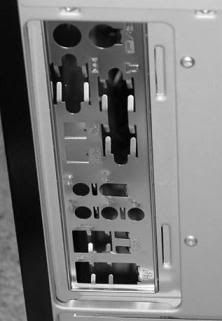

I/O Panel:Where all the connectors for headphones, vga, and other items come out of the back of the case:

PSU: Power Supply Unit

Mobo: Motherboard

Standoffs: Raise the mobo off the backplate to prevents shorts:

CPU: Computer Processor

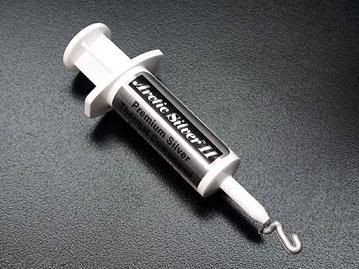

Thermal Paste: Paste on the bottom of the HSF that helps to cool the CPU:

HSF: Heatsink Fan

RAM: RAM >_>

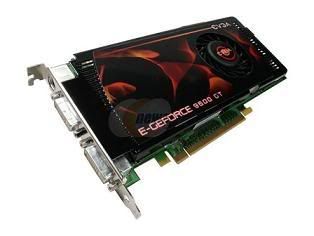

GFX/Grapics Card/GPU: Graphics Card

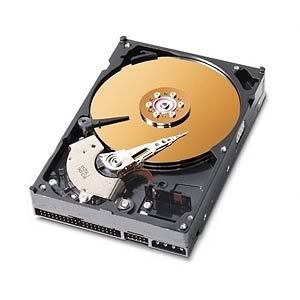

HDD: Hard Disk Drive

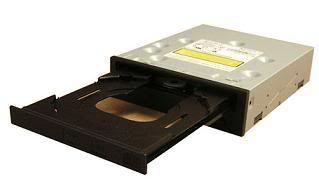

DD/Disk Drive: Your DVD/CD drive

5.25 Bay: Where your HDD/DVD Drive sits

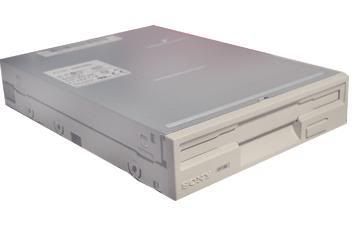

Floppy: Your floppy drive

3.5 Bay: Where your floppy drive sits
Sata (power): A newer connector that looks like so:

IDE: A older connector that usualy looks like a ribbon like so:

4 Pin: Used for to power floppy drives:

3 Pin: Usually used for basic fans:

Molex: Usually used for fans and other various uses:
__________________
Photography
flickr
Photography+Writings
blog.

Last edited by PaintedSaint : 12-08-2008 at 12:19 AM.
PaintedSaint is offline   Reply With Quote
Old 07-02-2008, 10:40 PM #2
PaintedSaint
lsdpsilocybinmarijuanadmt

PaintedSaint's Avatar

Join Date: Mar 2007
2x2+2x2/4x2/8 Pin: Used for CPU power, some boards use a single connector so the 4x2(8 Pin) will break into 2x2+2x2 like so:

20+4: Main power connector for the mobo:

6 Pin: Usually a PCI-e power connector looks like so:

PCI(-e)(x16): Used for cards that are inserted into these slots, also where a graphics card is inserted:


Alright lets move on to the actual building shall we?

First set up a work area with all the tools handy. You will need a Phillips-head screw driver, along with zip ties to tidy up any hairy wiring. This is sometimes not necessary, depending on how neat you want to be. You will also need a surface that is both flat and NOT CARPET, for the sake of safety. If you have a card table this will be fine, just make sure you wipe down the table first so that no abrasives will rub against your case while you are working on it. Make sure to ground yourself by touching the case or another metal object frequently to minimize the risk of static discharge. The “small” charge that you can accumulate and discharge is more than enough to fry some of your components, especially the CPU and circuit boards.

Take out your boxes of computer parts and lay them out so that you can take stock of what you have. Unpack your case and take off the side panel that allows you access to the insides of your computer, which is the usually left-hand panel if you’re looking at the case from the front. Lay the case flat on the table and open up your motherboard box. Find the manual and keep it handy for later. Just as a reminder, make sure you touch the case or a ground to get rid of any static electricity before touching the mobo. After reading the manual take out the mobo and lay it on a clean, non-metallic surface with the business end facing up. Open up your CPU box and remove the HSF and manual.

To start your build remove your PSU from the box it came in. Depending on the design of your case, the unit may end up resting in in either the top corner at the rear of the case or at either lower corner. Most cases will locate it at the top of the case in the back, but if you are unsure your case manual will be able to guide you. After sliding the PSU into it’s bay from the inside, secure it to the case with the four to six screws provided with the case. For the sake of this guide, DO NOT plug in the power cord to the PSU and DO NOT turn on the PSU yet. Ensure that the red voltage switch (if applicable) is switched to 110/120v. It should be from the factory, but it never hurts to make sure. Some PSUs do not have a manual switch, and therefore you don’t need to worry about it.

On the motherboard there may be a protective piece of plastic over top of the CPU socket. If there is one there, unsecure the lever attached to the CPU socket and lift it such that the plastic can be removed. If you are having difficulties, consult the manual that came with the CPU or motherboard. Remove the CPU from its box and turn it over. You should notice that in one corner, there is a slot or indentation that corresponds to an equal mark in the socket on the motherboard. This prevents you from inserting the CPU the wrong way. NEVER should you have to force the CPU into place, so if it is resisting then it’s not in there correctly. The pins on the CPU and/or motherboard are very fragile (especially the pins inside the Socket 775 socket) so be very careful. After the CPU is resting in it’s new home, use the aforementioned arm on the socket to secure the CPU in place. It may require a fair amount of force depending on the socket, so be sure to support the board as you lock the CPU into place. Now remove your HSF from the box and carefully remove the protective plastic cover on the bottom. Do not touch the bottom of the HSF from now on, because the oil on your fingers is not conducive to heat transfer. Place the HSF over the CPU and follow the instructions provided with the unit to clip the HSF down on the mobo. Sometimes the HSF will need to be rotated to make sure the fan power connector will reach the CPU fan power plug. Make sure everything is on tightly before moving on. If you’re using a stock Intel HSF, make sure all four pins are protruding through the holes fully. It is very easy to only have three secured, so make sure you have all four in place before moving on.

Now that you have the CPU inserted correctly you can move on to the ram. Depending on your motherboard there may be two to six slots in which RAM sticks fit into. Usually the slots are two different colors, with each pair of identically colored spots corresponding to a channel. If you have 2 sticks of RAM then you can fit the RAM into 2 slots of the same color for best results. There will be (usually) white tabs on the ends of each RAM slot. Press then down on both sides of each slot that you will be filling. RAM will only fit one way, so be sure you have the RAM in the correct orientation before pushing it into the slots. As you push down, the tabs you opened earlier should close automatically as soon as the RAM is fully seated.

Next is an important step that cannot be skipped, no matter how trivial it may sound. In your mobo or case box there should be some standoffs These are usually brass-colored pieces with female and male threads in one unit. These serve to elevate the motherboard slightly to prevent the electrical joints on the underside of the board from contacting the case. Remove the screws from the bag and look into the back of your case, on the inside of the case where the motherboard will sit you will see holes to screw the standoffs into. As you will soon notice, there are far more holes inside the case than there are on your board; this is to accommodate a wide variety of motherboards. You should match the screw holes on the inside of the case to the holes in your motherboard. This can be tricky as some holes on the inside of the case are close together. Try to imagine how your motherboard will fit in the case and where the holes in the mobo match with the holes on the inside of the case. After you think you have inserted all the standoffs in the correct holes you will need to switch out the I/O panel. The I/O panel that comes with the case should be able to pop out easily, replace with the I/O panel that was packed with the motherboard. Check to make sure no cables or obstacles are in the way before you insert the motherboard in the case. Unpack some motherboard screws to prepare to screw the motherboard into place. Touch the case to remove any possible static and carefully pick up your motherboard. Place the motherboard in the case with the screw holes matching the standoffs and the I/O panel lining up correctly. You will likely have to angle the board into the case in order to avoid snagging it on the protrusions that are sometimes present on the inside of the I/O panels. Often, you will need to press fairly hard against the I/O panel to properly line up the mobo with the standoffs you installed earlier.

Next you will be inserting your HDD and your DVD/CD drive into their corresponding bays inside the case. The HDD will fit into the smaller 3.5 inch bays while the CD/DVD drive will occupy one of the larger 5.25 inch bays. Take your time to clean up your workplace before moving on. Put any extra screws back into bags and lay out the new screws/items you will need for this installation. For some cases the other side panel will need to be removed to insert the HDD(s) and DVD/CD drives. So standup your case and remove the other panel. Open your HDD box (if applicable; OEM will not come in a box) and touch the case as to remove any static electricity once again (*NOTE* Some cases come with rubber grommets or other rubber pieces to place against the HDD and the HDD cage as to reduce vibrations and resonance. If this is the case, install them per the instructions provided with your case). Remove the HDD and place it in the HDD cage. After placing the drive in the cage line up the female screw holes on the drive with corresponding holes in the cage. Lightly screw in the 4 screws halfway before screwing them all in completely as to allow you to reposition the drive slightly if necessary. After you have completely screwed in the HDD and it is secure, remove one or more of the front drive bay covers. If you have one CD/DVD drive, remove one and so forth. This is so the front your DVD/CD drive can exit the case when it wants a DVD/CD. After the drive bay is removed, slide the DVD/CD drive into the gaping hole from the front/outside of the case. Do the same for any floppy drives or other media drives you may have.

Now, the last main computer part will be inserted, the mighty grapics (also known outside ST:T as “graphics”) card. Remove the expansion slot plate from the back of the case that corresponds to the PCI-E slot. If the topmost slot on the motherboard is the one that will accept the card, remove the topmost plate and so on and so forth. Apply this principle for all of your expansion cards. Remove the card from the box and look in your motherboard for the PCI-E x16 slot carefully insert it into this slot vertically and firmly press down on the card until it is secure. Screw the card to the case with the provided mounting holes.
__________________
Photography
flickr
Photography+Writings
blog.

Last edited by PaintedSaint : 07-02-2008 at 10:45 PM.
PaintedSaint is offline   Reply With Quote
Old 07-02-2008, 10:40 PM #3
PaintedSaint
lsdpsilocybinmarijuanadmt

PaintedSaint's Avatar

Join Date: Mar 2007
Ok, now that all the main computer parts are placed in the case, hopefully all correctly if you followed this guide, we will now connect all those wires. I think it’s a good practice to start connecting items from top to bottom, so that’s how I’ll be explaining this. Before you move forward make sure you’ve read and have your mobo manual ready as this can get confusing. From this point on the difficulty and intricacy of the process all depends on how picky you want to be; if you want to just straightly plug your wires into their sockets and let them be then that’s fine. If you want to make your case look neat, that is also a choice, and in my opinion a much better one. If you are to go with the second choice then make sure you have zip ties ready and take your time when routing your wires so that they will not be seen or are neat.

Touch the case before you begin to once again release any static charge. Let’s start with your front panel button connectors. In your case should be 5 or 6 multicolored wires that connect to the front of you case, AKA the power/reset button and other pretty lights. In your motherboard manual you will see how they connect. These may be hard to see and therefore may become a pain to connect, make sure you have a good lightsource to see into the case. Make sure these are connected right as they can be a very simple yet annoying problem if not done correctly, and because every motherboard and case is different it’s hard to explain this process via a guide. Just remember that you WILL NOT hurt anything if the polarity is reversed, and oftentimes it doesn’t even matter what way they’re plugged in. Just take notice of anything that is plugged in but doesn’t work so you can go back and make any adjustments. Pay attention to your motherboard manual and everything should go in correctly. After you have done that retrieve a SATA (or IDE, if applicable) cable and connect one to both your DVD/CD drive and your HDD. Run those cables as you wish and secure them to the SATA/IDE connectors on the mobo, which should be pointed out in your manual. Next you will take the SATA or molex power connectors from your PSU and route them to both your DVD/CD drive and your HDD. After you have done that and routed/secured them as you wish move on the 6-pin power cable for the video card, if it needs one. Not all cards need external power. Run that how you wish and plug it into the grapics card, and again make sure it’s secured tightly. Next if you have front fans on your case route the wires into the aux1/2/3 fan ports on the mobo, or to any open female molex ports. The three pin fan plugs on the motherboard will have their locations pointed out in the mobo manual. Make sure these are plugged in and move on to the 20+4 pin. This cable can be a monster and sometimes hard to work with, connect this to the mobo in the specified area, which should be pretty obvious as it is quite unique. In some cases you need to "break" off the extra 4 pins of this connector to make it fits into the motherboard. Next is the 8-pin/2x2-pin, check your manual for this connection, as it powers the CPU. The socket should be near the CPU socket, and most of the time it is a 4 pin, with two pins side by side stacked. On higher end board, this is an 8-pin socket, with four inline stacked. This is also a "breakaway" cable so if your board only calls for the 4-pin then break it apart and use one of those connectors. If your case has a back fan plug it into an open port, check your manual for the closest available port. Make sure all these cables are connected firmly and where you want them. Double check any parts while making sure you have a hand on the case as to ground yourself. Lastly, plug in your power cord to the PSU and turn on the PSU. Put on the side plates and there you go.

-LE END-
__________________
Photography
flickr
Photography+Writings
blog.

Last edited by PaintedSaint : 07-02-2008 at 10:44 PM.
PaintedSaint is offline   Reply With Quote
Old 07-02-2008, 10:42 PM #4
vinnie_scarecrow
DON'T STEAL MY AVVY!!!!

vinnie_scarecrow's Avatar

Join Date: Mar 2005
Location: Washington
vinnie_scarecrow helped look for balloons
vinnie_scarecrow is playing at Living Legends III
No pictures?! Nice job, none the less
__________________
OT:Tech -- No Longer ST
ApoC_101: People who dont understand advanced computing like applying an image as the wallpaper, buy macs.
Supra_MKIII: People who use Linux are too smart for the army, people who use OSX are too stupid.
sbballer92: see the hacks I had didn't really do anything, they where just wall hacks
vinnie_scarecrow is offline   Reply With Quote
Old 07-02-2008, 10:43 PM #5
Charlie_Boy (Banned)
Team Canadia/Quality

Charlie_Boy's Avatar

Join Date: Dec 2004
Location: The Street
Break those MASSIVE paragraphs into smaller ones to make it easier to read.
Charlie_Boy is offline   Reply With Quote
Old 07-02-2008, 10:43 PM #6
PaintedSaint
lsdpsilocybinmarijuanadmt

PaintedSaint's Avatar

Join Date: Mar 2007
Thats where hopefully many people of the ST:T section will contribute when they build themselves.

each section is vital that you read all the way through to make sure you do not accidentally brake something during your build. Its broken into sections like that for a reason.
__________________
Photography
flickr
Photography+Writings
blog.
PaintedSaint is offline   Reply With Quote
Old 07-02-2008, 10:43 PM #7
boomslang
lo-fi

boomslang's Avatar

Join Date: Jul 2003
 has been a member for 10 years
Not to be a Yeerk, but HDD is "Hard Disk Drive" and not "Hard Drive Disk"

Appreciate the work you put into this
__________________
Shoot the ****: irc.oftc.net #doublethink | dodgyaim
boomslang is offline   Reply With Quote
Old 07-02-2008, 10:46 PM #8
PaintedSaint
lsdpsilocybinmarijuanadmt

PaintedSaint's Avatar

Join Date: Mar 2007
Quote:
Originally Posted by boomslang View Post
Not to be a Yeerk, but HDD is "Hard Disk Drive" and not "Hard Drive Disk"

Appreciate the work you put into this
Thank jocasta too, he did most of the editing lolz.
__________________
Photography
flickr
Photography+Writings
blog.
PaintedSaint is offline   Reply With Quote
Old 07-02-2008, 10:48 PM #9
boomslang
lo-fi

boomslang's Avatar

Join Date: Jul 2003
 has been a member for 10 years
Quote:
Originally Posted by PaintedSaint View Post
Thank jocasta too, he did most of the editing lolz.
No, he can go suck an egg.
__________________
Shoot the ****: irc.oftc.net #doublethink | dodgyaim
boomslang is offline   Reply With Quote
Old 07-02-2008, 10:50 PM #10
t-bone510
in silico

t-bone510's Avatar

Join Date: Jun 2006
Location: Stockholm, Sweden
lol

Nice guide guys.
__________________
Sweden
Operation TIBBS
t-bone510 is offline   Reply With Quote
Old 07-02-2008, 10:52 PM #11
t-bone510
in silico

t-bone510's Avatar

Join Date: Jun 2006
Location: Stockholm, Sweden
added to sticky
__________________
Sweden
Operation TIBBS
t-bone510 is offline   Reply With Quote
Old 07-02-2008, 10:53 PM #12
Jocasta (Banned)
Captain Strobe

Join Date: Mar 2007
Location: KO's bushes
Quote:
Originally Posted by boomslang View Post
No, he can go suck an egg.
You'll have to provided the eggs, because I'm out.

I would like this to be a collaborative effort by the competent members of ST:T.
Jocasta is offline   Reply With Quote
Old 07-02-2008, 11:00 PM #13
Cmizzle
SHOW ME THAT O FACE

Cmizzle's Avatar

Join Date: Oct 2006
Bewbs
Cmizzle is offline   Reply With Quote
Old 07-02-2008, 11:02 PM #14
MPC
gettin jiggy wit it

MPC's Avatar

Join Date: Aug 2006
Location: NASA / Purdue
MPC is playing at Living Legends III
MPC owns a Planet Eclipse Ego
MPC supports Team VICIOUS
MPC is for the Gunfight
very nice

probably better than my old tutorial
MPC is offline   Reply With Quote
Old 07-02-2008, 11:03 PM #15
cv4stm
Eskimo King

cv4stm's Avatar

Join Date: Jun 2005
Location: In My Igloo, Canada
damn, you guys said you had pictures when I was building, or I would have photographed everything.
__________________
PSN - Byonix
X360 Gamertag - Byonix
cv4stm is offline   Reply With Quote
Old 07-02-2008, 11:04 PM #16
PaintedSaint
lsdpsilocybinmarijuanadmt

PaintedSaint's Avatar

Join Date: Mar 2007
Im sure there will be plenty more builds to get pictures of.

I was gonna get pics, but there were only a few things i wouldve gotten pics of and i was too lazy to do those lol.
__________________
Photography
flickr
Photography+Writings
blog.
PaintedSaint is offline   Reply With Quote
Old 07-02-2008, 11:18 PM #17
Clint Eastwood (Banned)


Join Date: Sep 2005
Thanks for the floppy drive pictures!
Clint Eastwood is offline   Reply With Quote
Old 07-02-2008, 11:22 PM #18
zkorAVALS
4T3HLULZ

zkorAVALS's Avatar

Join Date: Jan 2008
Location: Reno, NV
Quote:
Originally Posted by PaintedSaint View Post
Im sure there will be plenty more builds to get pictures of.

I was gonna get pics, but there were only a few things i wouldve gotten pics of and i was too lazy to do those lol.
I can take my build apart and put it back together with pictures and vid for the sake of not having anything to do during the weekdays.
__________________
XBL: SlavaRussky
zkorAVALS is offline   Reply With Quote
Old 07-02-2008, 11:46 PM #19
$$Andrew1944$$


$$Andrew1944$$'s Avatar

Join Date: Aug 2006
Location: Arkansas
I'm going to be building one next week, i'll try to get some pics up for the guide
__________________
Old Feedback
$$Andrew1944$$ is offline   Reply With Quote
Old 07-03-2008, 07:58 PM #20
t-bone510
in silico

t-bone510's Avatar

Join Date: Jun 2006
Location: Stockholm, Sweden
I will not allow this to leave the first page.
__________________
Sweden
Operation TIBBS
t-bone510 is offline   Reply With Quote
Old 07-03-2008, 08:35 PM #21
randomdean100


randomdean100's Avatar

Join Date: Jun 2007
Location: Your mom's bed
It shall never leave the first page. A link needs to be put in the sticky.
