angel a1 software update question

With angel going down is there a way I can still update to 2.7 from 2.2? I just got one so I'm a little new to the a1 but not necessarily angels. Thanks for any help.
tsmith17 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 08-26-2012, 01:22 AM #2
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
The software update package can still be found here: http://www.angelowners.com/showthrea...082#post646082

Make sure to follow the instructions to the letter. You will first install the driver, then the flash software, then you can update the board. Make sure you are using a fresh battery during flashing as it draws a lot of power, and a failed battery can cause the flash to screw up.
dr.strangelove is offline   Reply With Quote
Old 08-29-2012, 12:01 AM #3
tsmith17


tsmith17's Avatar

Join Date: Jan 2012
Location: Lexington, KY
tsmith17 owns a Planet Eclipse Geo
tsmith17 owns a Planet Eclipse Ego
tsmith17 supports Team VICIOUS
tsmith17 plays in the APPA D5 division
tsmith17 has achieved Level 3 in PbNation Pursuit
i did the installation but i dont have the update is there a place that i can download it or was it under the zip file under a certain name?


EDIT: Never mind found it had a derp moment

Last edited by tsmith17 : 08-29-2012 at 12:06 AM.
tsmith17 is offline   Reply With Quote
Old 10-18-2012, 07:51 PM #4
Vdubs (Banned)


Join Date: Oct 2012
I have tried to get the A1 driver to work. I am using Win7 but not working.. My A1 is currently on 2.2 and I am also trying to figure out which ver is the best for my gun.

Thanks!
Vdubs is offline   Reply With Quote
Old 10-18-2012, 08:04 PM #5
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
2.6/2.7 is the latest software revision and offers a few improvements over previous versions.

What exactly is the problem you're experiencing with the software? You can try running it in compatibility mode or under XP mode if you have 7 Professional.
dr.strangelove is offline   Reply With Quote
Old 10-18-2012, 08:05 PM #6
dodgeballers_ia


dodgeballers_ia's Avatar

Join Date: May 2006
Location: IOWA
dodgeballers_ia is BST Legit
dodgeballers_ia supports Team VICIOUS
dodgeballers_ia supports Team VICIOUS
dodgeballers_ia supports Team VICIOUS
WIN 7 will not work. Need XP.
dodgeballers_ia is online now   Reply With Quote
Old 10-18-2012, 08:30 PM #7
Vdubs (Banned)


Join Date: Oct 2012
Quote:
Originally Posted by dr.strangelove View Post
2.6/2.7 is the latest software revision and offers a few improvements over previous versions.

What exactly is the problem you're experiencing with the software? You can try running it in compatibility mode or under XP mode if you have 7 Professional.
I have not shot the gun yet as I just got it today. PO said it would flake out after shooting a few balls. I have to get another bolt as the original is MIA. I understand running under XP mode BUT, when trying to install drivers, windows installs some BS and I can not load the one needed as it says the one installed is a newer version but it is not associated with A1 .

I got this gun AND an Invert Mini in trade for a small portable Miller welder I got for about $200!!

Not bad for basically $100
Vdubs is offline   Reply With Quote
Old 10-18-2012, 08:38 PM #8
Shocker_Monkey
KCCO

Shocker_Monkey's Avatar

Join Date: Mar 2003
Location: 920 Represent
Annual Supporting Member
Shocker_Monkey is a Supporting Member
 has been a member for 10 years
Shocker_Monkey is playing at Living Legends VII
Shocker_Monkey has achieved Level 6 in PbNation Pursuit
Shocker_Monkey is Legendary
Shocker_Monkey is Boss
Nice pick up Vdubs.

I'm on 2.2 as well. I was planning on doing the update this weekend. Does 2.6 (or 2.2 for that matter) allow for 12.5bps?
__________________

==========================================
WISCONSIN NAVARONE
==========================================
Shocker_Monkey is offline   Reply With Quote
Old 10-18-2012, 08:49 PM #9
Vdubs (Banned)


Join Date: Oct 2012
Quote:
Originally Posted by Shocker_Monkey View Post
Nice pick up Vdubs.

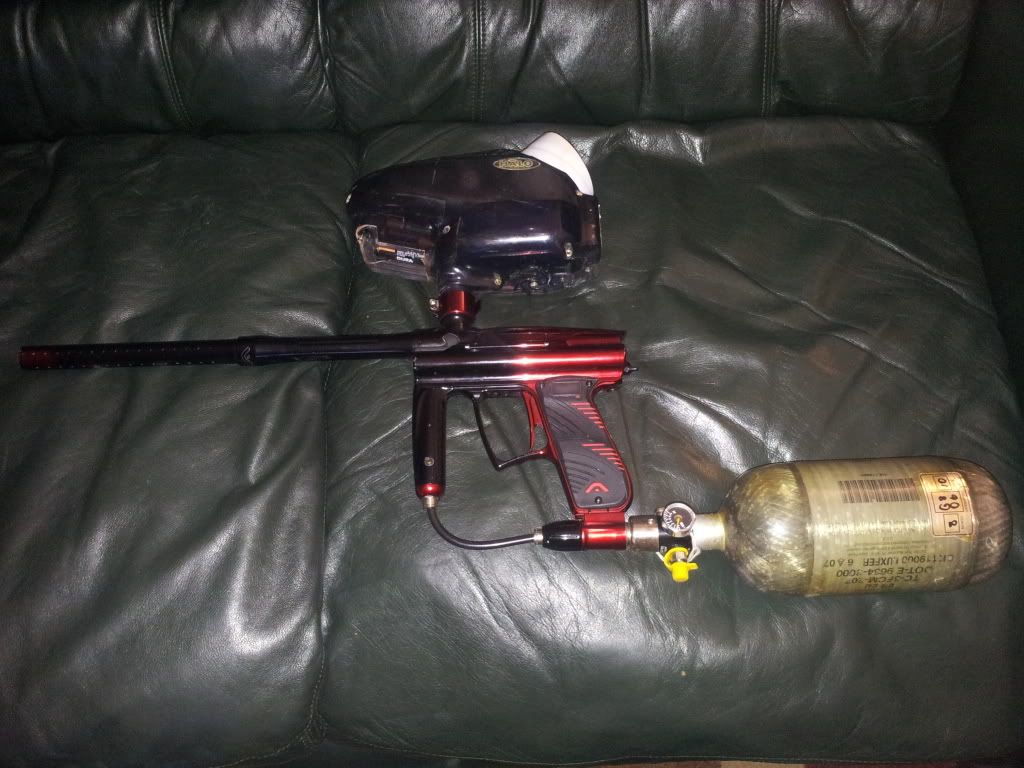

Thanks SM Here is everything I got in the trade }:)

Vdubs is offline   Reply With Quote
Old 10-18-2012, 08:53 PM #10
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
You can try uninstalling the existing driver and then manually install the new one when the "found new hardware" dialog pops up.

XP Mode is actually a standalone XP install in a virtual machine, so it's exactly like having an XP based computer on hand, but it's only available on Win 7 Pro. If you have an old XP install disc laying around, you can accomplish the same thing by using VirtualBox to set up a virtual machine yourself and installing XP to it.

Quote:
Originally Posted by Shocker_Monkey View Post
I'm on 2.2 as well. I was planning on doing the update this weekend. Does 2.6 (or 2.2 for that matter) allow for 12.5bps?
Yes. You should be able to go down to 12.5 with the 2.2 software too though. I think the MROF is adjustable from 10 to unlimited.
dr.strangelove is offline   Reply With Quote
Old 10-18-2012, 08:55 PM #11
Vdubs (Banned)


Join Date: Oct 2012
Quote:
Originally Posted by dr.strangelove View Post
You can try uninstalling the existing driver and then manually install the new one when the "found new hardware" dialog pops up.



Yes. You should be able to go down to 12.5 with the 2.2 software too though. I think the MROF is adjustable from 10 to unlimited.
How do you surpass the cap of 15bps with a stock board??
Vdubs is offline   Reply With Quote
Old 10-18-2012, 09:03 PM #12
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
The 15 bps cap only applies to some of the preset modes. In custom mode you can set whatever parameters you want.
dr.strangelove is offline   Reply With Quote
Old 10-18-2012, 09:12 PM #13
Vdubs (Banned)


Join Date: Oct 2012
So what are the benefits of upgrading from 2.2 to 2.7?
Vdubs is offline   Reply With Quote
Old 10-18-2012, 09:32 PM #14
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
Bug fixes, an additional custom mode, and a change in eye delay mode.
dr.strangelove is offline   Reply With Quote
Old 10-18-2012, 09:44 PM #15
Vdubs (Banned)


Join Date: Oct 2012
Quote:
Originally Posted by dr.strangelove View Post
Bug fixes, an additional custom mode, and a change in eye delay mode.
Damn.. I wish I had or even KNEW anyone using something other than win7!!
Vdubs is offline   Reply With Quote
Old 10-18-2012, 10:05 PM #16
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
Might be worth seeing if you can do it at a local library or internet cafe - a lot of them are still on XP. If you really need it done and can't get it figured out locally, I might be able to flash it for you if you want to send it out.
dr.strangelove is offline   Reply With Quote
Old 10-18-2012, 10:16 PM #17
Vdubs (Banned)


Join Date: Oct 2012
Quote:
Originally Posted by dr.strangelove View Post
Might be worth seeing if you can do it at a local library or internet cafe - a lot of them are still on XP. If you really need it done and can't get it figured out locally, I might be able to flash it for you if you want to send it out.
Is there a basic all around setting for all of the parameters? I am sure the PO messed with it and screwed some things up. This gun has a total of 693 balls shot through it according to the info counter...
Vdubs is offline   Reply With Quote
Old 10-18-2012, 10:44 PM #18
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
Dwell 6.0 ms, ramping parameters to the rules you play, everything else is pretty much gun-specific.

Last edited by dr.strangelove : 10-18-2012 at 11:07 PM.
dr.strangelove is offline   Reply With Quote
Old 10-18-2012, 11:05 PM #19
Vdubs (Banned)


Join Date: Oct 2012
Here is what mine is currently set at.

Soft Breakout-10 sec
Hard Breakout- 10 sec
Soft Ramp Start Delay-4 Kick In-5 Out- 4
Hard Ramp *Same as above*
Dwell Time- 9.0msecs
Debounce level- 10
Paint Type- Fragile 4
Shot Filter- 5%
ABS- 0.25msecs
Vdubs is offline   Reply With Quote
Old 10-19-2012, 12:58 AM #20
dr.strangelove
The Angel Eye Doctor

dr.strangelove's Avatar

Join Date: May 2003
Location: Earth
 has been a member for 10 years
Your dwell could drop to 6.0. Debounce could probably go to 5. Paint type, depends on your paint type. Paint type is really just an eye delay setting. Fragile is the most conservative setting = longest delay, medium shorter, hard shortest. ABS should be fine. Most of those settings though, like I said, are gun specific, so don't be afraid to experiment with them.
dr.strangelove is offline   Reply With Quote
