Old 01-08-2008, 08:03 AM #1
Jornum1


Join Date: Jan 2008
Custom Milled Aluminum Tactical ION XE Body

Updated pics and specs towards the end of the thread. This is a ongoing project
Hello everyone, I bought a new ION XE in December after a long lay off from playing paintball. I haven't played in over 7 years. I used to be a regular with a pretty tricked out cocker. I hurt my back pretty bad and had to give up all my fun activities for a few years. I never picked paintball back up again until this fall. A few friends of mine play regularly and have peaked my interest again. I have taken a particular interest in woodsball and scenarios. I have yet to attend a big game, but will be going to my first at Top Gun in NJ this Sunday(Jan 13th).

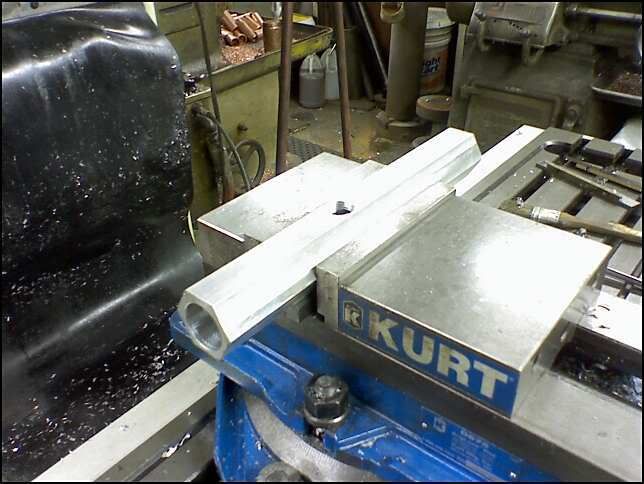

Anyway, I work for a family business that has a small machine shop, and I have basic knowledge of machining. I was going to buy a blackcell or deadlywinds tactical body, but then being the wannabe engineer I decided to give it a whirl on my own. We had a length of Hex sided aluminum rod laying around that was already bored out to 1" diameter inside. Its material I was told has been sitting around since the 60's and we will never use again, so it is at my disposal.
I started out by boring it out the the diameter of the ION's breach. I then started milling off material. I probably had a good 3/8" of material on each side. After some preliminary milling I drilled a 1" feedneck hole and threaded it.

After that I milled out the bottom and located the mounting holes for the grip frame. I also angled the front. I left the front end long so I could mount the Qloader there(waiting for parts for that), and it also covers the insert color of the freak back on the barrel.
I purchased a Trinity folding stock for a Tippman 98 and mounted that. It is held in by a Allen set screw, so it can be removed easily to access the BOB feature of the XE.
Next I am making a riser for a red dot sight behind the feedneck.
I have a lower profile 90 degree elbow coming in the mail from Qloader so it wont be quite as tall.
What do you guys think? Remember I am not a professional machinist, and this is my first attempt. There is still a lot of work that needs to go into it. I am also going to mount a 2" rail on either side of the barrel for a tac light, laser sight, ect. This is just the basic shape. I am probably going to slot the sides vertically to break up the straight lines and reduce weight, and it will be painted of course.
This is where I am at right now. I will get some better pics when my wife gives my camera back! She is a camera hog. These 2mp cell phone pics aren't too bad though.
It is completely functional, and fires great! It has a great feel to it, like a real rifle. When I get the riser on the top, and the slots milled, it wont look so round.







Last edited by Jornum1 : 03-08-2008 at 04:27 PM.
Jornum1 is offline
Old 01-08-2008, 08:38 AM #2
BEsRaider


BEsRaider's Avatar

Join Date: Dec 2007
BEsRaider owns a Planet Eclipse Ego
very nicely done. how heavy is it?
BEsRaider is offline
Old 01-08-2008, 08:52 AM #3
Jornum1


Join Date: Jan 2008
I threw it on the scale before I cut about 2 inches off the end and milled it down some, I believe it was about a 1 1/2lbs. So I am maybe at 1.375 or something like that(just a guess) Like I said before I still have a lot of material to take out of it still. That is just the basic shape. I am going to put some vertical slots on the sides that will take a good chuck of weight out of it. Its not bad with the stock though. It feels like a rifle, I like that being a person that grew up shooting real guns.
I will post some more pics of the riser later today.

And thanks for the kind words everyone, I appreciate it!
Jornum1 is offline
Old 01-08-2008, 09:09 AM #4
swatchenswitch
Jaba the Hut

swatchenswitch's Avatar

Join Date: May 2007
Location: STL
what was the final inside diameter?


also have you thought about moving the entry to the breach to the side like and old mag
__________________
"Originally posted by TwoKaySix: No you're not, you're a sheep.

BAAAAAAAAAAAAAAaaaAAAA"
(\__/)
(='.'=)
(")_("). COPY BUNNY INTO YOUR SIG TO HELP HIM ACHIEVE WORLD DOMINATION
swatchenswitch is offline
Old 01-08-2008, 10:27 AM #5
Jornum1


Join Date: Jan 2008
Quote:
Originally Posted by swatchenswitch View Post
what was the final inside diameter?


also have you thought about moving the entry to the breach to the side like and old mag
I would have to measure again, I dont remember exactly. I believe it was just over 1.5in.

I did think about the side entry into the breach, but I didnt want to modify breach. I wanted to keep the internals as simple as possible. I like the idea of a riser for the sight though. It will give it more of a M-16/M-4 look.
This will probably be my prototype. After I finish and start to play with it I am sure I will think of a million things I would change for the next!
Jornum1 is offline
Old 01-08-2008, 10:41 AM #6
Feathered


Join Date: Jan 2008
Feathered helped look for balloons
interested to see how it turns out. it looks decent as is lol. do post when you get a sight on it.
Feathered is offline
Old 01-08-2008, 12:33 PM #7
johnny.woo123


johnny.woo123's Avatar

Join Date: Oct 2007
you could mill that down pretty nicely and make it look really nice. its still bob now right? good job post end pics when ur done
johnny.woo123 is offline
Old 01-08-2008, 12:43 PM #8
Jornum1


Join Date: Jan 2008
Yea its still BOB, You just need to loosen one set screw for the stock and it comes right out.
Thanks everyone, I will post some more when I make progress.
Jornum1 is offline
Old 01-08-2008, 01:06 PM #9
BEsRaider


BEsRaider's Avatar

Join Date: Dec 2007
BEsRaider owns a Planet Eclipse Ego
In my head, I can see all kinds of potential to come out of this project. There are so many options as far as designs and whatnot, depending on your machine skill level. you could even do a two part, where the inside is a solid piece of black stock, and you do a cut/mill flames or some pattern/design into the outside sleve that would be polished or anno'ed. hmmm...i may have to pull out the old shop smith... keep up the work for sure!
BEsRaider is offline
Old 01-08-2008, 01:20 PM #10
Jornum1


Join Date: Jan 2008
That is a great idea, but I want to keep this project all business. My goal is to have it look as mil-sim like as possible, but still original.
Machining flames is definitely beyond my skill level! I mean I guess I could do it free hand, but that is besides the point.
You do give me a idea though. I am thinking of sloting the front of the body all the way through in the sides or top and bottom, back to where the breach starts. That would give cool look, like a shroud effect.

I will probably just do a quick flat black for color for this weekend, but eventually I would like to do a dura coat digi-camo paint job.
Jornum1 is offline
Old 01-08-2008, 01:49 PM #11
beoulve


beoulve's Avatar

Join Date: Dec 2007
nicely done. though I prefer tilted feed neck like SP8. Couldnt find anybody make that type of breech and body for it.
beoulve is offline
Old 01-08-2008, 02:01 PM #12
SpyderPB819
yyyyyooooolllllooooo

SpyderPB819's Avatar

Join Date: Feb 2007
Location: Clarkslotteacuse
SpyderPB819 donated to help Peyton Trent
SpyderPB819 is one of the top 25 posters on PbNation
Do you plan on doing more milling and getting it anodized?
__________________
1923, 1927, 1928, 1932, 1936, 1937, 1938, 1939, 1941, 1943,
1947, 1949, 1950, 1951, 1952, 1953, 1956, 1958, 1961, 1962,
1977, 1978, 1996, 1998, 1999, 2000, 2009
SpyderPB819 is offline
Old 01-08-2008, 03:08 PM #13
boxingkingx
HyperSports Tech

boxingkingx's Avatar

Join Date: Nov 2007
Location: Orlando FL
nice gun bro and very creative
__________________
Koa
Orlando Doom
Hypersports Park
AIM=o12591
CFPS
boxingkingx is offline
Old 01-08-2008, 04:25 PM #14
unfairtebo
ibunkru

unfairtebo's Avatar

Join Date: Dec 2007
Location: Liverpool NewYork
try to make a rail to mount a scope/laser sight. Seeing as your into woodsball.
__________________
alpine type 6.5" coax speakers for sale pm for details
unfairtebo is offline
Old 01-08-2008, 04:54 PM #15
Jornum1


Join Date: Jan 2008
I stated above I am making a riser for a weaver rail to mount a red dot sight.
I also stated above my plans for digi-camo paint.
Jornum1 is offline
Old 01-08-2008, 04:57 PM #16
SpyderPB819
yyyyyooooolllllooooo

SpyderPB819's Avatar

Join Date: Feb 2007
Location: Clarkslotteacuse
SpyderPB819 donated to help Peyton Trent
SpyderPB819 is one of the top 25 posters on PbNation
Quote:
Originally Posted by Jornum1 View Post
I stated above I am making a riser for a weaver rail to mount a red dot sight.
I also stated above my plans for digi-camo paint.
Good luck with that.
__________________
1923, 1927, 1928, 1932, 1936, 1937, 1938, 1939, 1941, 1943,
1947, 1949, 1950, 1951, 1952, 1953, 1956, 1958, 1961, 1962,
1977, 1978, 1996, 1998, 1999, 2000, 2009
SpyderPB819 is offline
Old 01-08-2008, 05:10 PM #17
navybrat#1


navybrat#1's Avatar

Join Date: Nov 2007
nice job well done.
__________________
If your mom plays paintball put this in your sig

Sp ion, Hollow point bolt, Cp shorty reg, cp sling trigger, 360 QEV, cp razor drop forward, cp on/off asa, virtue eyes, freak kit, crossfire 70/4500

ION OT v.39, 1/15/2008 - I Was There For The CK Sister Avatar Prank... If You Were There Put This In Your Sig
navybrat#1 is offline
Old 01-08-2008, 05:35 PM #18
Adidas4275


Adidas4275's Avatar

Join Date: Jul 2007
Location: Fresno,ca
looks great..... a lot like the deadlywinds body i own

how are you going to finish it, anno, powdercoat or paint?
Adidas4275 is offline
Old 01-08-2008, 05:36 PM #19
SpyderPB819
yyyyyooooolllllooooo

SpyderPB819's Avatar

Join Date: Feb 2007
Location: Clarkslotteacuse
SpyderPB819 donated to help Peyton Trent
SpyderPB819 is one of the top 25 posters on PbNation
Quote:
Originally Posted by Adidas4275 View Post
looks great..... a lot like the deadlywinds body i own

how are you going to finish it, anno, powdercoat or paint?
digital camo paint.
__________________
1923, 1927, 1928, 1932, 1936, 1937, 1938, 1939, 1941, 1943,
1947, 1949, 1950, 1951, 1952, 1953, 1956, 1958, 1961, 1962,
1977, 1978, 1996, 1998, 1999, 2000, 2009
SpyderPB819 is offline
Old 01-08-2008, 07:17 PM #20
Jornum1


Join Date: Jan 2008
Thanks Everyone,

Quote:
Originally Posted by Adidas4275 View Post
looks great..... a lot like the deadlywinds body i own

how are you going to finish it, anno, powdercoat or paint?
Yeah the deadlywinds body would have been my choice if I bought one. But even if I wanted to no bodys work with the xe yet.

When I slot it and finish it up with the sight riser and everything it will have a distinct look(hopefully!).
And yes I am going to paint it with duracoat digital camo pattern. They have a nice kit with stencils and everything you need.
/http://www.houtsenterprises.net/
Jornum1 is offline
Old 01-08-2008, 07:37 PM #21
unfairtebo
ibunkru

unfairtebo's Avatar

Join Date: Dec 2007
Location: Liverpool NewYork
That is going to look great. Make sure to post pictures after paint.
