Old 01-03-2008, 06:45 PM #1
mic49


Join Date: Dec 2004
Location: NORTH CAROLINA
Rocket Launchers

Does anyone know what volume of air is needed to launch a 2" nerf rocket down a 3 foot 2 " PVC barrel at 225 FPS using 200 PSI?
I can do this by trial and error, which will take quite some time and a lot of effort.
I was hoping someone had been through this process and would already know.
mic49 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 01-03-2008, 11:16 PM #2
BlackAngelSS
The Black Korps

BlackAngelSS's Avatar

Join Date: Dec 2006
im no math whizz but i build alot of air cannons. use a 3/4 or 1 inch sprinkler valve and youll be all set. a reg ball valve will work too just slap it open quickly. also 200 psi is alot you dont need that much pressure. 100 psi with a 125 pis pop valve will work fine
__________________
SS Brigadeführer A.Deckmann
CO 1.SS Panzer Division LSSAH & 1.SS Panzer Korps
Team Captain"The Black Korps"

1.SS Panzer Korps
BlackAngelSS is offline   Reply With Quote
Old 01-03-2008, 11:43 PM #3
xFJx
TaliS PLR

xFJx's Avatar

Join Date: Nov 2007
Most fields will require the pop-off valve (125psi) in order to bring it on field. I recommend you make the launcher to whatever dimensions are comfortable for you then adjust the pressure to get the distance you need. You don't need much to launch the rocket. If the volume is a bit on the low side then just up the pressure or vise-versa. My personal one uses about 50-60psi and will easily launch a rocket 75 yds. As long as you can release the valve quick enough it will do what ya need it to do. BTW..3 ft barrel? its a bit on the long side.
__________________
Pennsylvania LongRiflemen
Proud Member of the ERSA
xFJx is offline   Reply With Quote
Old 01-04-2008, 01:18 AM #4
13thFreak
13thLegionnaires-VicePres

13thFreak's Avatar

Join Date: Mar 2007
13thFreak owns a Planet Eclipse Ego
a JCS launcher has no more than 16 inches of barrel. 3 foot is way overkill. i would suggest nothing more than 18 inches unless you absolutely need 3 feet for some reason.
in my tests the length of barrel affects the velocity.
__________________
Sponsored by:
Planet Eclipse, http://www.ontargetpaintball.com/, A & J PAINTBALL, PBNation
http://www.13thlegionnaires.com

http://www.planeteclipse.com/folders...10brochure.pdf

Check out our Team Section right here at PBNation
13th LegionnairesTeam Section on PBN
13thFreak is offline   Reply With Quote
Old 01-04-2008, 08:13 AM #5
mic49


Join Date: Dec 2004
Location: NORTH CAROLINA
Still need HELP!

Thank you Gentlemen. You have given me much food for thought which has led to more questions.
What do you use to power your rocket, HPA or CO2?
What size container do you use, 12 gram, 9oz. CO2 or 47/3000 HPA, ect?
What do you use as a holding vessel for the propellant between the main cotainer and the launcher?

Where I have gotten to at the moment is using 2" SCH 40 PVC for the main body of the launcher. A 36" barrel to start, a T at the end followed by a quick opening gate valve at the very end acting as a loading/breach for the rocket and then bringing the propellant in through the side end of the 2" T stepped down to 3/4" copper pipe using another quick opening gate valve to fire the unit. I had planned to attach a 20 oz. CO2 bottle to the bottom of the launch tube screwed into an ASA fitting, using macro line feeding to an Evil Detonator reg screwed into a T fitting, at one side of the T a pressure gauge and the other the outlet to the launcher, using the regulator as sort of a handle near the front of the launcher.
Now where I am stuck is what to use to deliver the propellant, will 3/4" copper pipe be a good choice and if so how much of it will I need?
I have tried feeding the launcher via macro line from 2' of 3/4" copper pipe and came to the conclusion that the macro line did not let enough volume of air in fast enough to launch the rocket very far. That is why I am going to use 3/4" to feed the launcher directly.
Any ideas would be greatly appreciated.
mic49 is offline   Reply With Quote
Old 01-04-2008, 09:27 AM #6
BlackAngelSS
The Black Korps

BlackAngelSS's Avatar

Join Date: Dec 2006
i use a hpa tank ,to a remote line that plugs into a fitting that is epoxied into the air chamber.
For more info check out spudtech.com or Warpig.com tank section
__________________
SS Brigadeführer A.Deckmann
CO 1.SS Panzer Division LSSAH & 1.SS Panzer Korps
Team Captain"The Black Korps"

1.SS Panzer Korps
BlackAngelSS is offline   Reply With Quote
Old 01-04-2008, 09:53 AM #7
13thFreak
13thLegionnaires-VicePres

13thFreak's Avatar

Join Date: Mar 2007
13thFreak owns a Planet Eclipse Ego
im having a hard time visualizing your setup. Blackangel put up the best links, spudtech is topnotch.
__________________
Sponsored by:
Planet Eclipse, http://www.ontargetpaintball.com/, A & J PAINTBALL, PBNation
http://www.13thlegionnaires.com

http://www.planeteclipse.com/folders...10brochure.pdf

Check out our Team Section right here at PBNation
13th LegionnairesTeam Section on PBN
13thFreak is offline   Reply With Quote
Old 01-04-2008, 01:35 PM #8
mic49


Join Date: Dec 2004
Location: NORTH CAROLINA
BlackAngelSS
What are the dimensions of your air chamber?
What is the air pressure of the chamber?
What is the length of your barrel?
Do you know how many FPS your rocket is going at the muzzle?

These are the keys to getting any launcher to work I believe.
mic49 is offline   Reply With Quote
Old 01-04-2008, 01:50 PM #9
Tradeguy
Dead Tank Driver

Tradeguy's Avatar

Join Date: Jun 2001
Location: Gainesville, FL
Tradeguy is a Supporting Member
 has been a member for 10 years
You might also find some useful info here:
http://www.doomlabs.com/
__________________
Dead By Dawn
Tradeguy is offline   Reply With Quote
Old 01-04-2008, 05:00 PM #10
Orpackrat


Orpackrat's Avatar

Join Date: Dec 2007
Mine operates on unregulated Co2 from my guns Co2 supply which is duel 48oz tanks.
Orpackrat is offline   Reply With Quote
Old 01-04-2008, 05:15 PM #11
Harbinger[TG] (Banned)
BOS

Harbinger[TG]'s Avatar

Join Date: Dec 2002
Location: HERE
 has been a member for 10 years
http://www.pbnation.com/showthread.php?t=2258620
Harbinger[TG] is offline   Reply With Quote
Old 01-04-2008, 07:35 PM #12
R.T.M. Chris
Captain Bigfoot

R.T.M. Chris's Avatar

Join Date: Oct 2006
Location: CT
my $.02 225 fps is way more than you need for a nerf. 150-175 is PLENTY. I get that with about 100 psi in a chamber that is about 10" of 2" PVC pipe. the higher the pressure you use the less volume you need. I use a fill nipple on the chamber and fill with co2 using a coiled remote. I get nervous when i hear about guys using unregulated co2 from their markers because that can be anywhere from 800 psi on up to the 2000 psi range if it is hot. WAY too much for pvc (200-300ish)and even most metal pipe(600ish). You do not want to make a bomb.

also 16-20" is good for the barrel. over 2' so just slows down the rocket or wastes air.

__________________
05 ICD Promaster, 06 Ego Maniac, 08 PMR SE Camo, A-5, 98 Custom, Overlord, Nelspot 007
"I JUST WANT TO SHOOT SOMEONE"
Cpt. Bigfoot, Rag Tag Mercenaries
MVT STRATEGY PLUS Russian Front 2007 (Russian)
MVT STRATEGY PLUS Deadwood 2007 (Swearengen)
MVT STRATEGY PLUS Road to Paris 2008 (German)
Proud to be sponsored by: STRATEGY PLUS www.strategyplus.com

Last edited by R.T.M. Chris : 01-04-2008 at 08:00 PM.
R.T.M. Chris is offline   Reply With Quote
Old 01-04-2008, 08:17 PM #13
Orpackrat


Orpackrat's Avatar

Join Date: Dec 2007
Quote:
Originally Posted by R.T.M. Chris View Post
I get nervous when i hear about guys using unregulated co2 from their markers because that can be anywhere from 800 psi on up to the 2000 psi range if it is hot. WAY too much for pvc (200-300ish)and even most metal pipe(600ish). You do not want to make a bomb.

No need to worry, the weakest point of my launcher has a 1,000 PSI working pressure. The parts with that 1,000 PSI pressure rating is made to use with Co2 and its pressure changes. The burst disk on the Co2 tank will blow long before the pipe on my high pressure launchers.
Orpackrat is offline   Reply With Quote
Old 01-04-2008, 09:38 PM #14
BlackAngelSS
The Black Korps

BlackAngelSS's Avatar

Join Date: Dec 2006
Quote:
Originally Posted by mic49 View Post
BlackAngelSS
What are the dimensions of your air chamber?
What is the air pressure of the chamber?
What is the length of your barrel?
Do you know how many FPS your rocket is going at the muzzle?

These are the keys to getting any launcher to work I believe.

i have 3 different launchers right now and 2 more in planning. We have the 12 gram co2 panzerfausts, Main cannon of our Panzer and our mortar. Each is a totally different design. the tank cannon shoots the hardest. its adjustable with a palmer stabilizer to more speed than we need. So we keep the psi at around 100
__________________
SS Brigadeführer A.Deckmann
CO 1.SS Panzer Division LSSAH & 1.SS Panzer Korps
Team Captain"The Black Korps"

1.SS Panzer Korps
BlackAngelSS is offline   Reply With Quote
Old 01-05-2008, 12:24 AM #15
xFJx
TaliS PLR

xFJx's Avatar

Join Date: Nov 2007
There sure is a lot of wasted air pressure going on here. 100 psi is far more than anyone needs to successfully launch a nerf rocket. I used a palmer stab to bring the pressure down to about 60 and used some basic batteries to quickly release the valve.
If you want to try and keep your gun lower pressure make sure that the barrel is directly after your valve so that the air wont try and fill up any unnecessary chambers prior to pushing the rocket out the barrel. Extending the barrel will require the chamber to be larger or pressures higher.

__________________
Pennsylvania LongRiflemen
Proud Member of the ERSA
xFJx is offline   Reply With Quote
Old 01-05-2008, 09:04 AM #16
BlackAngelSS
The Black Korps

BlackAngelSS's Avatar

Join Date: Dec 2006
my Tanks cannon has manual valve so you need a little more psi
__________________
SS Brigadeführer A.Deckmann
CO 1.SS Panzer Division LSSAH & 1.SS Panzer Korps
Team Captain"The Black Korps"

1.SS Panzer Korps
BlackAngelSS is offline   Reply With Quote
Old 01-06-2008, 07:33 AM #17
Teddymo
The Paintball Lawyer

Teddymo's Avatar

Join Date: Feb 2007
Location: Little Neck
Teddymo is playing at Living Legends III
Teddymo supports Bob Gurnsey
Quote:
Originally Posted by R.T.M. Chris View Post

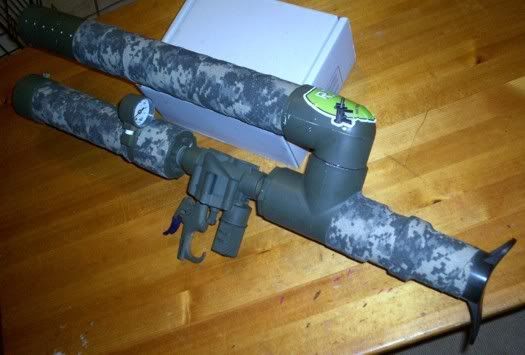

Nice custom launcher!
__________________
UNDERTAKERS PAINTBALL INC.
Proudly Sponsored By:
Animal Paintball / Cousins Paintball / Pinokio Hoppers / Rap4 / Sport Smoke / Valken Paintball /
/ X3 Magazine / Monster Energy Drinks / Papa-Do-Gi's - For All Your Catering Needs / On Target Paintball Field /
Under-Dogs
Teddymo is offline   Reply With Quote
Old 01-06-2008, 08:13 AM #18
The Glitch
Myrmidon's Web Monkey

The Glitch's Avatar

Join Date: Nov 2005
Location: The Empire State
Quote:
Nice custom launcher!
definitely, she's a beaut!
__________________
_MYRMIDON EMPIRE_
---(Mur-Meh-Don)---
pillage and burn!!!

Proud to be apart of the Strategy Plus Family.
For top quality scenario play at a modest price, there's no better choice!


Fueled by EMPIRE Paintball
The Glitch is offline   Reply With Quote
Old 01-06-2008, 11:49 AM #19
ViperScenarios
Coast-to-coast Scenarios

ViperScenarios's Avatar

Join Date: Jul 2003
Location: Texas
ViperScenarios is playing at Living Legends III
ViperScenarios is playing at Living Legends V
ViperScenarios owns a Planet Eclipse Geo
ViperScenarios supports Bob Gurnsey
Exclamation

In the interest of safety and being able to use it anywhere, let me interject some info.

1) Always add a blow-off valve to your design. It makes fields and scenario directors happy. You can get them anyplace that sells parts for air compressors, and they are preset to vent at 125psi and then reseal.
2) Unless you are using 12 grams stay away from CO2. The risk of liquid in the system, and the constant freezing/warming of your materials is not good for the structural integrity of the unit. No one ever factors that little bit of physics in when building these devices. Temperature changes weaken the structural integrity of most materials.
3) Your pipe may be rated at 1000psi, but what about your connections? Do you know enough about engineering and physics to figure out what the joints are rated at. Did you use the correct cement for the pipe, as well as primer and cleaner first?
4) Your gun, tank, mask, and all the other equipment you bring to the field is covered by the manufacturer’s product liability insurance. Homemade equipment is not. Therefore the liability, in the event of an accident, will fall on the field (and the scenario production company if they are using one). (This does not apply to the JCS launcher, as it is manufactured by a reputable company) This means that you need to be understanding of their requirements. If there are things they ask you to do, like integrating a blow-off valve, don’t get pissy and whine about it. Do it and be thankful they are willing to accept the risk for your launcher, and your home shop skills.
__________________
Kerry "Viper" Rosenberry
Event Director: Viper Paintball
www.viperpaintball.com
ViperScenarios is offline   Reply With Quote
Old 01-07-2008, 02:07 PM #20
cmosser502
Murkin' and Glitchin'

Join Date: May 2007
Location: Louisville, KY
how do youmake a launcher using 12 grams, cna someone show me. id like ot make a launcher that will fire nerf rockets but i want a design where all of the stuff is in a straight line, i dont want an overunder setup.
cmosser502 is offline   Reply With Quote
Old 01-07-2008, 02:24 PM #21
treadstone


treadstone's Avatar

Join Date: Aug 2002
Location: new jersey
 has been a member for 10 years
treadstone owns a Planet Eclipse Geo
I foresee in a couple of years most fields not allowing the home builts anymore due to liablity issues, all it takes is one to blow up running unregulated CO2 into 2"PVC to shut the whole shebang down.

Quote:
Originally Posted by cmosser502 View Post
how do youmake a launcher using 12 grams, cna someone show me. id like ot make a launcher that will fire nerf rockets but i want a design where all of the stuff is in a straight line, i dont want an overunder setup.
cmosser if you want cheap and easy go with the preassure washer handle launcher
