10-24-2007, 02:06 PM
|
#1
|
|
Mr Diet Coke on the Rocks
|
hows an osiris work
so i know the top lpr is for the front noid.
and somone told me the bottom one is for the back noid.
back noid????? so they werent sear trippers like other cockers?
did they have an mq or were they fully ep in a different way?
|
|
|
|
10-24-2007, 06:29 PM
|
#2
|
|
Tengoungato?
Join Date: Aug 2004
Location: San Diego, South Cali
|
They are FASOR style markers.
|
|
|
|
|
10-25-2007, 02:43 AM
|
#3
|
|
|
yeah, I believe instead of having a spring pushing a hammer into the valve, they had a ram, which the second LP ran. I've never held one, but from what I've seen of them that's how they worked.
MJ
|
|
|
|
|
10-27-2007, 09:24 PM
|
#4
|
|
|
The bolt is manipulated by a uber low-pressure ram, autococker style. And the valve-actuation methood is FASOR, just like in the Legend, Fusion, and Wrath. The second LPR is of higher pressure to run the ram.
__________________
Veteran of OIF 09-10
I am the Infantry! Follow me!
|
|
|
|
|
11-08-2007, 11:20 AM
|
#5
|
|
Doesnt Care Anymore
Join Date: Jul 2005
Location: ******
|
its pretty damn clever.
|
|
|
|
|
11-10-2007, 07:52 PM
|
#6
|
|
BEO Mafia
Join Date: Jan 2006
Location: Maryland
|
A quick photoshop of how it works. I may make a hole new one later. Send it to Ydna.
|
|
|
|
|
11-15-2007, 04:03 PM
|
#7
|
|
|
You should edit that to make it look like it was turtled.
__________________
Veteran of OIF 09-10
I am the Infantry! Follow me!
|
|
|
|
|
11-16-2007, 03:13 PM
|
#8
|
|
timetraveler
Join Date: Oct 2003
Location: Tecumseh MI
|
hey! I'll add that...
__________________
ydna@zdspb.com - [ZDSPB.com]
nummech.com
As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".
Used parts f/s
|
|
|
|
|
11-17-2007, 04:10 AM
|
#9
|
|
BEO Mafia
Join Date: Jan 2006
Location: Maryland
|
Heres the second try. Ydna, hope you don't mind I used your Excal .gif to make it. If you do, just let me know, I'll delete it.
Still a little more tweaking needed. I need to slow it down, clean the bolt up a little, and add more then a couple MS of "idle" lol. |
|
|
|
|
11-17-2007, 07:30 PM
|
#10
|
|
timetraveler
Join Date: Oct 2003
Location: Tecumseh MI
|
Do you think you could add a little mechanism that moves the bolt? Besides for that it looks pretty good (good enough as it is...but people stil might have questions).
__________________
ydna@zdspb.com - [ZDSPB.com]
nummech.com
As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".
Used parts f/s
|
|
|
|
|
11-17-2007, 09:01 PM
|
#11
|
|
BEO Mafia
Join Date: Jan 2006
Location: Maryland
|
I think what I'll do is make a cut out window in the top right corner showing a ram. I also noticed something. The O-ring on the ram isn't there.
I'll start on it later tonight. |
|
|
|
|
11-18-2007, 01:26 AM
|
#12
|
|
BEO Mafia
Join Date: Jan 2006
Location: Maryland
|

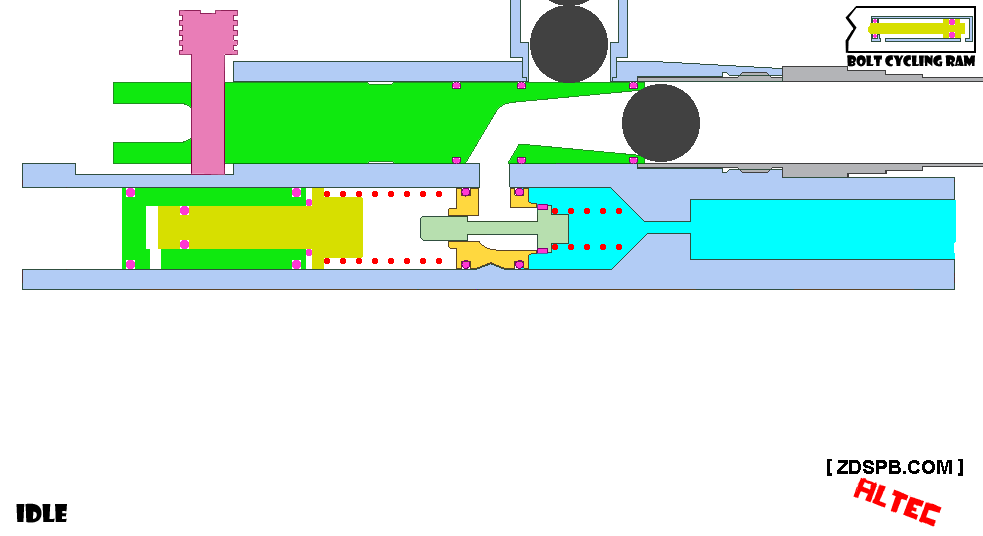

Ok, here we go. I think it looks better.
Last edited by XxAltecxX : 11-18-2007 at 01:33 AM.
|
|
|
|
