Wink HOW TO: dm6 trigger into pmr ul frame

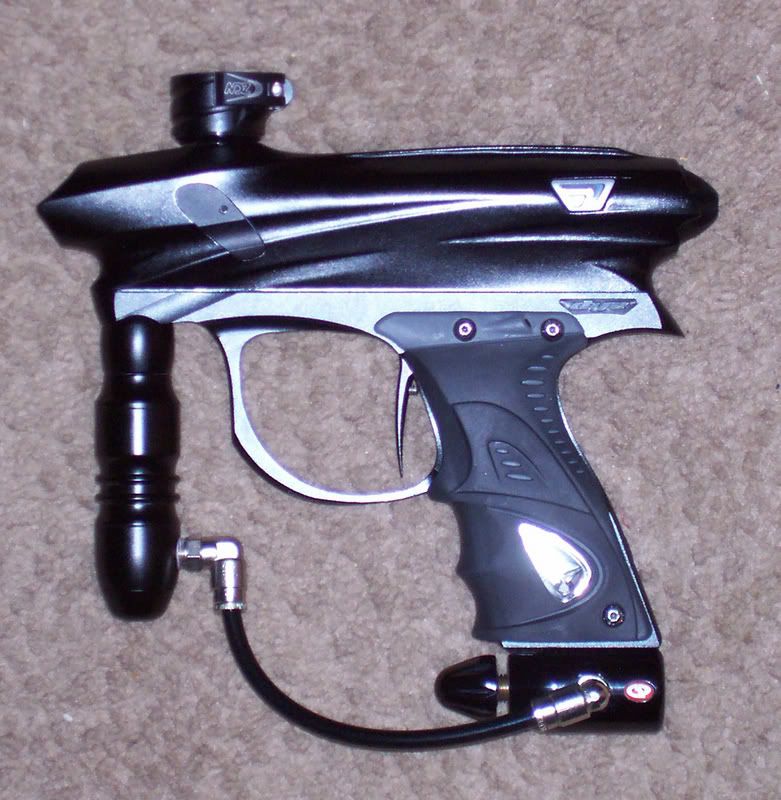

Allright so I was able to get a dm6 cp sling trigger into my PMR with UL frame. When I was trying to learn this mod the only thread I could find was a green pic of the trigger already in the gun so here is my attempt at a how to.

First off the only tool I had was a 6” triangle file. I don’t recommend doing this mod with only a file. It took me about 3 hours of straight filing but I got it done.

This is the trigger before I started the green section is what had to be filed off.


heres a couple compairison pics before I started the in the second pic the trigger are lined up at bearing and point they hit the micro switch you can see how much has to be filed to make the sling match the stock



here are some comparing pics of the trigger after the filing



close up pics of the trigger after filing




so hopefully the pics are some help but here’s what I did in words. I started by filing threw the top beam of the trigger at its thinnest point this way I was able to file with two sides of the file at once until the hole was bigger than the file then I filed around the bearing until there was just a thin layer all the way around the bearing leaving as little as possible. After I got the bearing side good I started working on the front of the trigger make sure to completely remove the remains of the cross bar file it until the vertical bar if smooth and maybe even further. The trigger should now fit into the frame however mine wouldn’t move yet I had to file the top of the vertical part where the set screw goes. I filed it down as far as possible without cutting the threads off completely I can still thread in the set screw if I wanted however I left it out because the trigger pull is really short all ready. I might even do some more filing past the point of the screw hole to make the pull longer



__________________
Old feedback TRUST ME
downhillracer17 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 09-07-2007, 12:48 PM #2
erayser
AlternativePB.com

erayser's Avatar

Join Date: Sep 2005
Location: San Diego
Annual Supporting Member
erayser is a Moderator
erayser is a Supporting Member
erayser is BST Legit
Nice job.
erayser is offline   Reply With Quote
Old 09-07-2007, 01:56 PM #3
0ddball
It's what I do...

0ddball's Avatar

Join Date: Apr 2007
Location: ???
0ddball owns a Planet Eclipse Geo
0ddball has achieved Level 1 in PbNation Pursuit
0ddball has achieved Level 2 in PbNation Pursuit
0ddball has achieved Level 3 in PbNation Pursuit
Good job man.
__________________
It's not that I didn't read your rules, its I just don't care....
0ddball is offline   Reply With Quote
Old 09-08-2007, 05:46 AM #4
karseras69


karseras69's Avatar

Join Date: Nov 2005
Location: Cyprus
karseras69 owns a Planet Eclipse Ego
karseras69 has achieved Level 1 in PbNation Pursuit
does the fact that you removed the top "bridge" affect the stability of the trigger ?

nice job
__________________
Dogs D'amour

FEEDBACK 1/0
karseras69 is offline   Reply With Quote
Old 09-08-2007, 08:22 PM #5
downhillracer17


downhillracer17's Avatar

Join Date: Aug 2004
Location: gray, maine, usa
 has been a member for 10 years
didnt seem to effect the trigger at all its still strong doesnt bend or twist or anything
__________________
Old feedback TRUST ME
downhillracer17 is offline   Reply With Quote
Old 09-08-2007, 08:31 PM #6
cornchips
got any dip?

cornchips's Avatar

Join Date: Jun 2006
cornchips is playing at Living Legends III
sweet gonna have to give this a shot good work man
__________________
Joey aka Cornchips #12 proud member of Team Predator
teampredator 2008-Battle of the Bulge MVT
Sponsored by Predator's Den Paintball Supply, Newton, NJ
"Originally posted by PyroManiac:
TeamPredator - your reputation as an honest, hard hitting relentless bunch of killers are well deserved. I feel sorry for anyone that has to go up against a full squad of your team!
*The views expressed by Shag77 are not necessarily that of Team Predator. Any similiarites between persons live or dead is merely coincidental-Predator Legal
cornchips is offline   Reply With Quote
Old 09-08-2007, 08:41 PM #7
p8ntballa9337
Time to suck today's dick

p8ntballa9337's Avatar

Join Date: Apr 2007
Location: ~NJ 732~
pretty sweet. I couldnt imagine doing that witha rat tail filer.lol. How many times did you hit your hand and rip the skin off? I hate when i do that.lol
__________________
ST:An M5 could beat a F1 car on track
p8ntballa9337 is offline   Reply With Quote
Old 09-15-2007, 01:48 PM #8
ProtOwned
Master Chief

ProtOwned's Avatar

Join Date: Sep 2007
Location: San Diego, CA
Quote:
Originally Posted by p8ntballa9337 View Post
pretty sweet. I couldnt imagine doing that witha rat tail filer.lol. How many times did you hit your hand and rip the skin off? I hate when i do that.lol
You can always just use a dremel and save youself 3 hours.
ProtOwned is offline   Reply With Quote
Old 10-14-2007, 09:23 PM #9
Relientk1201


Join Date: Nov 2006
Has anyone tried this with this trigger

http://www.criticalpaintball.com/Cri..._dm6ultrig.htm

If not do you guys think it would work?
Relientk1201 is offline   Reply With Quote
Old 10-14-2007, 09:59 PM #10
theCOMEBACK
STFU PLZ

theCOMEBACK's Avatar

Join Date: Aug 2003
Location: San Francisco
theCOMEBACK is a Supporting Member
 has been a member for 10 years
Nice tutorial. Get some better pics and you've got a nice little sticky thread.
__________________
STOP POSTING
theCOMEBACK is offline   Reply With Quote
Old 10-14-2007, 10:19 PM #11
HK*Solidify (Banned)


Join Date: Oct 2007
Looks awesome!
HK*Solidify is offline   Reply With Quote
Old 10-14-2007, 10:49 PM #12
SlavaROKZ (Banned)
2 Girls. No Cup. Epic

Join Date: Jun 2007
Location: Las Vegas
Quote:
Originally Posted by Relientk1201 View Post
Has anyone tried this with this trigger

http://www.criticalpaintball.com/Cri..._dm6ultrig.htm

If not do you guys think it would work?
that trigger is for the untralight frame...
no mods necessary
SlavaROKZ is offline   Reply With Quote
Old 10-14-2007, 10:54 PM #13
Relientk1201


Join Date: Nov 2006
yeah but it says that it doesn't work for the pmr so do you think it could be modified to work?
Relientk1201 is offline   Reply With Quote
Old 10-15-2007, 12:21 AM #14
oil-slick-PM7 (Banned)
I own alot of guns...

Join Date: Sep 2007
very nice, i hope you tapped out the roller bearings before sanding/cutting. If metal dust or shavings land on the bearing say goodbye to smoothness.
oil-slick-PM7 is offline   Reply With Quote
Old 10-15-2007, 12:22 AM #15
oil-slick-PM7 (Banned)
I own alot of guns...

Join Date: Sep 2007
Quote:
Originally Posted by SlavaROKZ View Post
that trigger is for the untralight frame...
no mods necessary
no, it would not work at all, if you cut into that critical trigger, you will lose the ability to adjust the activation point.
oil-slick-PM7 is offline   Reply With Quote
Old 11-10-2007, 08:18 PM #16
panther1999


panther1999's Avatar

Join Date: Nov 2005
critical do make a trigger for the ul pmr frame it was kind a tricky putting it in and you have to super glue the magnet in the frame.
panther1999 is offline   Reply With Quote
Old 12-31-2007, 08:14 AM #17
p8intballer6


p8intballer6's Avatar

Join Date: Oct 2007
omg thts sick, good job
__________________
BROWN/TAN ETEK2
http://i148.photobucket.com/albums/s...4/DSC02102.jpg
p8intballer6 is offline   Reply With Quote
Old 12-31-2007, 10:49 AM #18
006blackjack
cream

006blackjack's Avatar

Join Date: Dec 2006
Location: ga
ooo vary nice.

makes the rail look..... different!
__________________
HSH keeping ur jersey clean since 2k7


LNIB Ipad Mini 32gb
006blackjack is offline   Reply With Quote
Old 12-31-2007, 04:18 PM #19
TurningHeads412


TurningHeads412's Avatar

Join Date: Dec 2007
NIce job. The rail looks really insane

Last edited by TurningHeads412 : 12-31-2007 at 04:22 PM.
TurningHeads412 is offline   Reply With Quote
Old 05-15-2008, 04:42 PM #20
RavinX13
PewPewPew

RavinX13's Avatar

Join Date: Nov 2003
Location: Seattle, WA
Annual Supporting Member
 has been a member for 10 years
RavinX13 is BST Trusted
RavinX13 plays in the APPA beginner division
RavinX13 supports Empire
Quote:
Originally Posted by panther1999 View Post
critical do make a trigger for the ul pmr frame it was kind a tricky putting it in and you have to super glue the magnet in the frame.
Proof? Cause I want one.
RavinX13 is offline   Reply With Quote
Old 05-15-2008, 05:10 PM #21
erayser
AlternativePB.com

erayser's Avatar

Join Date: Sep 2005
Location: San Diego
Annual Supporting Member
erayser is a Moderator
erayser is a Supporting Member
erayser is BST Legit
Quote:
Originally Posted by RavinX13 View Post
Proof? Cause I want one.
http://www.criticalpaintball.com/Cri..._ultrigger.htm
