Both Impulse LPR springs are identical, help!!

After reviewing the impulse manual v1.02
I saw in the LPR regulator diagram that it has 2 springs one is bigger than the other, and in the review that Mike from tech** did, he said that one spring is stiffer than the other.

However my impulse came with both springs exactly the same in size and stiffnes, I wonder if that's the reason when changing my LPR settings I can barely see any difference. Maybe they ran out of springs and they decided to put 2 of the same

Or how it can affect the performance of my Impulse??

Here is the diagram from the manual

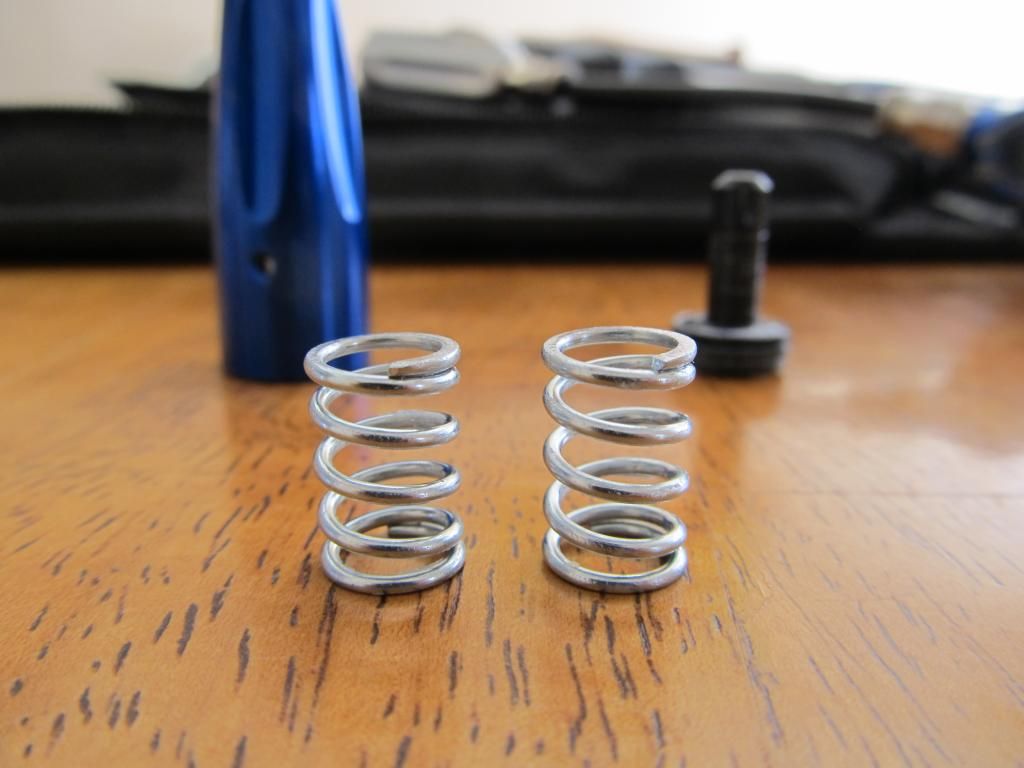

And here are the pictures of both LPR springs from my Impulse

__________________
LV1 Spekta 2
JT Impulse
naxalite is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 09-13-2014, 04:04 PM #2
imped4now
BTFU

imped4now's Avatar

Join Date: Apr 2003
Location: Indianapolis
 has been a member for 10 years
Interesting. I'll check mine out when I muster up enough energy to get out of bed.
__________________
FEEDBACK>>40+ 0-
OlllllllO
Need reliable teching services?
imped4now is offline   Reply With Quote
Old 09-15-2014, 08:07 AM #3
imped4now
BTFU

imped4now's Avatar

Join Date: Apr 2003
Location: Indianapolis
 has been a member for 10 years
So I checked mine out....the 'smaller' spring is a little shorter but feels to be the same spring rate. But this is what matters--all the way in shuts off air flow (which it does) and all the way out provides more pressure than is needed (which it does). If that's the case I wouldn't worry about it man.
__________________
FEEDBACK>>40+ 0-
OlllllllO
Need reliable teching services?
imped4now is offline   Reply With Quote
Old 09-15-2014, 01:12 PM #4
Ahura_Mazda
Wannabe

Ahura_Mazda's Avatar

Join Date: May 2014
Location: Utah
Another note on the manual, while I was tuning I ran into trouble because it said to turn clockwise to increase velocity and counter clockwise to decrease. My reg was the exact opposite though, is the manual wrong or is my gun just weird?
Ahura_Mazda is offline   Reply With Quote
Old 09-15-2014, 02:00 PM #5
imped4now
BTFU

imped4now's Avatar

Join Date: Apr 2003
Location: Indianapolis
 has been a member for 10 years
There definitely shouldn't be a discrepancy there. Both regulator adjuster screws are reverse threaded. Right/clockwise/out increases pressure, left/CCW/in decreases pressure.

Set your LPR to flush and turn it in 2 turns. Leave it there. Start out with your HPR a turn out from all the way in and slowly increase at the chrono.
__________________
FEEDBACK>>40+ 0-
OlllllllO
Need reliable teching services?
imped4now is offline   Reply With Quote
Old 09-16-2014, 06:31 PM #6
grantlissoy


grantlissoy's Avatar

Join Date: Aug 2014
grantlissoy owns a Planet Eclipse Ego
Quote:
Originally Posted by Ahura_Mazda View Post
Another note on the manual, while I was tuning I ran into trouble because it said to turn clockwise to increase velocity and counter clockwise to decrease. My reg was the exact opposite though, is the manual wrong or is my gun just weird?
LPR is opposite for some reason. Your gun isn't weird.



As for the springs, my gun is the exact same way. Same thing with my old ego. I think they're actually is a difference, but it's hard to tell. Not sure. Just try and make sure you put the same spring where you found it, and you should be fine.
__________________
I play for fun~
grantlissoy is offline   Reply With Quote
Old 09-19-2014, 03:32 PM #7
naxalite


naxalite's Avatar

Join Date: Aug 2011
Location: Baja California
naxalite owns a Planet Eclipse Ego
naxalite owns a Planet Eclipse Lv1
naxalite supports Empire
Quote:
Originally Posted by imped4now View Post
So I checked mine out....the 'smaller' spring is a little shorter but feels to be the same spring rate. But this is what matters--all the way in shuts off air flow (which it does) and all the way out provides more pressure than is needed (which it does). If that's the case I wouldn't worry about it man.
I Will make a test this weekend and see ho it goes.
I have not played the last couple of weeks
__________________
LV1 Spekta 2
JT Impulse
