Old 03-05-2007, 05:40 PM #1
EvilFrontman3
Kentucky 5-0

EvilFrontman3's Avatar

Join Date: Feb 2006
Post Stock and Turbocharger (HE) bolt Identication chart

(I've deleted the unneeded posts from this thread, so the remaining posts may appear odd. bear with me)

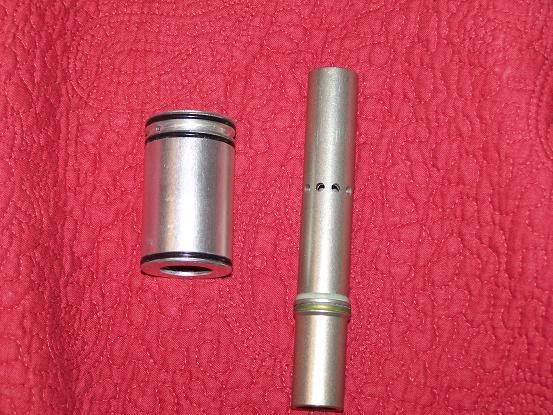

Smart Parts Shocker SFT stock bolt:

-This is the bolt that comes stock in the SFTs from year 2003-2006.
-The bolt has horrible effiency.

Smart Parts Shocker SFT stock bolt Identification:

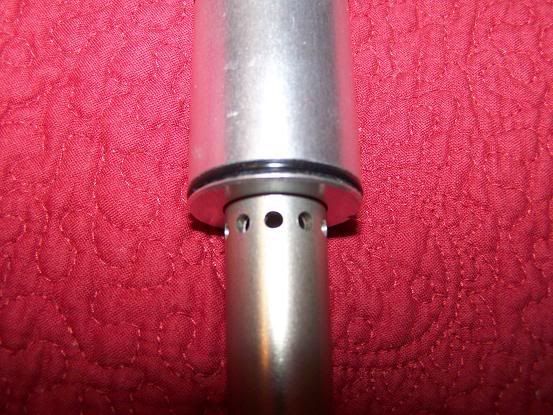

-It has small, circular holes on the bolt.
-The bolt can easily be removed from the can (slides out).
-The fire chamber is one-piece, it doesn't come apart.
-Anodized different shades of gray/green/blue, or clear-coat silver.

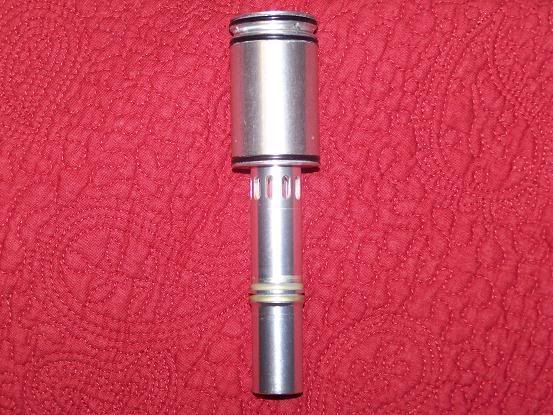

Smart Parts Shocker Turbocharger (HE) bolt:

-It is an upgrade for the SFTs, and it comes stock in the new NXTs.
-It greatly increase effiency in your Shocker.

Smart Parts Shocker Turbocharger (HE) bolt Identification:

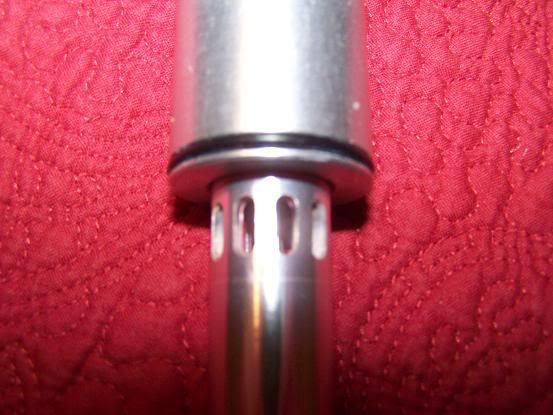

-It has elongated, ovular holes on the bolt.
-The bolt has to have an o-ring removed to be taken out the can.
-The front/cap of the fire chamber can be removed for disassembly.
-Anodized different shades of gray/green/blue, or clear-coat silver.

NDZ Stinger v1.

The bolt is delrin, the fire chamber looks like the one above. If you have one of these don't bother using it, it probably won't work. Send it to NDZ and they'll mail you a free v3.

NDZ Stringer v2.

The bolt is the same as the v1 (above) except it's made from aluminum. The fire chamber for the v2 looks similar to the current "v3" fire chamber with the side o-rings, except it doesn't seal agains the front of the bolt like the HE (notice there's no front o-ring groove on this bolt). diagram (notice the shape of the fire chamber)
Mail this into NDZ along with $20 and they'll send you a v3.

Freeflow v1

The bolt pictured has a lot of ano wear and probably leaks (common for freeflow bolts). The v1 has 5 ports in the bolt face. The Freeflow fire chambers look similar to the stock fire chamber except it unscrews (seen below)

Freelfow v3

The bolts are virtually the same except the bolt's seal ring was reversed. Freeflow v2/v3 bolts have 8 ports in the face.

Evolve ULP

Note the gold magnesium bolt and the fire chamber that resembles the NDZ v3.

Evolve v1/v2

These fit in the special Evolve fire chambers.

NoX NV bolt version-1

Made form white ertalyte

NoX NV bolt version-1.5

Made form black ertalyte

===========================

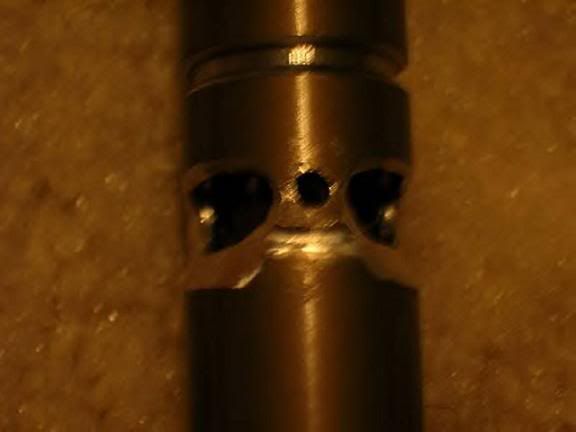

StrangBalla55 Shocker stock bolt mod:



-Sayed to have effiency like the Smarts Parts HE bolt.
-You need a Dremel and patience to do this mod.

I hope this chart will help people who have a Shocker, and they are uncertain about the bolt. -OR- I hope this chart will help people who have just received a Shocker in a trade, and they are uncertain about the bolt.

-EvilFrontman3
-Edited and arranged by Ydna
__________________
Living and balling for Christ
Old Feedback: +65/-0
New Feedback: +7/-0

Last edited by Ydna : 07-06-2007 at 10:53 AM.
EvilFrontman3 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 03-05-2007, 10:25 PM #2
Rodrigo - PTG


Join Date: Apr 2005
could be possible that if you make some milling in the stock bolt, it works as a HE??? or im just dreaming xD
Rodrigo - PTG is offline   Reply With Quote
Old 03-06-2007, 06:10 PM #3
EvilFrontman3
Kentucky 5-0

EvilFrontman3's Avatar

Join Date: Feb 2006
I need pics of these bolts:
-NDZ V3 Stinger (Jonezed7 is getting me this)
-Evolve ULP
-Evolve v1
-Evolve v2
__________________
Living and balling for Christ
Old Feedback: +65/-0
New Feedback: +7/-0

Last edited by Ydna : 05-07-2007 at 03:32 PM.
EvilFrontman3 is offline   Reply With Quote
Old 03-06-2007, 06:43 PM #4
StrangeBalla55
bamcis

StrangeBalla55's Avatar

Join Date: Dec 2004
Location: Stuttgart
StrangeBalla55 donated to help Peyton Trent
StrangeBalla55 supports Sherwood Forest
Quote:
Originally Posted by K-9 View Post
Nice one Strange, way to burst his bubble.
Strange, what are the effientcy numbers you get off your hagard bolt?
before i fixed my NDZ bolt( thats right, i said fix) I was getting around 3pods or so and a hopper with my 45/45. With the NDZ i get about 4 and half+hopper off same size tank.

never really tested however.
__________________
STRANGE/HYBRID SFT


SOG


DEEP SEA
StrangeBalla55 is offline   Reply With Quote
Old 03-06-2007, 07:53 PM #5
RORplayer44
still a joke

RORplayer44's Avatar

Join Date: Apr 2005
Location: CROOKCOUNTY
Annual Supporting Member
RORplayer44 is a Supporting Member
RORplayer44 plays in the PSP
RORplayer44 plays in the APPA D4 division
The turbocharger can be the greenish color, right?
__________________
That's the way she goes
R.I.P. COUNTRYCLUB/CHICAGOLAND PAINTBALL
RORplayer44 is offline   Reply With Quote
Old 03-06-2007, 09:44 PM #6
EvilFrontman3
Kentucky 5-0

EvilFrontman3's Avatar

Join Date: Feb 2006
Are you talking about the color that is similar to the stock bolt (in pics)? If so, then yes. I have a greenish-brownish HE in my Shocker as of now.
Nic
__________________
Living and balling for Christ
Old Feedback: +65/-0
New Feedback: +7/-0
EvilFrontman3 is offline   Reply With Quote
Old 03-06-2007, 09:58 PM #7
Ydna
timetraveler

Ydna's Avatar

Join Date: Oct 2003
Location: Tecumseh MI
Ydna is a Moderator
Ydna is a Supporting Member
 has been a member for 10 years
Ydna is BST Trusted
uggh...you REALLLY want to make an all inclusive "all bolts" version thread?

gimme a few minutes....

edit: DON'T EDIT THE FIRST POST / I'M EDITING IT AS I TYPE THIS OMGOMGOMGOMG I'LL KILL YOU

edit2: done
__________________
ydna@zdspb.com - [ZDSPB.com]
Nummech Products
Thin Air Sports

As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".

Last edited by Ydna : 03-06-2007 at 10:23 PM.
Ydna is offline   Reply With Quote
Old 03-07-2007, 11:14 PM #8
Ydna
timetraveler

Ydna's Avatar

Join Date: Oct 2003
Location: Tecumseh MI
Ydna is a Moderator
Ydna is a Supporting Member
 has been a member for 10 years
Ydna is BST Trusted
Quote:
Originally Posted by Rodrigo - PTG View Post
there is some diference between the NDZ V2 and V3 cans??? cos i could get a v2 but i dont know if it will make some REALLY diference with my stock bolt.
The v2 works just like the stock bolt, except with the LP fire chamber that NDZ makes for it. NDZ then redesigned it into the "v3" which works like the HE bolt.

If you can get a v2 cheap then you should go for it, because you can trade it in for a v3 along with $20.
__________________
ydna@zdspb.com - [ZDSPB.com]
Nummech Products
Thin Air Sports

As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".
Ydna is offline   Reply With Quote
Old 03-08-2007, 09:35 AM #9
Ydna
timetraveler

Ydna's Avatar

Join Date: Oct 2003
Location: Tecumseh MI
Ydna is a Moderator
Ydna is a Supporting Member
 has been a member for 10 years
Ydna is BST Trusted
Quote:
Originally Posted by sheWILLchoke View Post
Do the NDZ stinger's work on NXT's?
Only if the fire chamber is the "closed" variety, without the side o-rings.
__________________
ydna@zdspb.com - [ZDSPB.com]
Nummech Products
Thin Air Sports

As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".
Ydna is offline   Reply With Quote
Old 03-08-2007, 06:32 PM #10
Ydna
timetraveler

Ydna's Avatar

Join Date: Oct 2003
Location: Tecumseh MI
Ydna is a Moderator
Ydna is a Supporting Member
 has been a member for 10 years
Ydna is BST Trusted
Okay I added it to the ult sticky thread, I don't want to stick this but it's in the thread either way. Please direct people with identification questions to this thread (they seem to appear every week or so).

IO'll probably go through and clean the thread up a bit, laters....
__________________
ydna@zdspb.com - [ZDSPB.com]
Nummech Products
Thin Air Sports

As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".
Ydna is offline   Reply With Quote
Old 03-10-2007, 05:48 PM #11
Ydna
timetraveler

Ydna's Avatar

Join Date: Oct 2003
Location: Tecumseh MI
Ydna is a Moderator
Ydna is a Supporting Member
 has been a member for 10 years
Ydna is BST Trusted
Quote:
Originally Posted by Rodrigo - PTG View Post
Thanks but i was talking about just the V2 Can, not the bolt, or the kit, just the can, is better than my stock can?? and if it could work with any new bolt ??
It'll perform just like installing one of the v3 fire chambers without the rest of the kit. There will probably be a drop in pressure but the overall performance will be pretty much unchanged.
__________________
ydna@zdspb.com - [ZDSPB.com]
Nummech Products
Thin Air Sports

As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".

Last edited by Ydna : 05-07-2007 at 03:31 PM.
Ydna is offline   Reply With Quote
Old 05-21-2007, 10:46 AM #12
KarNivOr073


KarNivOr073's Avatar

Join Date: Nov 2006
Location: No. Virginia
KarNivOr073 plays in the PSP
KarNivOr073 plays in the APPA D4 division
hey guys will the V3 NDZ HE kit do much, or should i just go with the smart parts turbo charger bolt
KarNivOr073 is offline   Reply With Quote
Old 10-15-2007, 09:14 PM #13
e_friccero
\_(ツ)_/

e_friccero's Avatar

Join Date: Aug 2006
Location: AK to CA
Annual Supporting Member
e_friccero is a Paintball photographer
e_friccero is one of the top 500 posters on PbNation
e_friccero is Legendary
e_friccero is Boss
e_friccero is attending Decay of Nations VII
very helpful just found out that i was lied to in a trade about my bolt thanx
e_friccero is offline   Reply With Quote
Old 10-16-2007, 07:53 AM #14
lamar


lamar's Avatar

Join Date: Aug 2003
Location: Tacoma-Lacey WA.
 has been a member for 10 years
lamar supports Cereal Killerz 2
lamar is for the Gunfight
thanks for the info I was not sure about the cosmetic differances of the bolts and cans
__________________
MARQ CLOSER saber trigger Offer up on price.


FEEL the JOY/ FLY or DIE
lamar is offline   Reply With Quote
Old 10-20-2007, 01:45 PM #15
jbob8314


Join Date: Jun 2007
i have a 05 sft do they come with a he can if so where can i geta he bolt seperate
__________________
Brand New Cp 2 Peice Barrel Cheap - PbNation#post36227635#post36227635
jbob8314 is offline   Reply With Quote
Old 10-20-2007, 07:06 PM #16
K-9
name's ryon. hi

K-9's Avatar

Join Date: Nov 2003
Location: khm
Annual Supporting Member
 has been a member for 10 years
K-9 plays in the PSP
K-9 donated to help Peyton Trent
K-9 supports DLX Technology
You need to purchase an HE bolt kit.
punisherspb.com
K-9 is offline   Reply With Quote
Old 10-22-2007, 07:06 PM #17
jsnole
Smart Parts....

jsnole's Avatar

Join Date: Sep 2007
Location: Jacksonville, Fl
I have a Freeflow V1 bolt. Just bought it and it came with a stock can. Will it be any better that stock with the stock can? I want to know from someone that would be able to tell me cause i dont know. I thought it was a Smart Parts HE bolt and can, but i was decieved. lol Please let me know... Thanks!
jsnole is offline   Reply With Quote
Old 10-22-2007, 09:05 PM #18
paintballordie08
oh.my.hemeroids.

paintballordie08's Avatar

Join Date: Oct 2005
Location: 6.1.hate.
alright i have a bolt that looks exactly like a stock SFT bolt, but it is made out of delrin (actually i dont think its delrin, but it is some sort of plastic) its white, and it has one less o-ring than the stock bolt, but it has the exact same porting on the sides and the face of the bolt is identical as well... it is not pictured above, any one got any ideas?
__________________
formerly of...
JFK / Livewire /PG United
paintballordie08 is offline   Reply With Quote
Old 10-22-2007, 09:46 PM #19
Ydna
timetraveler

Ydna's Avatar

Join Date: Oct 2003
Location: Tecumseh MI
Ydna is a Moderator
Ydna is a Supporting Member
 has been a member for 10 years
Ydna is BST Trusted
That sounds like a delrin stock bolt.

About the Freeflow bolt, it'll perform the same with the freeflow or stock fire chamber.
__________________
ydna@zdspb.com - [ZDSPB.com]
Nummech Products
Thin Air Sports

As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".
Ydna is offline   Reply With Quote
Old 10-22-2007, 09:48 PM #20
StrangeBalla55
bamcis

StrangeBalla55's Avatar

Join Date: Dec 2004
Location: Stuttgart
StrangeBalla55 donated to help Peyton Trent
StrangeBalla55 supports Sherwood Forest
did the delrin stock have the bumper? The one I had did, but it was an 04 version.
__________________
STRANGE/HYBRID SFT


SOG


DEEP SEA
StrangeBalla55 is offline   Reply With Quote
Old 10-22-2007, 09:51 PM #21
Ydna
timetraveler

Ydna's Avatar

Join Date: Oct 2003
Location: Tecumseh MI
Ydna is a Moderator
Ydna is a Supporting Member
 has been a member for 10 years
Ydna is BST Trusted
Nah they didn't use bumpers (not the one on the bolt nor the one on the bolt guide). If yours had one, it was probably because it passed through my shop at some point and I added it.
__________________
ydna@zdspb.com - [ZDSPB.com]
Nummech Products
Thin Air Sports

As told by Stobaeus
...someone who had begun to learn geometry with Euclid, when he had learnt the first theorem, asked Euclid "What shall I get by learning these things?" Euclid called his slave and said "Give him threepence since he must make gain out of what he learns".
Ydna is offline   Reply With Quote
Reply


Thread Tools

Posting Rules
Forum Jump
