Old 01-13-2007, 07:21 PM #1
The Steve
THEBESTBLOODMONEYCANBUY

Join Date: Aug 2005
Location: *310*
Want to make your Sniper stock class? *LOTS of pictures*

ok, due to the many threads of people asking the same question, i went and got all this stuff from my garage and made you guys a step by step to make your very own ghetto stock class feed!!!

Materials needed:
Hacksaw
PVC pipe
PVC elbow (45 or 90)
Electrical tape
Rubber band (about 3.5 inches)


1. Cut PVC pipe to desired length with hacksaw

2. shove PVC into elbow

PLUS


3. Put rubber band around end opposite the elbow and tape on with electrical tape


4. your done!


now for my special way

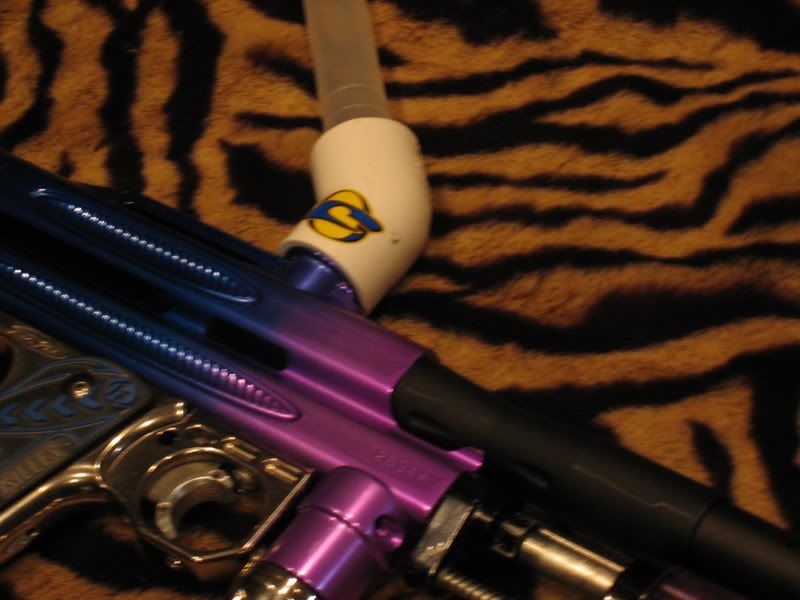

1. Get elbow and shove pvc onto it

2. cut the pvc pipe FLUSH with the elbow, it will look like this


3. sand a lip inside the PVC you just put into the elbow with sandpaper, dremel etc. it will look like this

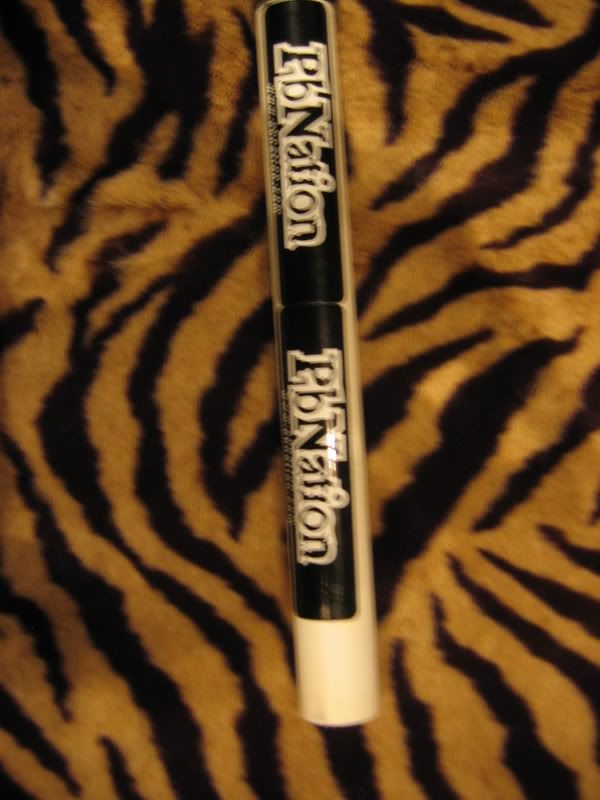

4. keep sanding until a ten round tube slides in and stays in with relative ease

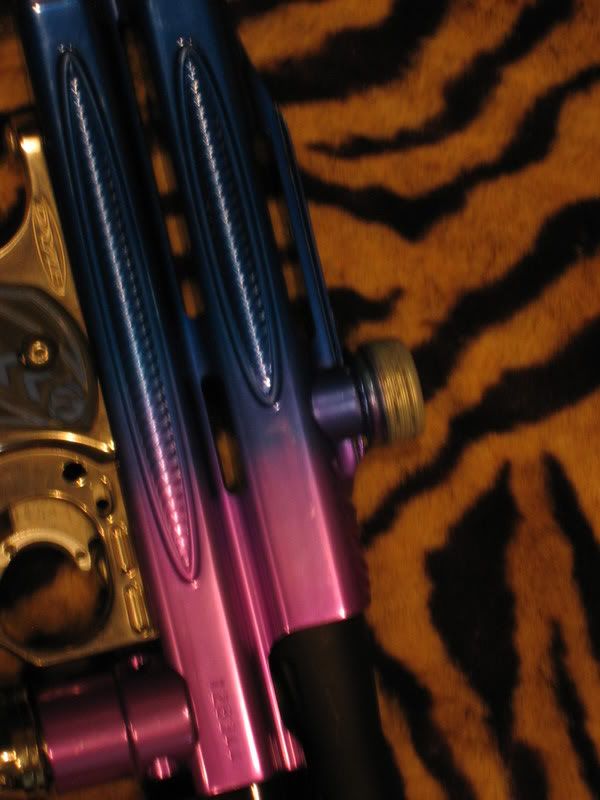

ok, using PVC for this is really only the BEST way if you have a cocker with a threaded feedneck, like so

the elbows will slide over the threads, and depending on the size of the PVC, may require you to put some electrical tape over the threads.

enjoy!!
The Steve is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 01-17-2007, 02:29 AM #2
ApoC_101 (Banned)

ApoC_101's Avatar

Join Date: Apr 2002
Location: Vancouver, BC *CANADA*
 has been a member for 10 years
I might need to remake this thread, lots of deleted posts and such. got pics of my feed, but my websites down for a few days so im unable to host right now. anyways, I'll just go ahead with the even more valuable information, that being dimensions related to such feed systems, and good materials and parts.

10 Round tube OD at opening: 0.825"


the following feeds are designed to fit .875"+ OD feednecks like rightfeeds and such, but can also be used in center feed setups with different elbow styles.

-Standard Copper stick feed:
-- One 3/4" copper female elbow
-- 3/4" copper pipe, length as required for capacity
-- feed gate, standard CCI phantom feedgates fit perfectly on 3/4" copper pipes. or, make your own.
-- single screw pipe clamp, the type without slits in it. your feed may fit tightly enough not to need this.

solder or otherwise fit the elbow to the cut-to-length pipe, you may wish to slit the gun-end of the elbow to allow it to clamp tighter with the pipe clamp, but may not be required. fit the feed gate to the end and away you go!


-Copper stick feed, top loading:
-- One 3/4" copper street elbow
-- One 3/4" copper female Tee
-- 3/4" copper pipe, length as required for capacity
-- 3/4" copper end cap
-- optional pipe clamp as above

will have to explain this one with pictures and such soon to follow.

Last edited by ApoC_101 : 01-17-2007 at 11:10 PM.
ApoC_101 is offline   Reply With Quote
Old 01-17-2007, 02:31 AM #3
The Steve
THEBESTBLOODMONEYCANBUY

Join Date: Aug 2005
Location: *310*
alright, thanks Apoc!
The Steve is offline   Reply With Quote
Old 01-17-2007, 04:38 AM #4
D3AGL3_PBALLER
CN's Finest

D3AGL3_PBALLER's Avatar

Join Date: Aug 2003
Location: Hollywood
 has been a member for 10 years
D3AGL3_PBALLER posts videos on PbNation
D3AGL3_PBALLER has perfected Level 1 in PbNation Pursuit
D3AGL3_PBALLER has achieved Level 2 in PbNation Pursuit
D3AGL3_PBALLER has achieved Level 3 in PbNation Pursuit
I never thought about the rubber band feedgate. I was sitting at home breaking my head over how to make a feed gate for a stick feed I was making. You learn something new everyday, to you!
__________________

Last edited by D3AGL3_PBALLER : 01-18-2007 at 04:37 PM.
D3AGL3_PBALLER is offline   Reply With Quote
Old 01-17-2007, 12:23 PM #5
tac0cat
ANGRY BEAR!!!! RAWR!!!

tac0cat's Avatar

Join Date: Jun 2005
Location: har!
Quote:
Originally Posted by D3AGL3_PBALLER View Post
I never thought about the rubber band feedgate. I was sitting at home braking my head over how to make a feed gate for a stick feed I was making. You learn something new everyday, to you!
damn kyle, stealing inkus ideas!!!!


but really, with phantom feedgates the rubberband works really well.\

and apoc, i cant wait to see your spring feed.
__________________
USMC
tac0cat is offline   Reply With Quote
Old 01-17-2007, 10:41 PM #6
exlabrat


exlabrat's Avatar

Join Date: Jul 2005
nice thread by the way if you dont mind me adding. if you use plastic pvc you use RIT dye to color it. you can even make fades. you can buy them in powder or liquid form at most arts and crafts store like Michaels.
__________________
-SCS-
FEEDBACK +7
TADAO'D AND TECHNA'D DEFIANT 2
RL FAN #489
exlabrat is offline   Reply With Quote
Old 01-17-2007, 11:14 PM #7
ApoC_101 (Banned)

ApoC_101's Avatar

Join Date: Apr 2002
Location: Vancouver, BC *CANADA*
 has been a member for 10 years
even though I mentioned it briefly above, I'll mention it even more clearly again:

CCI phantom feedgates fit perfectly on 3/4" copper pipe. these can be purchased from cci directly for only a few dollars.
ApoC_101 is offline   Reply With Quote
Old 01-17-2007, 11:22 PM #8
tac0cat
ANGRY BEAR!!!! RAWR!!!

tac0cat's Avatar

Join Date: Jun 2005
Location: har!
Quote:
Originally Posted by ApoC_101 View Post
even though I mentioned it briefly above, I'll mention it even more clearly again:

CCI phantom feedgates fit perfectly on 3/4" copper pipe. these can be purchased from cci directly for only a few dollars.
soo uhh, how about that springfeed?


nvm.
__________________
USMC
tac0cat is offline   Reply With Quote
Old 01-18-2007, 12:58 AM #9
ApoC_101 (Banned)

ApoC_101's Avatar

Join Date: Apr 2002
Location: Vancouver, BC *CANADA*
 has been a member for 10 years
the springfeed is made of simple parts but requires both milling and turning to complete. ill post pics once i get my server back up and running.
ApoC_101 is offline   Reply With Quote
Old 01-18-2007, 02:35 AM #10
shyguyic02


shyguyic02's Avatar

Join Date: Jun 2005
why ruin a perfectly ghetto stick feed with a manufactured feed gate?

3/4 to 1 inch copper coupler, fitting, whatever u call it. use that with a rubber band instead of the cci feed gate. Or if u must glue a ball retainer inside.





and if everything doesn't fit together perfectly just use some duct tape... just like joe vu
__________________
I'm addicted to paintball... the more i go the more i think about it. And the more i think about it the more i have to go. I now understand how fat bastard feels ;(

Random crap sale, might have cocker and spyder parts that u need. http://www.pbnation.com/showthread.p...4#post31784694
shyguyic02 is offline   Reply With Quote
Old 01-18-2007, 03:03 AM #11
ApoC_101 (Banned)

ApoC_101's Avatar

Join Date: Apr 2002
Location: Vancouver, BC *CANADA*
 has been a member for 10 years
that sniper is kickass hardcore
ApoC_101 is offline   Reply With Quote
Old 01-18-2007, 07:44 AM #12
Potz4Prez
I am a thinking thing oo~

Potz4Prez's Avatar

Join Date: Oct 2005
Location: Ohio, not Taipei - ****
Potz4Prez is one of the top 25 posters on PbNation
Well, there goes the fun in figuring it out for yourself. Oh well. I'll post pics of my completed copper feed later.
__________________
flickr-Has, but does not condone the sharing of, noodz.

"Originally Posted by AndyAllen019: Potz is the GDT.."

"Originally Posted by gentimmy: potz ur my hero"

"Originally Posted by AndyAllen019: By far the funniest post I have seen in quite some time[...] Well played, good sir, well played."
Potz4Prez is offline   Reply With Quote
Old 01-30-2007, 04:49 PM #13
Daveydz3
I ref NPPL PSP, XPSL, OSC

Daveydz3's Avatar

Join Date: Oct 2004
Location: La Mirada, CA
 has been a member for 10 years
but in stock play don't you need to have tilt action? if you do it like that you can stack at least two balls before you need to tilt you marker.
Daveydz3 is offline   Reply With Quote
Old 01-30-2007, 08:19 PM #14
shyguyic02


shyguyic02's Avatar

Join Date: Jun 2005
yea but not many pump tournies are True stock class anymore, so yea
__________________
I'm addicted to paintball... the more i go the more i think about it. And the more i think about it the more i have to go. I now understand how fat bastard feels ;(

Random crap sale, might have cocker and spyder parts that u need. http://www.pbnation.com/showthread.p...4#post31784694
shyguyic02 is offline   Reply With Quote
Old 01-30-2007, 09:13 PM #15
Daveydz3
I ref NPPL PSP, XPSL, OSC

Daveydz3's Avatar

Join Date: Oct 2004
Location: La Mirada, CA
 has been a member for 10 years
i see
Daveydz3 is offline   Reply With Quote
Old 01-31-2007, 11:12 PM #16
Shootin-Pea's
Having a Ego is Golden.

Shootin-Pea's's Avatar

Join Date: Dec 2005
What is the difference in class's of pump play. Pro-stock,Sniper, true etc. I am a newbie in pump. Thanks for the run down in advance.
__________________
PMP FACTORY TEAMwww.pmpind.com

Last edited by Shootin-Pea's : 02-01-2007 at 02:29 PM. Reason: clueless
Shootin-Pea's is offline   Reply With Quote
Old 02-01-2007, 07:19 PM #17
tipp98chopshop
Don't worry, Be pwnage

tipp98chopshop's Avatar

Join Date: Feb 2006
Location: LI Ny
tipp98chopshop helped look for balloons
I think stockclass is only 12 Co2 and 15 roun feed tubes or 10 round tubes. something like that. I am also a pump noob lol, But cant wait to pick up my gun
tipp98chopshop is offline   Reply With Quote
Old 02-01-2007, 07:54 PM #18
abr5
llama llama duck...

abr5's Avatar

Join Date: Aug 2005
Location: Ithaca, NY
Quote:
Originally Posted by Shootin-Pea's View Post
What is the difference in class's of pump play. Pro-stock,Sniper, true etc. I am a newbie in pump. Thanks for the run down in advance.
pro-stocks, and snipers are both guns...
open class- anything goes, can have any hopper, any air system
stockclass- only 1 ball above breech, 12 grams (not sure how long the feedtube is allowed to be, 15 perhaps?)
__________________
abr5 is offline   Reply With Quote
Old 02-05-2007, 09:43 PM #19
wounded


Join Date: May 2006
we all know how to make a stick feed.

to the original topic, want to know how to turn your cocker stock class,

id like to hear some set ups and parts guys are using on their cocker to play true stock class, 12 gram powered.

if your only getting 15 balls per cartridge, dont post lol.

whos getting 20-35 good shots playing stock and what parts are you using?
wounded is offline   Reply With Quote
Old 08-17-2007, 01:57 AM #20
mike21
War within a breath

mike21's Avatar

Join Date: Mar 2004
Location: CP MD
 has been a member for 10 years
Quote:
Originally Posted by wounded View Post
we all know how to make a stick feed.

to the original topic, want to know how to turn your cocker stock class,

id like to hear some set ups and parts guys are using on their cocker to play true stock class, 12 gram powered.

if your only getting 15 balls per cartridge, dont post lol.

whos getting 20-35 good shots playing stock and what parts are you using?
QFT what do you have to do to the spring to get those numbers?
__________________
UMD Support Thread
mike21 is offline   Reply With Quote
Old 08-17-2007, 09:47 AM #21
Linuss


Linuss's Avatar

Join Date: May 2006
Location: DFW Texas
Why on earth did you bump such an old post when it would be much easier just to search it yourself (seeing as you searched this thread)
Linuss is offline   Reply With Quote
