Yesterday I was HAND DELIVERED my UL Frame RF harness by my good buddy Coach @ http://www.destructivecustoms.com
. Let me say first the quality of this simple harness is awesome, clean soder job, good heat shrink, stock harnesses... just plug and play. Great mod to use RF mode on Pulse loader w/o having to soder your board/splice wires and void warranty.
I grabbed a RF chip from work on my way outta the shop tonight and decided to take a few pics while a cracked open a brew after a long day and install this puppy.
Step 1: Tools and prep.

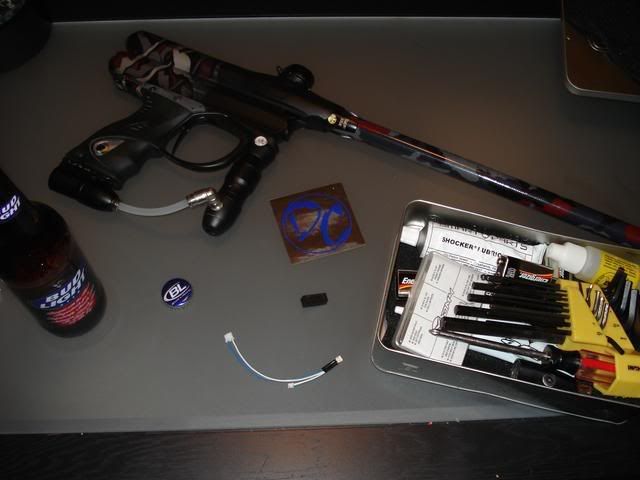

Ok... got my gun, tool kit, frosty beverage, DC Harness, and RF Chip.

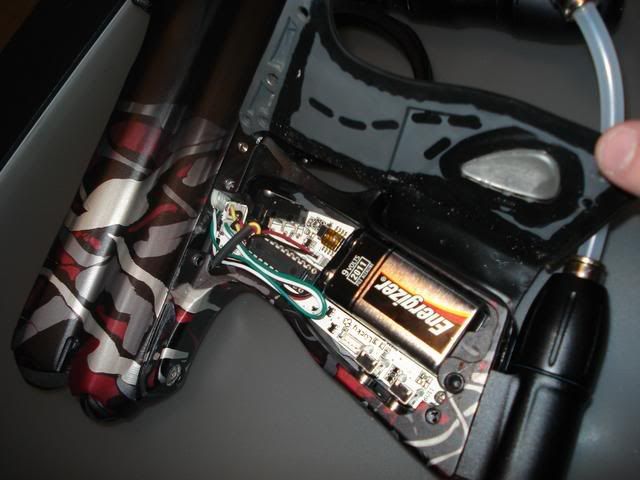

Step 2: Open grips... eww lotta wires.
Locate the green/white wires and disconnect from board. (dont yank it outta noid dummy.)

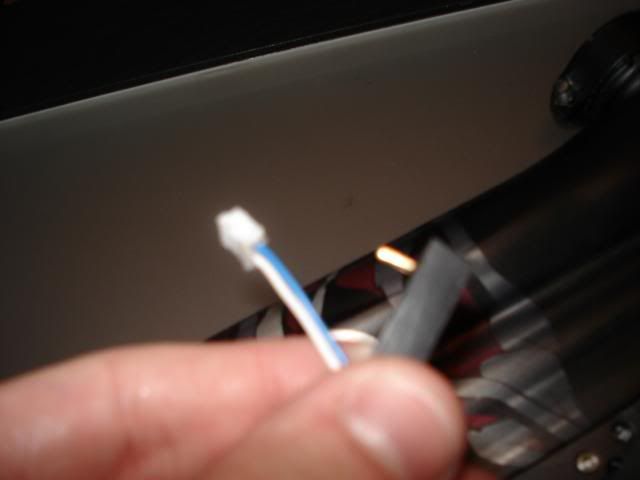

Step 3: Connect DC harness
Male to Female (green/white)

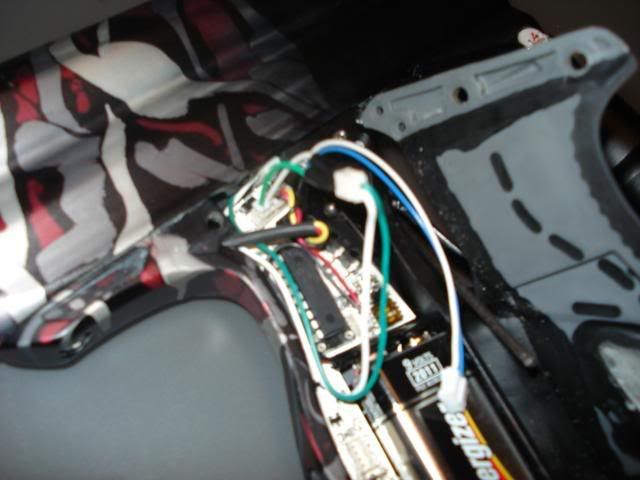

Step 4: Plug DC Harness into board
Sweet you just "piggy backed" your noid.
Step 5: RF Chip (play dramatic music)
Connect your RF Chip into DC Harness.
Step 6: How to make it fit?!
Really easy.... drop your UL frame, and put RF Chip inside section infront of rear frame screw w/ plug facing down towards board. It'll fit like an "L" and will be flush when you reinstall frame.
Pretty sweet huh?
Step 7: Drink the rest of your frosty beverage and relax.
