10 steps to maintain your Detonator

Recently the Promaster forum has become fascinated by the low price and outstanding preformance of the detonator. For good reason at that, it is a great product no doubt. However, it is unlike other regs and can be daunting to take apart. I have gotten several questions both here and on AIM about how to lube and maintain the reg, so I figured I'd post up for everyone to see:

What you need:
Detonator (Obviously)
Lube (I am using Pus, aka dow33. You can use whatever is suitable for a reg.)
Cotton swabs (not shown)
C-clip wrench
Rag
Pencil
3/32 allen key
5/64 allen key


Step I:
~Remove the bottom part and adjuster ring by unscrewing the 3/32 grub screws and unscrewing/pulling them off.


Step II:
~Use the 5/64 allen key to remove the grub screw under the adjustment ring. Then remove the brass internals by sliding them out.



Step III:
~Unscrew the brass internals. A 3rd brass part should easily fall out. An oring and cupseal may also come out, make sure not to lose these. Mind did not come out, so they are not shown.


Step IV:
~Take the C-clip wrench and (who'd have guessed it?) remove the c-clip from the top.



Step V:
~Push the piston and spring out of the top of the regulator by sticking a pencil through the bottom.



Step VI:

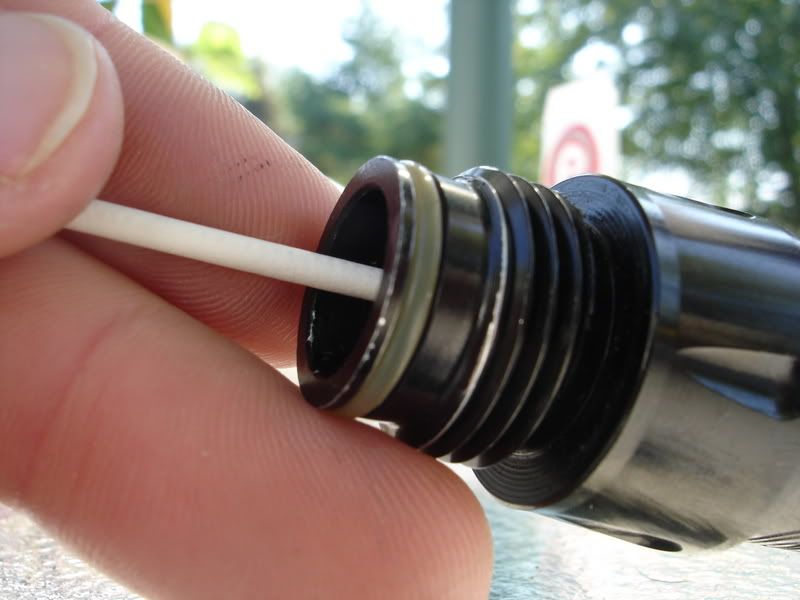

~Clean everything using the rag and cotton swabs.


Ewww:


Step VII:
~Put the internals back together, make sure that it all goes in the right way.


Step VIII:
~Put the bottom half back together. Just slide the brass internals back in, and screw the holder on so it will still swivel, but not slide back out. Then screw on the adjuster ring, all the way. This will set the reg to ~100psi, you can tune it later. Remember to attach the bottom portion too, and don't forget to clamp the adjuster ring down.



Step IX:
~Lube the plunger. Make sure to get the stem covered in a thin coat of lube too.


Step X:
~Put the spring and plunger back in. Now put the c-clip back in. Congrats you are done!


For reference:


If you screw up and break something, blame Jesus. Or yourself, whoever, as long as it isn't me.

Last edited by som3 dud3 : 09-17-2006 at 03:04 PM.
som3 dud3 is offline
Old Sponsored Links Remove Advertisement
Advertisement
Old 09-17-2006, 03:21 PM #2
B2K4-SuperHonkey
Ive lost my pudding again

B2K4-SuperHonkey's Avatar

Join Date: Apr 2006
Location: R'lyeh
B2K4-SuperHonkey is reppin' sidebar 4 life
nice thread. most people think dets are a pain because they dont have the c-clip tools. my friend put a det on his BKO and i used the gun a lot, and i love the reg(plus it's evil, a company where expired or voided warranties dont matter, theyll replace and fix it anyway.)
__________________
"My goal this year is to prove natural selection on the show. It's gonna take a while, it's gonna be very hard to make it fascinating on film in the context of our narrative structure, but I figure screw it. The sky's the limit. Let's do natural selection. I'm sick of fifty percent of this country thinking creationism is reasonable. It's appalling."
Adam Savage of Mythbusters
I Am Goddam Metal Jesus

B2K4-SuperHonkey is offline
Old 09-17-2006, 03:43 PM #3
JackedUp03
Anti-Smart Parts

JackedUp03's Avatar

Join Date: Aug 2005
JackedUp03 is offline
Old 09-17-2006, 03:55 PM #4
bobide
That's No Zaku Boy

bobide's Avatar

Join Date: Sep 2004
 has been a member for 10 years
bobide supports Cereal Killerz 2
bobide is an NCPA player
bobide plays in the APPA D5 division
i still dislike that reg.
bobide is offline
Old 09-17-2006, 04:07 PM #5
Prea

Prea's Avatar

Join Date: May 2005
awesome i needed this

EDIT: nevermind, this didnt help me at all......my bottom swivel piece does not have a set screw, and the bottom/collar dont come apart......but the top part of the brace piece can screw out, and the whole top half is the same
__________________
A nickel-plate is my fate, my medicine is the ganga.

Last edited by Prea : 09-17-2006 at 04:21 PM.
Prea is offline
Old 09-17-2006, 04:24 PM #6
*R0Nn13* (Banned)

*R0Nn13*'s Avatar

Join Date: May 2006
Location: So*Cal
Can you use anything else besides a C-Clip wrench?
*R0Nn13* is offline
Old 09-17-2006, 04:28 PM #7
som3 dud3
Hop stars

som3 dud3's Avatar

Join Date: Apr 2005
Location: Wisconsin
You could possibly get it done with picks or really small screwdrivers.
som3 dud3 is offline
Old 09-17-2006, 05:01 PM #8
Litespeed
ytsejam

Litespeed's Avatar

Join Date: Oct 2005
Just go buy some snap ring pliers.....that aren't that expensive for a cheap pair.

Good tip from the Evil Omen FAQ...paraphrased

ALso, be very careful when reinstalling the the two halves that you make sure you see the retainer flange go past the retaining screw hole. Also, that retainer and housing is brass, so you don't need to be superman when installing the retaining screw. Just don't bottom out that screw, just install it until it is flush so the adjuster ring can go over it.
Litespeed is offline
Old 09-17-2006, 05:05 PM #9
kwik
Herbal Cultivar M.D.

kwik's Avatar

Join Date: Sep 2004
Location: Phoenix, AZ
Annual Supporting Member
kwik is a Supporting Member
 has been a member for 10 years
kwik is playing at Living Legends VII
kwik supports Team VICIOUS
kwik supports Pev's Paintball
kwik is Legendary
kwik supports Empire
there are at least 2 different revisions of the detinator from evil, i have both and have noticed the 1 less grubb screw and the fact the top of the plunger just below the c-clip is designed differently, i dont know if this was to fix a creep/eff issue or just to make it work better altogether, never have figured out which is the newer revision but I get the same results over the chrono from both regs.

I just wish they looked better on my FSP.....

edit: aha i found my pic of my 2 pistons, anyone here know off hand which is the "newer" revision and what the change was made for? Im thinkin the one on the left is the older version, but dont know what it does, as it obviously changes the oring position as well as the piston shape.
__________________
"The Harder the World, The Fiercer the Honor."

ICD-Owners

Last edited by kwik : 09-17-2006 at 05:11 PM.
kwik is offline
Old 09-17-2006, 05:12 PM #10
som3 dud3
Hop stars

som3 dud3's Avatar

Join Date: Apr 2005
Location: Wisconsin
Hmmmm, that is interesting to know. When did you get each of the regs?
som3 dud3 is offline
Old 09-17-2006, 05:17 PM #11
Prea

Prea's Avatar

Join Date: May 2005
im guessing the one on the right is the newer one, i got my reg a few days ago, and it has the one on the right
__________________
A nickel-plate is my fate, my medicine is the ganga.
Prea is offline
Old 09-17-2006, 06:50 PM #12
kwik
Herbal Cultivar M.D.

kwik's Avatar

Join Date: Sep 2004
Location: Phoenix, AZ
Annual Supporting Member
kwik is a Supporting Member
 has been a member for 10 years
kwik is playing at Living Legends VII
kwik supports Team VICIOUS
kwik supports Pev's Paintball
kwik is Legendary
kwik supports Empire
i only got em a couple months apart from each other and they were both from pbgear when they were on one of their sales for 40 back during the first price drop. Have used em on a gen2 FS, FSP and an ion and it they have worked great on all 3 and I honestly havent noticed any performance difference between the 2 pistons.

and yes I agree the one on the right is the newer one, maybe it was just for less moving mass or something.
__________________
"The Harder the World, The Fiercer the Honor."

ICD-Owners
kwik is offline
Old 09-17-2006, 06:56 PM #13
Prea

Prea's Avatar

Join Date: May 2005
here, i asked the evil forum
http://www.pbnation.com/showthread.p...2#post26396882
__________________
A nickel-plate is my fate, my medicine is the ganga.
Prea is offline
Old 09-17-2006, 07:01 PM #14
Codename067
Adapt or die.

Codename067's Avatar

Join Date: Sep 2005
Location: Los Angeles
Codename067 owns a Planet Eclipse Ego
Good stuff andrew.
__________________
Promaster [-] Evil Det [-] SCM III [-] Vapor Valve [-] Lightened Hammer [-] PMI 45/45 [-] Pepperstickz [-] CCM No-Pro

Freestyle 8 [-] Palmers LPR [-] CP Reg [-] NoX [-] NDZ Feedneck [-] Vlocity + V35 Halo

My Ashes Ego 11 - My Freestyle 8 + Promaster - My Feedback - My 2007 R1
Codename067 is offline
Old 09-17-2006, 08:36 PM #15
fAllout_oMen


fAllout_oMen's Avatar

Join Date: Jul 2005
Location: Columbus, OH
fAllout_oMen donated to help Peyton Trent
fAllout_oMen helped look for balloons
fAllout_oMen is an NCPA player
fAllout_oMen plays in the APPA D4 division
Quote:
Originally Posted by B2K4-SuperHonkey
nice thread. most people think dets are a pain because they dont have the c-clip tools. my friend put a det on his BKO and i used the gun a lot, and i love the reg(plus it's evil, a company where expired or voided warranties dont matter, theyll replace and fix it anyway.)

hell yeah evil FTW!!!

i love their Customer support, one of the reasons i buy thir products. Nthing i've had has gone wrong.

I have 2 dets, and theve never failed me.
fAllout_oMen is offline
Old 10-16-2006, 11:53 PM #16
inoskedyou
Whats Barrel Tapping?

inoskedyou's Avatar

Join Date: Sep 2006
Location: HAWAII
inoskedyou is offline
Old 10-17-2006, 05:52 AM #17
Prea

Prea's Avatar

Join Date: May 2005
good job, you upped a month old thread with a thumb-up symbol
__________________
A nickel-plate is my fate, my medicine is the ganga.
Prea is offline
Old 01-30-2007, 10:52 PM #18
bequickorbedead
CAPUA! Shall I begin?

bequickorbedead's Avatar

Join Date: Oct 2006
Location: ROC, New York
wow, i know its an old *** thread, but i tried taking my detonator apart and it didn't really work. i can't pull the bottom parts off of the brass, i think they're glued there and i can't think of a good way to un- glue them.
bequickorbedead is offline
Old 01-30-2007, 11:05 PM #19
bobide
That's No Zaku Boy

bobide's Avatar

Join Date: Sep 2004
 has been a member for 10 years
bobide supports Cereal Killerz 2
bobide is an NCPA player
bobide plays in the APPA D5 division
yeah dets suck.
bobide is offline
Old 01-30-2007, 11:06 PM #20
beater of angels


beater of angels's Avatar

Join Date: Dec 2006
Location: Kneebraska
beater of angels plays in the APPA beginner division
beater of angels has achieved Level 1 in PbNation Pursuit
beater of angels has perfected Level 1 in PbNation Pursuit
beater of angels has achieved Level 2 in PbNation Pursuit
YOu didnt ask this in the evil forum why?
beater of angels is offline
Old 01-30-2007, 11:07 PM #21
bequickorbedead
CAPUA! Shall I begin?

bequickorbedead's Avatar

Join Date: Oct 2006
Location: ROC, New York
i did, and i got one reply with a link to this thread.
