Tutorial/Ram disassembly and set up tips

It's easy to do, yet caution should be applied.

Tools required, including some material used to grip plyers to ram rod, I used a strip of lead.


Make sure your Dits's degassed, and remove bolt pryor to unscrewing off the ram house. Then remove ram, and it's assembly. Keep track of parts.

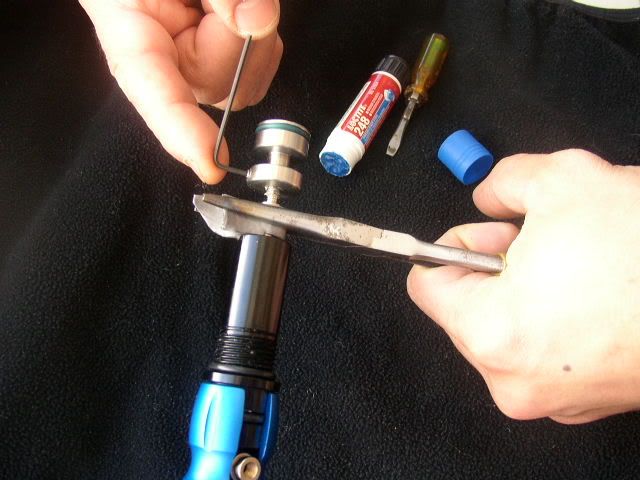

Loosen stricker retaining screw. Do not remove it all the way, it's presence has a purpose

Complete disassembly of ram kit


Little loctite

Done! notice the space allowed by my ram bumper mod, it's 3mm extension allow's for the bolt to help with BIP(ball in place), and avoids the use of a washer/spacer system. I list the bumper mod as on option but am not apposed to the washer's at all. The proper alterations to ram/bolt assembly would only allow for a 1 and 1/2mm extension on the ram, and 1 and 1/2mm longer on the bolt. Not having the necessary materials makes it difficult for me to prove this method, but I beleive it to be well intended.
__________________

------- The all NEW Avratech Retro 7 BUY IT HERE -------
((((((( www.avratech.com )))))))

splattttttt is offline
Old Sponsored Links Remove Advertisement
Advertisement
Old 03-10-2005, 12:07 PM #2
Headhunter1
"One Shot One Kill"

Join Date: Feb 2005
Location: Millersport,OH
Splattttttt, could you post a pick showing how far the bolt sets into the feed neck because i just bought my Dits 3 weeks ago and it has 2 very thin teflon washers on it and it just comes flush with the feedtube a pic would be great so i can have a visual of where the BIP should be.....thanks
__________________
Diadem Red/Black Fade, #2778,adj 68/3000,Reloader B,

Visit Team website http://www.tacticalfury.com
PBN Feedback http://www.pbnation.com/showthread.p...hreadid=862498
Ebay Feedback: scassociates
.................................................. .........

Last edited by Headhunter1 : 03-10-2005 at 12:16 PM.
Headhunter1 is offline
Old 03-10-2005, 12:12 PM #3
AirAttack


AirAttack's Avatar

Join Date: Feb 2005
Location: Omaha
AirAttack is a Supporting Member
Nice work. Good clear pics.
Any chance you'll be doing a complete marker dis-assembly photo shoot in the future?
AirAttack is offline
Old 03-10-2005, 11:32 PM #4
splattttttt
TRUST NO ONE

splattttttt's Avatar

Join Date: Feb 2004
Location: Does HELL ring a bell?
splattttttt is a Supporting Member
 has been a member for 10 years
splattttttt donated to help Peyton Trent
Why?
__________________

------- The all NEW Avratech Retro 7 BUY IT HERE -------
((((((( www.avratech.com )))))))

splattttttt is offline
Old 03-11-2005, 12:07 AM #5
deadmanbluff
old man smithers

deadmanbluff's Avatar

Join Date: Aug 2004
Location: Funky Town ( CA )
 has been a member for 10 years
i imagine it is just so he can see what else is in the gun
__________________
-lets see whos behind the rubber mask......and its ...old man smithers! the creepy janitor!
*IF SMART PARTS*
-Makes another piece of crap gun,
-Sues another company for looking at them wrong, or
-Signs another sponsership deal with a team
*MY HEAD IS GOING TO EXPLODE!!*

chesk this out> http://www.vm68.com/stuff/smart_parts_is_evil.html
DEATH HAS A NAME SO DOES ITS VICTOR!
deadmanbluff is offline
Old 03-11-2005, 08:09 AM #6
Headhunter1
"One Shot One Kill"

Join Date: Feb 2005
Location: Millersport,OH
No, it's not so i can see what else is in the gun, I have one of mine own, I know what is in the gun I just wanted to see where BIP should be so i know if mine is correct I have been having issues with chop and though that a pic would give me visual of where it actually should be
__________________
Diadem Red/Black Fade, #2778,adj 68/3000,Reloader B,

Visit Team website http://www.tacticalfury.com
PBN Feedback http://www.pbnation.com/showthread.p...hreadid=862498
Ebay Feedback: scassociates
.................................................. .........
Headhunter1 is offline
Old 03-11-2005, 08:57 AM #7
splattttttt
TRUST NO ONE

splattttttt's Avatar

Join Date: Feb 2004
Location: Does HELL ring a bell?
splattttttt is a Supporting Member
 has been a member for 10 years
splattttttt donated to help Peyton Trent
I'm not sure if I could get a good picture of how far the bolt sticks out past the feed tube. It's a very short amount, I mentioned above it's near 1 and 1/2 mm at the most.
I've found that extension to work best with getting the best bip. This was the best I could do.

__________________

------- The all NEW Avratech Retro 7 BUY IT HERE -------
((((((( www.avratech.com )))))))


Last edited by splattttttt : 03-11-2005 at 10:40 AM.
splattttttt is offline
Old 03-11-2005, 02:04 PM #8
Headhunter1
"One Shot One Kill"

Join Date: Feb 2005
Location: Millersport,OH
thanks splattttttt thats helps alot, mine doesnt stick that far into the neck and i think that the balls are rolling back past the eyes, not to mention the new reloader b puts alot of pressure on the ball stack and this also aids in pushing the balls to the back of the breach......i appreciate your help
__________________
Diadem Red/Black Fade, #2778,adj 68/3000,Reloader B,

Visit Team website http://www.tacticalfury.com
PBN Feedback http://www.pbnation.com/showthread.p...hreadid=862498
Ebay Feedback: scassociates
.................................................. .........
Headhunter1 is offline
Old 03-11-2005, 02:08 PM #9
Headhunter1
"One Shot One Kill"

Join Date: Feb 2005
Location: Millersport,OH
i forgot to ask do you have any problems with bounce using this mod of yours?
__________________
Diadem Red/Black Fade, #2778,adj 68/3000,Reloader B,

Visit Team website http://www.tacticalfury.com
PBN Feedback http://www.pbnation.com/showthread.p...hreadid=862498
Ebay Feedback: scassociates
.................................................. .........
Headhunter1 is offline
Old 03-11-2005, 09:07 PM #10
splattttttt
TRUST NO ONE

splattttttt's Avatar

Join Date: Feb 2004
Location: Does HELL ring a bell?
splattttttt is a Supporting Member
 has been a member for 10 years
splattttttt donated to help Peyton Trent
The only time I experianced any bounce what so ever, was when I had the board set to stock, and the trigger st to the least amount of movement I could achieve.
Look at my data for my inputs. No mow bounce.
__________________

------- The all NEW Avratech Retro 7 BUY IT HERE -------
((((((( www.avratech.com )))))))

splattttttt is offline
Old 03-11-2005, 10:53 PM #11
WinterGS
Sierra 179

WinterGS's Avatar

Join Date: Jan 2005
WinterGS owns a Planet Eclipse Geo
Awsome splattt! Thanks for all the pics and info
__________________
Its always a cold Winter....
Planet Eclipse Factory Tech
SL91 #5 Darktrooper
Solstice Airsmyth..RTFM
House Solstice...not just a team, a way of life Why?....because we're F'n Rock Stars!
Solstice Speed..faster than you
Powered by Planet Eclipse..We Kill EVERYTHING
UNDERSTOOD
WinterGS is offline
Old 03-13-2005, 04:14 PM #12
Headhunter1
"One Shot One Kill"

Join Date: Feb 2005
Location: Millersport,OH
yes winterGs splattttt has been a huge help! thanks
__________________
Diadem Red/Black Fade, #2778,adj 68/3000,Reloader B,

Visit Team website http://www.tacticalfury.com
PBN Feedback http://www.pbnation.com/showthread.p...hreadid=862498
Ebay Feedback: scassociates
.................................................. .........
Headhunter1 is offline
Old 03-14-2005, 12:55 PM #13
APACHEGOD
WHACHA TALKIN BOUT WILLIS

APACHEGOD's Avatar

Join Date: May 2004
Location: TEXAS
 has been a member for 10 years
If the bolt sticks out to far into the breach then it will chop paint like a blender right? This is what was causing some of my issue's in the earlier stages of my betsy's life. I will get her good to go again once I cut down that bumper some. She will be ready. I will do that today!!!
__________________
- A true friend stabs you in the front.
- They couldn't hit an elephant at this dist. . . .~~ General John Sedgwick, Union Commander, d. 1864(Killed in battle during US Civil War)
- E tu' Brute~~Julius Ceasar
APACHEGOD is offline
Old 03-14-2005, 04:53 PM #14
splattttttt
TRUST NO ONE

splattttttt's Avatar

Join Date: Feb 2004
Location: Does HELL ring a bell?
splattttttt is a Supporting Member
 has been a member for 10 years
splattttttt donated to help Peyton Trent
It only needs to be showing the thickness of a dime or less, not more.
__________________

------- The all NEW Avratech Retro 7 BUY IT HERE -------
((((((( www.avratech.com )))))))

splattttttt is offline
Old 05-14-2005, 06:10 PM #15
desertT1
The Burninator

desertT1's Avatar

Join Date: Jan 2005
Location: Vail, Az
how firmly should you have to be gripping the ram shaft so it will loosen. i have the retaining screw loosened, but the end won't twist off. I don't want to damage the shaft by pinching too tightly, even though i have a pad in between the pliars and the shaft.
desertT1 is offline
Old 05-14-2005, 06:37 PM #16
splattttttt
TRUST NO ONE

splattttttt's Avatar

Join Date: Feb 2004
Location: Does HELL ring a bell?
splattttttt is a Supporting Member
 has been a member for 10 years
splattttttt donated to help Peyton Trent
Since AM got wind of the striker loosening with their first shipments, the started adding lock thread, as I do. You will have to use the necessary force whilst not damaging the surfuces on the ram with a trip of led or rubber gripped with plyers.
NOTE: AM did mention a special tool never said if we could have one. Frankly speaking, I don't need a special tool, just be carefull, but don't be discouraged and do the mods. AM did infact applaude them.
__________________

------- The all NEW Avratech Retro 7 BUY IT HERE -------
((((((( www.avratech.com )))))))


Last edited by splattttttt : 07-06-2005 at 11:31 PM.
splattttttt is offline
Old 07-29-2005, 02:55 AM #17
topslop1


Join Date: Sep 2004
 has been a member for 10 years
How do I get the ram apart so that I can change the spring? I can't seem to get this thing apart...
__________________
Megajiggamarker. 85bps.
topslop1 is offline
Old 07-29-2005, 05:39 AM #18
splattttttt
TRUST NO ONE

splattttttt's Avatar

Join Date: Feb 2004
Location: Does HELL ring a bell?
splattttttt is a Supporting Member
 has been a member for 10 years
splattttttt donated to help Peyton Trent
What exactly is giving you trouble?
__________________

------- The all NEW Avratech Retro 7 BUY IT HERE -------
((((((( www.avratech.com )))))))

splattttttt is offline
Old 07-31-2005, 04:53 PM #19
topslop1


Join Date: Sep 2004
 has been a member for 10 years
Getting the spring out of the ram.. having trouble turning the end piece off to open the ram up.
__________________
Megajiggamarker. 85bps.
topslop1 is offline
Old 07-31-2005, 07:36 PM #20
RoamingGnome4
Go for the custom

RoamingGnome4's Avatar

Join Date: May 2004
Location: NC
 has been a member for 10 years
Could I pay you to do this mod for me.... and tune up my diadem so it will be its fastest.
__________________
My Feedback http://www.pbnation.com/showthread.p...hreadid=756311
s=&postid=9381968#post9381968

If your a member of the Colbert Nation put this in your sig.
RoamingGnome4 is offline
Old 08-01-2005, 10:09 AM #21
splattttttt
TRUST NO ONE

splattttttt's Avatar

Join Date: Feb 2004
Location: Does HELL ring a bell?
splattttttt is a Supporting Member
 has been a member for 10 years
splattttttt donated to help Peyton Trent
The end piece you are referring to is the hammer. This part, as well as the ram should never be handled by any hard or fough surfaces, like plyers and or vicegrip like tools.
I added in the picture above, a list of tools, among them is a little stip of led aquired from a hardware store. Led is very soft, use it around the ram, than grip plyers around it, that way you will not harm the ram it self.
Tha hammer may have been lock tighted. Once the allen screw has been loosend up, leave the Allen key in the screw, and use it as leverage, while gripping the ram with plyers and led strip. It will come off!
Quote:
Could I pay you to do this mod for me.... and tune up my diadem so it will be its fastest.
I have four children of my own, and while I do not consider you a child, I feel you should try and become more self assertive in your paintball endevuor... it's for your own good. Trouble shooting is the only thing that will keep you in the game , so I must decline your request, though if you were local, it wouldn't be a problem. Sorry.
