Old 03-22-2012, 11:08 PM #904
CA_Tectonics


CA_Tectonics's Avatar

Join Date: Feb 2010
Location: Northern CA
Quote:
Originally Posted by paintthinner View Post
Tc Su 5134-310
Dot-sp 10915-4500
Ek47419 Luxfer
8-07 Ree:21
DOT-SP 10915

Luxfer Gas Cylinders


As per the DOT regs, it is a 5-year hydro. Page 3, section 7, part b:

"b. TESTING: Cylinders retested prior to May 11, 2001 must be retested within 36 months of the retest date marked on the cylinder. Cylinders retested on or after May 11, 2001 must be reinspected and hydrostatically retested at least once every five years. Testing must be performed in accordance with 180.205, tested to 5/3 of the marked service pressure, and the latest edition of CGA pamphlet C-6.2 "Guidelines for Visual Inspection and Re-qualification of Fiber Reinforced High Pressure Cylinders", except as specifically noted herein:....."

DOT Regs for that specific tank manufacturer


With the "born on" date of 8 / 2007 - that tank will need a rehydro by August 2012.
__________________
Graphite Dangerous Power REV-I
TechT bolt engine, REV-I & Disruptive barrel kits, Prophecy V2 w/ Empire feedgate, Crossfire SS 68/4500
Maroon and Polished Aluminum Dangerous Power Threshold
7th Element board, TechT bolt engine, magnet trigger kit, REV-I PMD, Sly Dual Carbon barrel kit, Prophecy V2, Crossfire SS 68/4500
Black and Silver Dangerous Power F8
APE Rampage board, VS bolt, magnet trigger kit, F8 gauge, REDZ barrel kit, Halo B w/ Exalt feedgate, PMI 68/4500
Polished Aluminum and Red Dangerous Power F8
Virtue board, VS bolt, magnet trigger kit, Halo B w/ Exalt feedgate, PMI 68/4500
CA_Tectonics is online now   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 04-27-2012, 08:08 AM #905
Fapelbaum555


Join Date: Apr 2012
Is it good?

Hi, first of all, I am new at this, any info will be appreciated.

Hi, I saw a tank on eBay that I am interested in buying but I don't understand the label and not sure what the status is, the current owner told me it holds and works perfect, but that is not enough information to me, the number t reads on the label is

dot-e 10915 4500 on 2008 LUXFER
6-97. Ree 147


Brand: MSA STEALTH H.60
Model number:
71537-1


We an you explain me the info n the label so i am aware when I purchase another tank in case you recommend me not to buy this one?

Thank you

Fabio
Fapelbaum555 is offline   Reply With Quote
Old 04-27-2012, 11:41 AM #906
CA_Tectonics


CA_Tectonics's Avatar

Join Date: Feb 2010
Location: Northern CA
Quote:
Originally Posted by Fapelbaum555 View Post
Hi, first of all, I am new at this, any info will be appreciated.

Hi, I saw a tank on eBay that I am interested in buying but I don't understand the label and not sure what the status is, the current owner told me it holds and works perfect, but that is not enough information to me, the number t reads on the label is

dot-e 10915 4500 on 2008 LUXFER
6-97. Ree 147


Brand: MSA STEALTH H.60
Model number:
71537-1


We an you explain me the info n the label so i am aware when I purchase another tank in case you recommend me not to buy this one?

Thank you

Fabio
Can you post a picture of the label? I ask because there seems to be a possible conflict of data you have posted.

The DOT number is easy - it is a special permit issued by the US govt. to the maker of the cylinder (not necessarily the name on the tank or reg but the actual company who made the cylinder). Each cylinder manufacturer has their own unique DOT number. In your example, DOT E-10915 is for the maker Luxfer.

Now here it the possible conflicting part - you have typed "2008 LUXFER" but also have a number on the next line of "6-97". All cylinders have a date when the clyinder was made and this date is typically expressed as the month as a two didget number and the year as a two didget number. There is typically some symbol between the month and year. I asked for a pic because the "6-97" you have posted could possible be that manufacturer date (also known as the born on date). This is important because carbon fiber tanks have a lifespan of 15 years. If that "6-97" is the born on date, that puts the end date of the tank at June of this year - 06/1997 + 15 years = 06/2012. The end result is that tank is only good for the next 35 days from this post.
__________________
Graphite Dangerous Power REV-I
TechT bolt engine, REV-I & Disruptive barrel kits, Prophecy V2 w/ Empire feedgate, Crossfire SS 68/4500
Maroon and Polished Aluminum Dangerous Power Threshold
7th Element board, TechT bolt engine, magnet trigger kit, REV-I PMD, Sly Dual Carbon barrel kit, Prophecy V2, Crossfire SS 68/4500
Black and Silver Dangerous Power F8
APE Rampage board, VS bolt, magnet trigger kit, F8 gauge, REDZ barrel kit, Halo B w/ Exalt feedgate, PMI 68/4500
Polished Aluminum and Red Dangerous Power F8
Virtue board, VS bolt, magnet trigger kit, Halo B w/ Exalt feedgate, PMI 68/4500
CA_Tectonics is online now   Reply With Quote
Old 04-28-2012, 08:29 AM #907
Fapelbaum555


Join Date: Apr 2012
Images

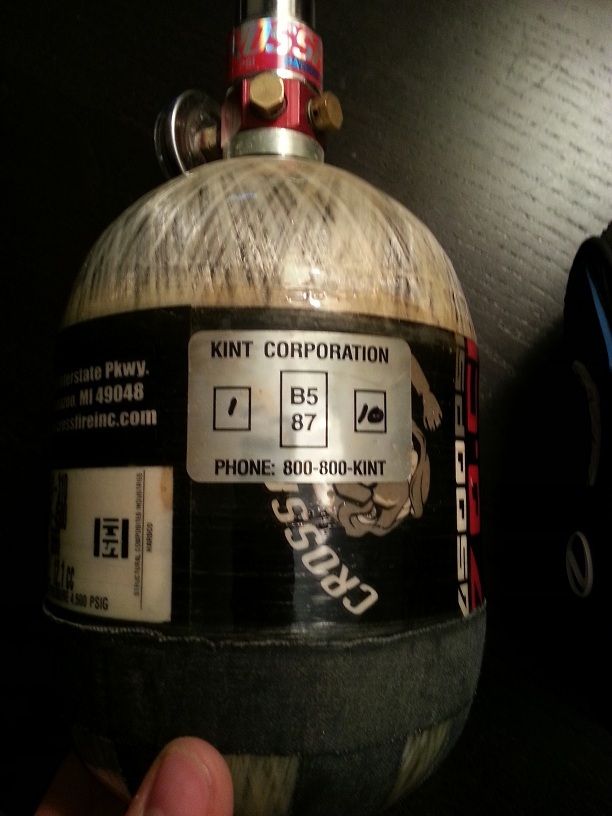

Thank you very much for the info, here are couple images of the tank and label...

images

Thank you very much for all the info. Hope the image helps, let me know otherwise
Fapelbaum555 is offline   Reply With Quote
Old 04-28-2012, 09:39 AM #908
Frank808
Brothers Paintball Supply

Join Date: Sep 2001
Location: South Earth
Frank808 is a Supporting Member
Frank808 is a founding member
 has been a member for 10 years
Frank808 is for the Gunfight
If there is a current hydro will only be good till the last day of May 2012.
__________________
PBNation Feedback
Frank808 is offline   Reply With Quote
Old 04-28-2012, 10:35 AM #909
CA_Tectonics


CA_Tectonics's Avatar

Join Date: Feb 2010
Location: Northern CA
Quote:
Originally Posted by Fapelbaum555 View Post
Thank you very much for the info, here are couple images of the tank and label...

images

Thank you very much for all the info. Hope the image helps, let me know otherwise
Thanks for the pictures. Unfortunately, as I suspected, the born-on date is indeed June 1997. With a service lifespan of 15 years, that means that the end date for that tank is through May 2012. Also, as Frank808 stated above, even to legally have it filled, it would need a current hydrostatic test label on it. It is hard to tell from the picture but that white circular label/sticker on it may be a hydro test label. However, at the current age of the tank, it should have 2 hydro labels on it if it was used continuously. If it is out of hydro, it would need a hydro test performed on it (~$25-$40) but do keep in mind that even if you do get it hydro tested (or it is current), the end lifespan is still through the end of May 2012.

On a side note, I am assuming you are looking at this tank to use it as a bulk tank to fill paintball tank(s). That tank is an 88 cubic feet SCBA tank and you would need additional hardware to be able to fill paintball tank(s).

Hope this helps some. Personally, I would not purchase that tank since the end of life is only a month away and it might need a fresh hydro to even have it filled.
__________________
Graphite Dangerous Power REV-I
TechT bolt engine, REV-I & Disruptive barrel kits, Prophecy V2 w/ Empire feedgate, Crossfire SS 68/4500
Maroon and Polished Aluminum Dangerous Power Threshold
7th Element board, TechT bolt engine, magnet trigger kit, REV-I PMD, Sly Dual Carbon barrel kit, Prophecy V2, Crossfire SS 68/4500
Black and Silver Dangerous Power F8
APE Rampage board, VS bolt, magnet trigger kit, F8 gauge, REDZ barrel kit, Halo B w/ Exalt feedgate, PMI 68/4500
Polished Aluminum and Red Dangerous Power F8
Virtue board, VS bolt, magnet trigger kit, Halo B w/ Exalt feedgate, PMI 68/4500
CA_Tectonics is online now   Reply With Quote
Old 05-18-2012, 03:24 PM #910
TyeStick
-I Run With Guns-

TyeStick's Avatar

Join Date: Oct 2004
Location: SoCal
I know it's a 5 year hydro, but where would I find the BORN date?

TyeStick is offline   Reply With Quote
Old 05-18-2012, 04:37 PM #911
Rob @ Ninja PB


Rob @ Ninja PB's Avatar

Join Date: Sep 2010
Location: Chicago, IL
Rob @ Ninja PB works for a Paintball manufacturer
Rob @ Ninja PB owns a Planet Eclipse Ego
Rob @ Ninja PB supports Team VICIOUS
Rob @ Ninja PB supports our troops
Quote:
Originally Posted by TyeStick View Post
I know it's a 5 year hydro, but where would I find the BORN date?

Right after the M4625 number, you will see "04" and a weird C looking symbol and "12"

That means your tank was born on 04/12. Dont get much fresher than that
__________________
http://www.ninjapaintball.com
http://www.facebook.com/ninjapaintball
NINJA IS PROUDLY MADE IN THE USA - NOT CHINA
Certfied Hydro Test Facility - DOT RIN# G777
NINJA USERS CLUB
Rob @ Ninja PB is offline   Reply With Quote
Old 05-18-2012, 04:46 PM #912
TyeStick
-I Run With Guns-

TyeStick's Avatar

Join Date: Oct 2004
Location: SoCal
Quote:
Originally Posted by Rob @ Ninja PB View Post
Right after the M4625 number, you will see "04" and a weird C looking symbol and "12"

That means your tank was born on 04/12. Dont get much fresher than that
Thanks Rob. The tank is Ninja, with your Adj Ninja Pro regulator.
I replaced my Inline Maxflo with Ninja, and realized that my Dye Rhino cover from my 68/4500. Maxflo doesn't fit my Ninja. The Ninja is one inch shorter, or more.. I was pleasantly surprised.

Thanks Rob!
TyeStick is offline   Reply With Quote
Old 11-12-2012, 04:59 PM #913
turmoil
PTPer right here baby

turmoil's Avatar

Join Date: Oct 2011
Location: NOVA
turmoil is a Paintball photographer
turmoil plays in the PSP
turmoil is playing at Living Legends VII
turmoil supports Pev's Paintball
turmoil plays in the APPA D4 division
Still a little confused about the 3/5 year difference. Can someone help me out with this one. I know it was born on 05/04 and re-hydro'd on 01/10.



turmoil is offline   Reply With Quote
Old 01-27-2013, 02:17 AM #914
panamanian pumper


Join Date: Jul 2009
Hey guys, will appreciate any help about 3 or 5 and when is the next date for hydrotest for these two tanks:

crossfire 3000
TC-3FCM-206
DOT-E 7277-3000
ALT 296C-136072
05 cl 06
HYDROTESTED ON 8 09


CROSSFIRE 4500
DOT-SP 14339-4500
BG16531 M5696
cl 09/08 REE:14
panamanian pumper is offline   Reply With Quote
Old 01-27-2013, 07:12 AM #915
Tabris17
Will B/S/T Souls

Tabris17's Avatar

Join Date: Jan 2006
Location: Connecticut
Annual Supporting Member
Tabris17 is a Moderator
Tabris17 is BST Legit
Tabris17 supports our troops
Tabris17 is one of the top 250 posters on PbNation
Tabris17 is Boss
Tabris17 is attending Decay of Nations VII
3000 psi tanks are generally 3-years. Your 3000 tank is overdue for a hydro, it was due by August 2012 so it needs to be retested.
Your 4500 psi tank needs to be retested this year on or before September 2013. It is a 5-year cylinder.
__________________
Owner of the Silent Hill Cyborg... the most evil marker in paintball.
KGB MOB

"Only the foolish believe suffering is just wages for being different. Only the savage regard the endurance of pain as the measure of worth. Only the insane equate pain with success."

PBR Feedback +26/-0 PBN Feedback +16/-0 IOG Feedback +10/-0
Tabris17 is offline   Reply With Quote
Old 01-28-2013, 12:21 PM #916
panamanian pumper


Join Date: Jul 2009
Thanks!
panamanian pumper is offline   Reply With Quote
