Old 04-20-2012, 04:05 PM #1
Nexxux
Axestasy

Nexxux's Avatar

Join Date: Oct 2009
Location: ***502***
Annual Supporting Member
Nexxux supports DLX Technology
Nexxux supports Empire
Axe Oring List

I disassembled my entire axe and made an Oring List for you guys.

Here ya go:

Stock Axe


Lurker Eigenbolt Axe

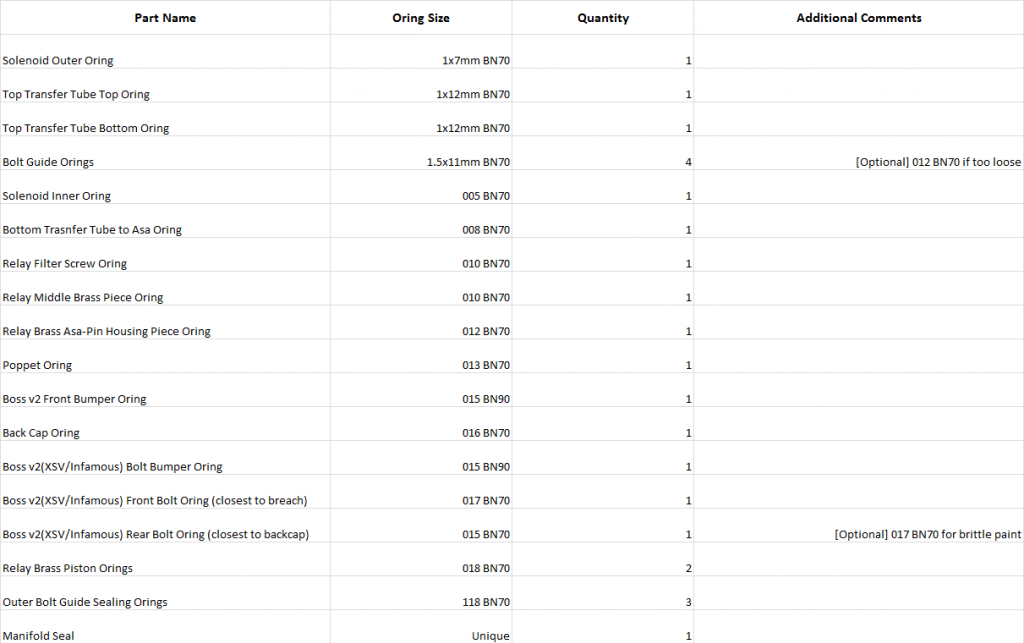

Boss v2(XSV/Infamous) Axe
__________________
"Mess with the best, Die like the rest"

Last edited by Nexxux : 03-14-2014 at 09:52 PM.
Nexxux is offline   Reply With Quote
Old 04-20-2012, 04:30 PM #2
SNAKESNIPER (Banned)


Join Date: Nov 2011
Location: Toronto
what about the bolt guide o-ring that sits closest to the back of the guide, behind the bolt?
SNAKESNIPER is offline   Reply With Quote
Old 04-20-2012, 04:36 PM #3
Nexxux
Axestasy

Nexxux's Avatar

Join Date: Oct 2009
Location: ***502***
Annual Supporting Member
Nexxux supports DLX Technology
Nexxux supports Empire
for the stock, thats the 4th front bolt guide oring
__________________
"Mess with the best, Die like the rest"
Nexxux is offline   Reply With Quote
Old 04-20-2012, 04:37 PM #4
Nexxux
Axestasy

Nexxux's Avatar

Join Date: Oct 2009
Location: ***502***
Annual Supporting Member
Nexxux supports DLX Technology
Nexxux supports Empire
shoulda just named it bolt guide orings

its just my rough draft. i can correct the names and stuff if anyone points stuff out
__________________
"Mess with the best, Die like the rest"
Nexxux is offline   Reply With Quote
Old 04-20-2012, 04:39 PM #5
SNAKESNIPER (Banned)


Join Date: Nov 2011
Location: Toronto
Quote:
Originally Posted by Nexxux View Post
for the stock, thats the 4th front bolt guide oring
Right. I'm wondering what size it is though?
SNAKESNIPER is offline   Reply With Quote
Old 04-20-2012, 04:41 PM #6
Nexxux
Axestasy

Nexxux's Avatar

Join Date: Oct 2009
Location: ***502***
Annual Supporting Member
Nexxux supports DLX Technology
Nexxux supports Empire
mine was the same as the front bolt orings - 1.5x11mm BN70

i use the lurker so i have no back bumper oring. but i put the 1.5x11mm BN70 on and installed the stock bolt, and it seemed to fit and work perfectly.

im also not positive of oring boss's new xsv and infamous bolts use as the back bolt guide bumper to shot the fragile paint. the optional oring. if anyone knows, let me know and ill put it on the list for boss v2 axe.
__________________
"Mess with the best, Die like the rest"

Last edited by Nexxux : 04-20-2012 at 04:45 PM.
Nexxux is offline   Reply With Quote
Old 04-20-2012, 04:43 PM #7
SNAKESNIPER (Banned)


Join Date: Nov 2011
Location: Toronto
Really? Can anyone confirm that the rear o-ring is the same as the front ones?

Reason I ask, is because I just un-installed my Lurker bolt, and I can't remember what o-ring to put back on the rear of the bolt!
SNAKESNIPER is offline   Reply With Quote
Old 04-20-2012, 04:47 PM #8
Nexxux
Axestasy

Nexxux's Avatar

Join Date: Oct 2009
Location: ***502***
Annual Supporting Member
Nexxux supports DLX Technology
Nexxux supports Empire
haha, you have the same problem as me then ;-)

also, does the boss bolt use the same rear bolt guide bumper?
__________________
"Mess with the best, Die like the rest"
Nexxux is offline   Reply With Quote
Old 04-20-2012, 05:01 PM #9
TheBoss33


TheBoss33's Avatar

Join Date: Dec 2002
Location: Waterloo, NY
TheBoss33 is a Supporting Member
 has been a member for 10 years
TheBoss33 is All In
TheBoss33 is All In
Yes all four small bolt guide o-rings (including the bumper) are the same size. I do not change that o-ring for use with any of my bolts.
TheBoss33 is offline   Reply With Quote
Old 04-20-2012, 05:06 PM #10
Nexxux
Axestasy

Nexxux's Avatar

Join Date: Oct 2009
Location: ***502***
Annual Supporting Member
Nexxux supports DLX Technology
Nexxux supports Empire
alright thanks, which oring do you change on your xsv or infamous bolt to shoot more fragile paint with a dwell of 10ms then?
__________________
"Mess with the best, Die like the rest"
Nexxux is offline   Reply With Quote
Old 04-20-2012, 05:31 PM #11
SNAKESNIPER (Banned)


Join Date: Nov 2011
Location: Toronto
Correct me if I'm wrong, but you replace the o-ring that's closest to the bottom of the bolt with the supplied replacement o-ring. (I just read the instructions )
SNAKESNIPER is offline   Reply With Quote
Old 04-20-2012, 05:44 PM #12
TheBoss33


TheBoss33's Avatar

Join Date: Dec 2002
Location: Waterloo, NY
TheBoss33 is a Supporting Member
 has been a member for 10 years
TheBoss33 is All In
TheBoss33 is All In
Quote:
Originally Posted by SNAKESNIPER View Post
Correct me if I'm wrong, but you replace the o-ring that's closest to the bottom of the bolt with the supplied replacement o-ring. (I just read the instructions )
Correct
TheBoss33 is offline   Reply With Quote
Old 04-20-2012, 05:49 PM #13
Nexxux
Axestasy

Nexxux's Avatar

Join Date: Oct 2009
Location: ***502***
Annual Supporting Member
Nexxux supports DLX Technology
Nexxux supports Empire
bottom of the bolt? do you mean the rear 017 oring on the bolt itself?
__________________
"Mess with the best, Die like the rest"
Nexxux is offline   Reply With Quote
Old 05-05-2012, 09:37 PM #14
hth_1
Another Canadian

hth_1's Avatar

Join Date: Dec 2011
Location: Alberta, Canada
hth_1 owns a Planet Eclipse Geo
hth_1 owns a Planet Eclipse Ego
hth_1 posts videos on PbNation
hth_1 supports Empire
Sorry for the Necro but would you happen to have this list for a mini as well?
__________________
Owner of:
-Teal on Pewter dart'd ego11
-Black with Chrome axe
-Olive Hammer 7
-Green Eagle autococker
-Racer red eNMEy
*And where any marker can be gone at the right price ;) *
Especially the ego for a geo2(or other 2 variations) plus cash
hth_1 is offline   Reply With Quote
Old 05-05-2012, 09:40 PM #15
Nexxux
Axestasy

Nexxux's Avatar

Join Date: Oct 2009
Location: ***502***
Annual Supporting Member
Nexxux supports DLX Technology
Nexxux supports Empire
Nah. I don't own a mini at the moment or I could do one for ya.
__________________
"Mess with the best, Die like the rest"
Nexxux is offline   Reply With Quote
Old 05-05-2012, 09:42 PM #16
SNAKESNIPER (Banned)


Join Date: Nov 2011
Location: Toronto
Try asking Simon on the Simonized Forums, he may be able to help.
SNAKESNIPER is offline   Reply With Quote
Old 05-05-2012, 09:46 PM #17
hth_1
Another Canadian

hth_1's Avatar

Join Date: Dec 2011
Location: Alberta, Canada
hth_1 owns a Planet Eclipse Geo
hth_1 owns a Planet Eclipse Ego
hth_1 posts videos on PbNation
hth_1 supports Empire
Thanks man, I will definitely try there.
__________________
Owner of:
-Teal on Pewter dart'd ego11
-Black with Chrome axe
-Olive Hammer 7
-Green Eagle autococker
-Racer red eNMEy
*And where any marker can be gone at the right price ;) *
Especially the ego for a geo2(or other 2 variations) plus cash
hth_1 is offline   Reply With Quote
Old 05-05-2012, 10:12 PM #18
SNAKESNIPER (Banned)


Join Date: Nov 2011
Location: Toronto
SNAKESNIPER is offline   Reply With Quote
Old 05-05-2012, 10:16 PM #19
7paintball
7paintball•Everything pb

7paintball's Avatar

Join Date: Apr 2010
Location: Lockport, IL
7paintball is playing at Living Legends VII
Thanks for the list
__________________
7paintball - All Things Paintball
1143 E 9th Street
Lockport, IL 60441
1.815.588.1777

7pbA wants to buy your used gear!

Certified Planet Eclipse & Tippmann Tech Center
7paintball is offline   Reply With Quote
Old 05-05-2012, 11:20 PM #20
hth_1
Another Canadian

hth_1's Avatar

Join Date: Dec 2011
Location: Alberta, Canada
hth_1 owns a Planet Eclipse Geo
hth_1 owns a Planet Eclipse Ego
hth_1 posts videos on PbNation
hth_1 supports Empire
Quote:
Originally Posted by Nexxux View Post
Nah. I don't own a mini at the moment or I could do one for ya.
Oh man if you could you'd be pretty awesome in my books
__________________
Owner of:
-Teal on Pewter dart'd ego11
-Black with Chrome axe
-Olive Hammer 7
-Green Eagle autococker
-Racer red eNMEy
*And where any marker can be gone at the right price ;) *
Especially the ego for a geo2(or other 2 variations) plus cash
hth_1 is offline   Reply With Quote
Old 05-06-2012, 12:15 AM #21
incognito-z
Buying All Invert Mini's

incognito-z's Avatar

Join Date: Jun 2011
Location: Los Angeles
Annual Supporting Member
incognito-z is playing at Living Legends VII
incognito-z owns a Planet Eclipse Geo
incognito-z is for the Gunfight
incognito-z posts videos on PbNation
incognito-z supports Pev's Paintball
incognito-z is Legendary
incognito-z supports DLX Technology
Great list. Thanks for doing this!
__________________
GET YOUR NUMMECH VL FRAME FOR MINI/AXE HERE! CHECK THEM OUT!
Sell Me Your Invert Mini! - Mini/Axe Stock Parts

If you're having trouble with your Mini/Axe, PM me! I'm more than happy to help out.
Proud Beta-Tester and Authorized Retailer for Nummech - Proudly Sponsored by Guerilla Air - Hustle PB
incognito-z is offline   Reply With Quote
