Old 05-13-2010, 09:09 PM #1
Slayer79


Slayer79's Avatar

Join Date: Aug 2008
Location: Plainfield, NJ
Slayer79 has achieved Level 1 in PbNation Pursuit
Slayer79 has perfected Level 1 in PbNation Pursuit
Tippmann 98 front vertical grip

Has anyone just plain cut off the front grip? I mean removed the plastic end piece and cut off the metal part. I had this crazy idea of cutting that piece off and attaching a weaver rail (using a similiar mount method as the stock 98c bottomline).
__________________
Modded Bruizer SOB, Tippmann 98C,
BE Stingray, BE Tiger Shark, 2k1 Angel LCD Project, VM-68, 95 Autococker pump project, 04 E1 equipped Prostock, 2k2 VF Autococker, WGP Outkast, 2k Angel LCD Project x2, BE Cobra, Nelspot 007
<a href="http://www.pbnation.com/showthread.php?t=3026046">Angel Army</a>
Slayer79 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 05-13-2010, 09:51 PM #2
The TinMan


The TinMan's Avatar

Join Date: Jul 2007
I've cut 10 or 15 off.

Try to add a body bolt above the cut off area. Two team guns with
body screw added after in pics.
Two different locations for bolt. 1st pic. is better location.




__________________
Tippinators Paintball Team - www.tippinators.com
The TinMan is offline   Reply With Quote
Old 05-13-2010, 10:34 PM #3
Slayer79


Slayer79's Avatar

Join Date: Aug 2008
Location: Plainfield, NJ
Slayer79 has achieved Level 1 in PbNation Pursuit
Slayer79 has perfected Level 1 in PbNation Pursuit
Yup that's what I am talking about. I think it will give the gun a cleaner look with the add on goodies I have planned for it. Thanks for the pics and the tip on the body bolt! Did you just use extra factory bolts?
__________________
Modded Bruizer SOB, Tippmann 98C,
BE Stingray, BE Tiger Shark, 2k1 Angel LCD Project, VM-68, 95 Autococker pump project, 04 E1 equipped Prostock, 2k2 VF Autococker, WGP Outkast, 2k Angel LCD Project x2, BE Cobra, Nelspot 007
<a href="http://www.pbnation.com/showthread.php?t=3026046">Angel Army</a>
Slayer79 is offline   Reply With Quote
Old 05-13-2010, 10:42 PM #4
The TinMan


The TinMan's Avatar

Join Date: Jul 2007
Yes, drill a small hole right through the gun. Drill the left side only, large enough for a body screw to pass through.
Drill the same hole just a little bit, but with a drill the size of the screw head.
Tap the other shell 10-32.
You'll need to use the right bits to make it clean and the right size to tap.

Make sure you don't hit the ball detent
__________________
Tippinators Paintball Team - www.tippinators.com
The TinMan is offline   Reply With Quote
Old 05-14-2010, 08:17 AM #5
DarkShadowHunter
Screwball, One Each

Join Date: Jan 2008
Location: Grand Junction, MI
DarkShadowHunter supports Sherwood Forest
I have always wondered where I would put the extra screw to do this. Those pics have helped me out.

Now if only I had a drill press.
__________________
Hole In The Wall Paintball
DarkShadowHunter is offline   Reply With Quote
Old 05-14-2010, 12:08 PM #6
Whiteyboy
Moderator

Whiteyboy's Avatar

Join Date: Feb 2007
Location: NY "9won4"
Annual Supporting Member
Whiteyboy is a Moderator
Whiteyboy donated to help Peyton Trent
Whiteyboy is playing at Living Legends V
Whiteyboy supports Bob Gurnsey
Whiteyboy supports our troops

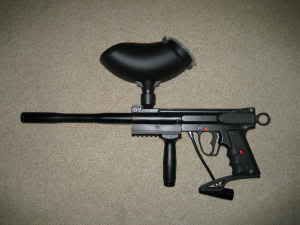

Not mine, it was a pic I found of one locally awhile back. Sounds like what you wanted to do.



Last edited by Whiteyboy : 05-14-2010 at 12:12 PM.
Whiteyboy is offline   Reply With Quote
Old 05-14-2010, 12:54 PM #7
The TinMan


The TinMan's Avatar

Join Date: Jul 2007
I kind of like that. IMO, the Platinum's should have lost the front grip in favour of a rail like that one WB.
__________________
Tippinators Paintball Team - www.tippinators.com
The TinMan is offline   Reply With Quote
Old 05-15-2010, 12:56 PM #8
tippmannnewb
Levothyroxine.

tippmannnewb's Avatar

Join Date: Jan 2006
Location: ontario
Here's mine, I rounded the whole front end and plugged it up with JB weld, thats another option.




Edit: Note the sloppy nut and bolt running through the front end. I would definitely recommend what The Tinman did, looks much cleaner.
__________________
/k/

Last edited by tippmannnewb : 05-15-2010 at 01:03 PM.
tippmannnewb is offline   Reply With Quote
Old 05-17-2010, 12:26 AM #9
Slayer79


Slayer79's Avatar

Join Date: Aug 2008
Location: Plainfield, NJ
Slayer79 has achieved Level 1 in PbNation Pursuit
Slayer79 has perfected Level 1 in PbNation Pursuit
Quote:
Originally Posted by Whiteyboy View Post
Not mine, it was a pic I found of one locally awhile back. Sounds like what you wanted to do.


Yup that is what I have in mind. Wonder what brand rail that is?
__________________
Modded Bruizer SOB, Tippmann 98C,
BE Stingray, BE Tiger Shark, 2k1 Angel LCD Project, VM-68, 95 Autococker pump project, 04 E1 equipped Prostock, 2k2 VF Autococker, WGP Outkast, 2k Angel LCD Project x2, BE Cobra, Nelspot 007
<a href="http://www.pbnation.com/showthread.php?t=3026046">Angel Army</a>
Slayer79 is offline   Reply With Quote
Old 05-30-2010, 06:43 PM #10
socalmadpbstar
Rocking Vans

socalmadpbstar's Avatar

Join Date: Apr 2003
Location: Fullerton, CA
 has been a member for 10 years
socalmadpbstar is playing at Living Legends III
Quote:
Originally Posted by The TinMan View Post
I've cut 10 or 15 off.

Try to add a body bolt above the cut off area. Two team guns with
body screw added after in pics.
Two different locations for bolt. 1st pic. is better location.




Hey tinman, how do you put a centerfeed on a platinum gun? Do you just pull of the ris pieces and go from their the same as a reg 98c, or is there special milling that needs to be done?
__________________
------------------------------
FeedBack!!
http://www.pbnation.com/showthread.p...hreadid=763873
------------------------------
ArtOfPumphttp://artofpump.com/mMmMMm..BRAINS!!
Zombie Paintballhttp://www.facebook.com/pages/Zombie...28010693930708

Last edited by socalmadpbstar : 05-30-2010 at 07:07 PM. Reason: word change
socalmadpbstar is offline   Reply With Quote
Old 05-30-2010, 09:00 PM #11
The TinMan


The TinMan's Avatar

Join Date: Jul 2007
I have to mill a small amount of the material off.
There is a 'U' shaped area on the right side if you look at it.
This is the same level or height as a standard 98 Custom.
I just machine the left until it meets the right.
But yes the rail comes off. You can shorten it and put it back on,
but that was a tourny gun, so the less sharp edges the better.

A short video showing the prep
http://www.youtube.com/watch?v=N0bHXJZ4zsA
__________________
Tippinators Paintball Team - www.tippinators.com

Last edited by The TinMan : 05-30-2010 at 11:03 PM.
The TinMan is offline   Reply With Quote
Old 05-31-2010, 02:50 PM #12
socalmadpbstar
Rocking Vans

socalmadpbstar's Avatar

Join Date: Apr 2003
Location: Fullerton, CA
 has been a member for 10 years
socalmadpbstar is playing at Living Legends III
Thanks much!
__________________
------------------------------
FeedBack!!
http://www.pbnation.com/showthread.p...hreadid=763873
------------------------------
ArtOfPumphttp://artofpump.com/mMmMMm..BRAINS!!
Zombie Paintballhttp://www.facebook.com/pages/Zombie...28010693930708
socalmadpbstar is offline   Reply With Quote
Old 08-05-2012, 09:15 PM #13
BenTheNoob
Roach

Join Date: Aug 2012
Location: Montreal
oh my god your guns are beautiful. Yes you can cut off the grip, but if you don't want to make a "permanent modification" you can get a Tacamo body kit and use it in hopper mode.
BenTheNoob is offline   Reply With Quote
Old 08-06-2012, 12:19 AM #14
Guy In Digi Camo


Guy In Digi Camo's Avatar

Join Date: Feb 2009
Guy In Digi Camo owns a Planet Eclipse Ego
Hey Tinman nice mods, have you ever considered the APE magnetic trigger for the 98's and A-5, I know APE made them for a while but I don't know if they are still hanging around, I had on on mine a long time ago and it ran circles around those TechT triggers
