Old 04-08-2009, 10:58 AM #1
j0hnny


Join Date: Feb 2009
Mini regulator not holding still

So after taking my mini apart (following the video of course), I attached my HPA tank to the regulator. When I move the gun around I can feel the regulator moving side to side even though all the regulator screws have been tightened.

Has anyone had a similar problem? If so how did you fix it?


Any help would be greatly appreciated

Thanks
john
j0hnny is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 04-08-2009, 11:09 AM #2
nwlzch85
nwlzch85

nwlzch85's Avatar

Join Date: Mar 2009
Location: Texas
first you'll need to remove the grips from the frame. there are 4 set screws that hold the reg in place. two that are in the gun frame on the side and two more that are on two posts that are inside the frame near the air transfer tube. you will need to tighten these to lock down the reg, you may use some Blue loctite to secure them. be careful not to strip these. replace grips and you should be good to go.
__________________
][nvert MINI #038788, DW cf 14" w/freaks, DXS 48/3k, Extreme Rage loader, custom camo
Stock board/bolt/spring : dwell 18, bip 5, psi 185, fps 275 +/-6
http://www.youtube.com/watch?v=rbUlRMLNepU
nwlzch85 is offline   Reply With Quote
Old 04-08-2009, 11:11 AM #3
j0hnny


Join Date: Feb 2009
Thanks for the quick reply.

Unfortunately, I've done all of that but it's still not working.
j0hnny is offline   Reply With Quote
Old 04-08-2009, 11:29 AM #4
nwlzch85
nwlzch85

nwlzch85's Avatar

Join Date: Mar 2009
Location: Texas

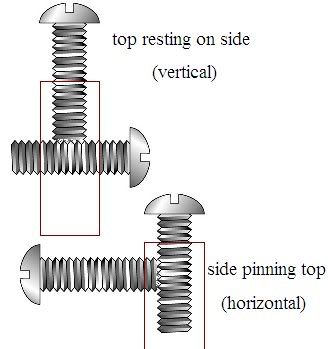

well, im not sure, but i know how i had to lock mine down. try loosening all the screws, top and side. then make sure the reg is fully pushed flush with the bottom of the frame. then screw in the Side frame screws most of the way, then tighten the Top screws inside so they rest on top of the side screws (vertical pressure?). this should pin the reg pretty tightly. (rather than wedging the top screw with the side screw (horiztonal pressure))

nwlzch85 is offline   Reply With Quote
Old 04-08-2009, 11:31 AM #5
nwlzch85
nwlzch85

nwlzch85's Avatar

Join Date: Mar 2009
Location: Texas
hope that helps or makes sense. just made that in paint. lol.
nwlzch85 is offline   Reply With Quote
Old 04-08-2009, 11:52 AM #6
j0hnny


Join Date: Feb 2009
It did. I thought I had tightened the vertical screws enough but apparently not. It is holding still now. Thank you very much.
j0hnny is offline   Reply With Quote
Old 04-08-2009, 03:58 PM #7
Ty29
Nor Mich raised

Ty29's Avatar

Join Date: Sep 2007
Location: West Mich
I partially stripped one trying to fix this same problem but I haven't tried to loosen is yet . It's holding the regulator tight so we'll see how long I can go.
Ty29 is offline   Reply With Quote
Old 04-08-2009, 05:02 PM #8
CDW188
DirtNapSwag.com

CDW188's Avatar

Join Date: Jan 2009
Location: Rochester
CDW188 plays in the PSP
CDW188 owns a Planet Eclipse Ego
CDW188 supports Team VICIOUS
u'd think that Kee would make a modified way for the reg to attach to the gun, seeing as how this has happened to both my Minis and many other ppl... then u have to keep going back like once a month and do it again
__________________
Bob Long Victory V2 & RARE Boss Axe
8 FSU '12
8 FSU '11
8 Roc-City Assassins '10
8 NYC Motion '09
CDW188 is offline   Reply With Quote
Old 04-09-2009, 02:36 PM #9
nwlzch85
nwlzch85

nwlzch85's Avatar

Join Date: Mar 2009
Location: Texas
the only way i have got mine to stay snug is to blue Loctite the heck out of the screws, all four. as far as Kee doing anything to release something that will improve this.... i dunno. mine doesnt really knock loose now though.
__________________
][nvert MINI #038788, DW cf 14" w/freaks, DXS 48/3k, Extreme Rage loader, custom camo
Stock board/bolt/spring : dwell 18, bip 5, psi 185, fps 275 +/-6
http://www.youtube.com/watch?v=rbUlRMLNepU
nwlzch85 is offline   Reply With Quote
Old 04-09-2009, 03:07 PM #10
CDW188
DirtNapSwag.com

CDW188's Avatar

Join Date: Jan 2009
Location: Rochester
CDW188 plays in the PSP
CDW188 owns a Planet Eclipse Ego
CDW188 supports Team VICIOUS
ya, b/c u have blue lock-tight... but I'm talkin about sumtin that doesn't involve home improvement... just straight from the factory good
__________________
Bob Long Victory V2 & RARE Boss Axe
8 FSU '12
8 FSU '11
8 Roc-City Assassins '10
8 NYC Motion '09
CDW188 is offline   Reply With Quote
Old 04-09-2009, 04:10 PM #11
nwlzch85
nwlzch85

nwlzch85's Avatar

Join Date: Mar 2009
Location: Texas
well, with ALL separate moving parts held together by screws, things rattle budge and well, move. screws unscrew themselves, cant be helped. thats why they came up with lock washers and loctite. KEE is no different from any other machine shop that has a problem with this, its just the physics of a screw. dont blame KEE for what they cant control. go to walmart and get a $3 tube of blue loctite and itll solve the issue.
nwlzch85 is offline   Reply With Quote
Old 04-09-2009, 04:17 PM #12
SteveJCarnegie
InVeRt

SteveJCarnegie's Avatar

Join Date: Jul 2008
SteveJCarnegie donated to help Peyton Trent
i just added an extra screw on the opposite side of the grip frame on both of my minis worked great. $1 a gun and 30 sec of time.
SteveJCarnegie is offline   Reply With Quote
Old 04-09-2009, 04:19 PM #13
nwlzch85
nwlzch85

nwlzch85's Avatar

Join Date: Mar 2009
Location: Texas
yeah that works too... dont forget your LOCTITE. lol

you payed a Dollar for those two set screws... man u got Screwed.
(hilarious pun)
nwlzch85 is offline   Reply With Quote
Old 04-09-2009, 05:28 PM #14
CDW188
DirtNapSwag.com

CDW188's Avatar

Join Date: Jan 2009
Location: Rochester
CDW188 plays in the PSP
CDW188 owns a Planet Eclipse Ego
CDW188 supports Team VICIOUS
if u email Kee, they send them to u for free... that's what I did when mine got shreded
__________________
Bob Long Victory V2 & RARE Boss Axe
8 FSU '12
8 FSU '11
8 Roc-City Assassins '10
8 NYC Motion '09
CDW188 is offline   Reply With Quote
