SLG short bolt info (with pictures)

How to test for short bolt (roll back issue)
If thats not the issue then you might have the short bolt / ball roll back issue, you'll need to test if you have that. how so?? this is how. Place a ball into the breach (no hopper), turn the marker on. Your light should turn green indicating you have a ball in the breach, now lean the gun back about 45 degrees (barrel to the sky) and the light should stay green, if it turns red then you have the short bolt issue. How to fix this?? Contact Dye, get an RA# for repairs, write it on the exterior of the shipping package and send them the bolt. takes about 2 weeks to get a new bolt. FIXED

The Problem

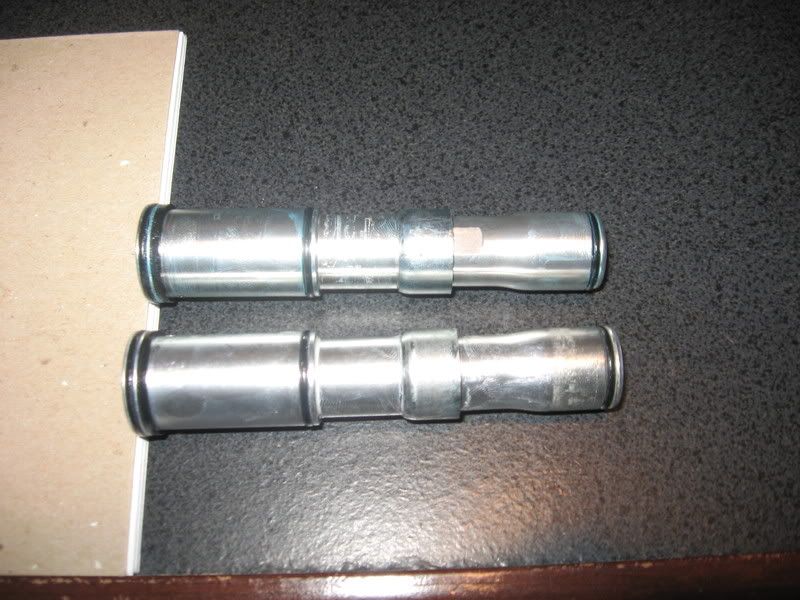

OK, i baught 2 2008 SLG's from 2 different members on the forum. But they both came to me with short bolts and the roll back issue. No problem easy fix b/c all you gotta do is mail your bolt to dye and they replace it. I keep one and sent the other. in this pictures the top bolt is the New proper sized bolt, and the bottom one is short.

(both bolts still have lube on them thats y they dont look smooth)

Now they look almost i dentical in size, I dont have a a proper measuring tool other then a ruler and from the ruler they are the same length. Now what proto did was just replace the tip of the bolt, the back half was my original bolt it came back with my originial scuff marks lol. The new tip has slits in the side to use a wrench on.

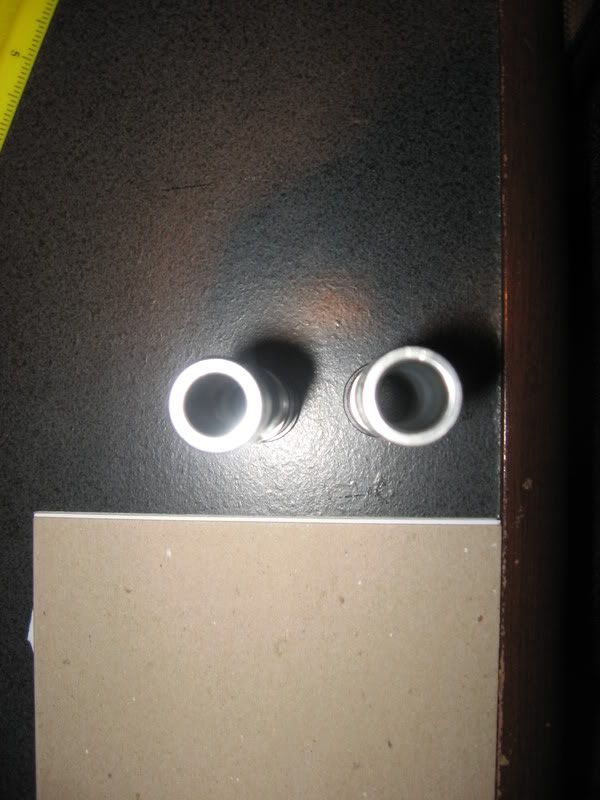

The difference in length comes into play at the very tip of the bolt (thicker wall)

as you can see the top bolt (new bolt) has a thicker wall which makes a lower contact on the ball onces its in the chamber and pushs the ball further forward and breaks the eye beam. So the old bolt isnt short, its not a matter of length its a matter of where they touch the paintballs.



This diagram shows what i'm trying to explain about the bolt. New bolt on top is thicker walls then the old bolt on bottom. The blue lines show the bolt length to be the same but the balls are in different locations.



(hope this can help ppl who think they have short bolt issues. Always test for short bolt with the gun aired up )
__________________
SLG short bolt (roll back Issue)
http://www.pbnation.com/showthread.p...8#post55001008
TIKIMAN12 Feedback:
http://www.pbnation.com/feedback.php?u=381989
Ebay feedback:
http://myworld.ebay.com/tikiman121086/

Last edited by Tikiman12 : 04-12-2011 at 09:01 AM.
Tikiman12 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 01-10-2009, 01:03 AM #2
smasher41
I'm back!!

smasher41's Avatar

Join Date: Feb 2001
Location: Snellville, GA
smasher41 is a Supporting Member
smasher41 is a founding member
 has been a member for 10 years
psssttt....
I believe they just used the 09 slg bolt tip as it will fit on the 08 slg.
the "updated" bolts for the 08 slg were the black plastic, and were later changed back into metal bolts after the first run of 09 slg's snapping due to the thinner wall where it threads to the back of the bolt.

, kinda different than the whole short bolt issue. but you right, the larger cup area will keep the ball from rolling back into the bolt as much.
__________________
R.I.P. ALLEN BOOTH

My FeedBack 40 positive feedback!

Member #155 on PBN
smasher41 is offline   Reply With Quote
Old 01-10-2009, 09:57 AM #3
badmeat


badmeat's Avatar

Join Date: Nov 2008
Location: Northern KY
I have an updated bolt from Dye/Proto....the black plastic, on my 08. When I drop a ball into the breach and look down into the feedneck, it will still roll back and forth between the bolt and detents. Even when aired up and ready to shoot. Normal?
__________________
08 SLG___98 Custom
Unlimited-Paintball.com
badmeat is offline   Reply With Quote
Old 01-11-2009, 10:19 AM #4
sleeper3 (Banned)
LIKE A BOSS

Join Date: Dec 2008
Location: NC/SC
Quote:
Originally Posted by badmeat View Post
I have an updated bolt from Dye/Proto....the black plastic, on my 08. When I drop a ball into the breach and look down into the feedneck, it will still roll back and forth between the bolt and detents. Even when aired up and ready to shoot. Normal?
Does the eye light stay green or turn red as the ball rolls back and forth?
sleeper3 is offline   Reply With Quote
Old 01-16-2009, 01:15 PM #5
Tikiman12


Tikiman12's Avatar

Join Date: Jan 2008
Location: Texas
Bump for some good info for the public
__________________
SLG short bolt (roll back Issue)
http://www.pbnation.com/showthread.p...8#post55001008
TIKIMAN12 Feedback:
http://www.pbnation.com/feedback.php?u=381989
Ebay feedback:
http://myworld.ebay.com/tikiman121086/
Tikiman12 is offline   Reply With Quote
Old 01-30-2009, 06:05 AM #6
Up the snake
RC Revolution

Up the snake's Avatar

Join Date: May 2007
Location: VA (703)
Up the snake plays in the USPL
Up the snake plays in the PSP
Up the snake donated to help Peyton Trent
Up the snake is an NCPA player
very insightful, well put together thread
__________________
WVU

Silver/Titanium G6r ~ Bring Luxes
Up the snake is offline   Reply With Quote
Old 01-30-2009, 09:58 AM #7
bantx


Join Date: Jan 2009
My bolt is like the old one but works fine for me.
