Old 10-31-2007, 02:23 AM #22
jazz1
Death by Snoo-Snoo

jazz1's Avatar

Join Date: Nov 2001
Location: So Cal
Annual Supporting Member
jazz1 is a Supporting Member
jazz1 is a founding member
jazz1 is Immortal
I used 3-4 different dremel bits and took my time...the inside of my frame doesnt look very pleasant but its functional. If anyone attempts this mod, I hope they have prior dremel experience or you may screw something up.











ill take pics of inside the frame when I get the chance.
__________________
PBN Old and NEW Feedback
MCarterBrown Feedback

Sadistik
jazz1 is offline   Reply With Quote
Old Sponsored Links Remove Advertisement
Advertisement
Old 10-31-2007, 10:14 AM #23
juliank88


Join Date: Oct 2007
jazz1thanks for the pics,

when u post up the other pic do u wanna write a really basic walk thru to installing this thing.

also where did u buy your second qev???
juliank88 is offline   Reply With Quote
Old 10-31-2007, 10:50 AM #24
xeese
Mangled Manual Maker

xeese's Avatar

Join Date: Dec 2006
Location: North Carolina
xeese works for a Paintball manufacturer
xeese supports our troops
Kind of funny how the pics make the QEV look so huge. I wonder how the '06 or the Clippard ones would fit in.
__________________
BLAST Manual Specialist

Best boards in the business
xeese is offline   Reply With Quote
Old 10-31-2007, 01:12 PM #25
jazz1
Death by Snoo-Snoo

jazz1's Avatar

Join Date: Nov 2001
Location: So Cal
Annual Supporting Member
jazz1 is a Supporting Member
jazz1 is a founding member
jazz1 is Immortal
Alright heres my write-up: (Credit to Phrank26 for being the first to do this *I think*...which inspired me to do this)


************************************************** ********
I AM NOT RESPONSIBLE IF YOU MESS UP YOUR OWN GUN. DO SO AT YOUR OWN RISK!!! PLANET ECLIPSE WILL NOT COVER ANY OF THE DAMAGES YOU CAUSED TO THE GUN!!!

If you are worried about doing this, then I suggest you just keep your gun the way it is or BUY AN SL/08 EGO. Or I am not sure if Phrank26 is still doing this service but you can hit him up if you are not confident.

Highly highly not recommended for those without prior dremel experience
************************************************** *******

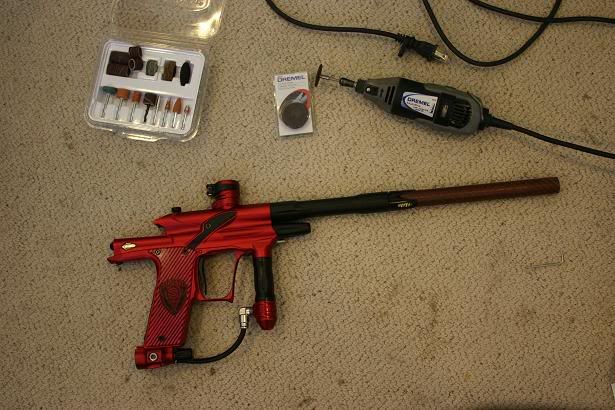

Needed:
- Autococker hosing (Not necessary but just in case you have a leak when taking the hosing off the barbs)
- 07 QEV (I bought mine from CC-Paintball)
- 31 piece Dremel kit from Wal-mart ~ $12
- Extra Large cut off discs from Wal-mart ~ $5
- Dremel (Mine went up 10k RPM and I had it at full speed a lot of the times) ~ $30-50
- Safety goggles
- All other misc tools/allens to take apart your gun

---------------------------------------

1.) Take apart you gun (Barrel, frame, inline reg, trigger, board). So you have access to the QEV/Solenoid and nothing should be left on the trigger frame since you are going to use a dremel

2.) Using a flathead unscrew the silver low pressure elbow. (Its where the new qev will go). Take the hose off the low pressure elbow.

3.) Place the new qev into the hole from where the low pressue elbow came from (dont need to screw it in just yet). But this will help you gauge how long the hose needs to be (Because since the QEV is larger than the low pressure elbow, the hose is shorter)

4.) Cut the hose to the appropriate length and put it onto the new QEV. Now you can screw on the new QEV into the hole.

5.)That was the easy part. Time to take the dremel. If you look at the frame from the top, the back of the frame has a rectangle looking area that is deeper than the rest of the frame. This is where your first (Factory installed) QEV is. You need to mimic that depth to fit the new QEV.

6.) I slid the body and the frame back together and used a washable marker to mark the beginning and the end of the new QEV. (This way you know where to cut).

7.) Using a combination of dremel discs (which I have listed below in the pic) I dremeled and then refit, dremeled and refit. I only wanted to cut what was needed as I did not want to dremel too far and have a hole in the bottom.

8.) Hints* You will have to use the extra large cut off discs to cut against the wall. No other bit will get close enough to the wall of the frame. Your QEV sits right next to the wall of your frame. You can see I dremeled only the right side as this is where the QEV sits.

Pretty much you will have to try to mimic the rear portion of the frame.

I also took a small dremel bit and dremeled inside the frame where the solenoid wires tuck. I almost pinched my solenoid wires until I noticed it was rubbing against the frame.

The frame on the inside looks pretty terrible imo but its functional. You can see how tight fit it is to dremel....







Look closely at the picture above...you can see where I dremeled inside the frame so that the solenoid wires dont pinch.





I used dremel bit 3, 6, 7, 8 on the bottom row if you are counting left to right and the extra large cut-off discs



Shows you how tight fit a dremel bit is....



__________________
PBN Old and NEW Feedback
MCarterBrown Feedback

Sadistik
jazz1 is offline   Reply With Quote
Old 10-31-2007, 01:15 PM #26
jazz1
Death by Snoo-Snoo

jazz1's Avatar

Join Date: Nov 2001
Location: So Cal
Annual Supporting Member
jazz1 is a Supporting Member
jazz1 is a founding member
jazz1 is Immortal
Also props to Planet Eclipse, this is some damn good metal....it took forever to dremel that frame....even at 10k rpm. The frame is pretty damn rock solid...i dont see how people can bend their frame or break it unless they don't know how to superman dive right.
__________________
PBN Old and NEW Feedback
MCarterBrown Feedback

Sadistik
jazz1 is offline   Reply With Quote
Old 10-31-2007, 01:30 PM #27
hunter120891


hunter120891's Avatar

Join Date: Oct 2006
hunter120891 owns a Planet Eclipse Ego
It is aircraft grade aluminum...
hunter120891 is offline   Reply With Quote
Old 10-31-2007, 03:53 PM #28
dm6man


dm6man's Avatar

Join Date: Mar 2006
Location: Canton MA
I got the qev mod done and it has worked wonders for my ego7. jazz where did you get the second ego7 qev? Eclipse wouldnt sell me one?
__________________
LE olive/brown ego8
Ice cuba dedication ego7
certified Dye/Proto tech
dm6man is offline   Reply With Quote
Old 10-31-2007, 04:33 PM #29
juliank88


Join Date: Oct 2007
u da man jazz1

props
juliank88 is offline   Reply With Quote
Old 10-31-2007, 05:36 PM #30
dk_james


Join Date: Oct 2004
nice work Jazz... thanks for the writeup.
dk_james is offline   Reply With Quote
Old 10-31-2007, 05:43 PM #31
96 Ls lnteg
Hola

96 Ls lnteg's Avatar

Join Date: Apr 2004
Location: San Diego
Annual Supporting Member
96 Ls lnteg is a Supporting Member
 has been a member for 10 years
96 Ls lnteg is a Paintball photographer
96 Ls lnteg owns a Planet Eclipse Geo
jazz - 1 Try this Bit Next time I gaurentee this will cut your time in half....

9901 Tungsten Carbide Cutter
__________________
ProPaintball
Planet Eclipse
96 Ls lnteg is offline   Reply With Quote
Old 10-31-2007, 11:50 PM #32
jazz1
Death by Snoo-Snoo

jazz1's Avatar

Join Date: Nov 2001
Location: So Cal
Annual Supporting Member
jazz1 is a Supporting Member
jazz1 is a founding member
jazz1 is Immortal
damn mike...if only I knew...I probably wont be doing this again...so its all good. good tip for any one else about to endeavor this
__________________
PBN Old and NEW Feedback
MCarterBrown Feedback

Sadistik
jazz1 is offline   Reply With Quote
Old 11-01-2007, 12:41 AM #33
shooter686


shooter686's Avatar

Join Date: Jan 2007
Location: Nigara Falls, ON
shooter686 owns a Planet Eclipse Ego
shooter686 plays in the APPA D5 division
shooter686 has achieved Level 2 in PbNation Pursuit
shooter686 supports DLX Technology
these might also work...

http://www.dremel.com/en-us/attachme...=66237&I=66262

i'd use #115/ #117/ #121

__________________
Team Adobo
PINOYBALLASOCIETY

DaLUXE MOB

Purple/Silver Splash 1.0 Luxe
shooter686 is offline   Reply With Quote
Old 11-01-2007, 01:09 AM #34
96 Ls lnteg
Hola

96 Ls lnteg's Avatar

Join Date: Apr 2004
Location: San Diego
Annual Supporting Member
96 Ls lnteg is a Supporting Member
 has been a member for 10 years
96 Ls lnteg is a Paintball photographer
96 Ls lnteg owns a Planet Eclipse Geo
I prefer smaller bit less chance of it flying around...
