Old 08-07-2007, 10:10 PM #1
shockrshootr23 (Banned)


Join Date: Nov 2006
Location: gurnee, illinois
a little ion project

Hey guys, just showing a little it of stuff I've been doing lately. I've been working on a friends ion, and knowing me, i went behind his back and decided to do a ton of **** to his ion. I've cut the body, am working on the bolt out back mod, some bolt mods, random stuff like that. but, im also doing something that is pretty cool IMO. I've decided to attempt to turn the stock ion solenoid into a direct acting noid with a spool. I had a bad shocker solenoid which is where i got the spool and housing from, I cut it so that it is a 3 way system, and I am in the process of mounting it onto the cut ion solenoid. I will also thread it for barbs later.

Everything done/will be done soon:

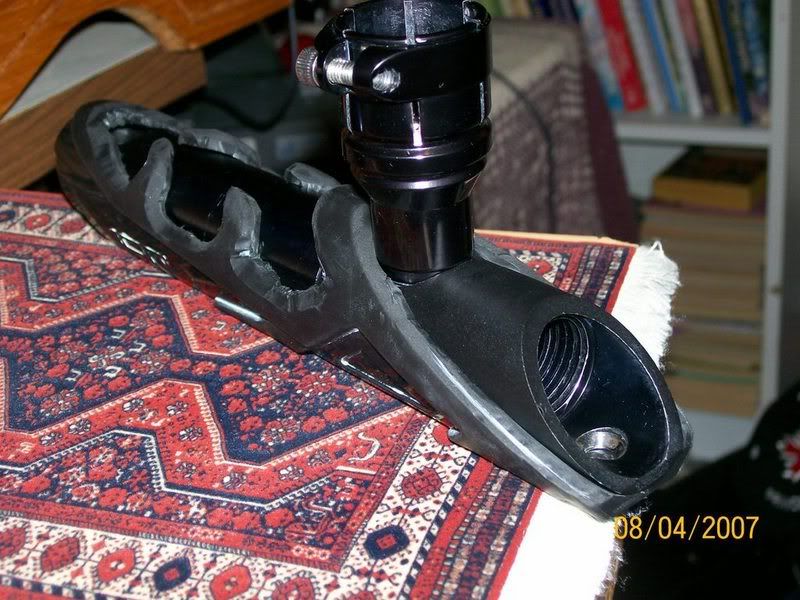

Cut body
Bolt out back
Spring detent mod
Stock trigger has set screws
Possibly cut trigger
Better air flow bolt mods
Cutsom solenoid(yes, it does work)

Pics





defanitly will not be held together by a rubber band. It's only like that for testing.

Last edited by shockrshootr23 : 08-07-2007 at 11:08 PM.
shockrshootr23 is offline
Old Sponsored Links Remove Advertisement
Advertisement
Old 08-07-2007, 10:16 PM #2
Killer_Kill
Semper Fidelis

Killer_Kill's Avatar

Join Date: Dec 2006
Location: SoMich *517*
Killer_Kill supports Cereal Killerz 2
Killer_Kill supports Team VICIOUS
Killer_Kill has perfected Level 1 in PbNation Pursuit
That's cool until your friend kicks your *** for doing that to his gun
__________________
Achilles Machine
Contact me via pm, e-mail, or txt for paintball specific machining services
(517)588-7988
Killing_Machine@comcast.net
︻┳テ=一 - - - -
Killer_Kill is offline
Old 08-07-2007, 10:25 PM #3
shockrshootr23 (Banned)


Join Date: Nov 2006
Location: gurnee, illinois
Quote:
Originally Posted by Killer_Kill View Post
That's cool until your friend kicks your *** for doing that to his gun
lol yeah, but i previously dremelled his ion, and he knew i was going to fix it up a bit. and his battery harnes was messed up anyways so he needed a new board and thats where all of this came in.
shockrshootr23 is offline
Old 08-07-2007, 10:32 PM #4
drake89
fire

drake89's Avatar

Join Date: Oct 2006
well good luck with that
drake89 is offline
Old 08-07-2007, 10:41 PM #5
more than a sport
not a pro...yet

more than a sport's Avatar

Join Date: Jul 2005
Location: where u dont
just cuz im stupid, how will the direct acting noid work different from the stock noid?
__________________
rush of adrenaline.
question: why would you bring a scale from your local post office to the field every weekend?
answer: so when the noobs fight over whose gun is the lighest you can throw your custom milled work of art on the scale and shut them all up, thats why
pics are coming, be patient
more than a sport is offline
Old 08-07-2007, 11:07 PM #6
shockrshootr23 (Banned)


Join Date: Nov 2006
Location: gurnee, illinois
Quote:
Originally Posted by drake89 View Post
well good luck with that
hey your cool.
Quote:
Originally Posted by more than a sport View Post
just cuz im stupid, how will the direct acting noid work different from the stock noid?
It's hard to explain, but the ion's actuator doubles as a spool. im making the actuator hit a separate spool. theres really no point, but ive never seen it before.
shockrshootr23 is offline
Old 08-07-2007, 11:14 PM #7
acoolguy77
The **** winds are blowin

acoolguy77's Avatar

Join Date: Aug 2006
Location: > 313 <
acoolguy77 has achieved Level 1 in PbNation Pursuit
acoolguy77 has achieved Level 2 in PbNation Pursuit
you use a dremel on the body? i like it.
acoolguy77 is offline
Old 08-07-2007, 11:17 PM #8
shockrshootr23 (Banned)


Join Date: Nov 2006
Location: gurnee, illinois
Quote:
Originally Posted by acoolguy77 View Post
you use a dremel on the body? i like it.
yes. Thanks. It looks like **** in the pics. idk why. but its a lot smoother in real life.
shockrshootr23 is offline
Old 08-07-2007, 11:21 PM #9
acoolguy77
The **** winds are blowin

acoolguy77's Avatar

Join Date: Aug 2006
Location: > 313 <
acoolguy77 has achieved Level 1 in PbNation Pursuit
acoolguy77 has achieved Level 2 in PbNation Pursuit
no man,i really like it. i was just workin on my body the other day,and i really like your design. but i dont have a dremel any more, just and razor blade

Did about half of that with a razor blade(exacto knife) and the big things with a dremel.

But i like your design.
acoolguy77 is offline
Old 08-07-2007, 11:25 PM #10
shockrshootr23 (Banned)


Join Date: Nov 2006
Location: gurnee, illinois
Quote:
Originally Posted by acoolguy77 View Post
no man,i really like it. i was just workin on my body the other day,and i really like your design. but i dont have a dremel any more, just and razor blade

Did about half of that with a razor blade(exacto knife) and the big things with a dremel.

But i like your design.
well for using a razor blade that's defanitly really good lol. thanks again.
shockrshootr23 is offline
