Heres the much awaited Vert Maxflow Regulator Lubing walkthrough.

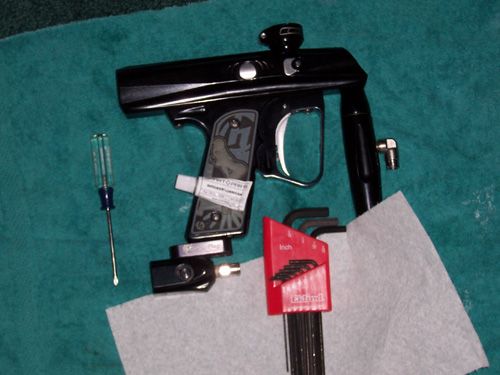

Materials: 3/16" Allen wrench, 3/8"(I believe) Allen Wrench, 3/32" Allen Wrench, Paper Towels,
Rag/towel, Q-tips, and Most important, a Lubricant(Suggested Dow 33, you can use what you like
Step 1: Get all materials together in one section. Place Rag/towel down. Unscrew the regulator from
the gun and place on Rag/towel.
Step 2: Remove the lower grub(set) screw using your 3/32" allen wrench.. Place this in a safe spot.
Step 3: Unscrew the pressure adjuster(lower section) with a 3/16" allen wrench.
Step 4: Remove the lower internals of the regulator. Included in this are the adjuster, spring,
piston seat and the piston. To get the piston out, lightly tap the reg on your towel(do this on
carpet or something similiar so you dont damage the bottom of the reg.).
Step 5: Wipe of lube and set aside. Now, remove the top Grub(set) screw and again, place in a safe
Step 6: Now, using your 3/8" allen wrench, place it in the top portion of the reg, and turn. Remove
top portion and clean off lube. Place aside.
Step 7: Using a q-tip clean out the inside of the regulator. Be careful not to leave any hairs from
the q-tip within the reg.
Step 8: Apply fresh lube to the orings on the top portion of the reg. A moderate amount is good.
Place back inside reg(dont forget the small silver piece and spring) and screw back on.
Step 9: Replace(put back in) the top grub screw, and tighten.
Step 10: Now, lube the piston oring moderatly and place ontop of Piston seat, Spring, and Pressure
adjuster. Make sure the side with the hole in the middle(small hole) is ontop. Place all 4 pieces
back in and put the grub screw in. Tighten, but not too tight for you do not want to bend or damage
the pressure adjuster. If you'd like, after adjusting your pressure you can tighten so it doesnt
unscrew/screw in any.
Step 11: Place Back on Gun.
Step 12: Mow some muppets.
